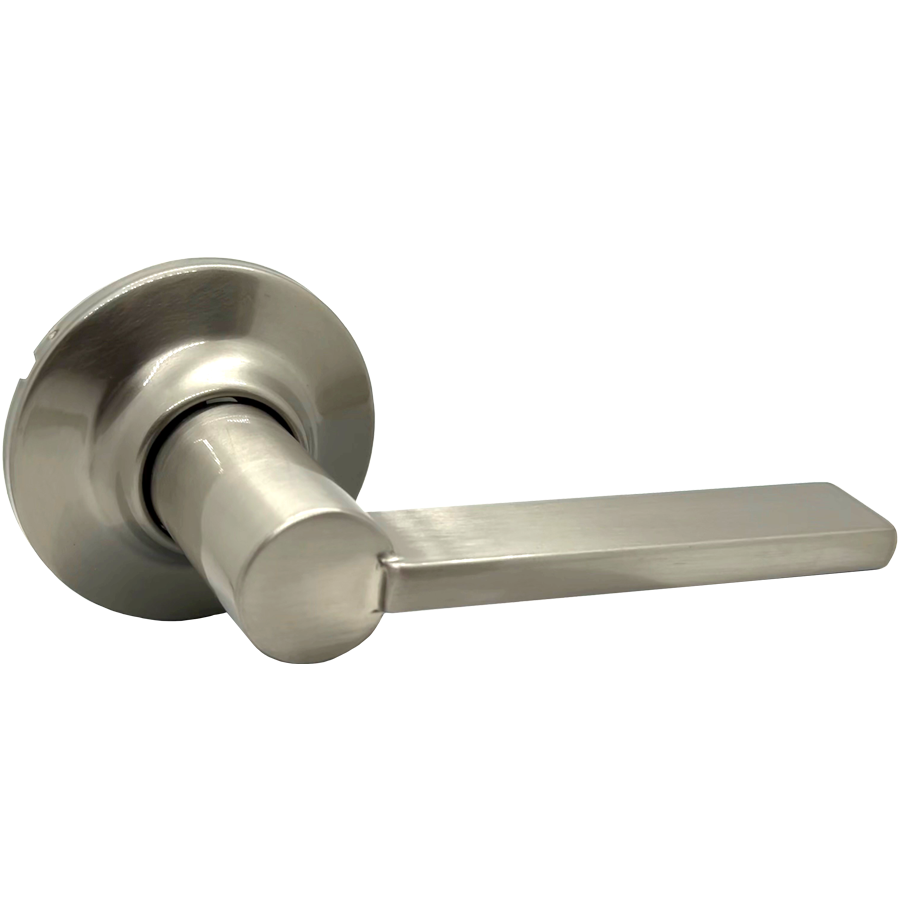

Yale 81 VI 619-ISO Dummy Lever - Vidalia, Grade 3, Satin Nickel 619

Dummy Lever - Vidalia, Grade 3, Satin Nickel 619

New traditions from Yale outstanding strength, durability and simple, elegant designs highlighted by natural curves for comfort and ease of turning. All new traditions products are built on a steel ANSI/BHMA grade 3 chassis and feature concealed holding screws and solid brass cylinder assemblies. In addition, all new traditions products feature Quick-Install, a unique chassis design, which drastically reduces installation time.

Features:

• ANSI/BHMA Certified grade 2
• Available in 9 distinctive finishes
• Easy install mounting system – square spindle simplifies installation - knobs, levers
• Pre-installed mounting screws
• Concealed mounting screws – clean upgraded look
• Available KW-1, SC-1 keyway
• E1R (Para) keyway available for deadbolts and levers only
• Push button locking – panic-free egress
• Solid brass key cylinder and housing
• Removable lever/knob and rosettes – allows for easy scratch-free installation
• Front removable deadbolt cylinder – premier series
• Heavy-duty shroud – added anti-pry security
• Four-wound spring chassis – heavy-duty feel, eliminates lever sag
• Warranty - 3-year mechanical and 1-year finish when used in commercial, institutional or industrial applications

Specifications:

• Door Specs:
• 2-1/8" Face bore
• 1" Edge bore
• 2 3/8"or 2 3/4" Backset
• Latch: 2 3/8" to 2 3/4" RC (round corner)
• Door Thickness: 1-3/8" to 1-3/4"
• Cylinder: 5-Pin cylinder, KW-1 compatible, SC-1, PARA optional
• Keying: KD (keyed different), KA3 (keyed alike
• Faceplate: 1" W x 2 1/4" H, RC (round corner)
• Strike: 2-1/4" Full Lip, RC (round corner)
• Certified: A156.2 Series 4000, grade 3

Lever Selection:

• ML: Mesa
• NL: Niagara
• PL: Prairie
• SL: Savannah
• WL: Woodland
• VI: Vidalia

Lever Functions:

• 81: Dummy
• 101: Passage
• 161: One sided w/plate
• 201: Privacy
• 221: Bath - Privacy with US26 interior finish
• 701: Entry Knob/Lever
• 771: Entry Lever/Lever
• 74LC: Entry SFIC

Finishes:

• 605/US3 - Bright brass
• 609/US5 - Satin brass, blackened, satin relieved, clear coated
• 613e/US10BP - Dark oxidized satin bronze, permanent
• 619/US15 - Satin nickel plated, clear coated
• 620/US15A - Satin nickel plated, blackened, satin relieved, clear coated
• 625/US26 - Bright chrome plated
• 626/US26D - Satin chrome plated
