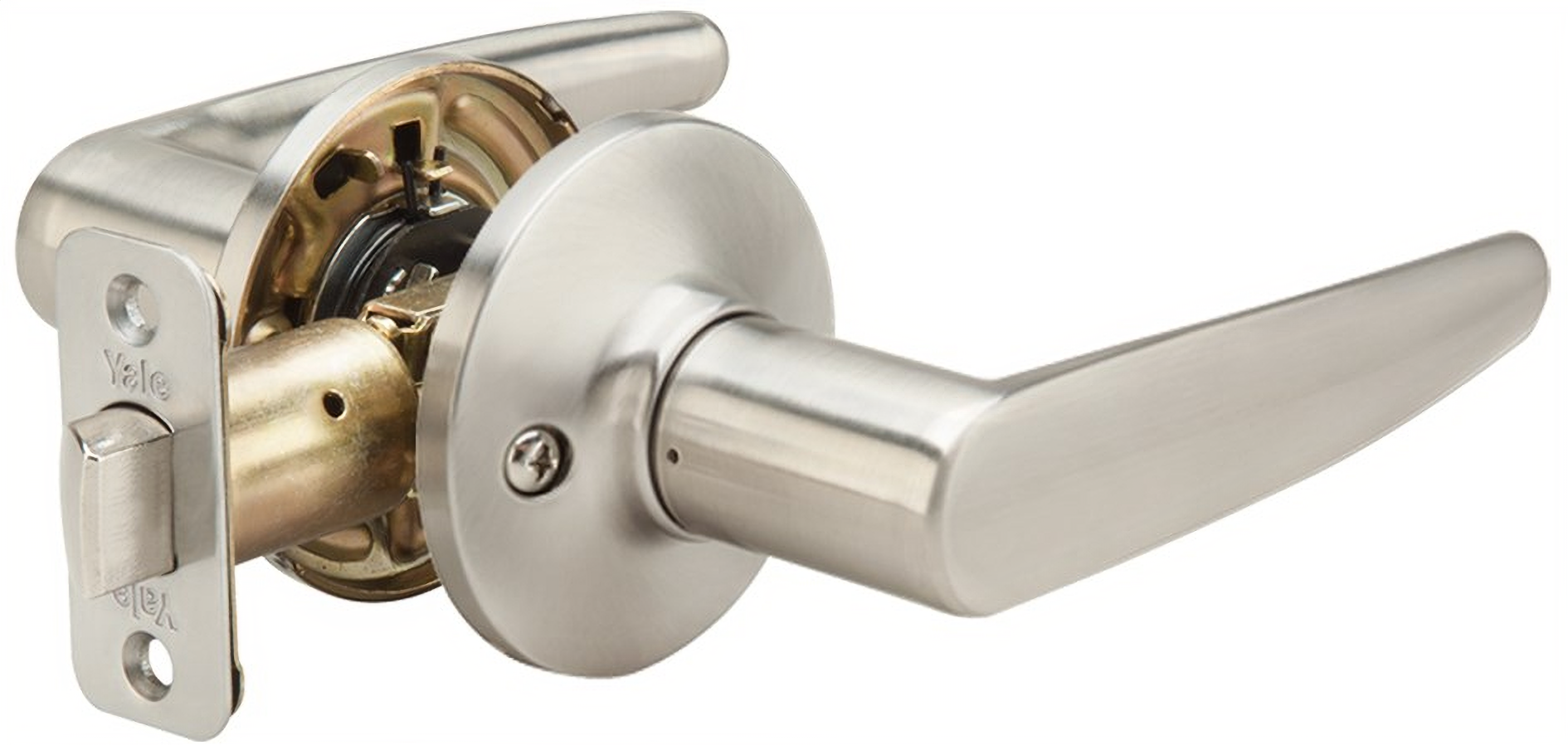

Yale 81YE AL 619-ISO Dummy Lever - Alpharetta, Grade 3, Satin Nickel 619

Yale Residential 81YE AL 619-ISO Dummy Lever - Alpharetta, Grade 3, Satin Nickel 619 is designed to meet the diverse needs of today’s housing market while providing an attractive finish. Part of the Edge series, this lever is constructed to Grade 3 standards, ensuring both value and security for your residential applications. One of its standout features is the removable cylinder, which allows for easy re-keying without the need for special tools. This lever is non-handed, reducing inventory needs and minimizing potential installation errors. With a sleek satin nickel finish, it complements various door styles, making it an ideal choice for townhomes, condos, garden homes, or single-family residences. The 81YE lever is engineered for doors with a thickness of 1 3/8" to 1 3/4", and it fits standard door bore sizes of 2 1/8". It features a 5-pin cylinder compatible with KW-1 keys and comes with a 1-year finish and 5-year mechanical warranty for peace of mind. Whether for a new construction project or a renovation, the Yale 81YE AL 619-ISO Dummy Lever offers a combination of style, functionality, and reliability that is sure to meet the demands of homeowners and building professionals alike.

Dummy Lever - Alpharetta, Grade 3, Satin Nickel 619

Edge series offers attractive designs and finishes to meet the needs of today’s housing market. All Yale edge series product is constructed to meet grade 3 standards. Designed to fulfill the needs of the hardware market in attractive styles and current popular finishes. Whether your project includes townhomes, condos, garden homes, or a single family home, look no further than Yale edge series to fulfill your door hardware needs with the Yale brand.

Features:

• Designed to meet grade 3 standards for value and security
• Removable cylinder for ease of re-keying without special tools
• Non-handed levers lowers inventory needs, minimizes mistakes
• Warranty: 1 year finish / 5 year mechanical
• ADA: Selection of lever styles available with push button to meet ADA requirements

Specifications:

• Door Specs:
• 2 1/8in Face Bore
• 1in Edge Bore
• 2 3/8in or 2 3/4in Backset
• Latch Prep: 1in x 2 1/4in RC (round corner)
• Latch: RC Adjustable only for 2 3/8" or 2 3/4" backset
• Door Thickness: 1 3/8" to 1 3/4" (includes handleset)
• Cylinder: 5 Pin cylinder (KW-1 compatible)
• Keying: KA5
• Faceplate: 1" W x 2 1/4" H RC (round corner)
• Strike: Knob/lever 2 1/4" full lip RC (round corner) deadbolt 1 x 2 1/4" RC (round corner)

Lever Designs:

• AL: Alpharetta/lever
• KW: Keowee/lever
• AT: Athens/knob
• SN: Sinclair/knob

Knob/Lever Functions:

• 80/81: Dummy
• 10/11: Passage
• 20/21: Privacy
• 70/71: Entry
• 23: Privacy ADA
• 73: Entry ADA

Finishes:

• 605/US3 - Bright brass
• 613e/US10BP - Dark oxidized satin bronze, permanent
• 619/US15 - Satin nickel plated, clear coated
• 630/US32D - Satin stainless steel

Resources

• Cut Sheet
