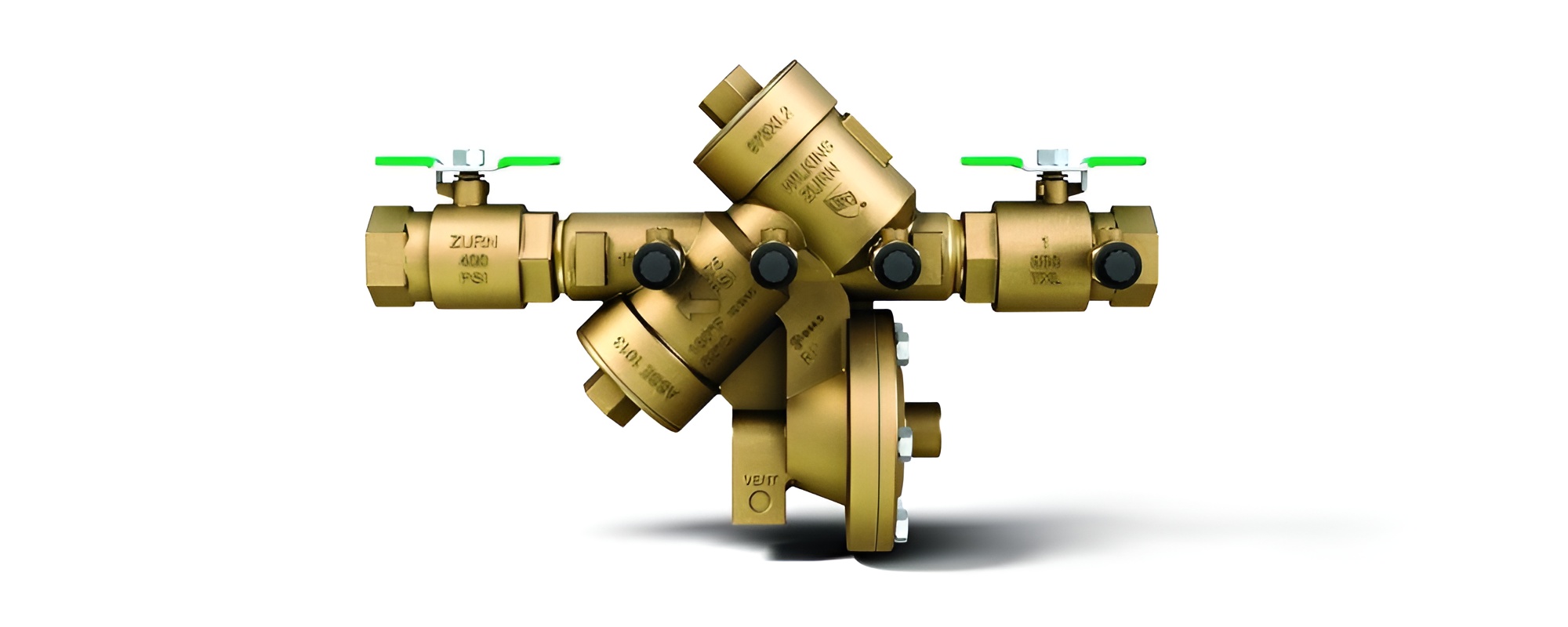

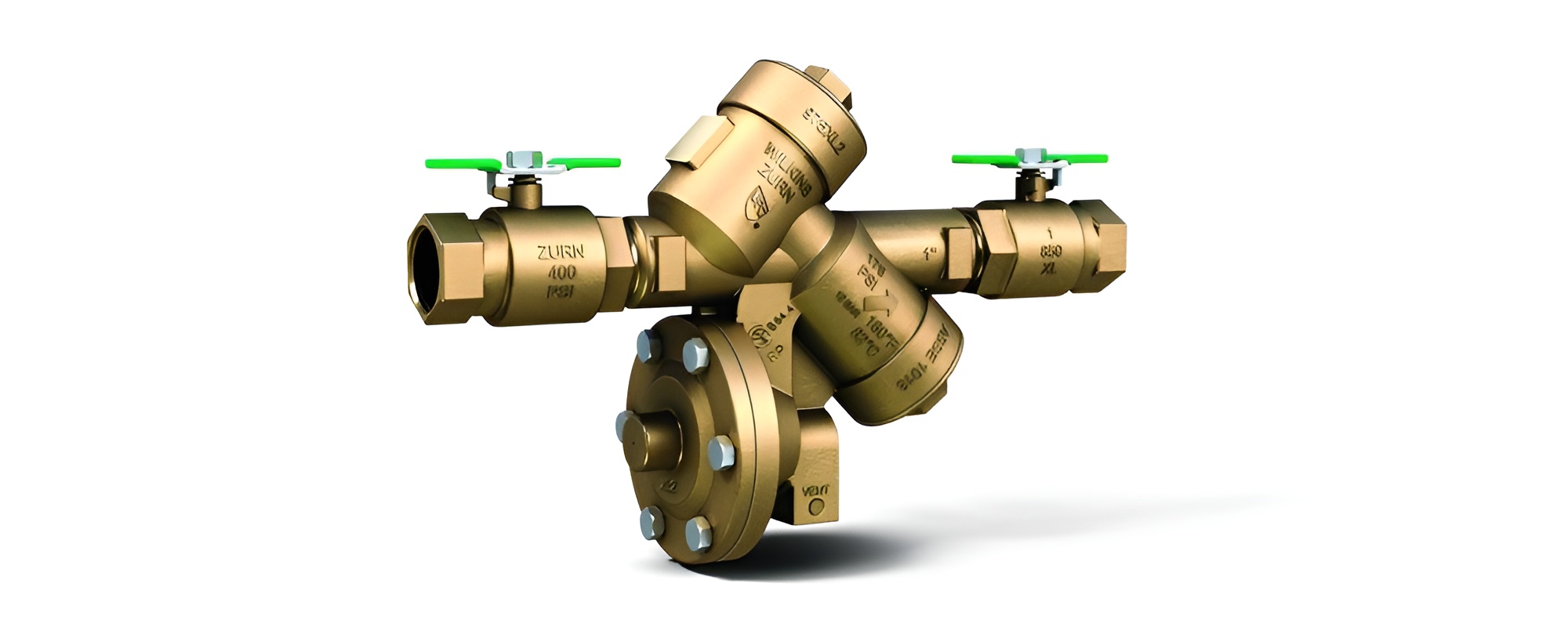

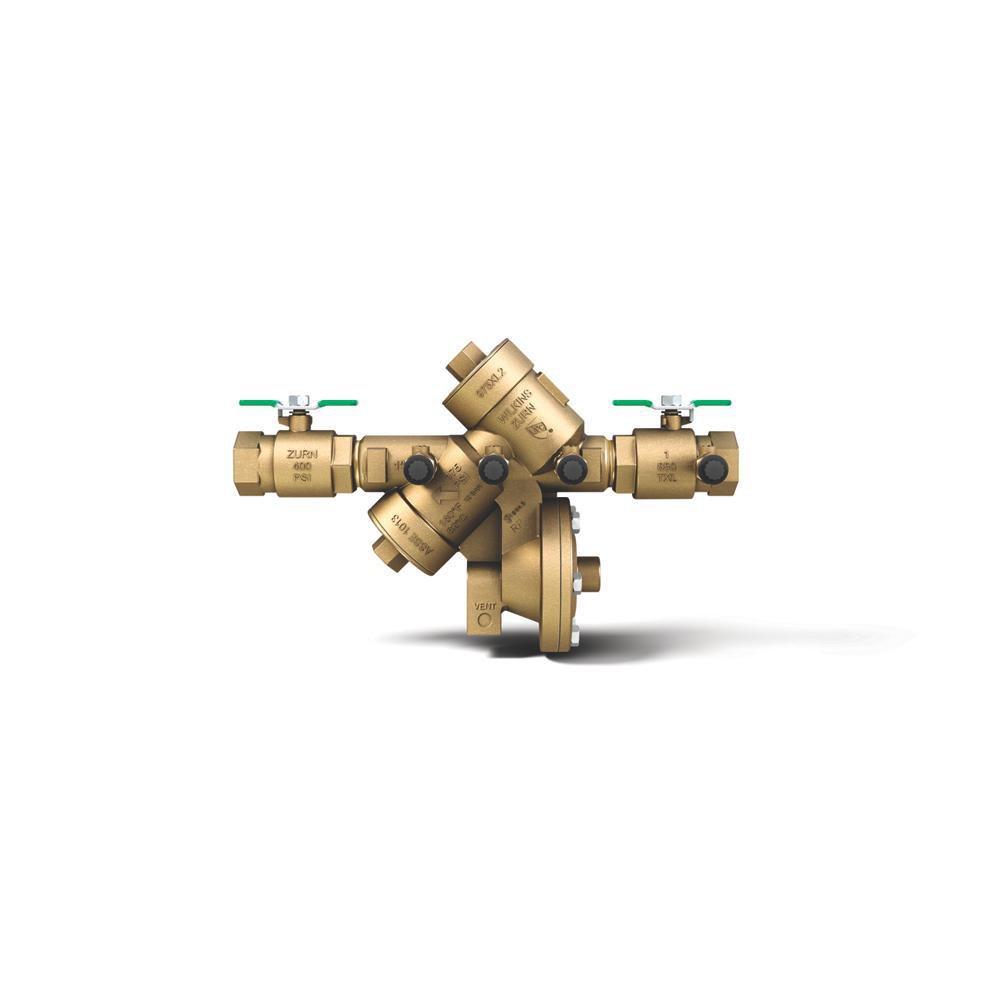

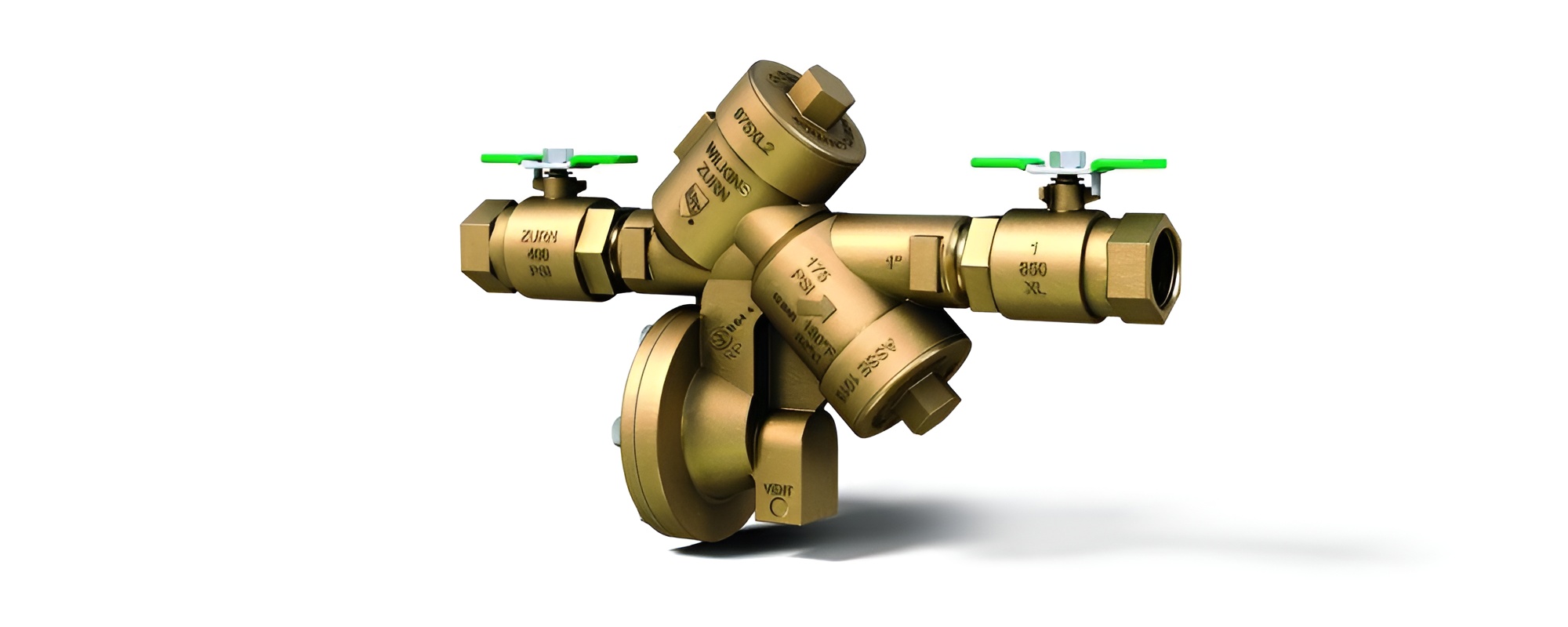

Zurn 1-975XL2 1" Bronze FPT Reduced Pressure Assembly with Quarter-Turn Ball ValvesZurn 1-975XL2 1 in Bronze FPT Reduced Pressure Principle Assembly with Quarter-Turn Ball Valves is engineered for efficiency and reliability, making it a preferred choice among installers worldwide. This assembly features a short lay length that simplifies replacement and repair processes, significantly reducing labor costs. Its innovative wye pattern design allows for separate access to checks and the relief valve, further streamlining maintenance. Constructed from high-quality bronze and equipped with durable rubber, stainless steel, and plastic components, this assembly is built to withstand rigorous conditions. It operates effectively in horizontal installations and supports a maximum pressure of 175 psi, with temperature tolerance ranging from 33°F to 180°F. Its full port opening facilitates optimal flow, ensuring performance in various plumbing applications. The Zurn 1-975XL2 meets stringent standards, including NSF/ANSI 61 compliance, making it safe for drinking water applications. It is ASSE® Listed, cUPC® Listed, and CSA® Certified, providing peace of mind regarding its quality and safety. Additionally, it complies with AWWA standards, ensuring it meets industry best practices. This assembly is lead law compliant and carries the necessary certifications to guarantee safe usage in residential and commercial settings. We recommend considering the upgraded model 975XL3 for new construction projects, offering advanced features for modern installations. With a weight of 14 lb and dimensions of 13 in length, 5-1/8 in width, and 8-1/2 in height, the Zurn 1-975XL2 is designed for easy handling and installation. Trust this assembly for your plumbing needs and experience the perfect blend of functionality and reliability.
1 in Bronze FPT Reduced Pressure Principle Assembly with Quarter-Turn Ball Valves
Short lay length eases replacement and repair time
Wye pattern design provides separate access to checks and relief valve for reduced labor costs
Trusted and recognized favorite by installers worldwide
Approved by the Foundation for Cross Connection Control and Hydraulic Research at the University of Southern California
Meets the requirements of NSF/ANSI 61
ASSE® Listed, cUPC® Listed, CSA® Certified, AWWA Compliant, Safe Drinking Water Act Compliant
We recommend the upgraded model 975XL3 for new construction
CSA® Certified B64.4
AWWA Compliant C511
Attributes
ANSI: ANSI B1.20.1
ASSE Standards: ASSE 1013
AWWA: AWWA C-511
CSA Certified: CSA
Collection: 975XL2
End Connection 1: FPT
End Connection 2: FPT
End Connections: FPT
Height: 8-1/2 in
IAPMO Listed: Yes
Installation Type: Horizontal
Lead Law Compliance Level: Lead Law Compliant and Certified
Lead Law Compliant: Yes
Length: 13 in
Material: Bronze, Rubber, Stainless Steel, Plastic
Material Type: 300, Buna-N, Noryl®
Maximum Temperature: 180
Minimum Temperature: 33
NSF Certified: Yes
Number of Handles: Two Handle
Pressure - Maximum: 175 psi
Proposition 65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Recommended Valve Application: Plumbing, Water
UL Listed: Yes
Upc: 612052069623
Valve Body Material: Bronze
Valve Body Style: Inline
Valve Operator: Tee Handle
Valve Port Opening: Full Port
Valve Seat Material: Noryl
Valve Size: 1 in
Valve Type: Reduced Pressure Principle Assembly
Weight: 14 lb
Width: 5-1/8 in
