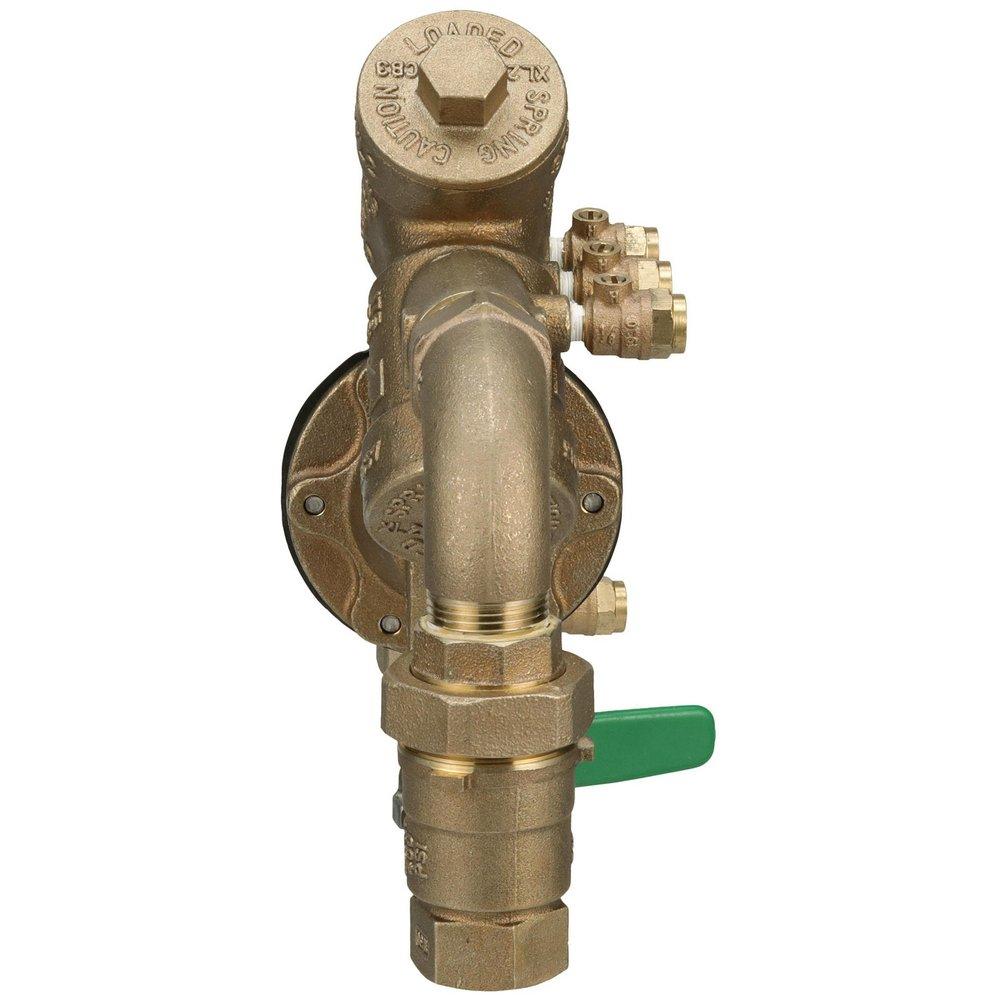

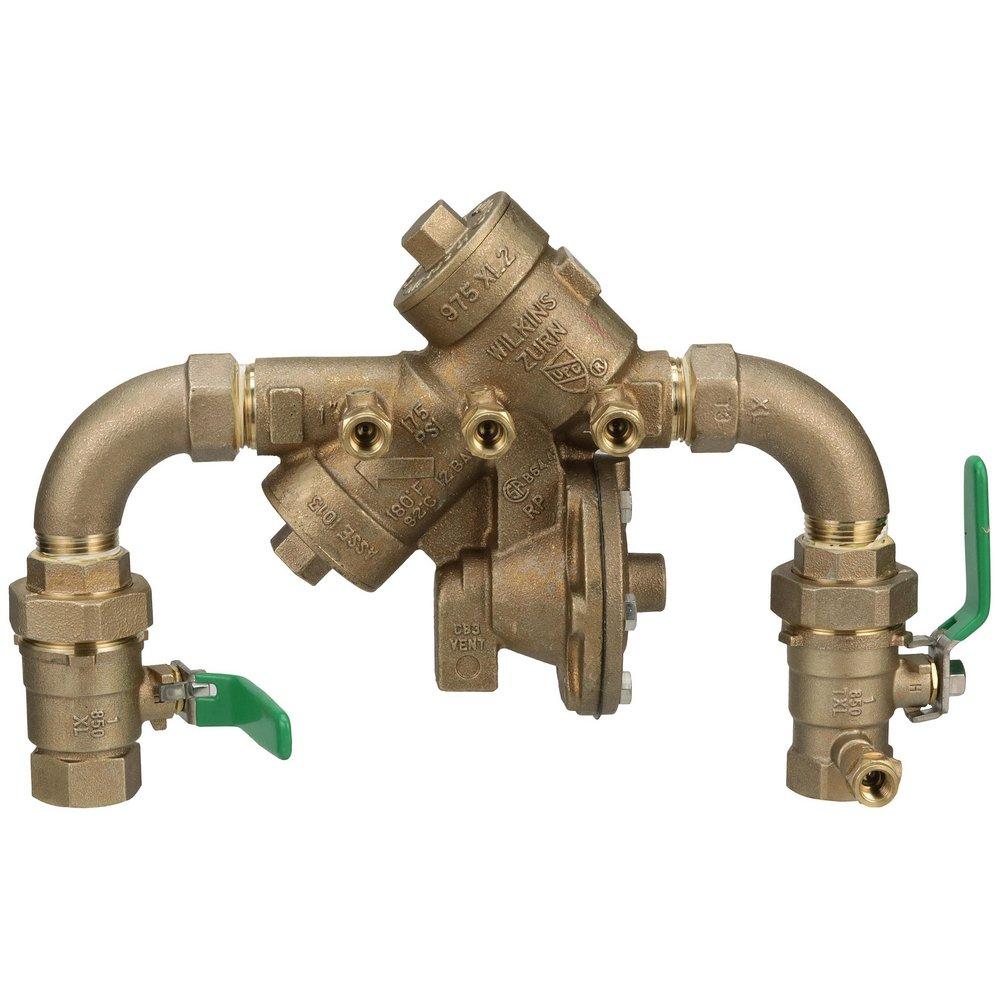

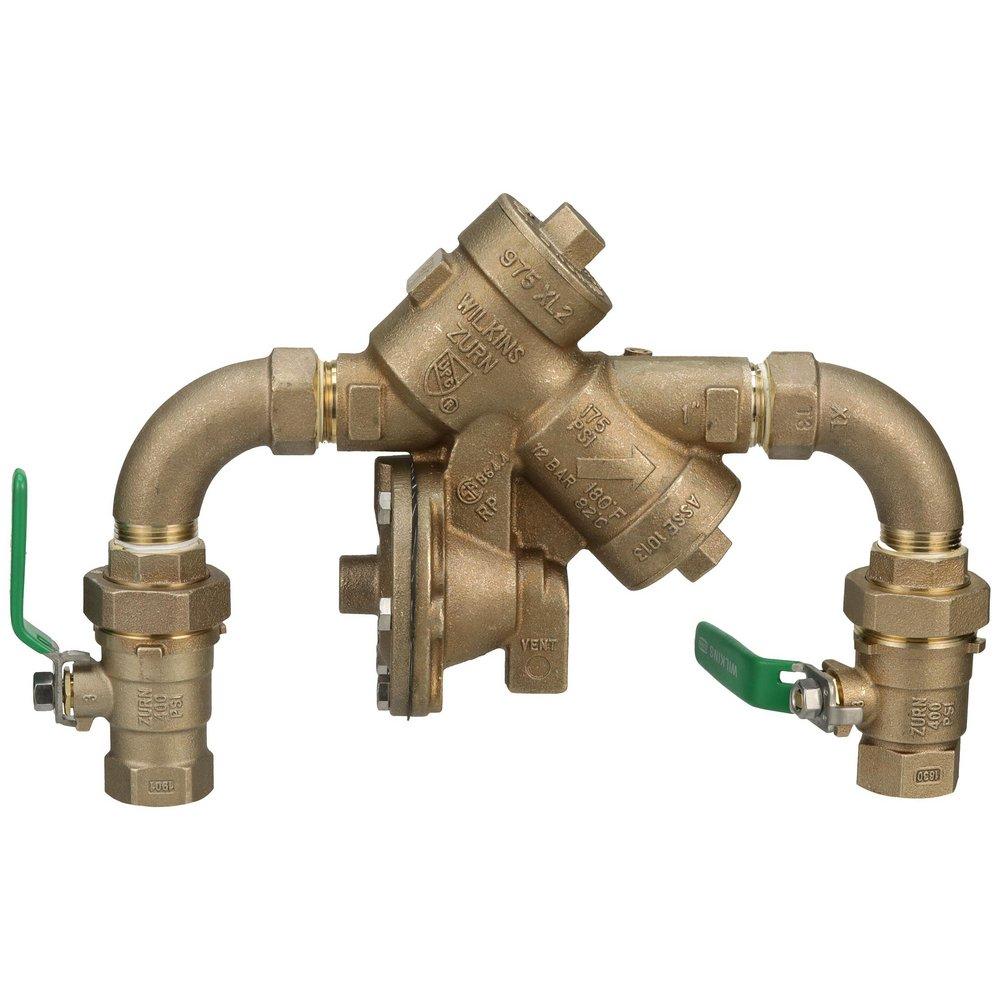

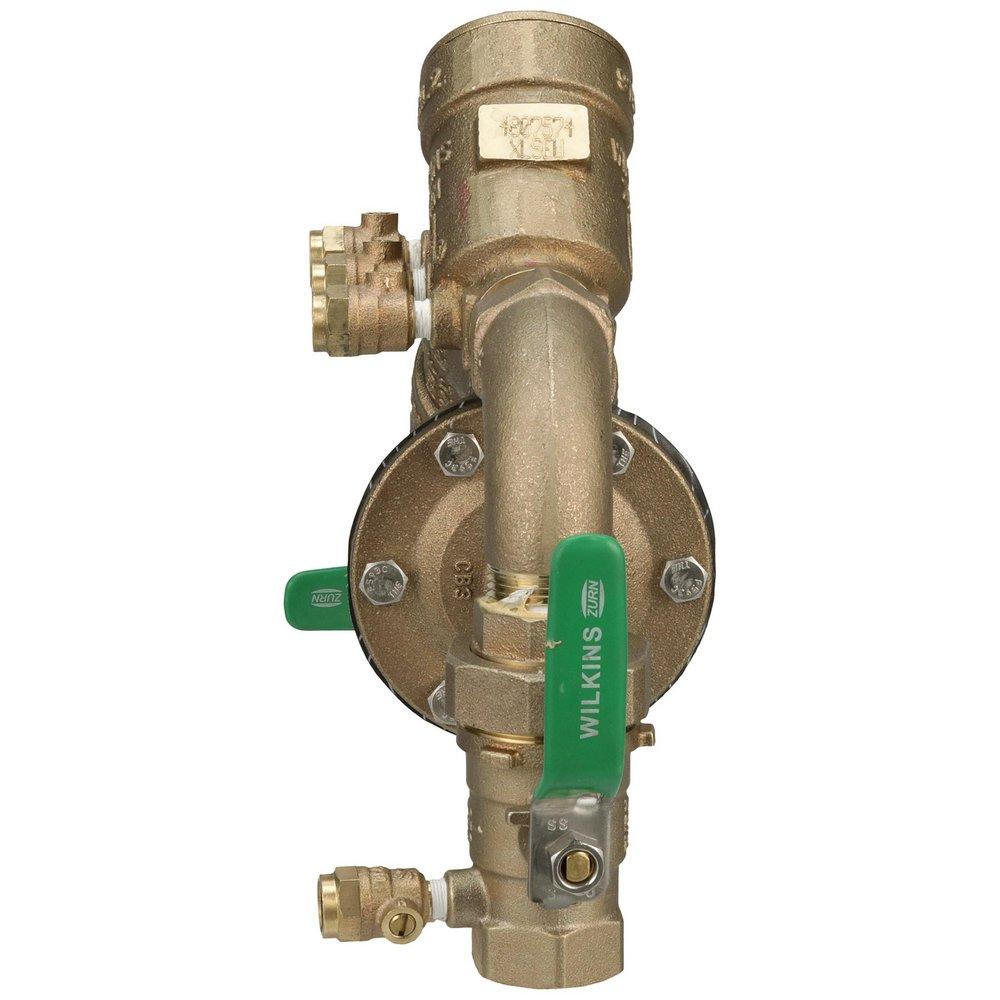

Zurn 1-975XL2SEU 1 in Bronze FPT Reduced Pressure Principle Assembly with Quarter-Turn Ball Valves offers a robust solution for backflow prevention, certified by the Foundation for Cross Connection Control and Hydraulic Research at the University of Southern California. This assembly meets NSF/ANSI standards and is designed to comply with ASSE® 1013, IAPMO®, and CSA® certifications, ensuring reliability for plumbing and potable water applications. Engineered for ease of installation, the N-Pattern or z-Pattern configuration, along with 90° street elbows, contributes to a narrow footprint, making it ideal for tight spaces. The all cast bronze body, complemented by stainless steel fasteners and springs, guarantees outstanding corrosion resistance, enhancing the longevity of your plumbing system. With a maximum pressure rating of 350 psi and capable of handling temperatures ranging from 33°F to 180°F, this assembly is built to perform under a variety of conditions. The low-lead compliance ensures it meets modern safety standards, making it a responsible choice for today's environmentally-conscious builders and homeowners. Measuring 13 inches in length and 8-1/2 inches in height, the Zurn 1-975XL2SEU assembly is both compact and efficient. It features a quarter-turn handle operation and is designed with two handles for straightforward management. Weighing 15 lbs, this vertical valve body is suitable for horizontal installations, ensuring versatility in various plumbing setups. Choose the Zurn 1-975XL2SEU for a reliable, high-performance backflow prevention solution that prioritizes safety, durability, and ease of use in both residential and commercial applications.
1 in Bronze FPT Reduced Pressure Principle Assembly with Quarter-Turn Ball Valves
ANSI: ANSI 61, ANSI 372, ANSI B1.20.1
ASSE Standards: ASSE 1013
ASTM: ASTM B-584
AWWA: AWWA C-511
CSA Certified: CSA B64.4
Collection: 975XL2SEU
End Connection 1: FPT
End Connection 2: FPT
End Connections: FPT
Height: 8-1/2 in
IAPMO Listed: Yes
Installation Type: Horizontal
Lead Law Compliance Level: Lead Law Compliant and Certified
Lead Law Compliant: Yes
Length: 13 in
Material: Cast Bronze, Plastic
Material Type: Noryl®
Maximum Temperature: 180
Minimum Temperature: 33
NSF: NSF 61
NSF Certified: Yes
Number of Handles: Two Handle
Pressure - Maximum: 350 psi
Proposition 65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Recommended Valve Application: Plumbing, Potable Water, Water
UL Listed: Yes
Upc: 612052098128
Valve Body Material: Bronze
Valve Body Style: Vertical
Valve Operator: Quarter Turn Handle
Valve Seat Material: Noryl®
Valve Size: 1 in
Valve Type: Reduced Pressure Principle Assembly
Weight: 15 lb
Width: 5-1/8 in
