Zurn 1-NR3XL 1 in. 400 psi Cast Bronze FNPT Pressure Reducing Valve is designed for optimal performance and durability in diverse plumbing applications. With a compact form factor and short lay length, this valve easily fits into tight spaces, making it an ideal choice for both residential and commercial installations. Its cartridge-loaded design simplifies repairs, reducing downtime and maintenance costs. The valve features versatile tailpiece options, including threaded, PEX, copper sweat, and CPVC, allowing for quick and efficient installation regardless of the existing plumbing configuration. The integral stainless steel strainer screen ensures long-lasting performance, effectively filtering out debris and extending the life of the valve. Constructed from high-quality cast bronze, the threaded bell resists corrosion, providing easy access to the cartridge internals for hassle-free servicing. Rated for a maximum pressure of 400 psi and designed to operate within a temperature range of up to 140°F, this pressure reducing valve is robust enough to handle demanding conditions. This valve meets several industry standards, including ASSE® 1003, IAPMO® listings, and CSA® certification, ensuring compliance and reliability. Furthermore, it is lead law compliant, making it a safe choice for drinking water systems. Weighing just 2.25 lbs and measuring 5-1/2 in height and 2-4/5 in width, the Zurn 1-NR3XL offers an effective solution for pressure regulation in water applications, combining innovative features with proven durability for peace of mind in every installation.

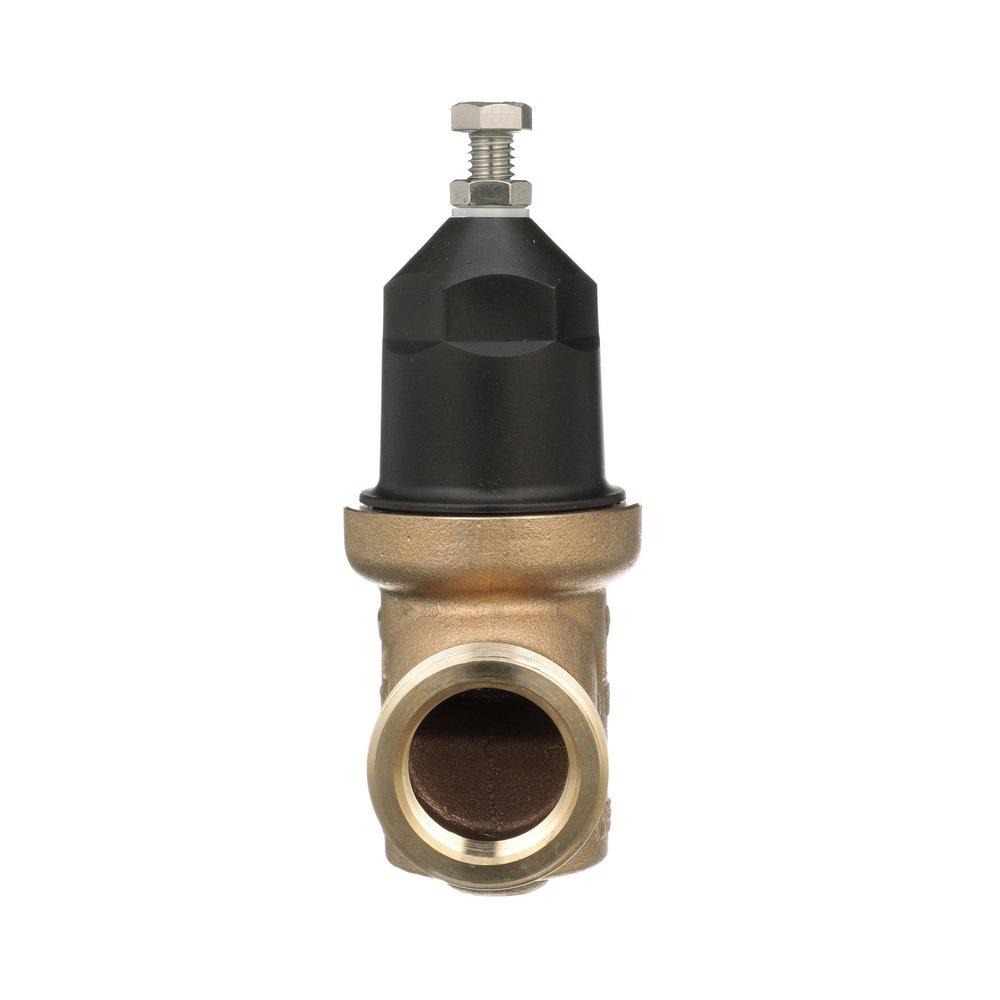

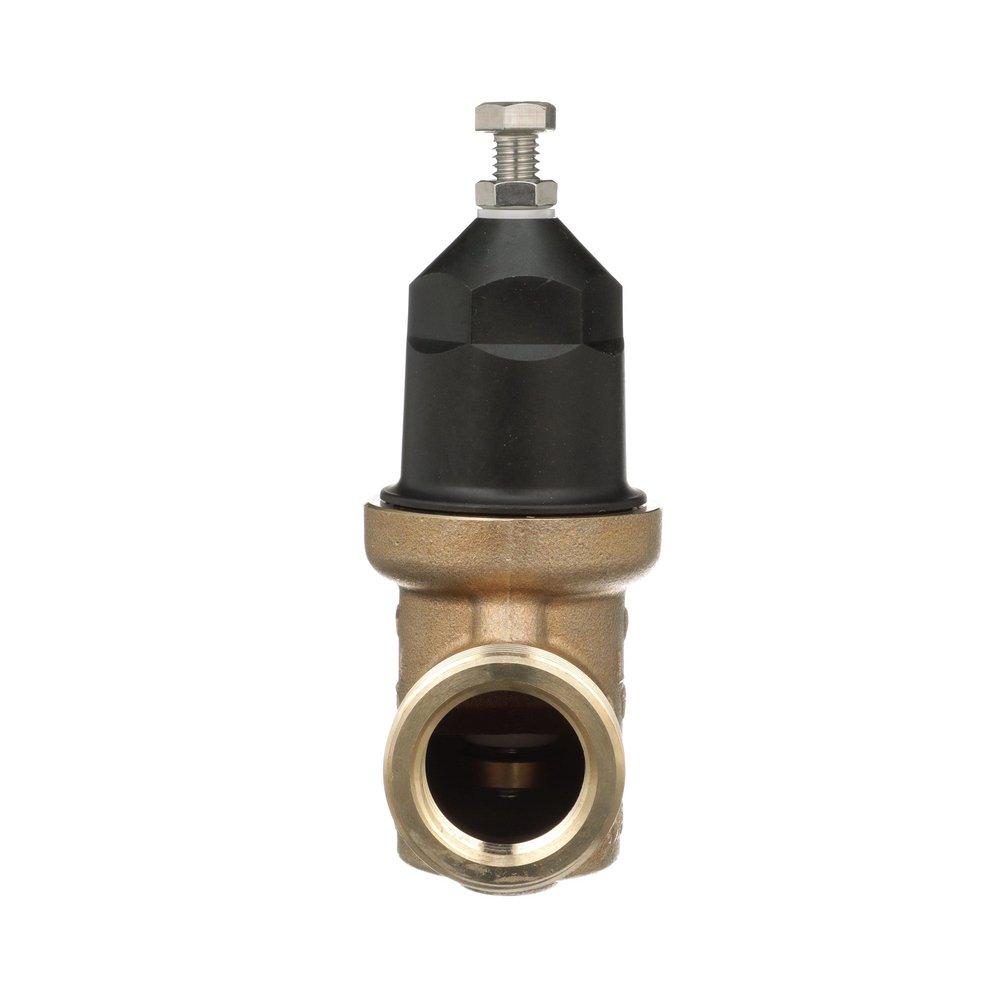

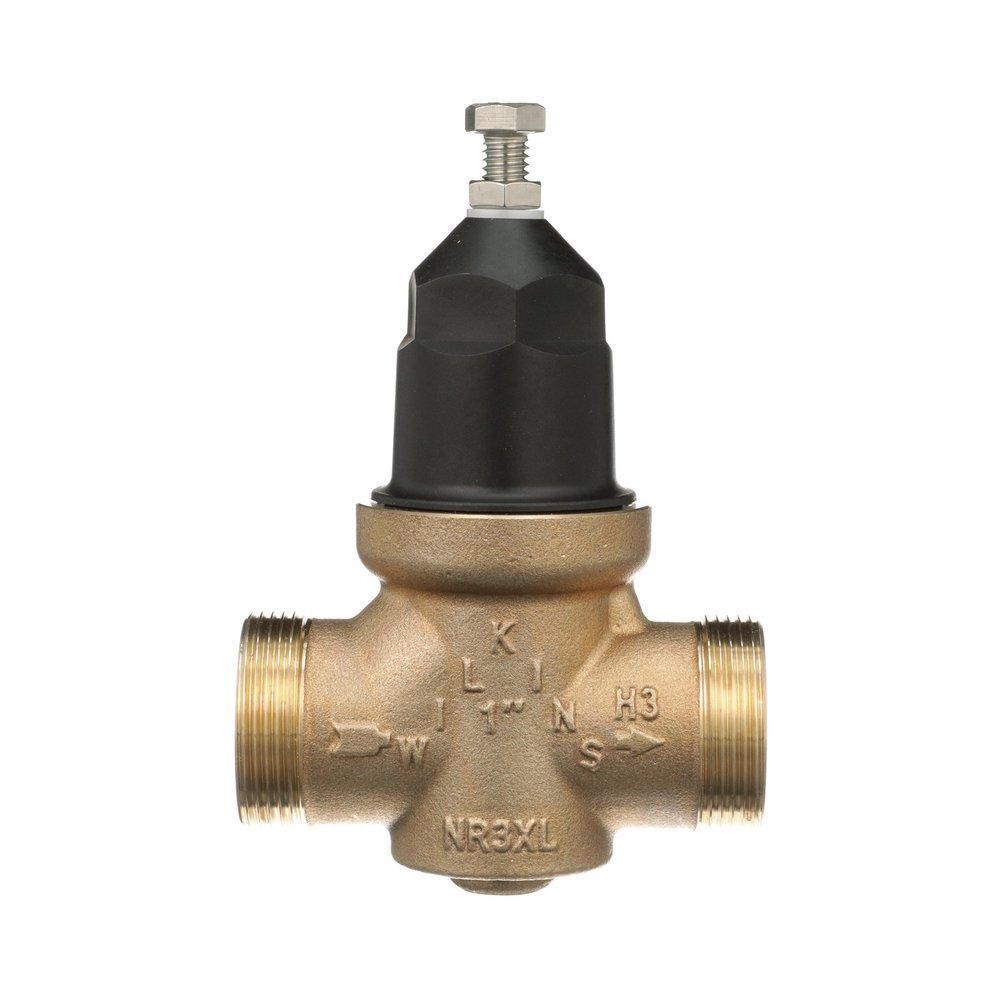

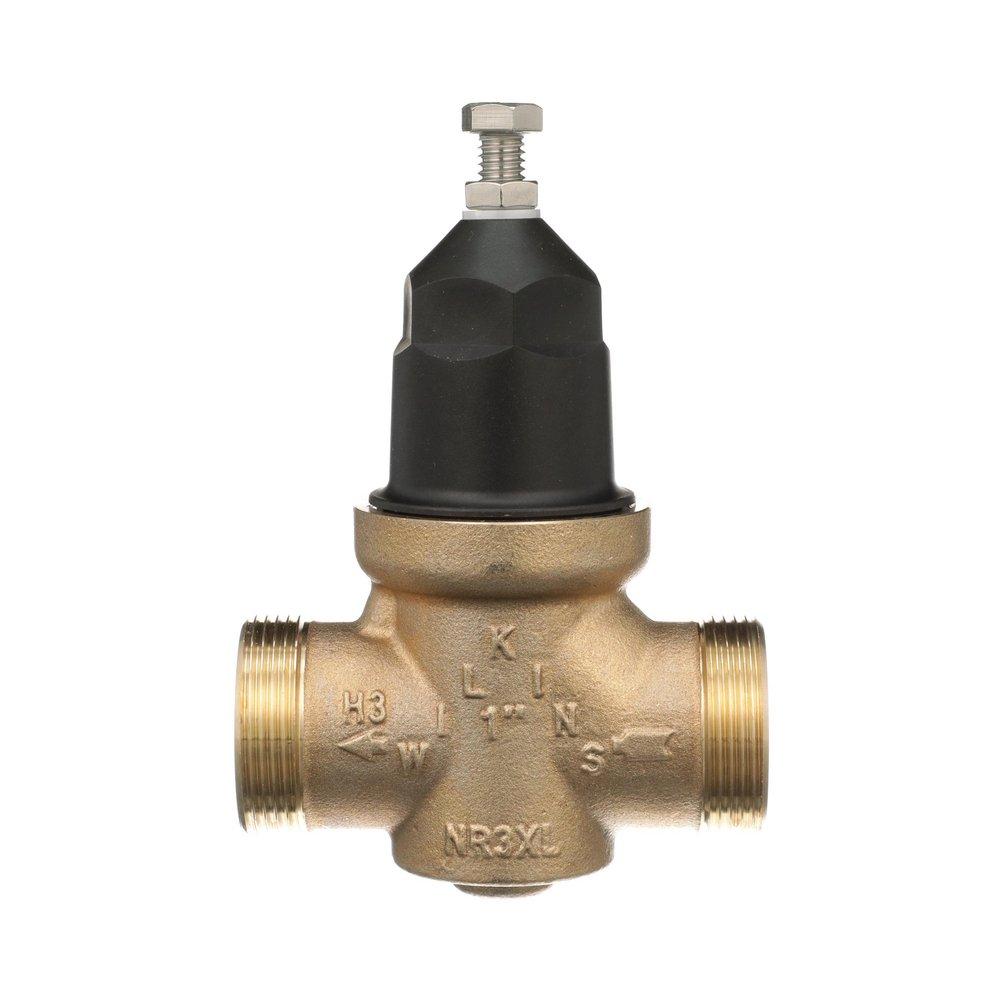

1 in. 400 psi Cast Bronze FNPT Pressure Reducing Valve
ANSI: ANSI 61 Annex G, ANSI B1.20.1, ANSI B16.22
ASSE Standards: ASSE 1003
CSA Certified: Yes
Collection: NR3XL
End Connection 1: FPT
End Connection 2: FPT
End Connections: FPT
Fitting Size 1: 1 in
Fitting Size 2: 1 in
Height: 5-1/2 in
IAPMO Listed: Yes
Lead Law Compliance Level: Lead Law Compliant and Certified
Lead Law Compliant: Yes
Length: 5-1/2 in
Material: Cast Bronze
Material Type: 300, Buna-N, EPDM, Polymer
Maximum Temperature: 140
NSF Certified: Yes
Pressure - Maximum: 400 psi
Pressure Class: 400#
Proposition 65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Recommended Valve Application: Water
UL Listed: No
Upc: 612052068466
Valve Body Material: Cast Bronze
Valve Body Style: Inline
Valve Seat Material: EPDM Elastomer
Valve Size: 1 in
Valve Type: Pressure Reducing Valve
Weight: 2.25 lb
Width: 2-4/5 in
