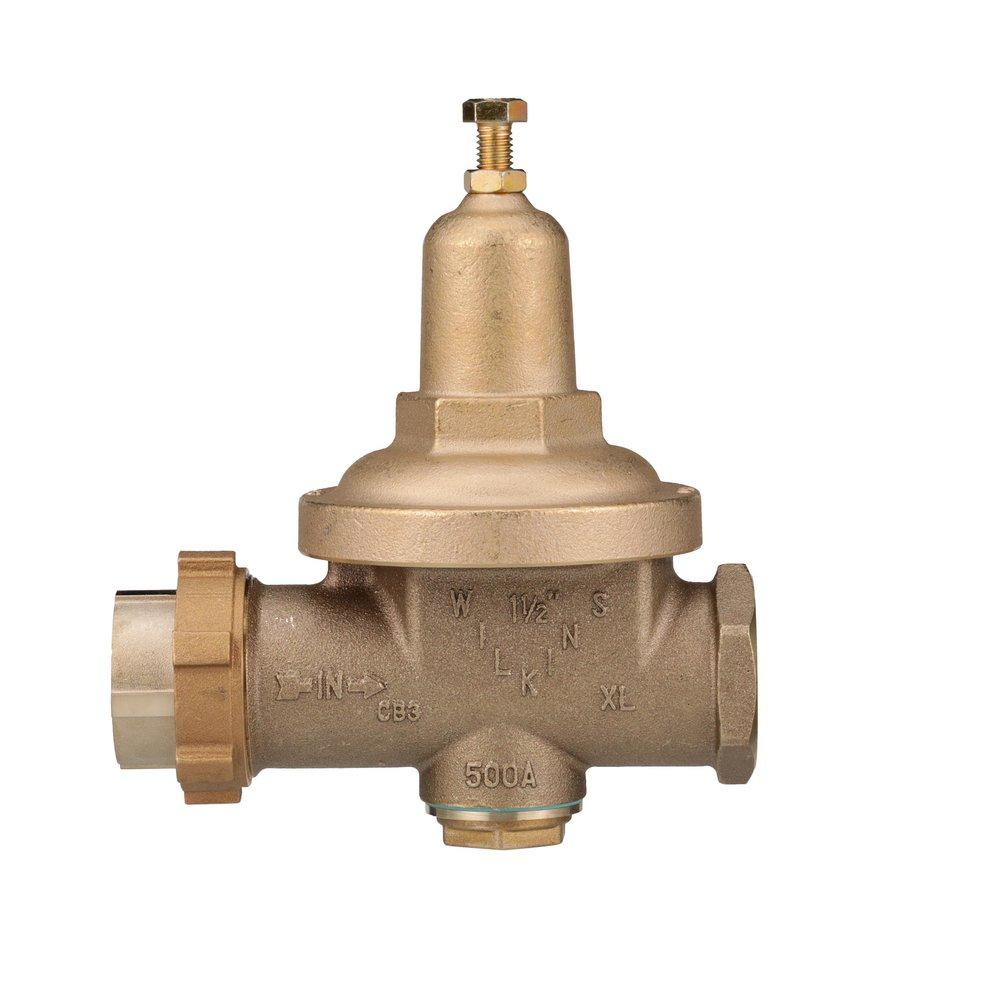

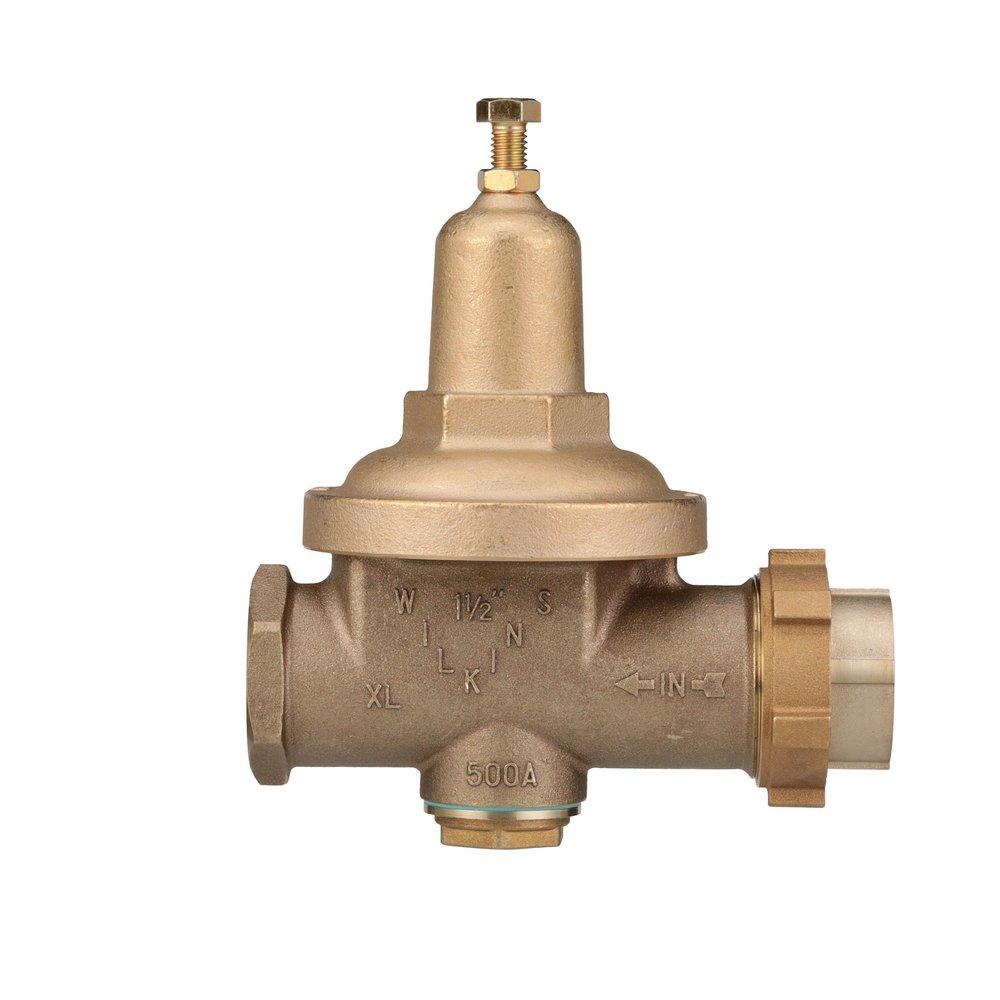

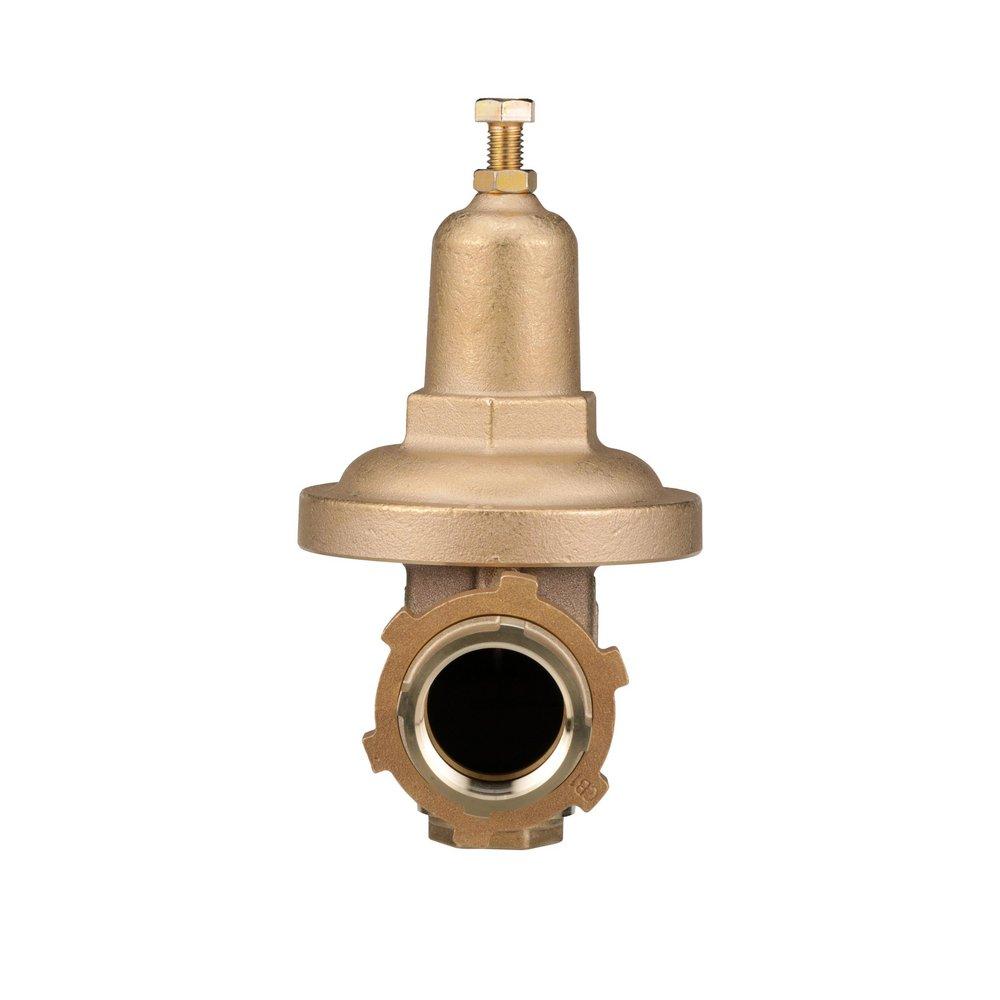

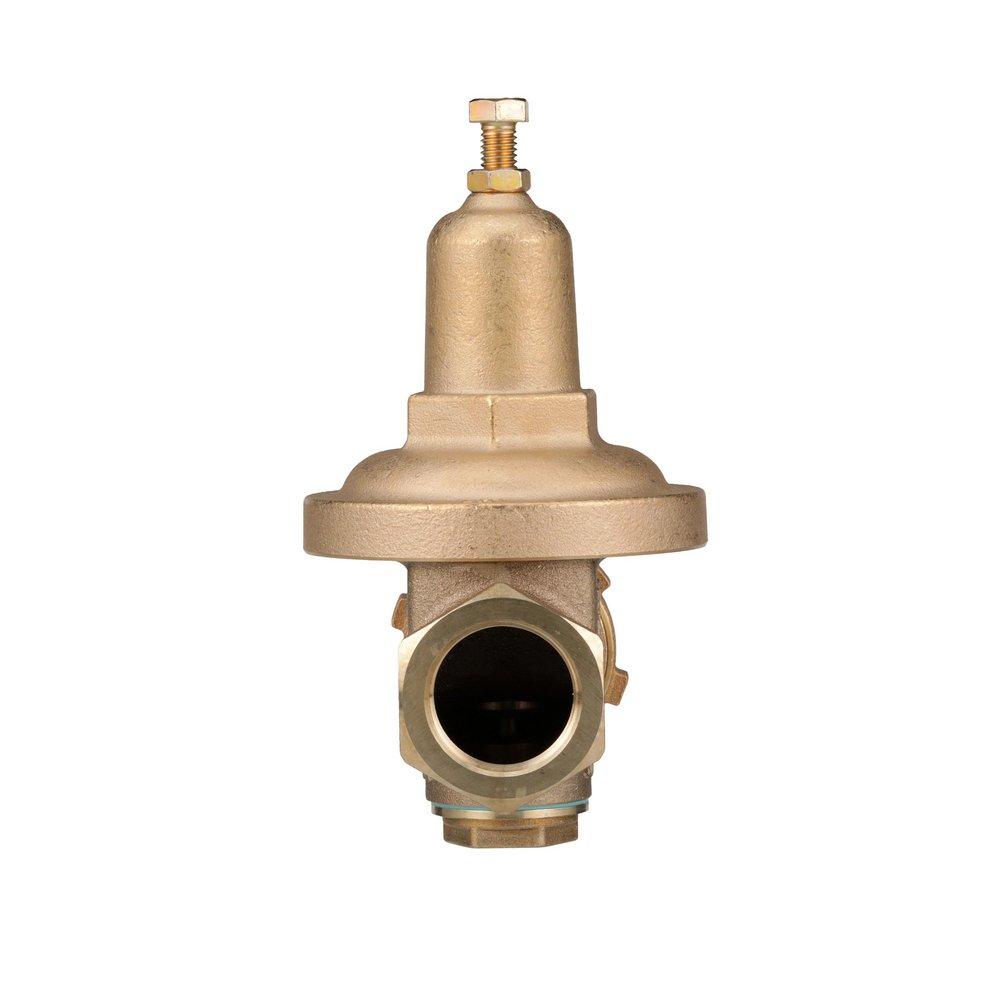

Zurn 112-500XL 1-1/2 in. 300 psi Cast Bronze FNPT Pressure Reducing Valve combines high performance with a compact design, making it an ideal choice for both commercial and industrial pressure reduction applications. Its short lay length allows for installation in tight spaces, providing versatility in a variety of settings. Engineered for durability, this valve features a corrosion-resistant threaded bell that enables easy access to cartridge internals, ensuring maintenance is straightforward. With a maximum pressure rating of 300 psi, it is built to handle demanding conditions while maintaining reliable operation. The valve’s body is constructed from cast bronze, complemented by stainless steel seat material for enhanced longevity. This pressure reducing valve is lead-free and complies with several standards, including ASSE® 1003, ANSI 61, and is both IAPMO® and CSA® certified, making it a safe and compliant choice for water applications. The Zurn 112-500XL is also NSF certified, ensuring that it meets strict public health standards. Measuring 10.3 inches in height, 9.3 inches in length, and 5.3 inches in width, this valve weighs 12.3 pounds, making it manageable for installation. The design incorporates female pipe thread (FPT) connections on both ends, ensuring compatibility with existing systems. Whether you’re a builder, contractor, or knowledgeable homeowner, the Zurn 112-500XL is designed to meet your needs while providing efficiency and performance in demanding environments. Upgrade your plumbing system with this trusted solution and experience the reliability that Zurn is known for.
1-1/2 in. 300 psi Cast Bronze FNPT Pressure Reducing Valve
ANSI: ANSI 372, ANSI 61, ANSI B1.20.1, ANSI B16.22
ASSE Standards: ASSE 1003
CSA Certified: Yes
Collection: Model 500XL
End Connection 1: FPT
End Connection 2: FPT
End Connections: FPT
Fitting Size 1: 1-1/2 in
Fitting Size 2: 1-1/2 in
Height: 10-3/10 in
IAPMO Listed: Yes
Lead Law Compliance Level: Lead Law Compliant and Certified
Lead Law Compliant: Yes
Length: 9-3/10 in
Material: Cast Bronze, Rubber
Material Type: Buna-N, EPDM
Maximum Temperature: 140
NSF Certified: Yes
Pressure - Maximum: 300 psi
Proposition 65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Recommended Valve Application: Water
UL Listed: No
Upc: 612052029900
Valve Body Material: Bronze
Valve Body Style: Inline
Valve Seat Material: Stainless Steel
Valve Size: 1-1/2 in
Valve Type: Pressure Reducing Valve
Weight: 12.3 lb
Width: 5-3/10 in
