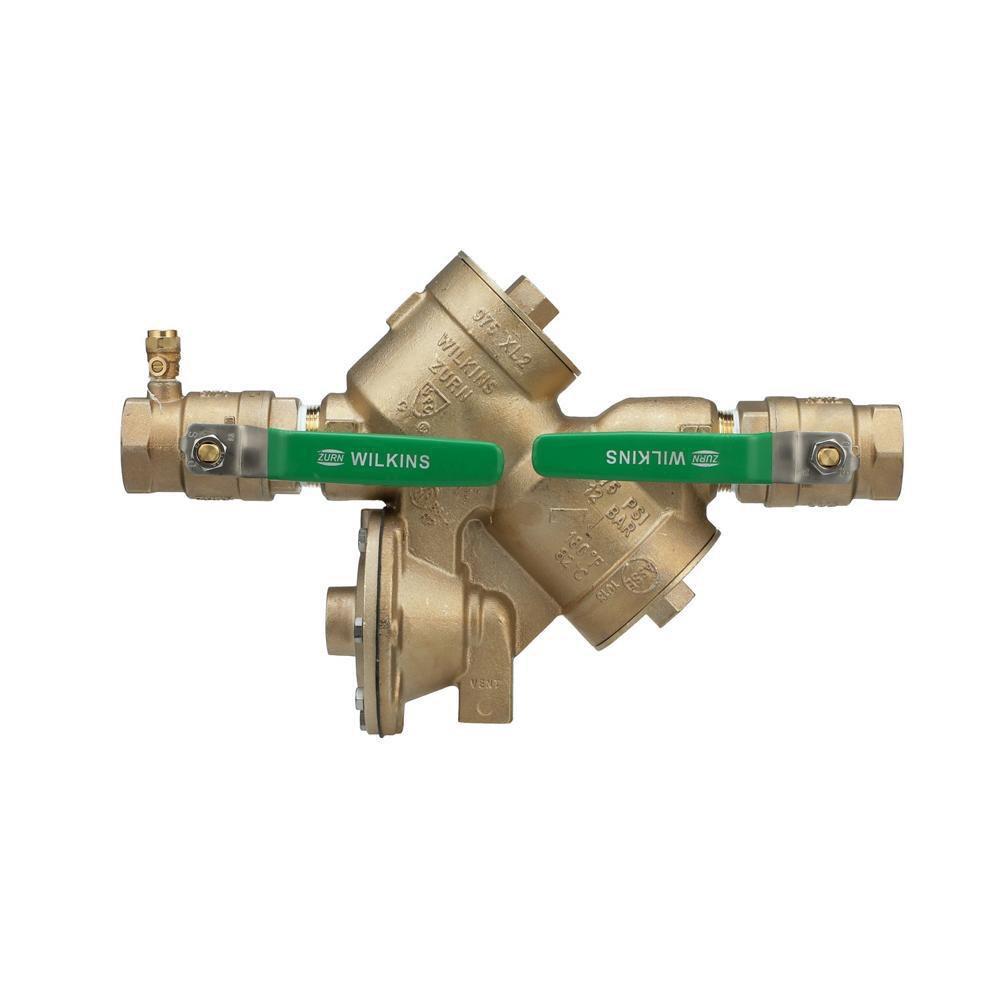

Zurn 112-975XL2 1-1/2" Bronze FPT Reduced Pressure Assembly with Ball ValvesZurn 112-975XL2 1-1/2 in Bronze FPT Reduced Pressure Principle Assembly with Quarter-Turn Ball Valves offers a reliable solution for backflow prevention in plumbing systems. This assembly is designed with a short lay length, significantly reducing replacement and repair time, making it a favorite among installers worldwide. The wye pattern design allows for separate access to both the checks and relief valve, which further minimizes labor costs during maintenance. Constructed from durable bronze and featuring rubber, stainless steel, and plastic components, this assembly meets rigorous standards, including NSF/ANSI 61, ASSE® 1013, and AWWA C-511. It is lead law compliant and certified, ensuring safe drinking water while adhering to modern regulatory requirements. The assembly operates effectively under a maximum pressure of 175 psi and temperature ranges from 33°F to 180°F, making it suitable for various plumbing applications. The Zurn 112-975XL2 features two handle operation with tee handles for easy adjustment, while its full port valve opening enhances flow efficiency. Weighing in at 28 lb and measuring 11-3/4 inches in height and 6-1/4 inches in width, this assembly is designed for horizontal installation, providing flexibility in various plumbing configurations. Additionally, the product is UL listed and IAPMO listed, ensuring its reliability for both residential and commercial applications. For new construction projects, Zurn recommends the upgraded model 975XL3, offering enhanced features for modern plumbing needs. Trust Zurn’s legacy of excellence in plumbing solutions with the 112-975XL2 assembly, designed for performance, efficiency, and peace of mind.
1-1/2 in Bronze FPT Reduced Pressure Principle Assembly with Quarter-Turn Ball Valves
Repair kit allows for a quick fix, instead of a full replacement
Low-lead law compliant
Approved by the Foundation for Cross Connection Control and Hydraulic Research at the University of Southern California
Short lay length eases replacement and repair time
Wye pattern design provides separate access to checks and relief valve for reduced labor costs
Trusted and recognized favorite by installers worldwide
Meets the requirements of NSF/ANSI 61
ASSE® Listed, cUPC® Listed, CSA® Certified, AWWA Compliant, Safe Drinking Water Act Compliant
We recommend the upgraded model 975XL3 for new construction
Attributes
ANSI: ANSI B1.20.1
ASSE Standards: ASSE 1013
AWWA: AWWA C-511
CSA Certified: CSA
Collection: 975XL2
End Connection 1: FPT
End Connection 2: FPT
End Connections: FPT
Height: 11-3/4 in
IAPMO Listed: Yes
Installation Type: Horizontal
Lead Law Compliance Level: Lead Law Compliant and Certified
Lead Law Compliant: Yes
Length: 17-31/100 in
Material: Bronze, Rubber, Stainless Steel, Plastic
Material Type: 300, Buna-N, Noryl®
Maximum Temperature: 180
Minimum Temperature: 33
NSF Certified: Yes
Number of Handles: Two Handle
Pressure - Maximum: 175 psi
Proposition 65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Recommended Valve Application: Plumbing, Water
UL Listed: Yes
Upc: 612052069739
Valve Body Material: Bronze
Valve Body Style: Inline
Valve Operator: Tee Handle
Valve Port Opening: Full Port
Valve Seat Material: Noryl
Valve Size: 1-1/2 in
Valve Type: Reduced Pressure Principle Assembly
Weight: 28 lb
Width: 6-1/4 in
