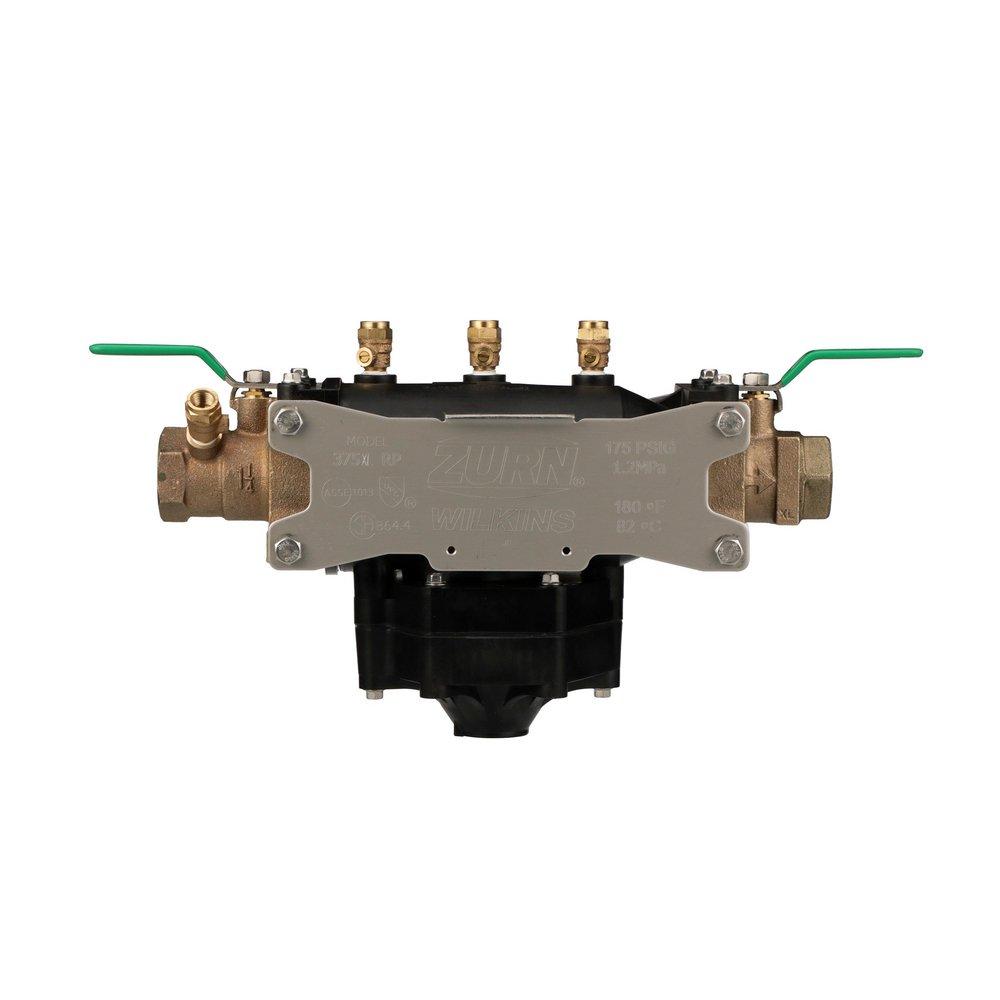

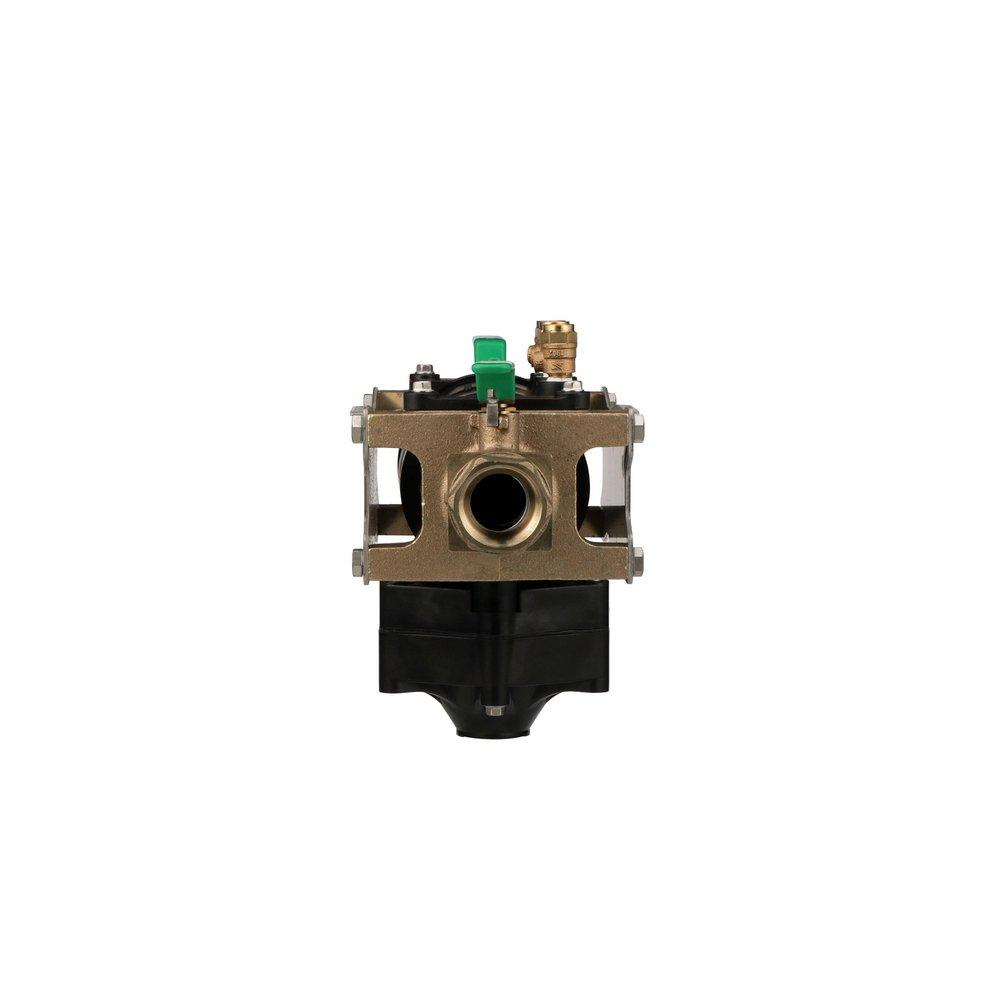

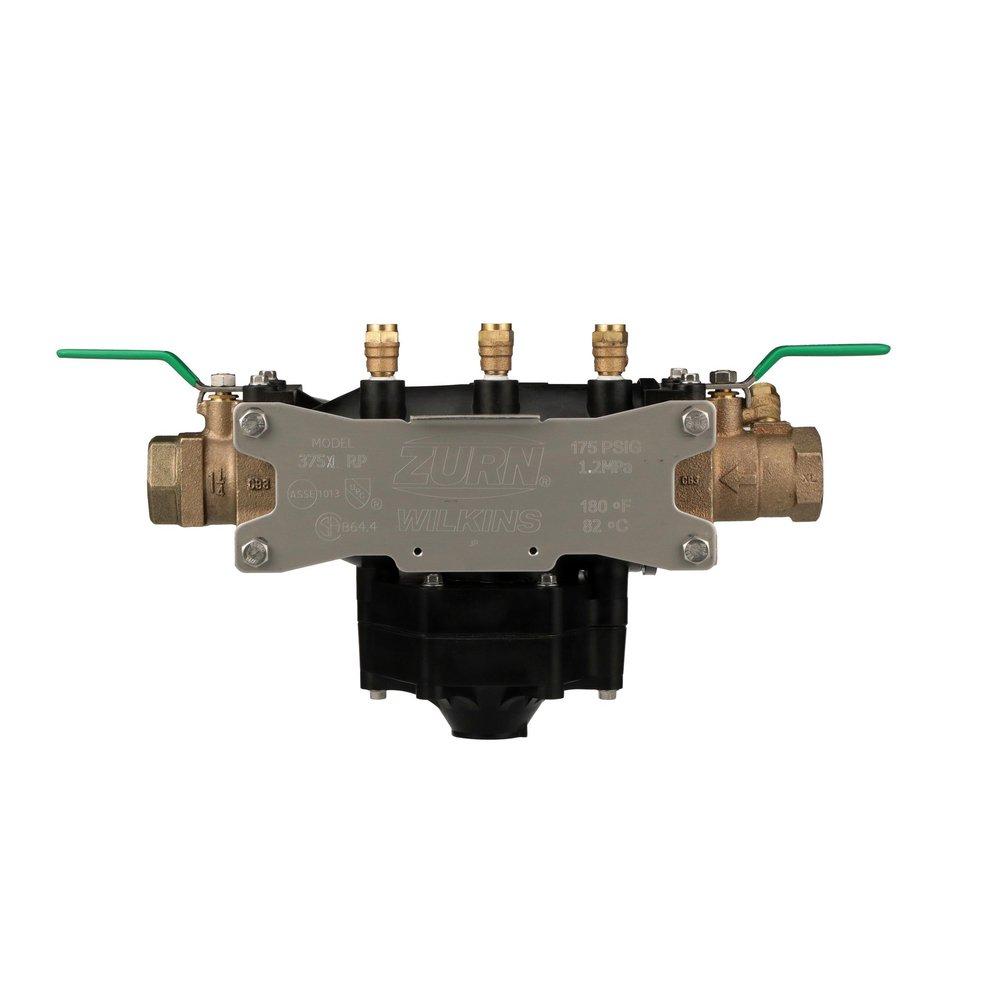

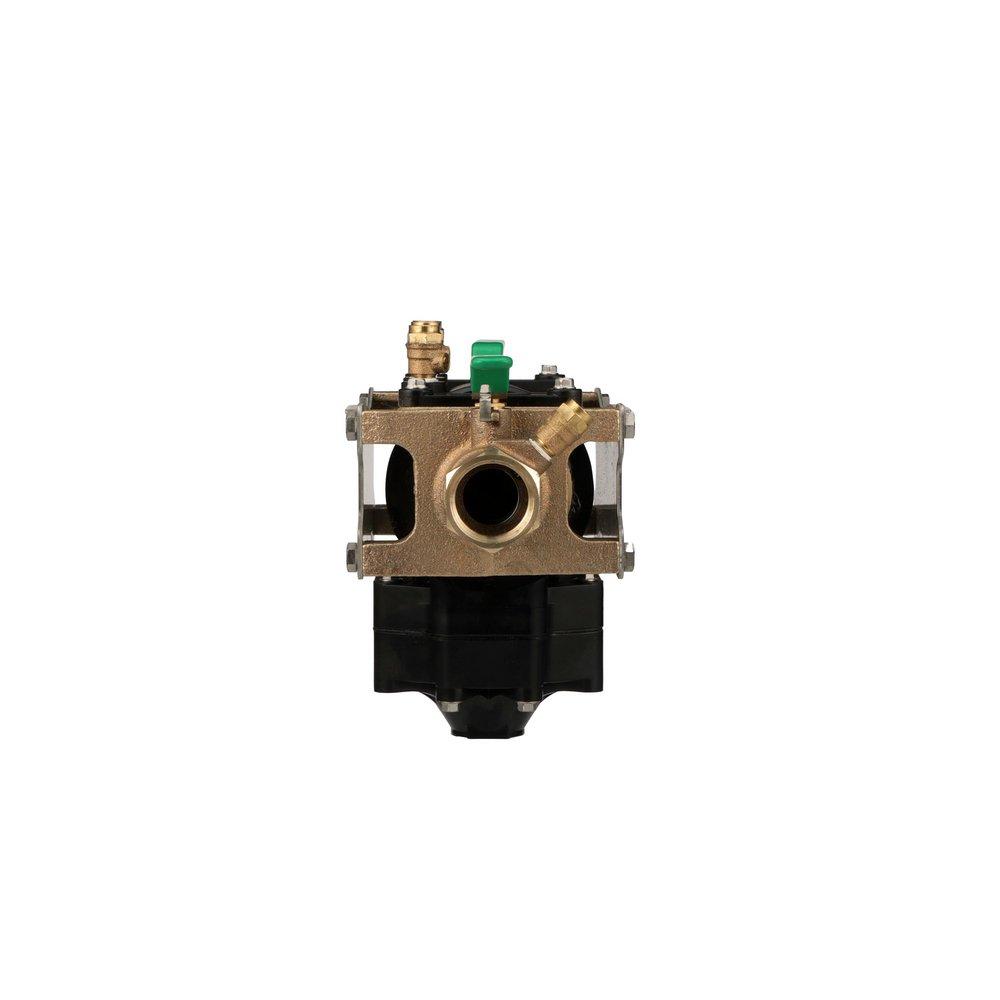

Zurn 114-375XL 1-1/4" Reinforced Nylon Flanged Reduced Pressure Zone Assembly with ValvesZurn 114-375XL 1-1/4 in Reinforced Nylon Flanged Reduced Pressure Zone Assembly with Quarter-Turn Ball Valves delivers optimal performance and reliability for plumbing applications. Designed to fit pipes with a 1-1/4" inner diameter, this assembly features full port quarter-turn ball valves that ensure efficient flow control and straightforward operation. The EZSwap pressure vessel, crafted from durable and UV-resistant materials, is removable for easy access, making maintenance a breeze. This innovative design not only resists corrosion and mineral build-up but also enhances the unit's longevity, ensuring it can withstand harsh conditions. Additionally, the minimal bronze construction serves as an effective theft deterrent, providing peace of mind for installations in both residential and commercial settings. For added convenience, an optional line flush tool is available, streamlining the flushing process and potentially saving up to 15 minutes during installation and easier winterization. Certified to ASSE 1013 and cUPC standards, and compliant with CSA B64.4 and NSF/ANSI/CAN 61, the Zurn 114-375XL meets the stringent requirements of the Safe Drinking Water Act, ensuring safe and reliable water distribution. With a height of 9-1/2 inches, a length of 14-22/25 inches, and a width of 6-1/4 inches, this assembly is designed for indoor, outdoor, and vertical installations. Its reinforced nylon valve body, silicone valve disc, and Delrin® valve seat material contribute to its robust construction, capable of handling pressures up to 350 psi. Choose the Zurn 114-375XL for a dependable solution that combines innovative design, easy installation, and long-lasting performance in your plumbing system.
1-1/4 in Reinforced Nylon Flanged Reduced Pressure Zone Assembly with Quarter-Turn Ball Valves
Fits pipes with 1-1/4" inner diameter
With full port QT ball valves
EZSwap pressure vessel is removable for easy access and added convenience
Durable, UV-resistant EZSwap Pressure Vessel resists corrosion and mineral build-up to better withstand harsh conditions
Minimal bronze construction acts as theft deterrent
Optional line flush tool provides easy line flushing, saving up to 15 minutes per installation and easier winterization.
ASSE listed 1013 and cUPC listed
CSA certified B64.4 and Meets the requirements of NSF/ANSI/CAN 61
Safe Drinking Water Act compliant
Approved by the Foundation for Cross Connection Control and Hydraulic Research at the University of Southern California
Attributes
ANSI: ANSI 61, ANSI B1.20.1
ASSE Standards: ASSE 1013
AWWA: AWWA C-511
CSA Certified: CSA
Collection: Model 375XL
End Connection 1: Flanged
End Connection 2: Flanged
End Connections: Flanged
Height: 9-1/2 in
IAPMO Listed: Yes
Installation Type: Indoor, Outdoor, Vertical
Lead Law Compliance Level: Lead Law Compliant and Certified
Lead Law Compliant: Yes
Length: 14-22/25 in
Material: Plastic, Rubber, Stainless Steel
Material Type: 300, Buna-N, Delrin®, Reinforced Nylon
Maximum Temperature: 180
Minimum Temperature: 33
NSF Certified: Yes
Number of Handles: Two Handle
Pressure - High: 175
Pressure - Maximum: 350 psi
Proposition 65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Recommended Valve Application: Plumbing, Water
UL Listed: Yes
Upc: 612052071596
Valve Body Material: Reinforced Nylon
Valve Body Style: Inline
Valve Disc Material: Silicone
Valve Operator: Lever Handle
Valve Port Opening: Full Port
Valve Seat Material: Delrin®
Valve Size: 1-1/4 in
Valve Type: Reduced Pressure Zone Assembly
Weight: 20.5 lb
Width: 6-1/4 in
