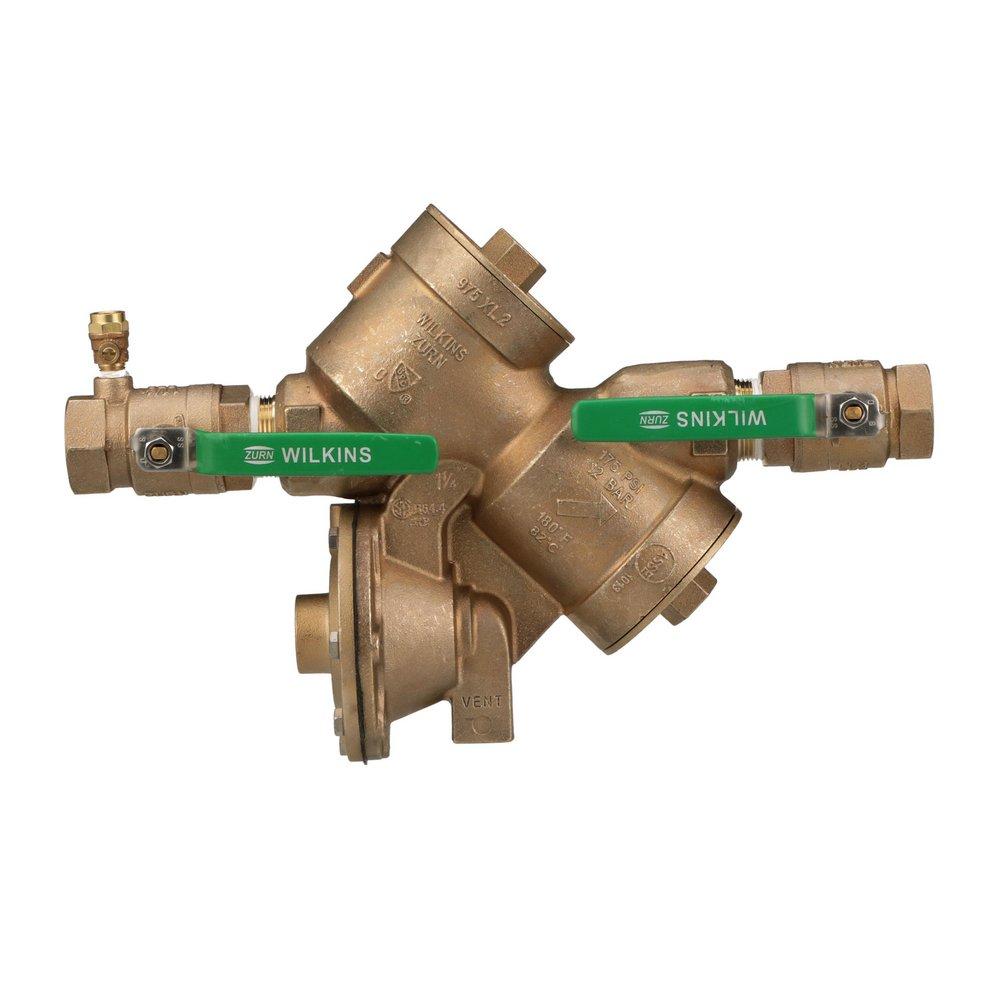

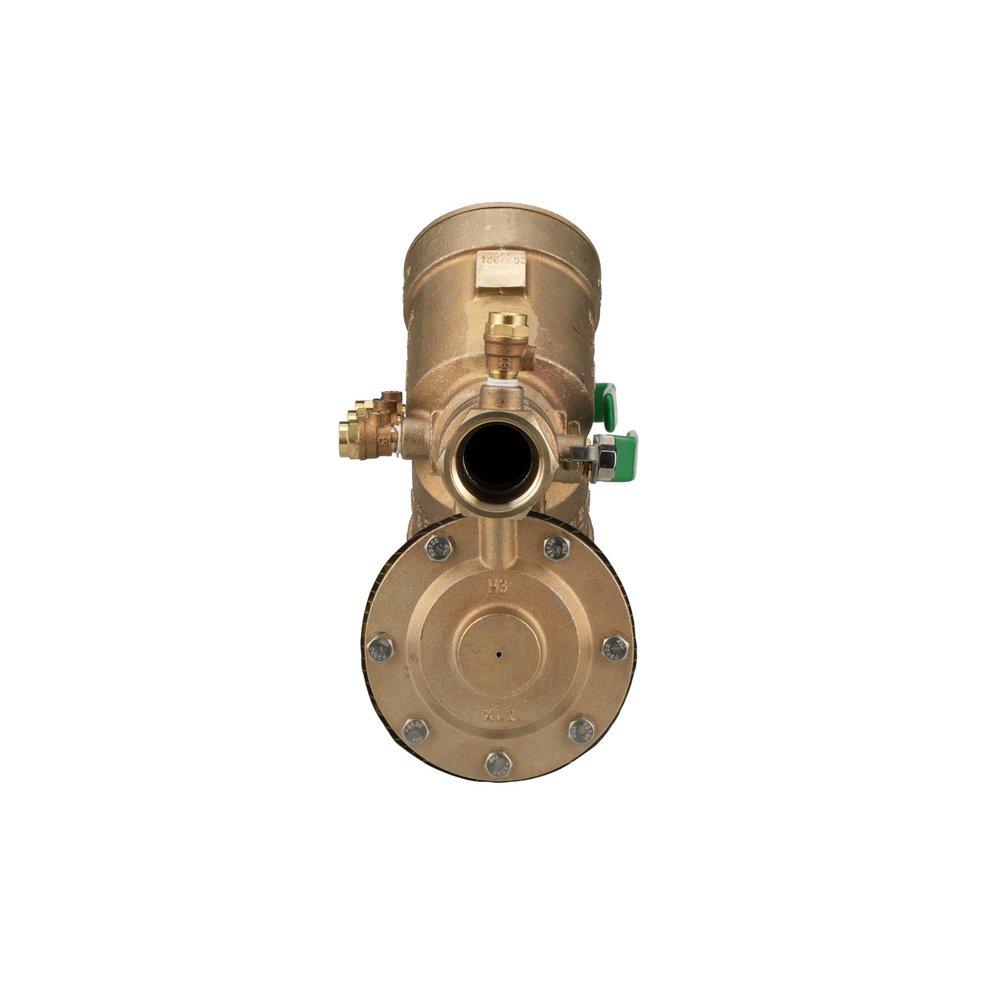

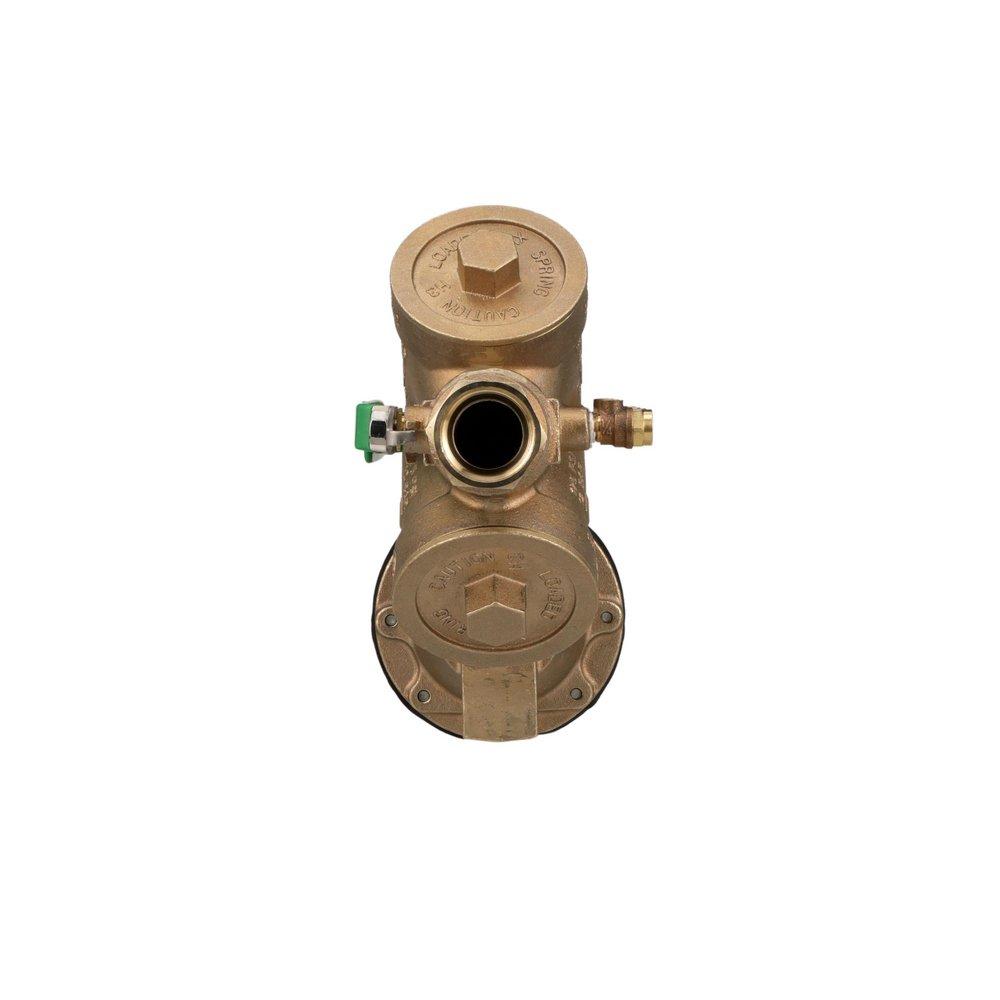

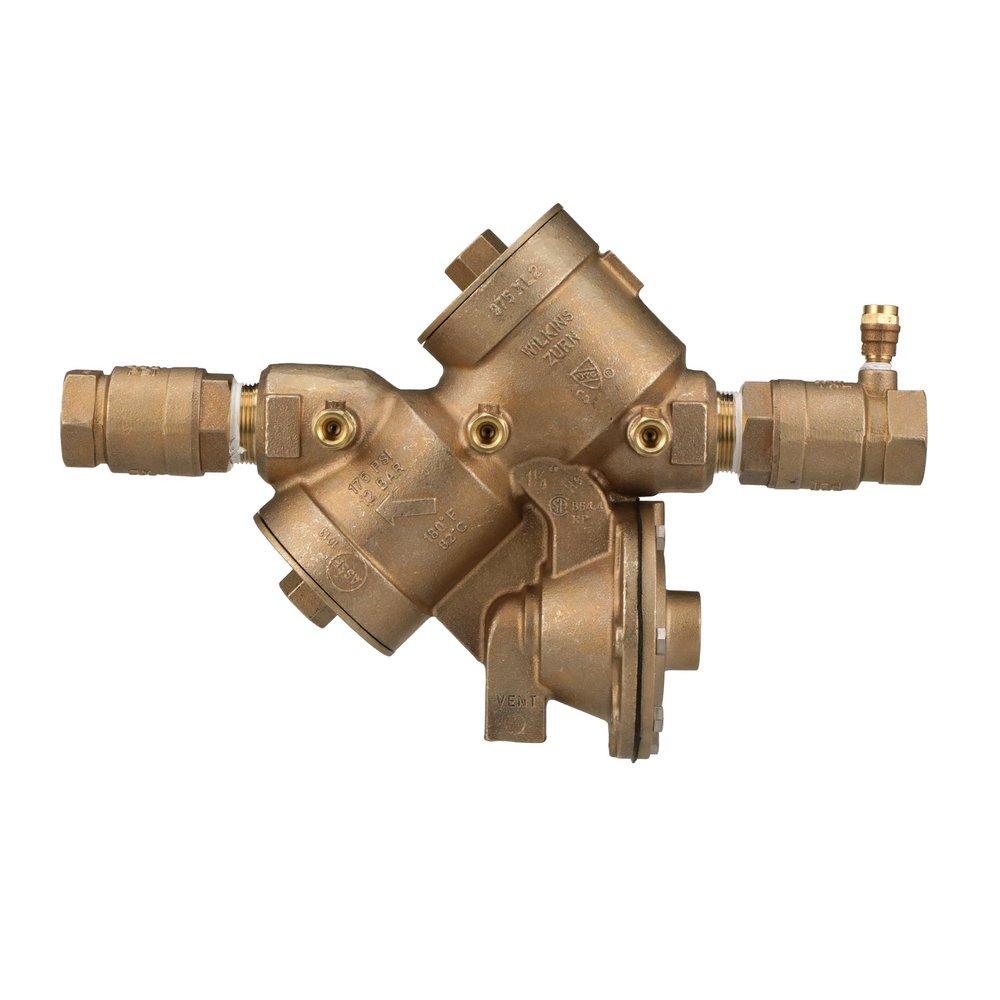

Zurn 114-975XL2 1-1/4" Bronze FPT Reduced Pressure Assembly with Ball ValvesZurn 114-975XL2 1-1/4 in Bronze FPT Reduced Pressure Principle Assembly with Quarter-Turn Ball Valves offers a reliable solution for backflow prevention and pressure regulation in plumbing systems. This pre-assembled assembly includes essential components such as backflow prevention, pressure regulation, and a strainer, ensuring a quick and efficient installation process. The assembly is made from durable materials including bronze, rubber, stainless steel, and plastic, making it not only robust but also compliant with low-lead laws for safe drinking water. Designed with a short lay length, this unit simplifies replacement and repair, significantly reducing installation time. The innovative wye pattern design allows for separate access to both the checks and relief valve, further minimizing labor costs during maintenance. Trusted by installers around the world, the Zurn 114-975XL2 meets rigorous standards, being NSF/ANSI 61 certified, ASSE® listed, cUPC® listed, and CSA® certified, ensuring compliance with the Safe Drinking Water Act and AWWA regulations. This assembly features an inline valve body style with a full port opening, allowing for optimal flow and performance. With a maximum pressure rating of 175 psi and operational temperature ranges from 33°F to 180°F, it is designed to handle a variety of plumbing and water applications effectively. The two-handle tee operator provides ease of use and control during operation. Lightweight at only 28 lbs and compact with dimensions of 17 inches in length, 6-1/4 inches in width, and 11-3/4 inches in height, the Zurn 114-975XL2 is as practical as it is durable, making it an essential addition to any plumbing installation.
1-1/4 in Bronze FPT Reduced Pressure Principle Assembly with Quarter-Turn Ball Valves
Repair kit allows for a quick fix, instead of a full replacement
Pre-assembled with backflow, pressure regulation, and strainer components
Low-lead law compliant
Approved by the Foundation for Cross Connection Control and Hydraulic Research at the University of Southern California
Short lay length eases replacement and repair time
Wye pattern design provides separate access to checks and relief valve for reduced labor costs
Trusted and recognized favorite by installers worldwide
Meets the requirements of NSF/ANSI 61
ASSE® Listed, cUPC® Listed, CSA® Certified, AWWA Compliant, Safe Drinking Water Act Compliant
Attributes
ANSI: ANSI B1.20.1
ASSE Standards: ASSE 1013
AWWA: AWWA C-511
CSA Certified: CSA
Collection: 975XL2
End Connection 1: FPT
End Connection 2: FPT
End Connections: FPT
Height: 11-3/4 in
IAPMO Listed: Yes
Installation Type: Horizontal
Lead Law Compliance Level: Lead Law Compliant and Certified
Lead Law Compliant: Yes
Length: 17 in
Material: Bronze, Rubber, Stainless Steel, Plastic
Material Type: 300, Buna-N, Noryl®
Maximum Temperature: 180
Minimum Temperature: 33
NSF Certified: Yes
Number of Handles: Two Handle
Pressure - Maximum: 175 psi
Proposition 65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Recommended Valve Application: Plumbing, Water
UL Listed: Yes
Upc: 612052069760
Valve Body Material: Bronze
Valve Body Style: Inline
Valve Operator: Tee Handle
Valve Port Opening: Full Port
Valve Seat Material: Noryl
Valve Size: 1-1/4 in
Valve Type: Reduced Pressure Principle Assembly
Weight: 28 lb
Width: 6-1/4 in
