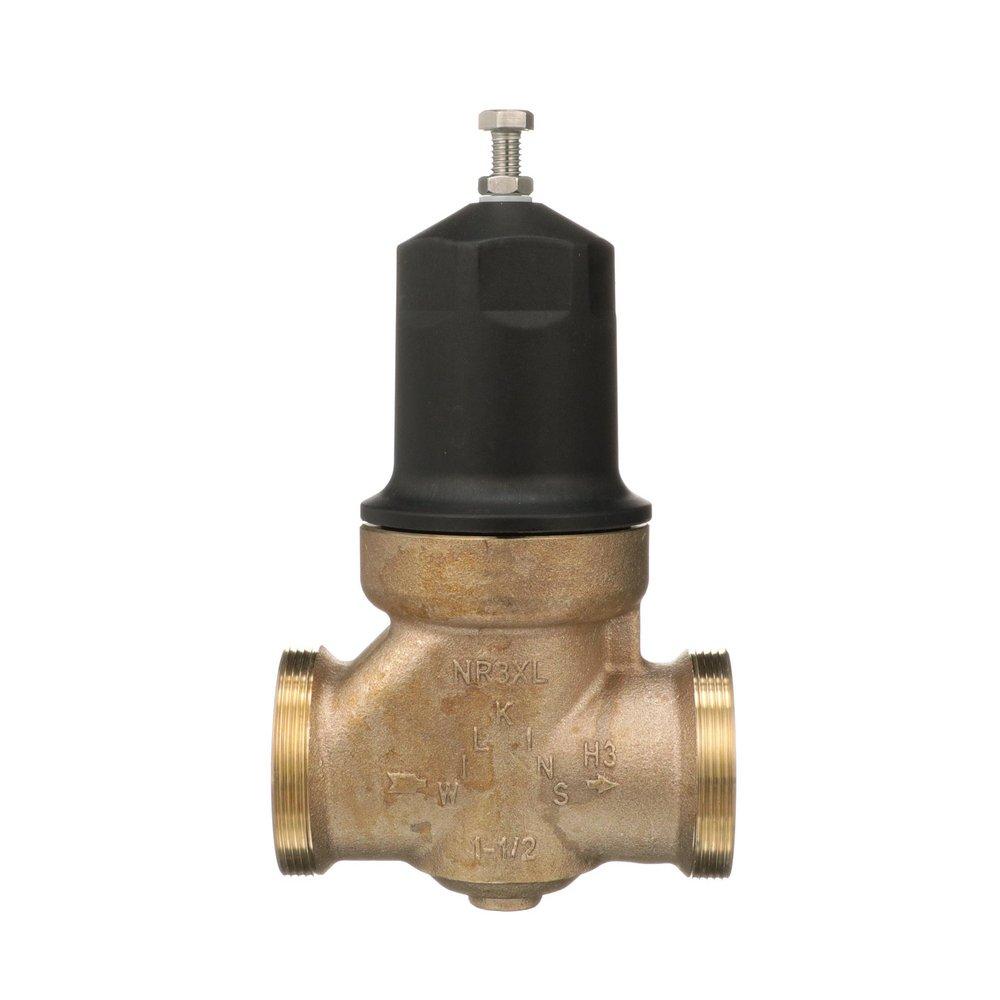

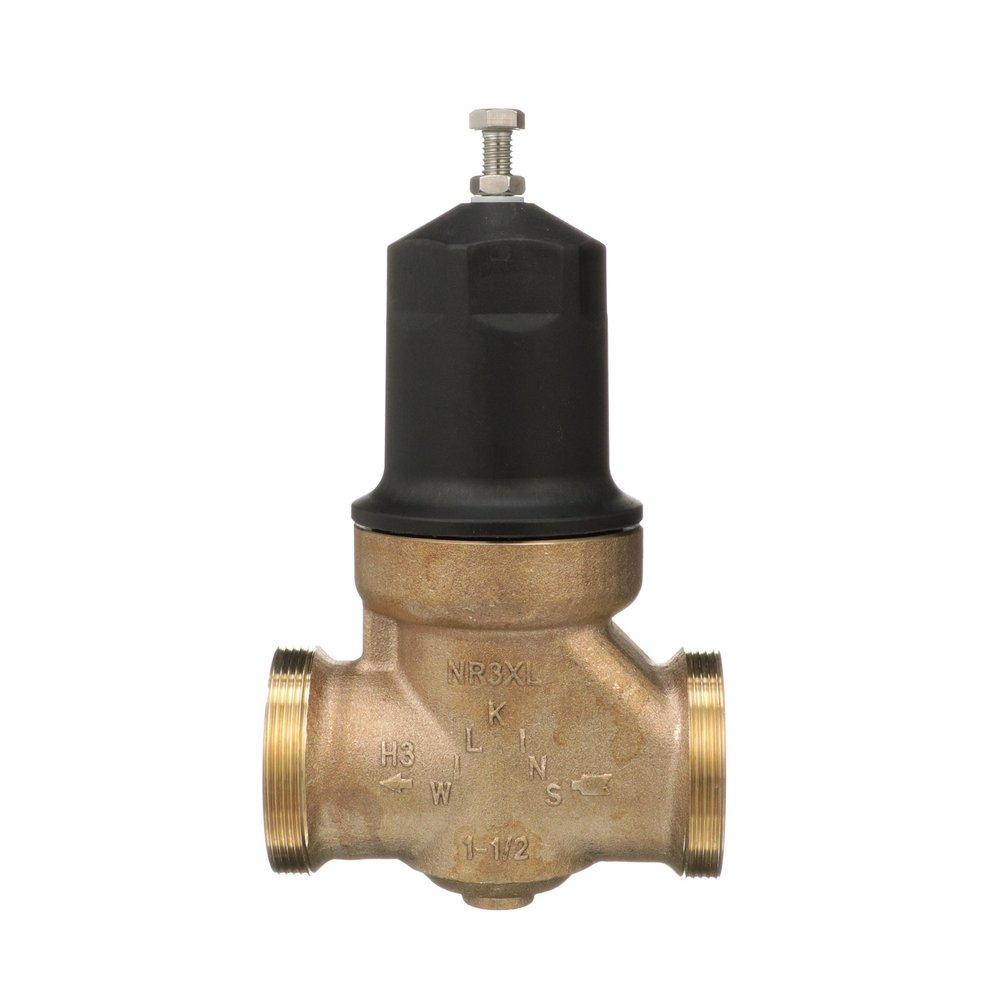

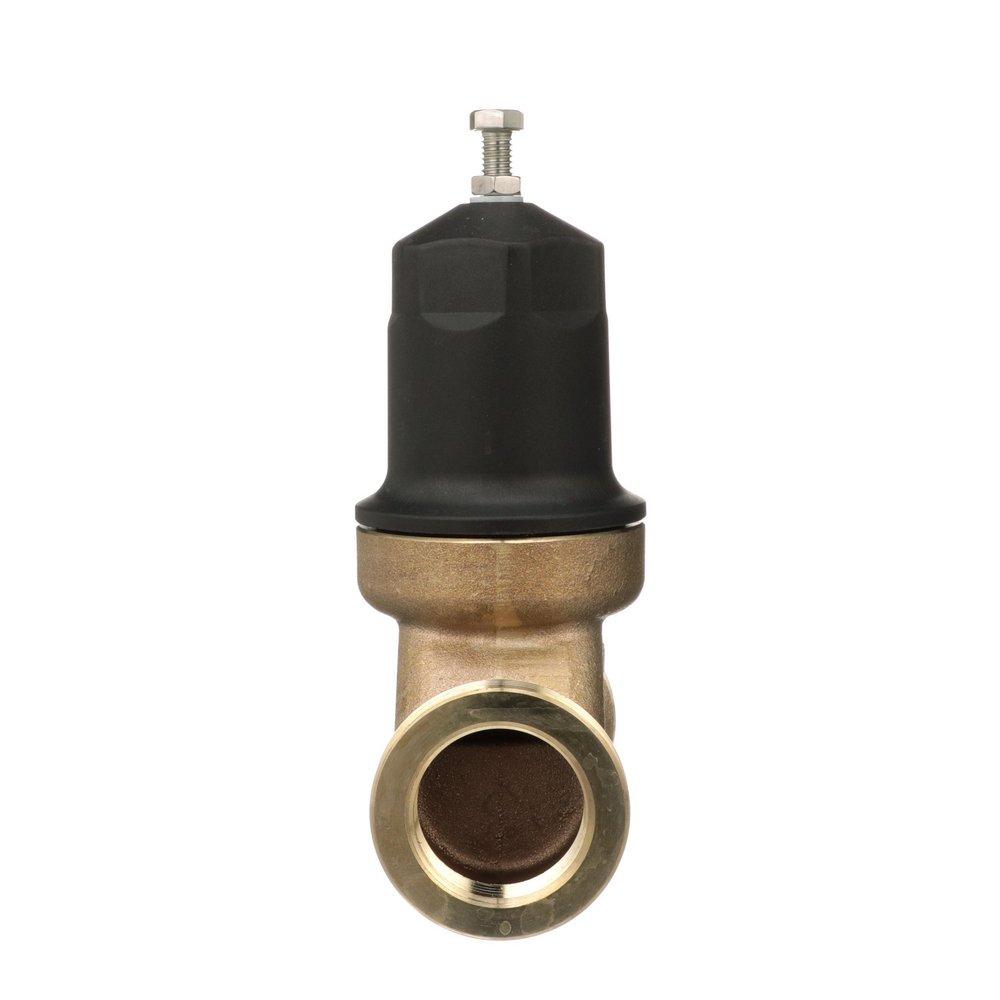

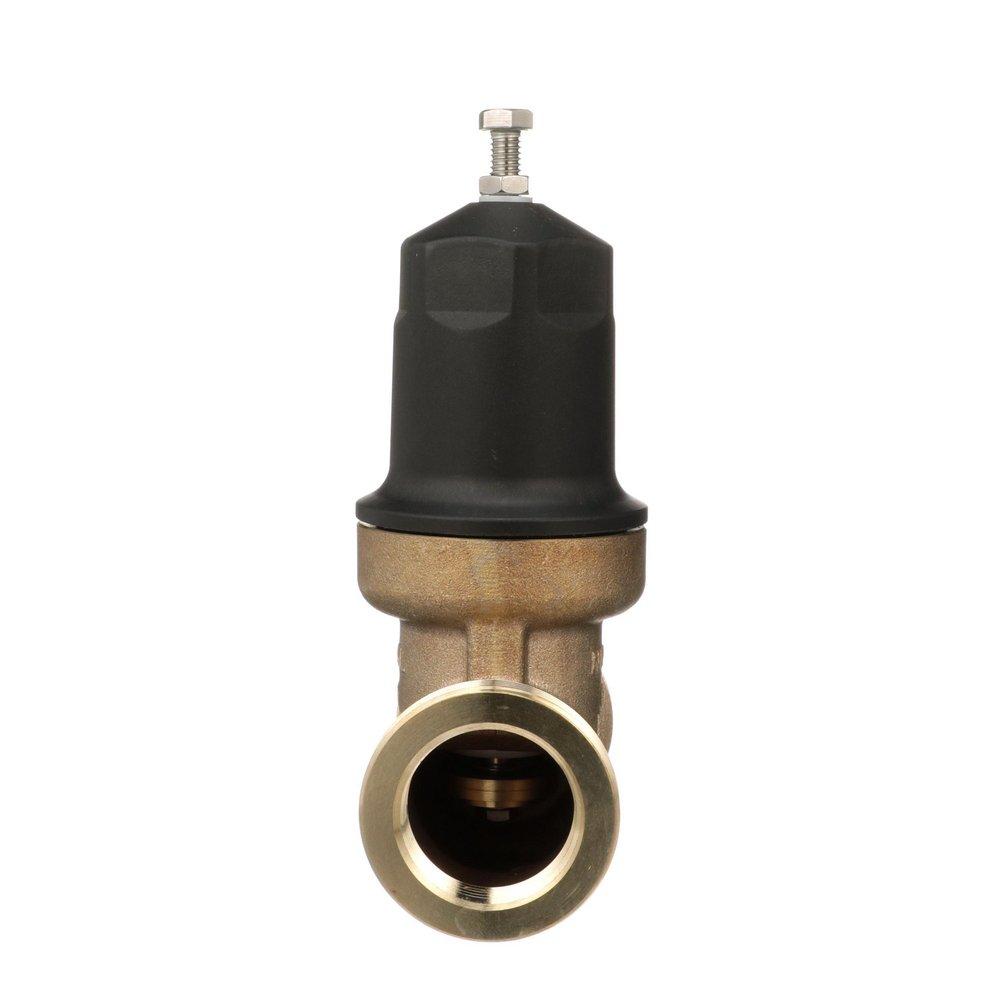

Zurn 114-NR3XL 1-1/4 in. Cast Bronze Single Union FNPT Pressure Reducing Valve is engineered to protect plumbing systems from excessive water pressures, ensuring long-lasting performance. Its compact design and short lay length make it ideal for installation in tight spaces, providing flexibility and efficiency in a variety of applications. The cartridge-loaded design simplifies repairs, allowing for quick maintenance without the need for extensive disassembly. Time-saving tailpiece options, including threaded, PEX, copper sweat, and CPVC connections, cater to diverse installation needs, making it a versatile choice for both residential and commercial projects. Durable, the valve features a threaded bell that resists corrosion and provides easy access to cartridge internals for hassle-free servicing. Built with quality in mind, the integral stainless steel strainer screen is designed to withstand the test of time, ensuring reliable operation. Compliant with ASSE® 1003, IAPMO®, and CSA® standards, as well as ANSI 61, this valve meets rigorous industry requirements for safety and performance. The Zurn 114-NR3XL operates effectively at a maximum pressure of 400 psi and can handle temperatures up to 140°F, making it suitable for a wide range of water applications. With a valve body material of cast bronze and EPDM used for the valve disc and seat, durability and reliability are guaranteed. Weighing 4.15 lbs and measuring 6-2/5 in length, 3-3/10 in width, and 6-1/2 in height, this pressure reducing valve is a practical addition to your plumbing toolkit. Elevate your plumbing system's efficiency and longevity with the Zurn 114-NR3XL.
1-1/4 in. Cast Bronze Single Union FNPT Pressure Reducing Valve
ANSI: ANSI 61 Annex G, ANSI B1.20.1, ANSI B16.22
ASSE Standards: ASSE 1003
CSA Certified: Yes
Collection: NR3XL
End Connection 1: FPT
End Connection 2: FPT
End Connections: FPT
Fitting Size 1: 1-1/4 in
Fitting Size 2: 1-1/4 in
Height: 6-1/2 in
IAPMO Listed: Yes
Lead Law Compliance Level: Lead Law Compliant and Certified
Lead Law Compliant: Yes
Length: 6-2/5 in
Material: Cast Bronze, Plastic
Material Type: Polymer
Maximum Temperature: 140
NSF Certified: Yes
Pressure - Maximum: 400 psi
Proposition 65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Recommended Valve Application: Water
UL Listed: No
Upc: 612052069562
Valve Body Material: Cast Bronze
Valve Body Style: Inline
Valve Disc Material: EPDM
Valve Seat Material: EPDM
Valve Size: 1-1/4 in
Valve Type: Pressure Reducing Valve
Weight: 4.15 lb
Width: 3-3/10 in
