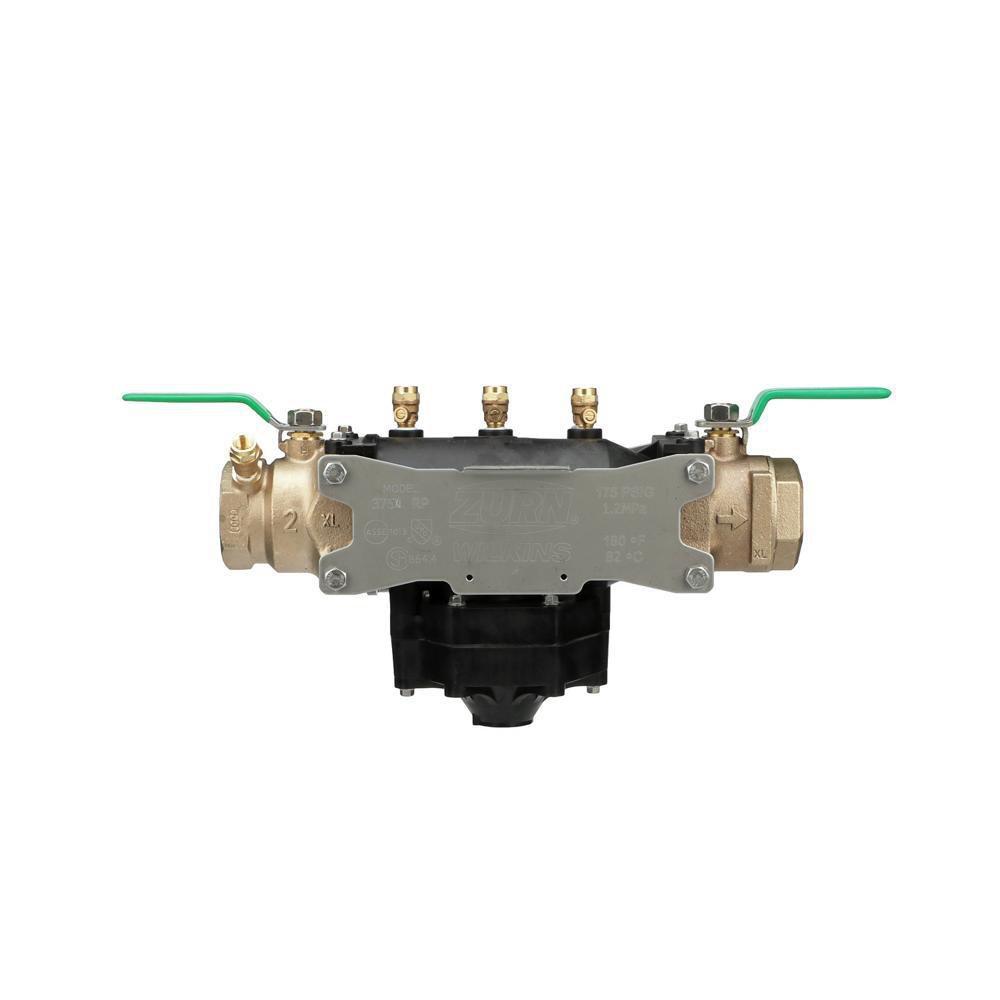

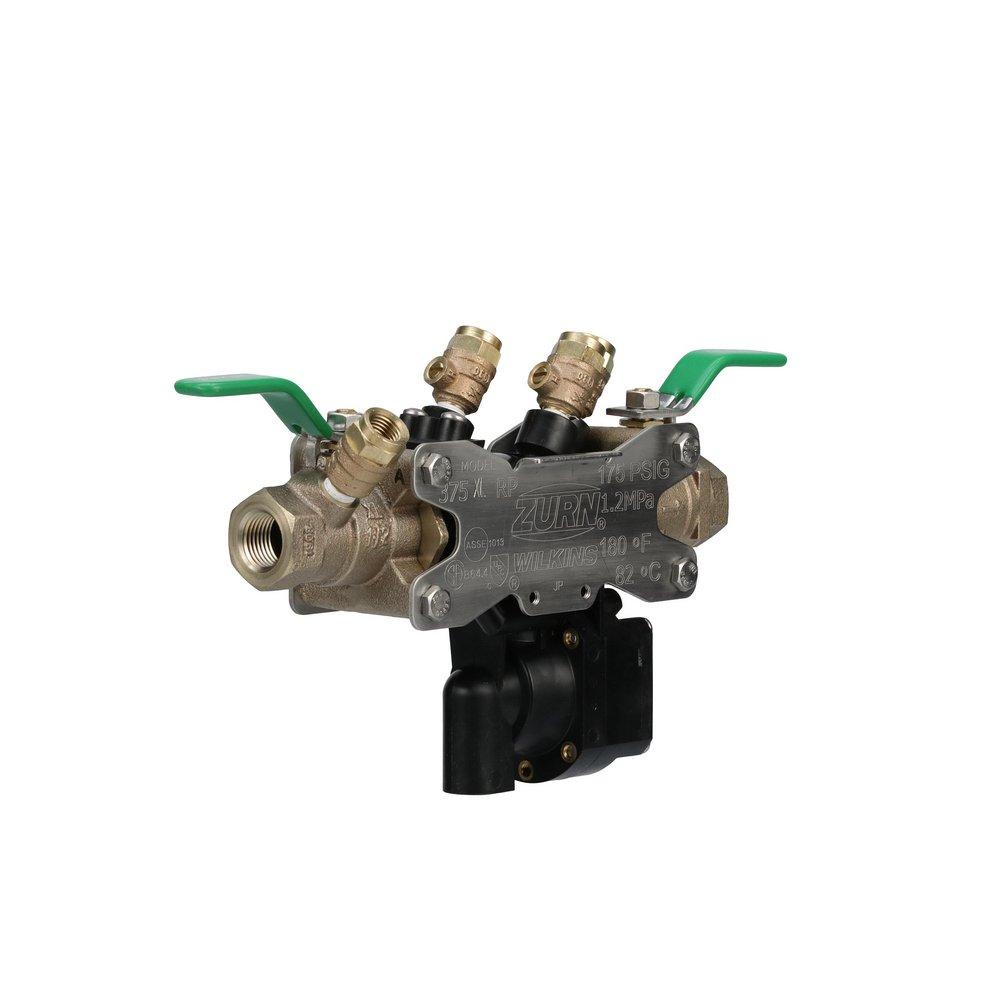

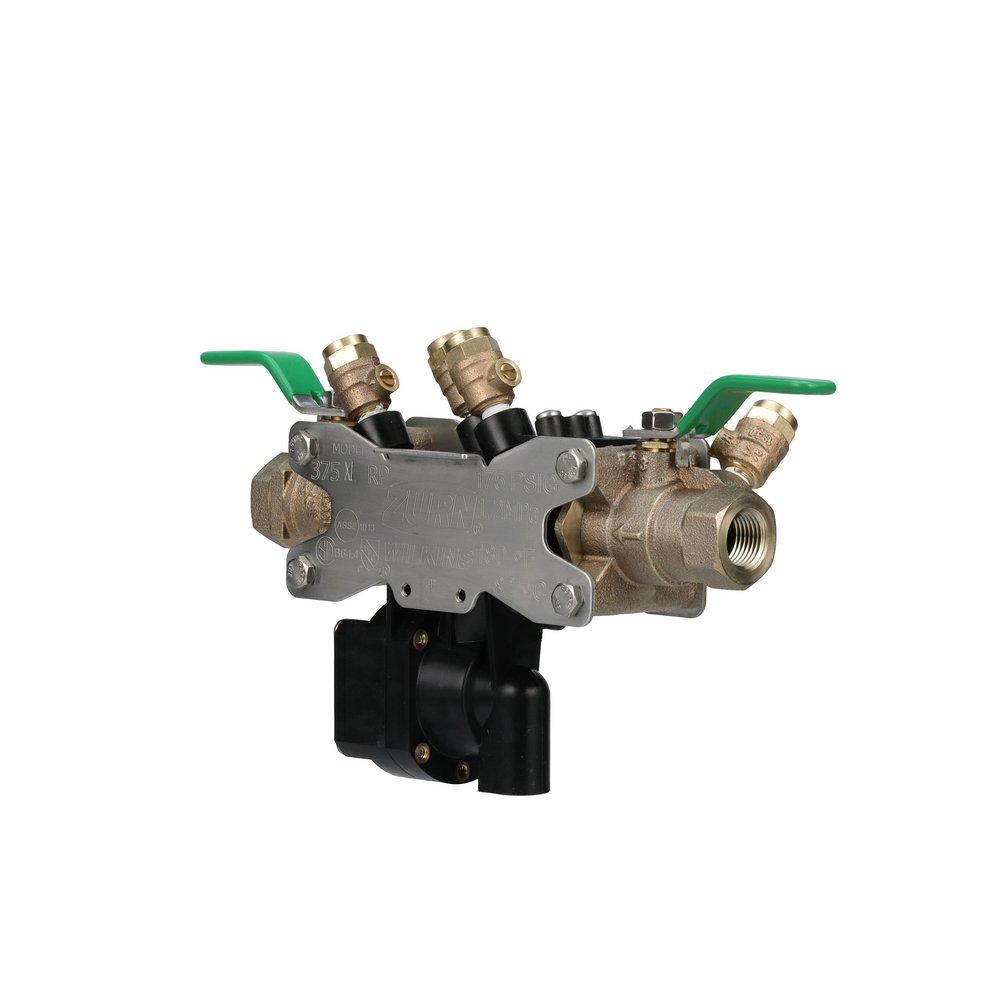

Zurn 12-375XL 1/2" Reinforced Nylon Flanged Reduced Pressure Assembly with Ball ValvesZurn 12-375XL 1/2 in Reinforced Nylon Flanged Reduced Pressure Principle Assembly with Quarter-Turn Ball Valves delivers reliable performance and innovation for your plumbing needs. Designed to fit pipes with a 1/2" inner diameter, this assembly boasts full port quarter-turn ball valves that facilitate quick and easy operation. The EZSwap pressure vessel is a standout feature, providing removable access for maintenance and swift repairs, enhancing the overall convenience for users. Crafted with durable, UV-resistant materials, the EZSwap pressure vessel is engineered to resist corrosion and minimize mineral build-up, ensuring longevity even in harsh conditions. Additionally, the minimal bronze construction serves as a theft deterrent, making it a practical choice for both residential and commercial applications. This assembly supports horizontal and vertical installation, offering flexibility to adapt to various plumbing setups. The option of an easy line flush tool simplifies maintenance, allowing for quicker flushing and saving up to 15 minutes per installation, which is especially beneficial during winterization processes. Zurn 12-375XL is ASSE listed 1013 and cUPC listed, ensuring compliance with industry standards. It also meets the requirements of NSF/ANSI/CAN 61 and is certified by CSA, giving users peace of mind regarding safety and performance. With a maximum pressure of 350 psi and a temperature range of up to 180°F, this assembly is built to handle demanding plumbing tasks effectively. Choose Zurn 12-375XL for a durable, efficient, and user-friendly reduced pressure principle assembly that meets the highest standards in the industry.
1/2 in Reinforced Nylon Flanged Reduced Pressure Principle Assembly with Quarter-Turn Ball Valves
Fits pipes with 1/2" inner diameter
With full port QT ball valves
EZSwap pressure vessel is removable for easy access and added convenience
Durable, UV-resistant EZSwap Pressure Vessel resists corrosion and mineral build-up to better withstand harsh conditions
Minimal bronze construction acts as theft deterrent
Optional line flush tool provides easy line flushing, saving up to 15 minutes per installation and easier winterization.
ASSE listed 1013 and cUPC listed
CSA certified B64.4 and Meets the requirements of NSF/ANSI/CAN 61
Safe Drinking Water Act compliant
Approved by the Foundation for Cross Connection Control and Hydraulic Research at the University of Southern California
Attributes
ANSI: ANSI 61, ANSI B1.20.1
ASSE Standards: ASSE 1013
AWWA: AWWA C-511
CSA Certified: CSA
Collection: 375XL
End Connection 1: Flanged
End Connection 2: Flanged
End Connections: Flanged
Height: 6-41/50 in
IAPMO Listed: Yes
Installation Type: Horizontal, Vertical
Lead Law Compliance Level: Lead Law Compliant and Certified
Lead Law Compliant: Yes
Length: 8-22/25 in
Material: Plastic, Rubber, Stainless Steel
Material Type: 300, Buna-N, Reinforced Nylon
Maximum Temperature: 33
Minimum Temperature: 33
NSF Certified: Yes
Number of Handles: Two Handle
Pressure - High: 175
Pressure - Maximum: 350 psi
Proposition 65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Recommended Valve Application: Plumbing, Water
Temperature Range: Up to 180 Deg F
UL Listed: Yes
Upc: 612052075624
Valve Body Material: Reinforced Nylon
Valve Body Style: Inline
Valve Disc Material: Silicone
Valve Operator: Lever Handle
Valve Port Opening: Full Port
Valve Seat Material: Delrin®
Valve Size: 1/2 in
Valve Type: Reduced Pressure Principle Assembly
Weight: 5.7 lb
Width: 2-3/4 in
