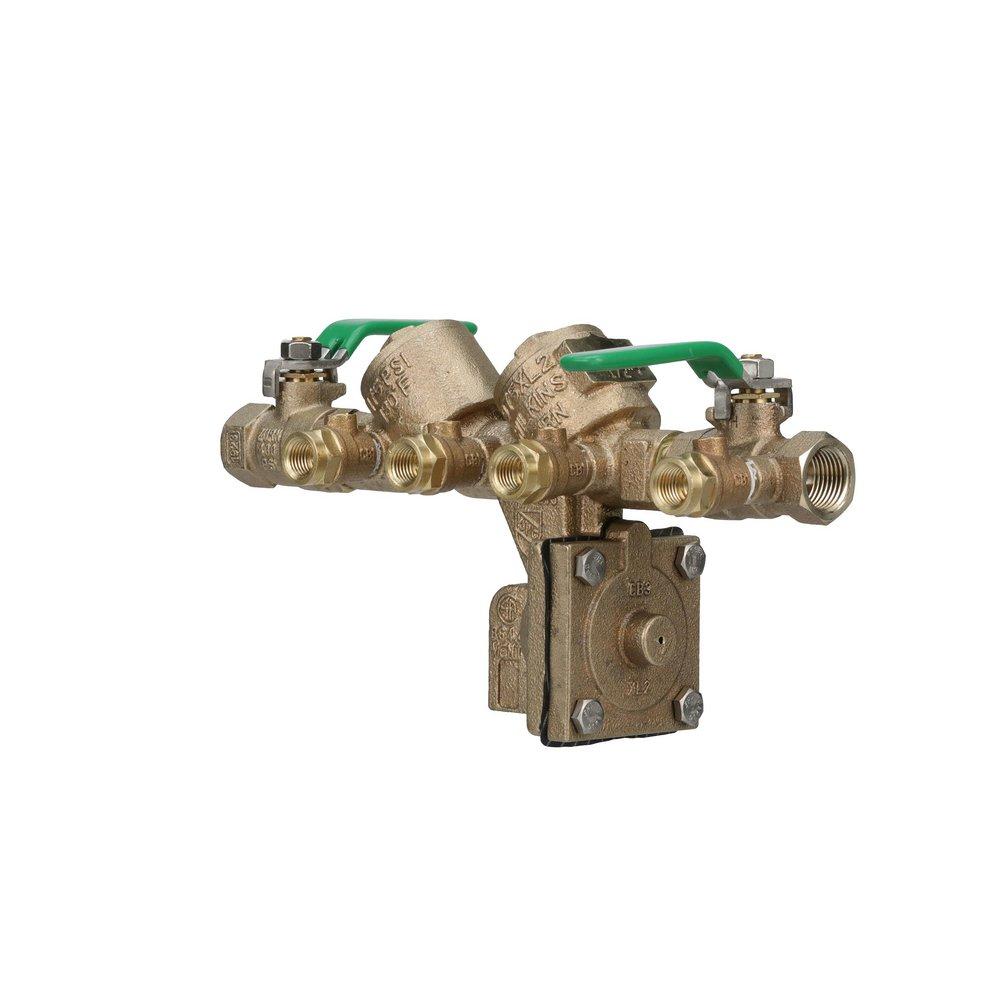

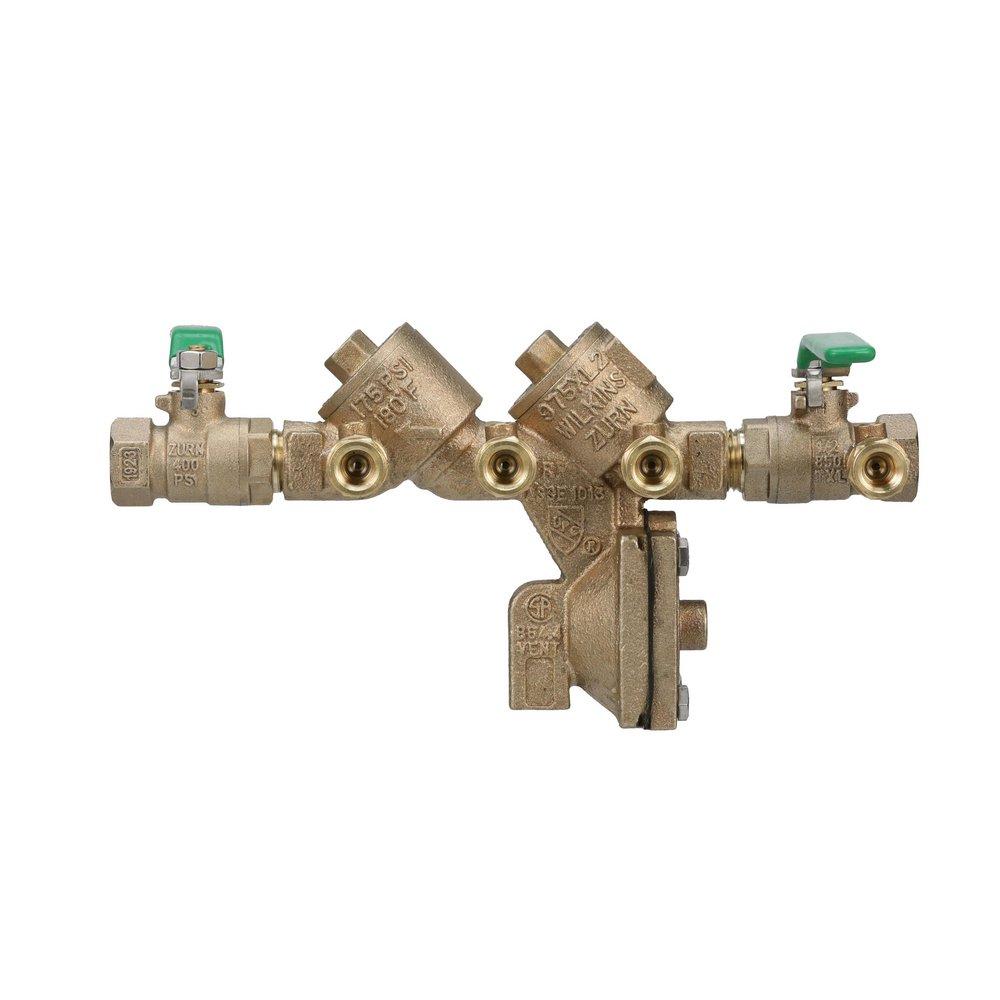

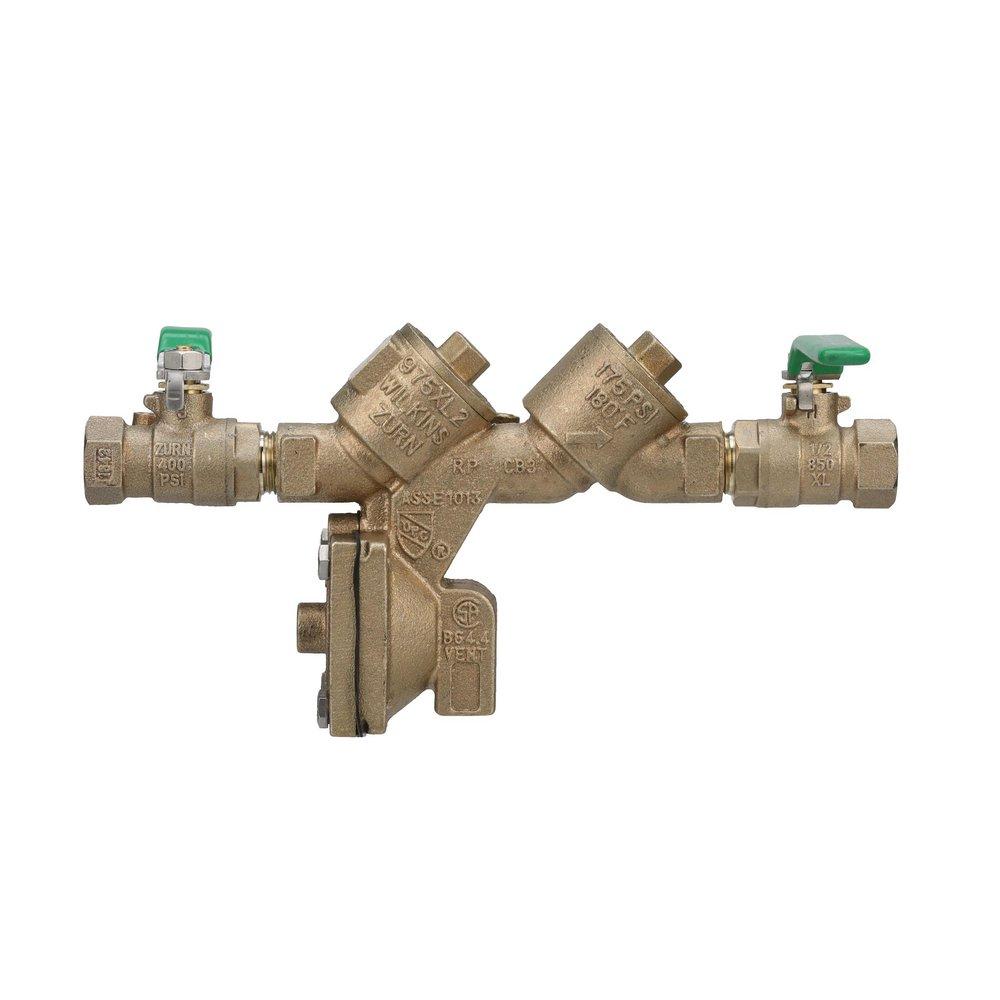

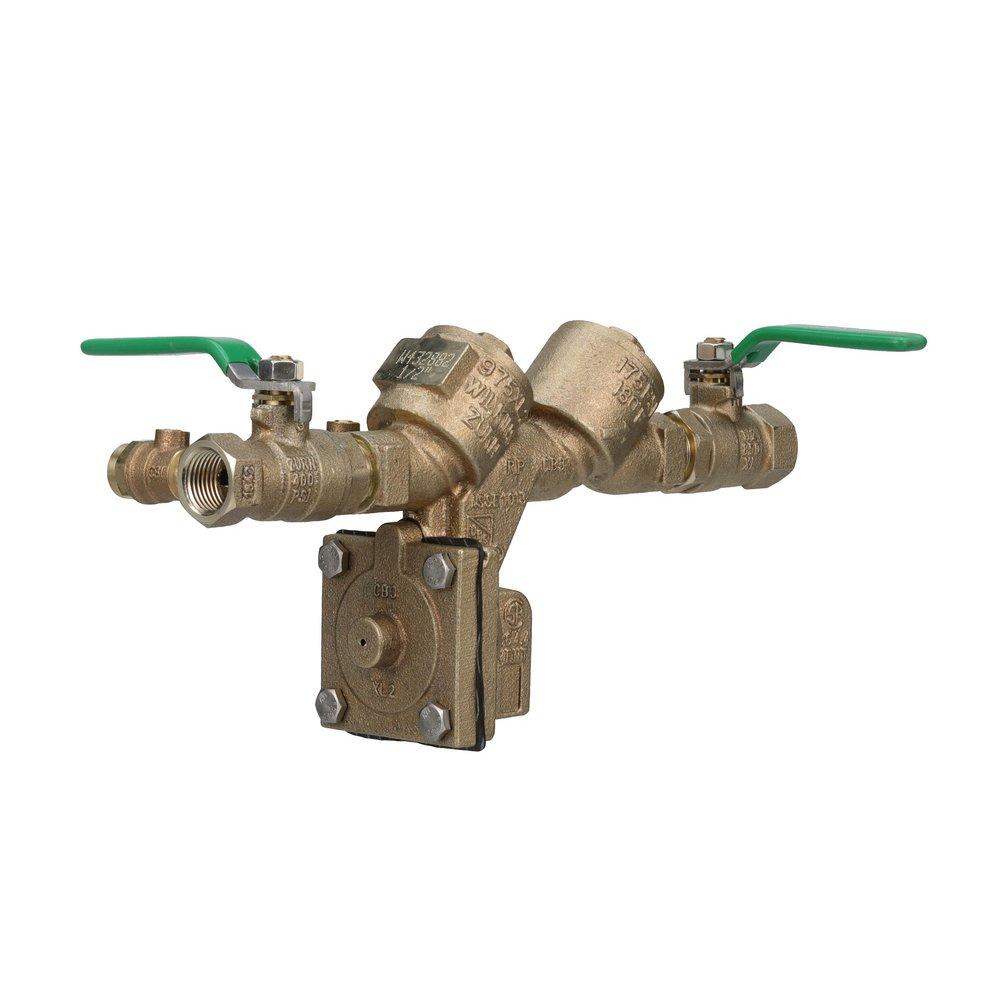

Zurn 12-975XL2 1/2 in Bronze FPT Reduced Pressure Principle Assembly with Quarter-Turn Ball Valves is engineered for optimal performance in plumbing and water applications. This reliable assembly is IAPMO® Listed and meets stringent safety standards, including ASSE® 1013 and AWWA C511, ensuring compliance and peace of mind for both residential and commercial installations. Constructed from all cast bronze with stainless steel internals, this assembly is designed to resist corrosion, providing longevity and durability in various environments. The unit features a compact design with a short lay length, which simplifies installation and replacement, ultimately reducing associated costs. The top-access checks allow for convenient maintenance and repairs, even in tight spaces, making it an ideal choice for professionals who value efficiency. With a maximum pressure capability of 175 psi and operating temperatures ranging from 33°F to 180°F, the Zurn 12-975XL2 is versatile enough to handle a variety of applications. The valve seats, made from Noryl, are easily replaceable, enhancing the longevity and serviceability of the assembly. Each unit includes two handles for straightforward operation, ensuring ease of use. This assembly is also low-lead law compliant, aligning with modern regulations for safe drinking water. Weighing in at just 7 lbs, it measures 10 inches in length and 4-1/4 inches in width, making it a streamlined addition to any plumbing system. Whether you're a builder or a knowledgeable homeowner, the Zurn 12-975XL2 offers reliability and performance that you can trust.
1/2 in Bronze FPT Reduced Pressure Principle Assembly with Quarter-Turn Ball Valves
ANSI: ANSI B1.20.1
ASSE Standards: ASSE 1013
AWWA: AWWA C-511
CSA Certified: CSA
Collection: 975XL2
End Connection 1: FPT
End Connection 2: FPT
End Connections: FPT
Height: 6 in
IAPMO Listed: Yes
Installation Type: Horizontal
Lead Law Compliance Level: Lead Law Compliant and Certified
Lead Law Compliant: Yes
Length: 10 in
Material: Bronze, Rubber, Stainless Steel, Plastic
Material Type: 300, Buna-N, Noryl®
Maximum Temperature: 180
Minimum Temperature: 33
NSF Certified: Yes
Number of Handles: Two Handle
Pressure - Maximum: 175 psi
Proposition 65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Recommended Valve Application: Plumbing, Water
UL Listed: No
Upc: 612052069791
Valve Body Material: Bronze
Valve Body Style: Inline
Valve Operator: Tee Handle
Valve Port Opening: Full Port
Valve Seat Material: Noryl
Valve Size: 1/2 in
Valve Type: Reduced Pressure Principle Assembly
Weight: 7 lb
Width: 4-1/4 in
