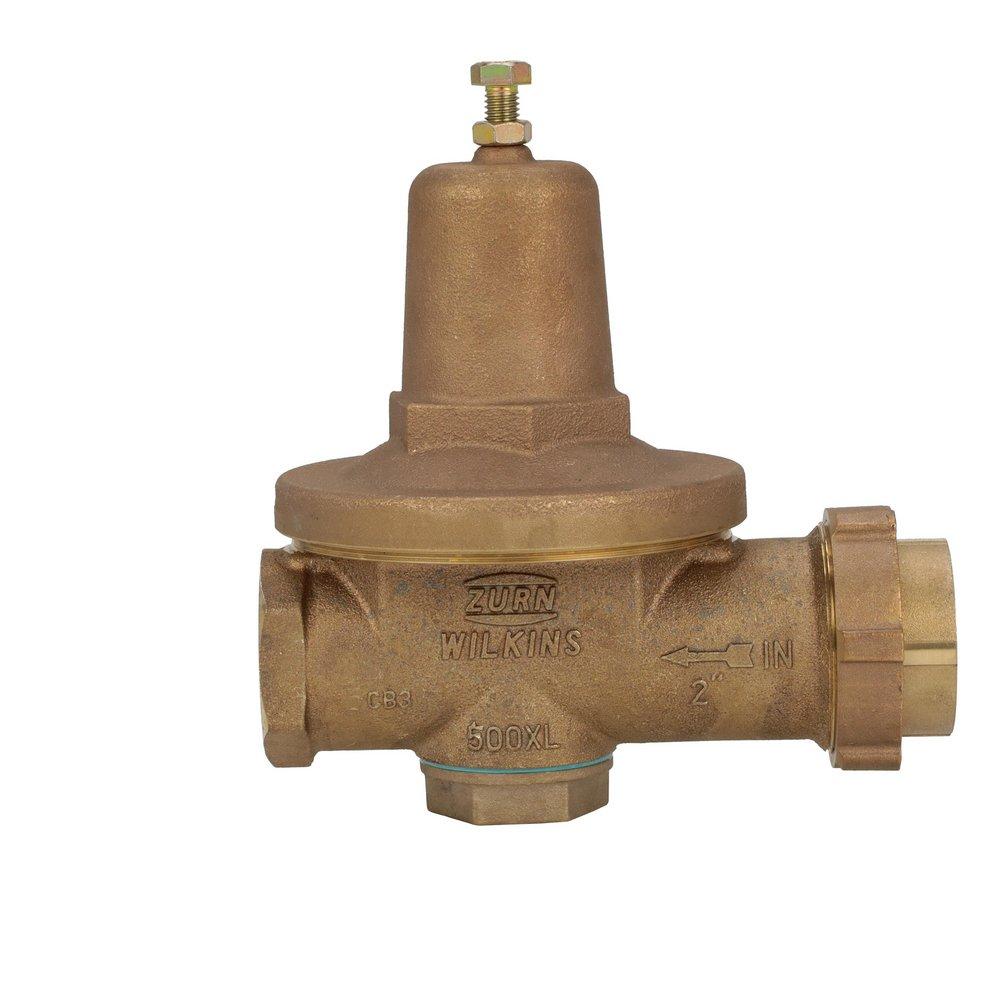

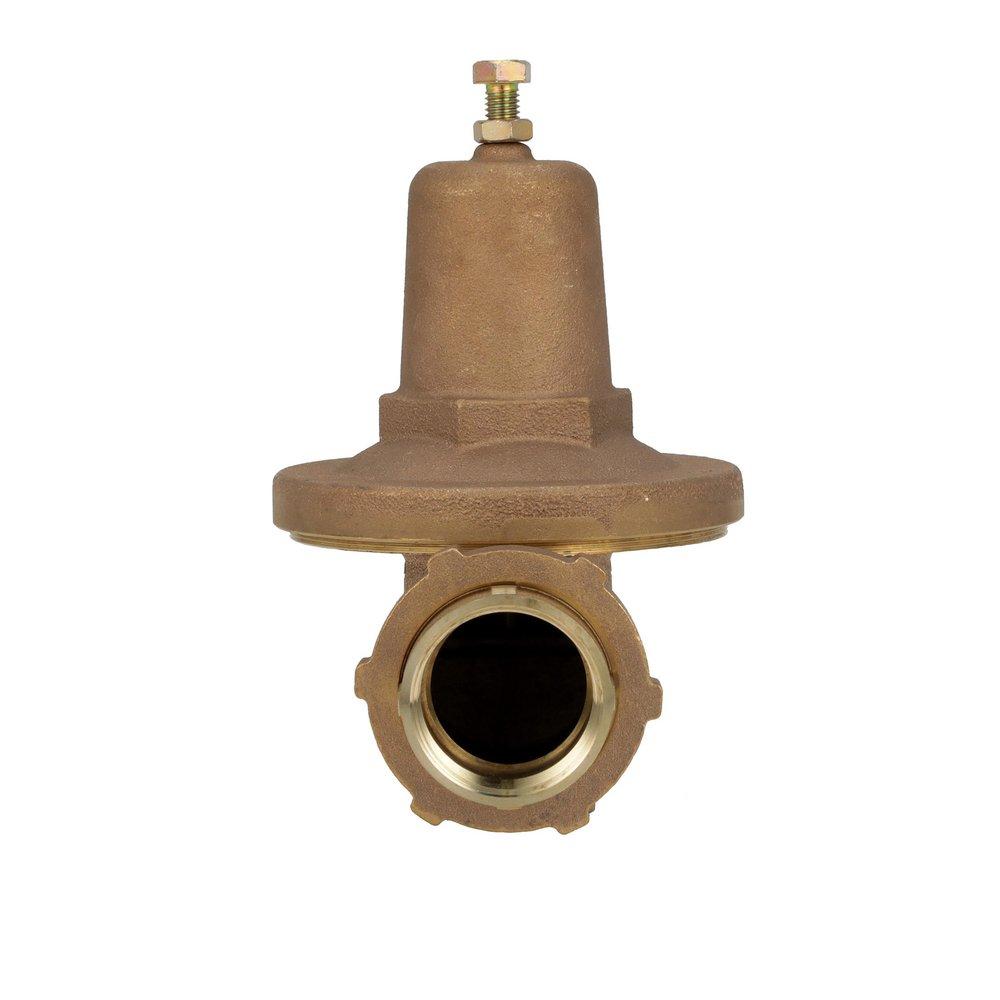

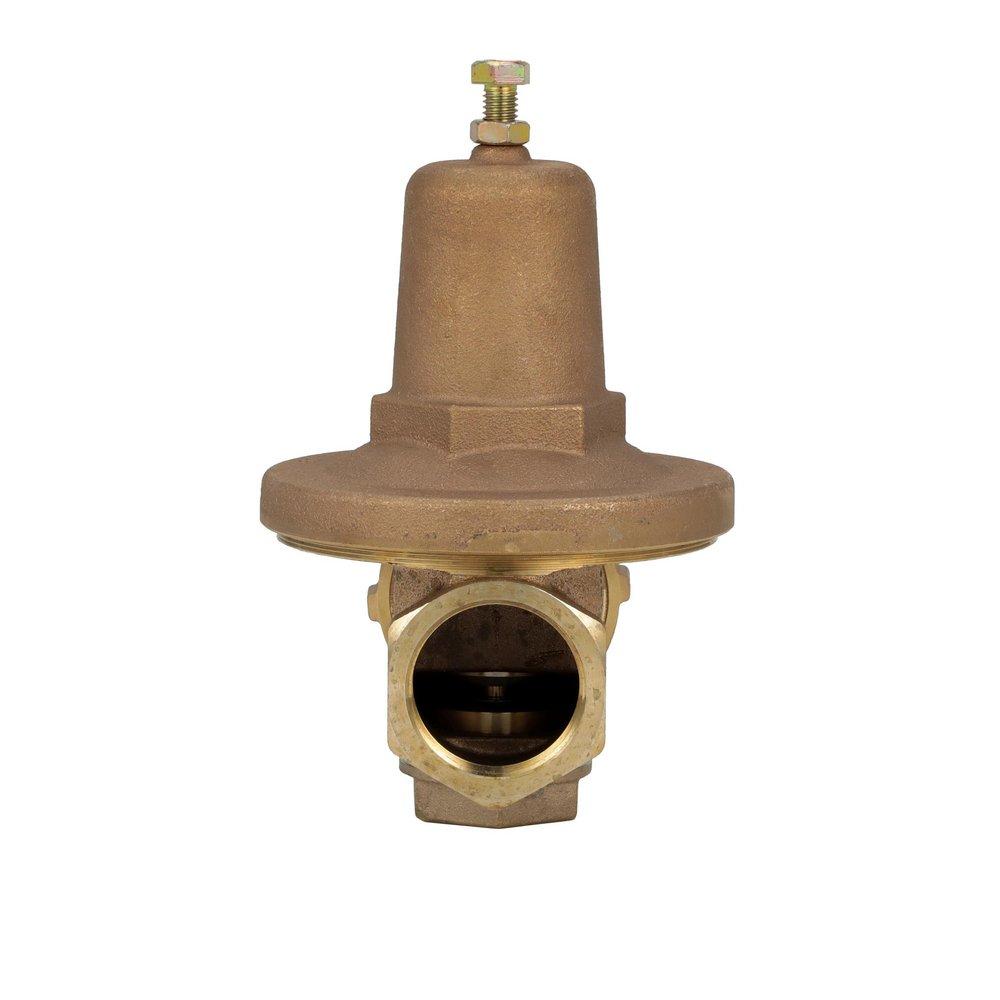

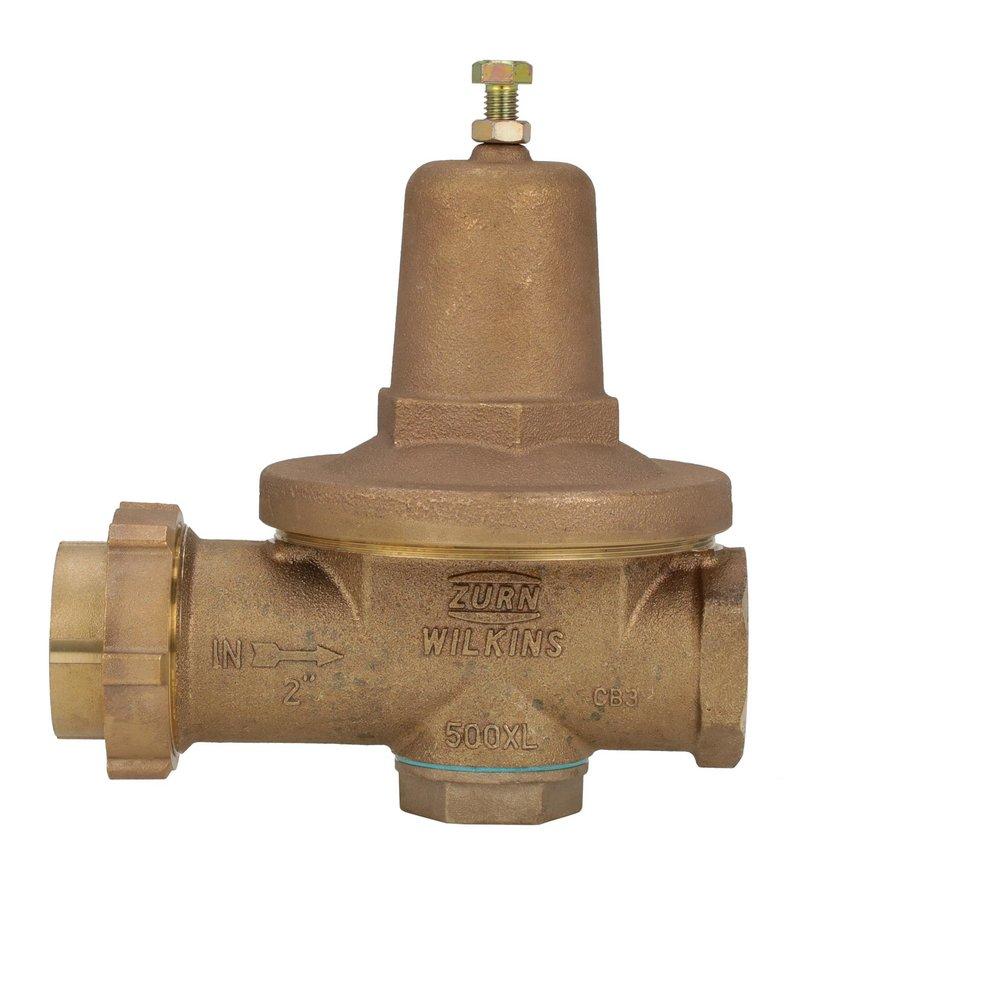

Zurn 2-500XL 2 in. 300 psi Cast Bronze FNPT Pressure Reducing Valve is designed to deliver reliable performance for both commercial and industrial applications. With its compact design and short lay length, this valve easily fits into tight spaces without compromising functionality, making it an ideal choice for various installations. Engineered for high-flow capacity, the Zurn 2-500XL effectively reduces water pressure while ensuring consistent flow, meeting the demands of any pressure reduction requirement. The valve body, crafted from durable cast bronze, offers exceptional resistance to corrosion, while the threaded bell facilitates easy access to cartridge internals for straightforward maintenance. This pressure reducing valve is lead-free, ensuring compliance with health and safety standards, and is certified by respected organizations including ASSE®, IAPMO®, and CSA®. Additionally, it meets ANSI 61 requirements, making it a trusted option for any project. The stainless steel valve seat enhances durability, while the Buna-N and EPDM materials used in its construction guarantee long-lasting performance. Measuring 10-9/10 inches in height and length, with a width of 6-1/2 inches, the Zurn 2-500XL is designed for straightforward installation with FPT end connections, ensuring compatibility with existing piping systems. It operates effectively at a maximum temperature of 140°F and can handle pressures up to 300 psi, providing peace of mind in demanding environments. Whether for new construction or retrofitting existing systems, the Zurn 2-500XL Pressure Reducing Valve is a reliable choice that combines efficiency, durability, and ease of installation to meet the needs of building professionals and knowledgeable homeowners alike.
2 in. 300 psi Cast Bronze FNPT Pressure Reducing Valve
ANSI: ANSI 372, ANSI 61, ANSI B1.20.1, ANSI B16.22
ASSE Standards: ASSE 1003
CSA Certified: Yes
Collection: Model 500XL
End Connection 1: FPT
End Connection 2: FPT
End Connections: FPT
Fitting Size 1: 2 in
Fitting Size 2: 2 in
Height: 10-9/10 in
IAPMO Listed: Yes
Lead Law Compliance Level: Lead Law Compliant and Certified
Lead Law Compliant: Yes
Length: 10-9/10 in
Material: Cast Bronze, Rubber
Material Type: Buna-N, EPDM
Maximum Temperature: 140
NSF Certified: Yes
Pressure - Maximum: 300 psi
Proposition 65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Recommended Valve Application: Water
UL Listed: No
Upc: 612052029917
Valve Body Material: Bronze
Valve Body Style: Inline
Valve Seat Material: Stainless Steel
Valve Size: 2 in
Valve Type: Pressure Reducing Valve
Weight: 18.87 lb
Width: 6-1/2 in
