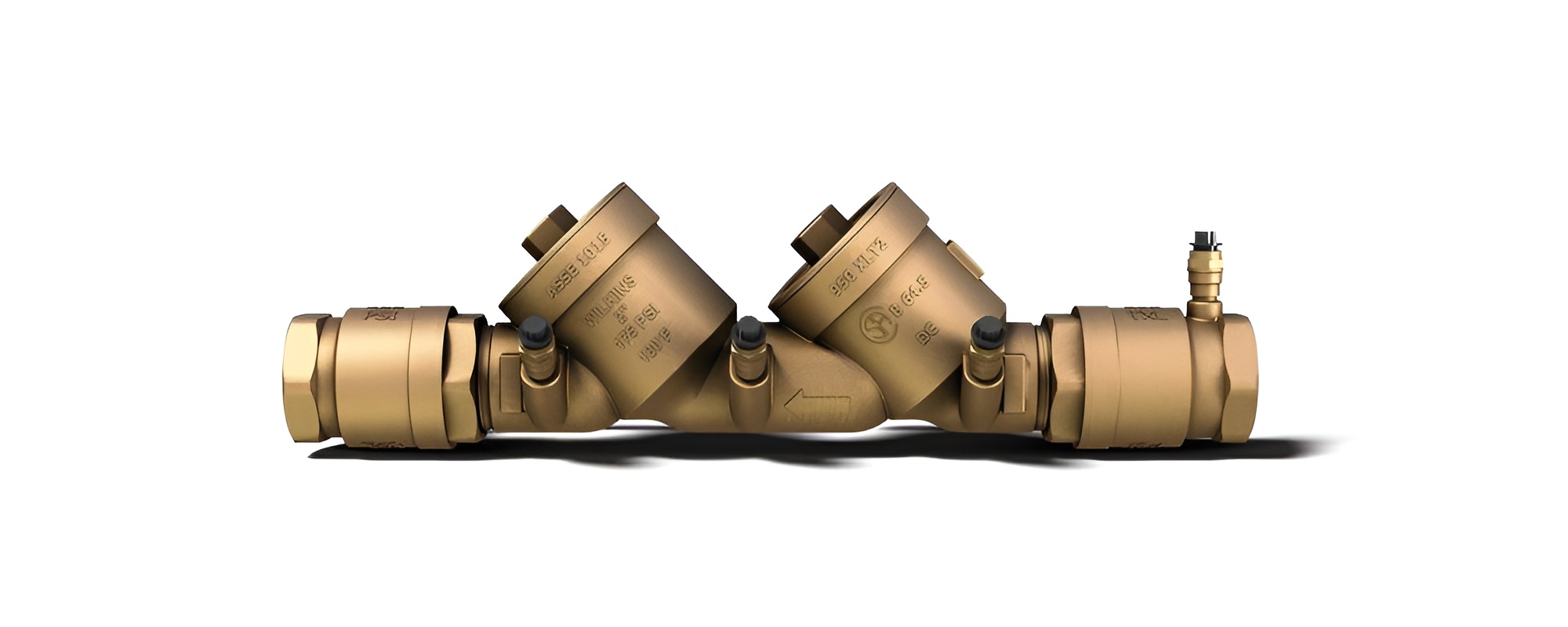

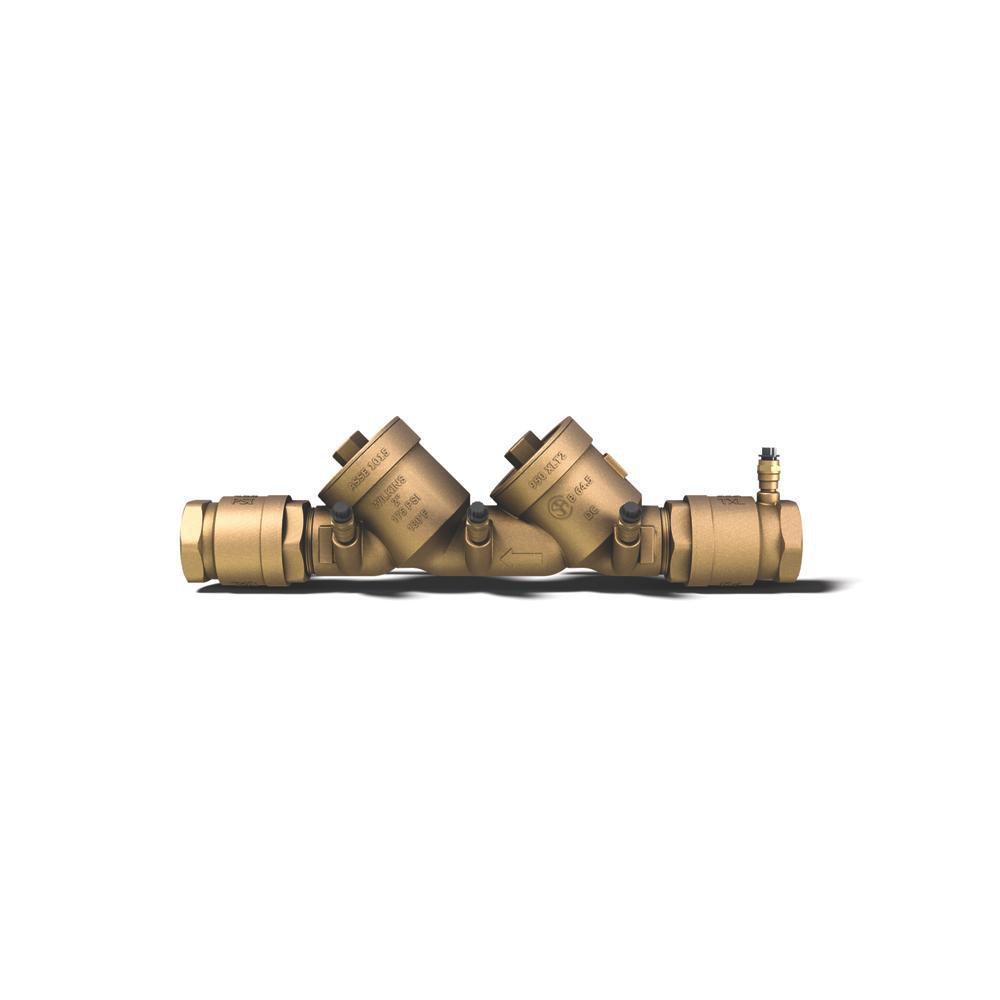

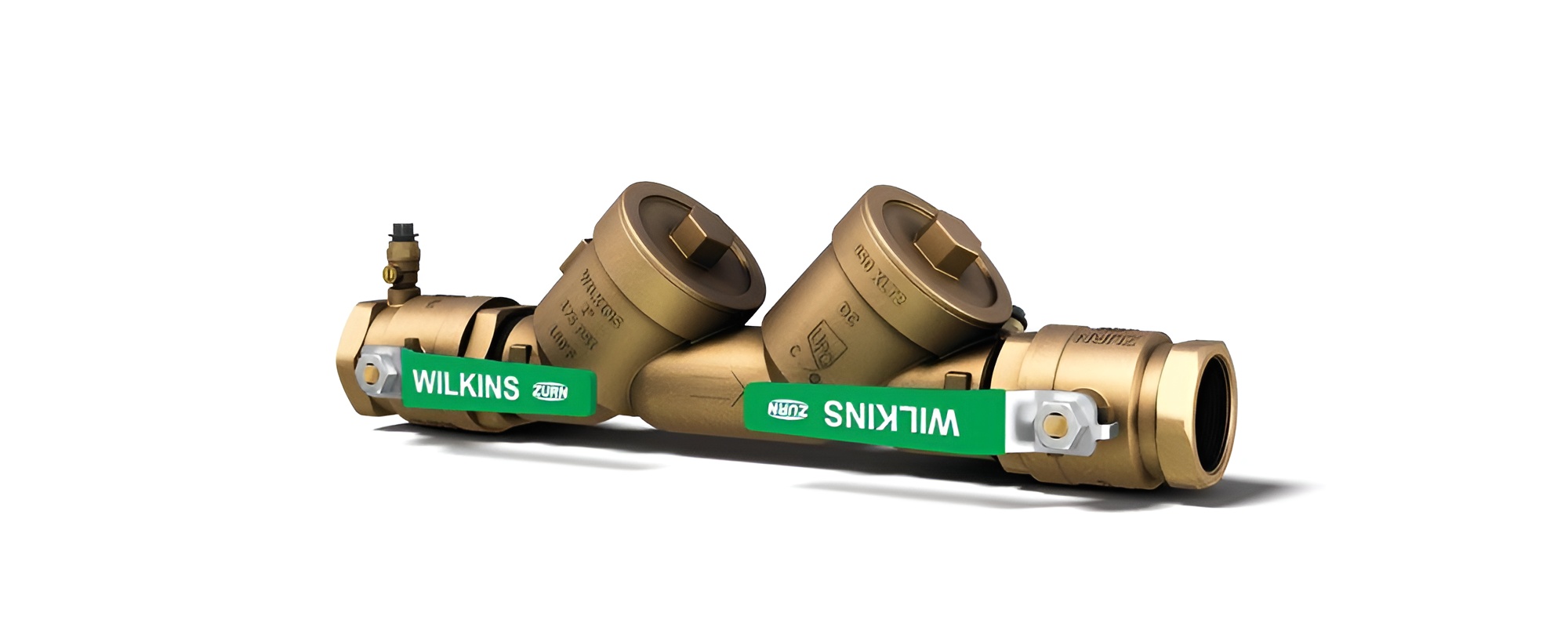

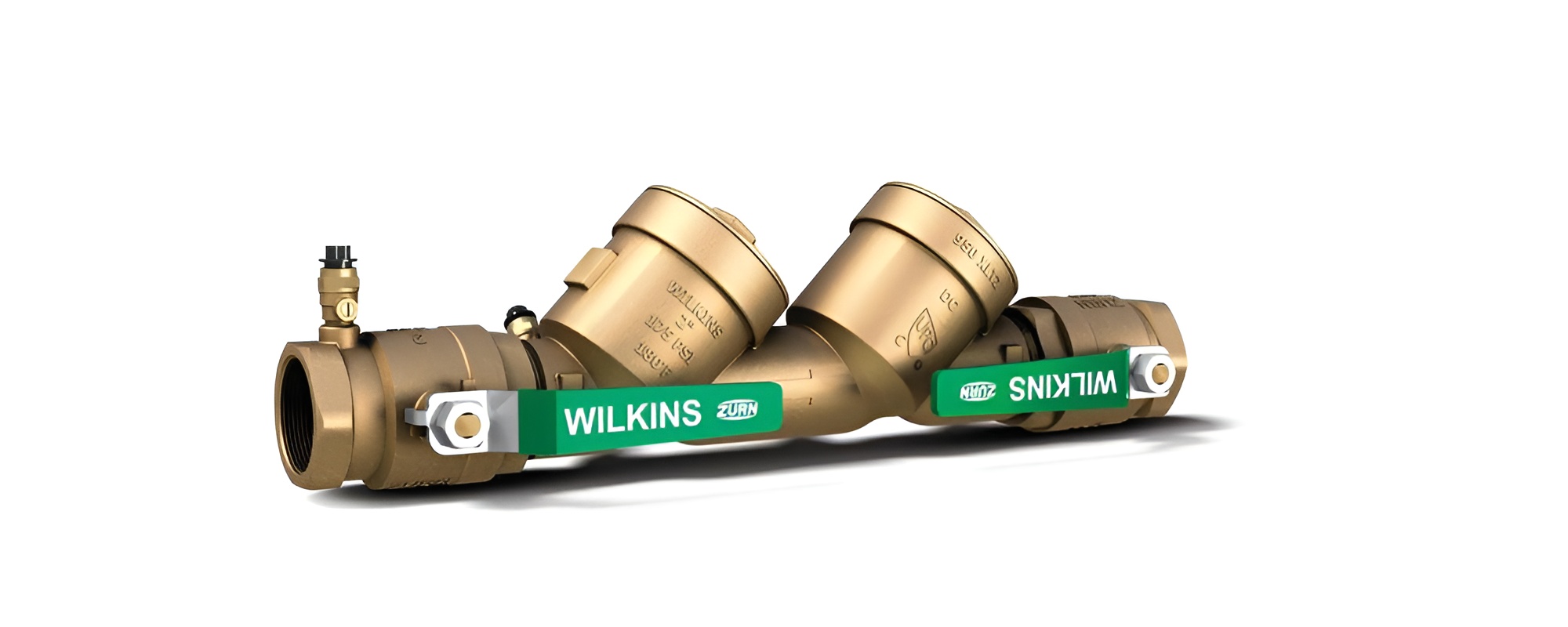

Zurn 2-950XLT2 2 in Bronze FPT Double Check Valve Assembly with Quarter-Turn Ball Valves ensures robust protection against backflow in plumbing systems, making it an essential component for both residential and commercial applications. Compliant with AWWA C510 and CSA® standards, this valve assembly is designed for reliability and efficiency. Featuring top access double checks, maintenance and repairs are hassle-free, allowing for quick service without disrupting the entire system. The seats and silicone seal rings are fully replaceable, which helps to minimize long-term maintenance costs. This valve assembly fits seamlessly within standard meter boxes, making installation straightforward and efficient. Constructed from high-quality bronze, rubber, stainless steel, and plastic, the Zurn 2-950XLT2 offers exceptional corrosion resistance and is built to withstand winterization, ensuring reliable performance in various environmental conditions. With a temperature range of 33°F to 180°F and a maximum pressure rating of 175 psi, this valve assembly is versatile enough for a wide array of plumbing needs. The Zurn 2-950XLT2 is also lead-free law compliant and is recognized by the Foundation for Cross Connection Control and Hydraulic Research at the University of Southern California, as well as being ASSE® Listed 1015 and IAPMO® Listed. Weighing 29 lbs and measuring 21-19/50 in length, 8 in width, and 5-63/100 in height, this inline double check valve assembly is both substantial and compact enough for effective use. Choose the Zurn 2-950XLT2 for a dependable, high-performance solution in your plumbing system that blends durability with ease of maintenance.
2 in Bronze FPT Double Check Valve Assembly with Quarter-Turn Ball Valves
ANSI: ANSI B1.20.1
ASSE Standards: ASSE 1015
AWWA: AWWA C-510
CSA Certified: CSA
Collection: 950XLT2
End Connection 1: FPT
End Connection 2: FPT
End Connections: FPT
Height: 5-63/100 in
IAPMO Listed: Yes
Installation Type: Horizontal
Lead Law Compliance Level: Lead Law Compliant and Certified
Lead Law Compliant: Yes
Length: 21-19/50 in
Material: Bronze, Rubber, Stainless Steel, Plastic
Material Type: 300, Buna-N, Noryl®
Maximum Temperature: 180
Minimum Temperature: 33
NSF Certified: Yes
Number of Handles: Two Handle
Pressure - Maximum: 175 psi
Proposition 65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Recommended Valve Application: Plumbing, Water
Temperature Range: Up to 180 Deg F
UL Listed: No
Upc: 612052071466
Valve Body Material: Bronze
Valve Body Style: Inline
Valve Disc Material: Silicone
Valve Operator: Lever Handle
Valve Port Opening: Full Port
Valve Seat Material: Noryl
Valve Size: 2 in
Valve Type: Double Check Valve Assembly
Weight: 29 lb
Width: 8 in
