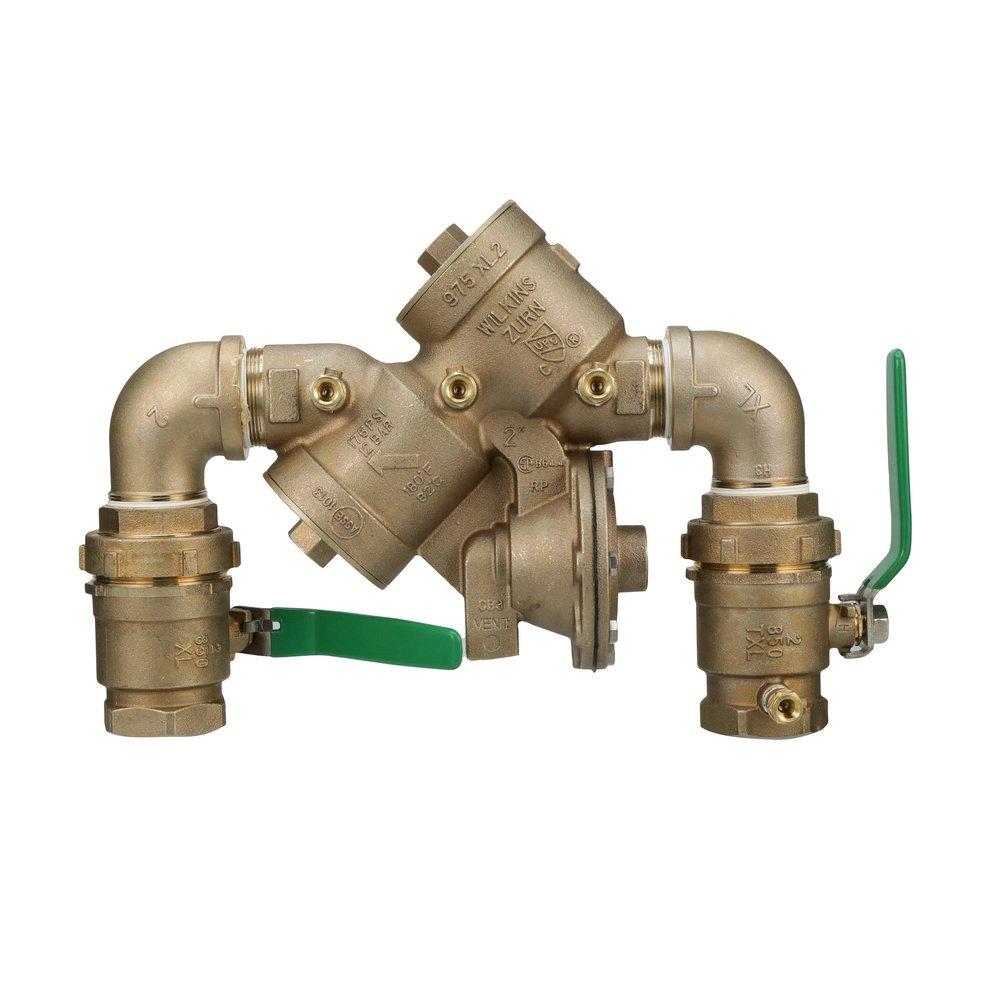

Zurn 2-975XL2SEU 2 in Bronze FPT Reduced Pressure Principle Assembly with Quarter-Turn Ball Valves is engineered for reliable performance and durability in plumbing applications. This assembly is compliant with the highest industry standards, having received approval from the Foundation for Cross Connection Control and Hydraulic Research at the University of Southern California, as well as certifications from NSF/ANSI, ASSE® (Listed 1013), IAPMO®, and CSA®. Designed for easy installation, the Zurn 2-975XL2SEU features a versatile N-pattern or z-pattern configuration, complemented by inlet and outlet 90° street elbows that ensure a narrow footprint. Constructed from all cast bronze, with stainless steel fasteners and springs, this assembly offers exceptional corrosion resistance, making it a long-lasting solution for both residential and commercial settings. With a maximum pressure rating of 175 psi and temperature capabilities ranging from 33°F to 180°F, this assembly is built to handle a variety of water conditions. The two-handle lever design allows for intuitive operation, while the low-lead compliance ensures it meets modern health and safety requirements. Weighing in at 36 lbs, and with dimensions of 16 inches in length, 6-1/4 inches in width, and 11-3/4 inches in height, this assembly is designed for horizontal installation, ensuring it fits seamlessly into your plumbing system. Whether you’re a builder, contractor, or knowledgeable homeowner, the Zurn 2-975XL2SEU Reduced Pressure Principle Assembly is a reliable choice that combines innovative design with proven durability for efficient water management.
2 in Bronze FPT Reduced Pressure Principle Assembly with Quarter-Turn Ball Valves
ANSI: ANSI B1.20.1
ASSE Standards: ASSE 1013
AWWA: AWWA C-511
CSA Certified: CSA
Collection: 975XL2SEU
End Connection 1: FPT
End Connection 2: FPT
End Connections: FPT
Height: 11-3/4 in
IAPMO Listed: Yes
Installation Type: Horizontal
Lead Law Compliance Level: Lead Law Compliant and Certified
Lead Law Compliant: Yes
Length: 16 in
Material: Bronze
Maximum Temperature: 180
Minimum Temperature: 33
NSF Certified: Yes
Number of Handles: Two Handle
Pressure - Maximum: 175 psi
Proposition 65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Recommended Valve Application: Plumbing, Water
UL Listed: Yes
Upc: 612052096995
Valve Body Material: Bronze
Valve Body Style: Inline
Valve Operator: Lever Handle
Valve Seat Material: Noryl
Valve Size: 2 in
Valve Type: Reduced Pressure Principle Assembly
Weight: 36 lb
Width: 6-1/4 in
