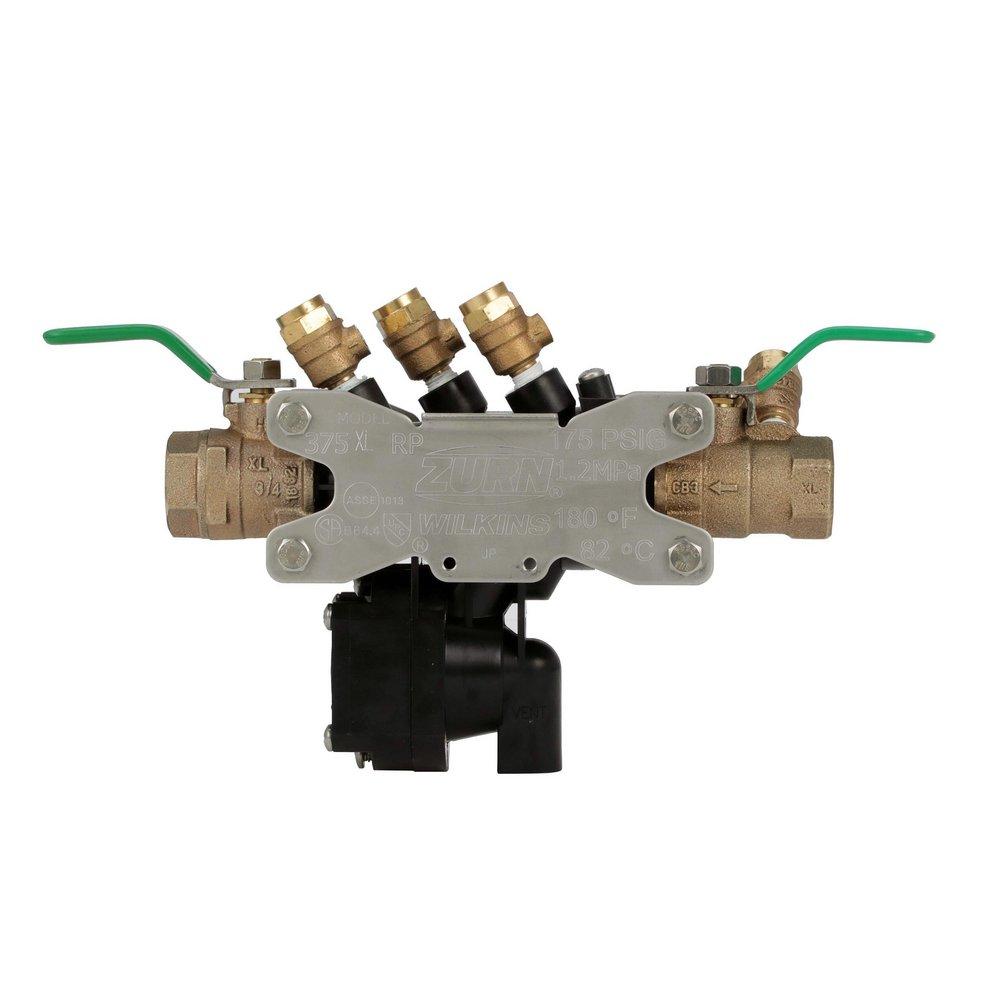

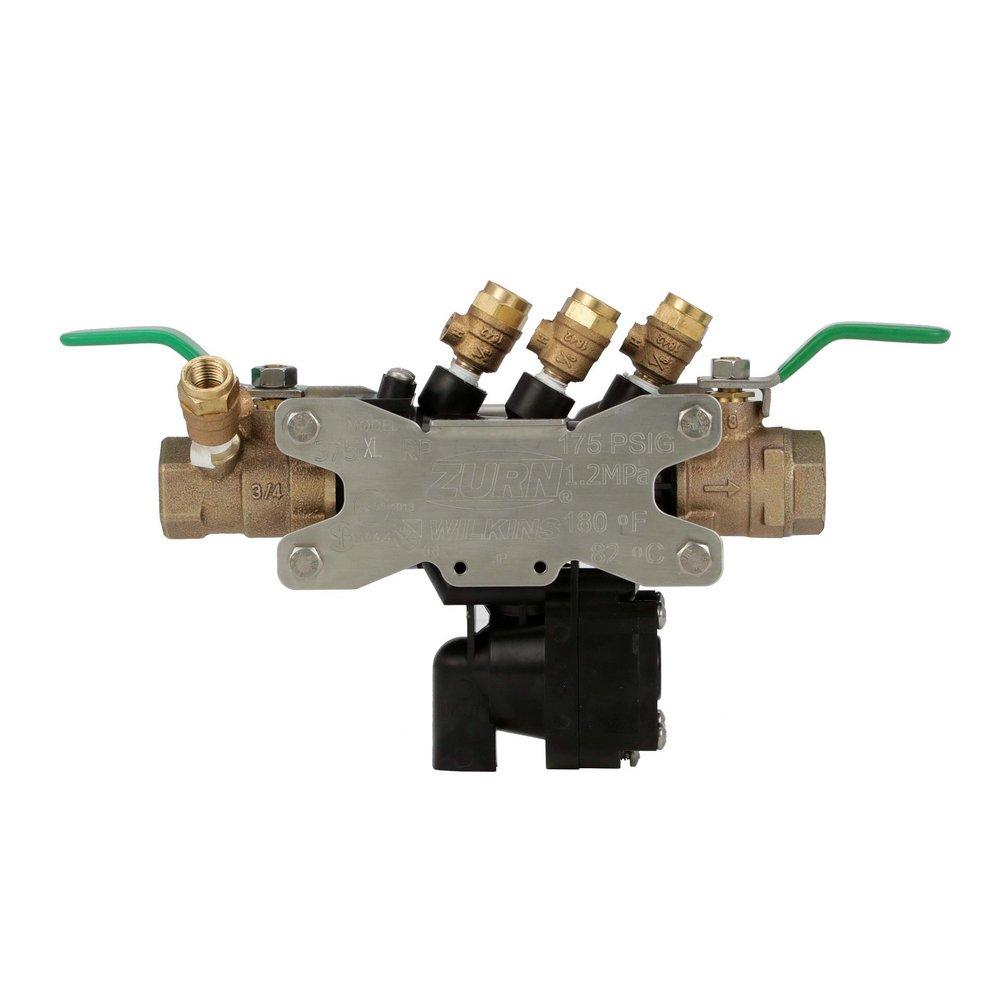

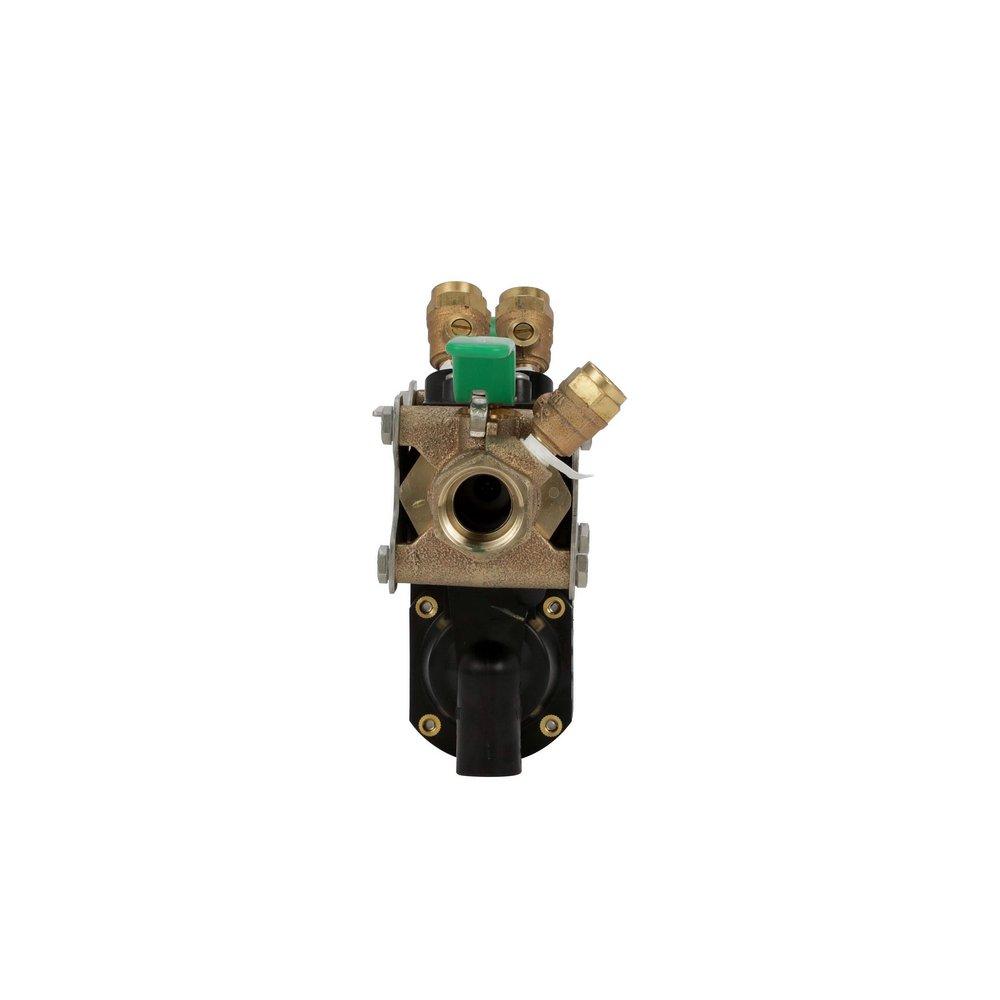

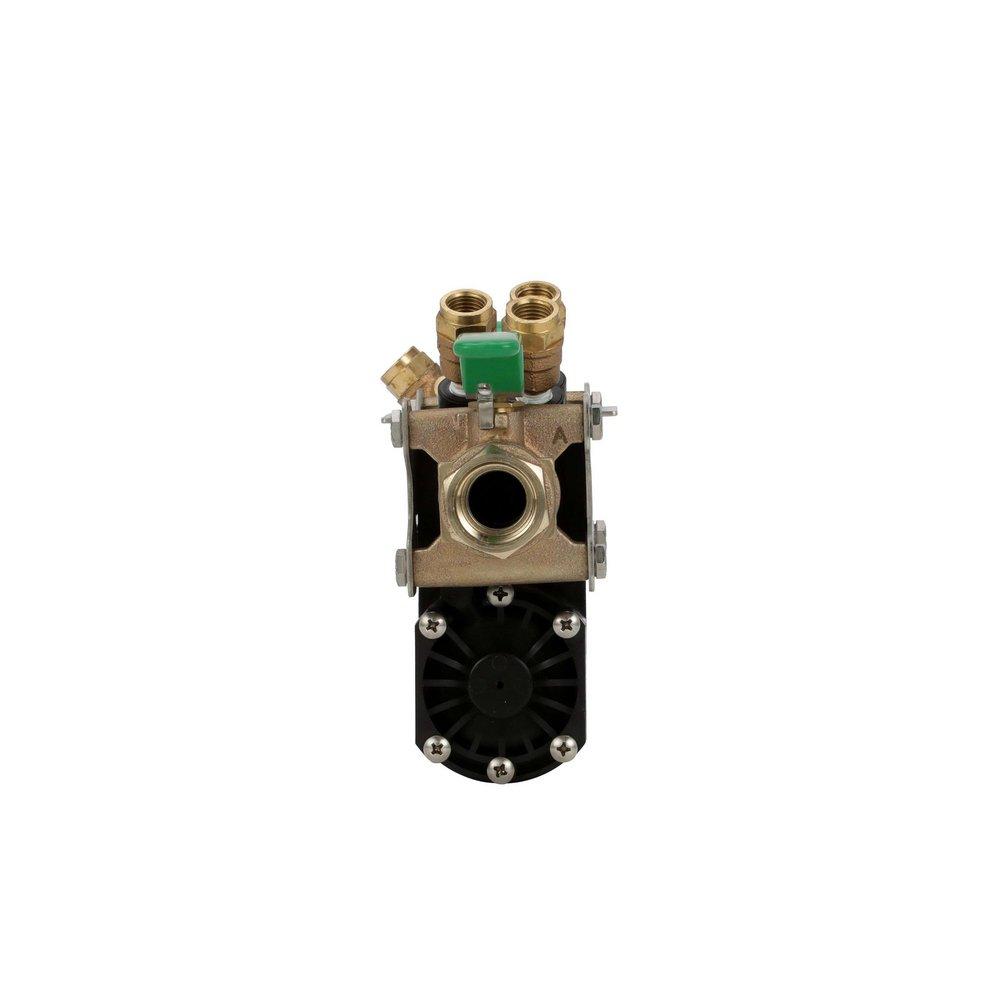

Zurn 34-375XL 3/4" Reinforced Nylon Flanged Reduced Pressure Assembly with Ball ValvesZurn 34-375XL 3/4 in Reinforced Nylon Flanged Reduced Pressure Principle Assembly with Quarter-Turn Ball Valves offers a reliable solution for controlling water pressure in plumbing systems. Designed to fit pipes with a 3/4" inner diameter, this assembly features full port quarter-turn ball valves, ensuring smooth operation and minimal flow resistance. The EZSwap pressure vessel is a standout feature, designed for easy removal and access, allowing for straightforward maintenance and servicing. Constructed from durable, UV-resistant reinforced nylon, the pressure vessel effectively resists corrosion and mineral build-up, making it ideal for harsh environments. This assembly also minimizes the risk of theft with its minimal bronze construction, further enhancing its functionality. For added convenience, an optional line flush tool is available, streamlining the flushing process and saving up to 15 minutes during installation, which can be particularly beneficial for winterization tasks. The Zurn 34-375XL meets rigorous industry standards, being ASSE listed 1013, cUPC listed, and CSA certified B64.4, ensuring compliance with the Safe Drinking Water Act and NSF/ANSI/CAN 61. This versatile assembly can be installed both horizontally and vertically, making it adaptable to various plumbing configurations. With a maximum pressure rating of 175 psi and a temperature range between 33°F and 180°F, it is designed to perform under demanding conditions. Weighing just 5.7 pounds and measuring 6-41/50 inches in height, this assembly is both lightweight and compact, making installation a breeze. Choose the Zurn 34-375XL for a durable, efficient, and easy-to-install reduced pressure principle assembly that meets the needs of both residential and commercial applications.
3/4 in Reinforced Nylon Flanged Reduced Pressure Principle Assembly with Quarter-Turn Ball Valves
Fits pipes with 3/4" inner diameter
With full port QT ball valves
EZSwap pressure vessel is removable for easy access and added convenience
Durable, UV-resistant EZSwap Pressure Vessel resists corrosion and mineral build-up to better withstand harsh conditions
Minimal bronze construction acts as theft deterrent
Optional line flush tool provides easy line flushing, saving up to 15 minutes per installation and easier winterization.
ASSE listed 1013 and cUPC listed
CSA certified B64.4 and Meets the requirements of NSF/ANSI/CAN 61
Safe Drinking Water Act compliant
Approved by the Foundation for Cross Connection Control and Hydraulic Research at the University of Southern California
Attributes
ANSI: ANSI B1.20.1
ASSE Standards: ASSE 1013
AWWA: AWWA C-511
CSA Certified: CSA
Collection: 375XL
End Connection 1: Flanged
End Connection 2: Flanged
End Connections: Flanged
Height: 6-41/50 in
IAPMO Listed: Yes
Installation Type: Horizontal, Vertical
Lead Law Compliance Level: Lead Law Compliant and Certified
Lead Law Compliant: Yes
Length: 8-22/25 in
Material: Plastic, Rubber, Stainless Steel
Material Type: 300, Buna-N, Reinforced Nylon
Maximum Temperature: 180
Minimum Temperature: 33
NSF Certified: Yes
Number of Handles: Two Handle
Pressure - Maximum: 175 psi
Proposition 65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Recommended Valve Application: Plumbing, Water
UL Listed: Yes
Upc: 612052073125
Valve Body Material: Reinforced Nylon
Valve Body Style: Inline
Valve Operator: Lever Handle
Valve Port Opening: Full Port
Valve Seat Material: Delrin®
Valve Size: 3/4 in
Valve Type: Reduced Pressure Principle Assembly
Weight: 5.7 lb
Width: 2-3/4 in
