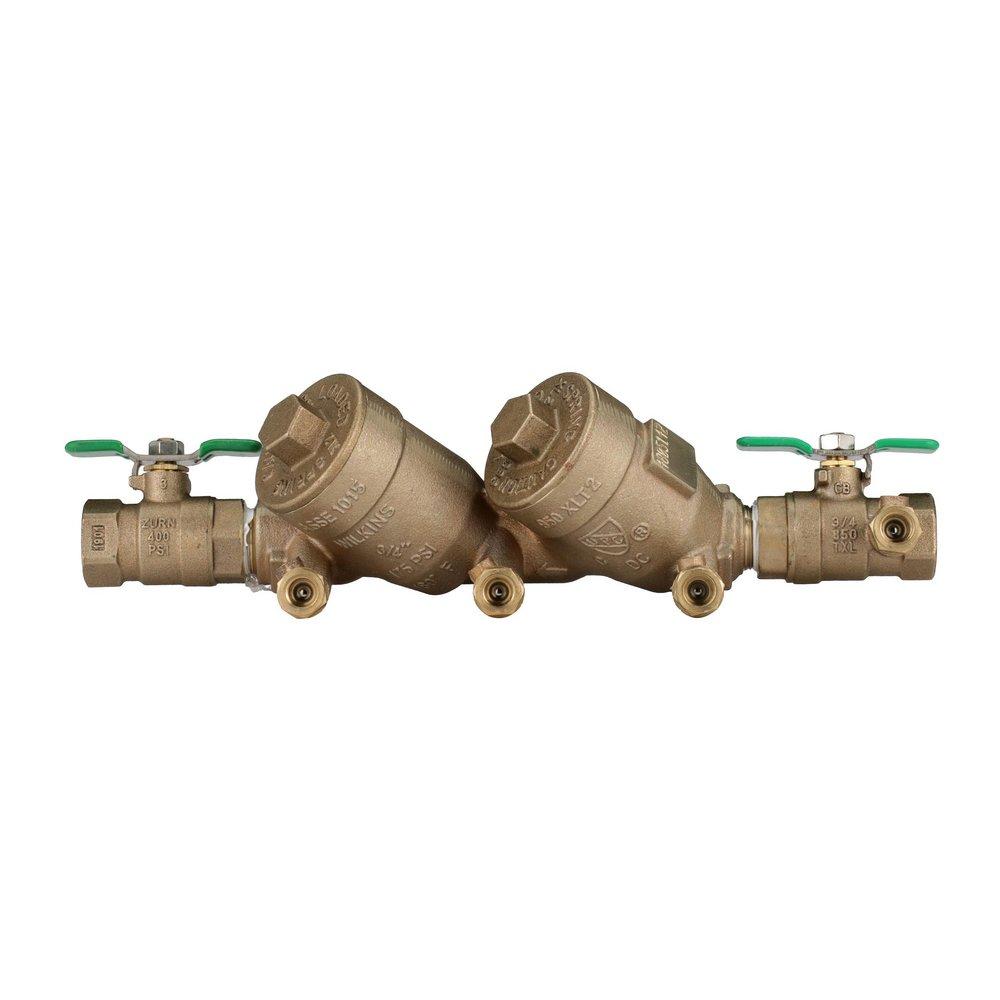

Zurn 34-950XLT2-3/4 in Bronze FPT Double Check Valve Assembly with Quarter-Turn Ball Valves combines durability and efficiency for reliable plumbing performance. This double check valve assembly is designed to provide superior protection against backflow, making it ideal for both residential and commercial applications. Constructed from high-quality bronze, this assembly is built to withstand the rigors of daily use while offering excellent corrosion resistance. Its innovative design includes top access for easy maintenance and repairs, allowing professionals to service the unit without hassle. The fully replaceable seats and silicone seal rings further minimize maintenance costs, ensuring long-lasting performance. The Zurn 34-950XLT2 is AWWA Compliant (C510) and CSA® Certified, meeting stringent standards for safety and reliability. With a maximum pressure rating of 175 psi and a temperature range of 33°F to 180°F, this valve assembly can handle a variety of plumbing applications with ease. It features two lever handles for straightforward operation, and the full port valve design ensures minimal flow resistance. Designed for horizontal installation, this compact unit fits within standard meter boxes, while its lead-free compliance makes it a responsible choice for health-conscious consumers. It is also IAPMO® Listed and has received approval from the Foundation for Cross Connection Control and Hydraulic Research at the University of Southern California, further solidifying its reputation as a trusted plumbing solution. Choose the Zurn 34-950XLT2 Double Check Valve Assembly for a product that delivers performance, durability, and ease of use in any plumbing system.
3/4 in Bronze FPT Double Check Valve Assembly with Quarter-Turn Ball Valves
ANSI: ANSI B1.20.1
ASSE Standards: ASSE 1015
AWWA: AWWA C-510
CSA Certified: CSA
Collection: 950XLT2
End Connection 1: FPT
End Connection 2: FPT
End Connections: FPT
Height: 6-3/10 in
IAPMO Listed: Yes
Installation Type: Horizontal
Lead Law Compliance Level: Lead Law Compliant and Certified
Lead Law Compliant: Yes
Length: 13 in
Material: Bronze, Rubber, Stainless Steel, Plastic
Material Type: 300, Buna-N, Noryl®
Maximum Temperature: 180
Minimum Temperature: 33
NSF Certified: Yes
Number of Handles: Two Handle
Pressure - Maximum: 175 psi
Proposition 65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Recommended Valve Application: Plumbing, Water
Temperature Range: Up to 180 Deg F
UL Listed: No
Upc: 612052072470
Valve Body Material: Bronze
Valve Body Style: Inline
Valve Disc Material: Silicone
Valve Operator: Lever Handle
Valve Port Opening: Full Port
Valve Seat Material: Noryl
Valve Size: 3/4 in
Valve Type: Double Check Valve Assembly
Weight: 6 lb
Width: 10 in
