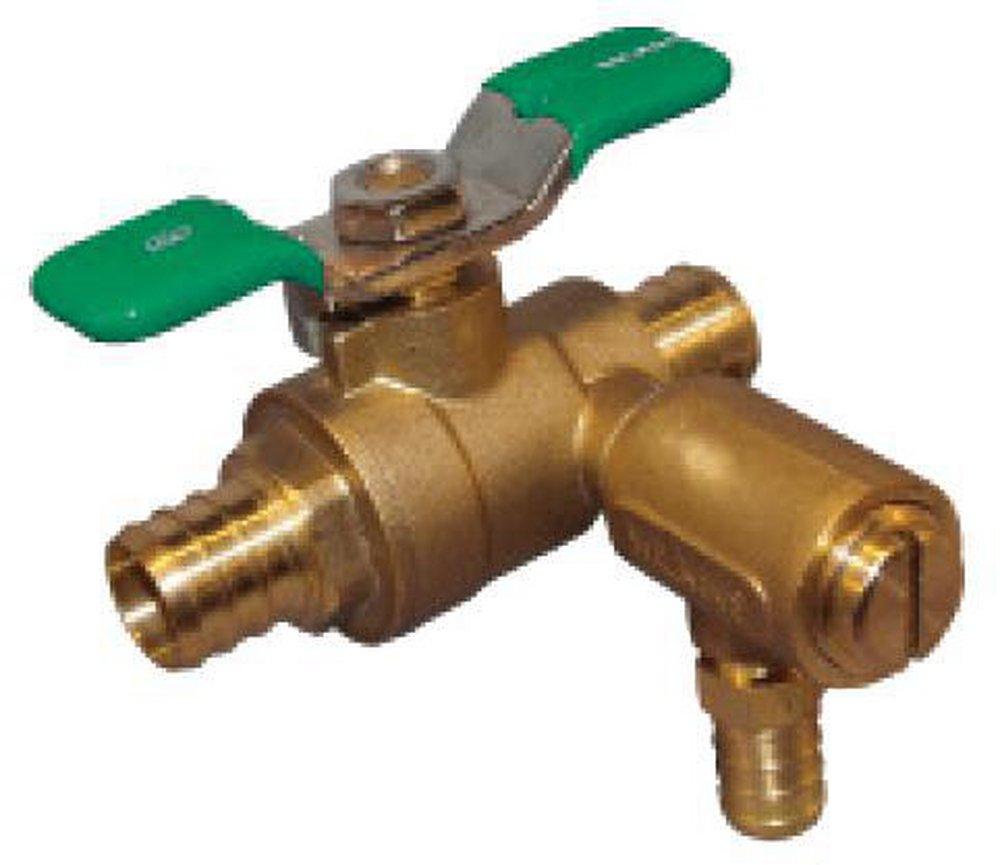

Zurn 34-BVECXLPEX-125-PEX 3/4 in. Brass Full Port F1807 Ball Valve offers reliable performance for a variety of residential installation applications. This versatile valve features multiple relief settings, allowing users to choose from 80, 100, and 125 psi, ensuring optimal thermal expansion control. Designed with an economical approach, it promises low lifetime costs while effectively managing thermal expansion in water heating systems. Constructed from low-lead cast bronze, the valve body is compliant with lead laws, assuring safety and durability in potable water applications. The inline design includes a full port opening, which enhances flow efficiency, while the stainless steel T-handle operator ensures ease of use and longevity. The valve also incorporates a water heater shut-off feature, providing an added layer of convenience for maintenance and service tasks. This Zurn ball valve is IAPMO® Listed and meets ANSI 372 standards, ensuring it adheres to rigorous safety and quality requirements. With a maximum pressure rating of 400 psi and a maximum temperature capacity of 180°F, it is well-suited for demanding residential environments. The barbed end connections facilitate straightforward installation, making it a practical choice for builders and homeowners alike. Weighing just 1 lb and measuring 5 in. in height, 3 in. in depth, and 4 in. in width, the Zurn 34-BVECXLPEX-125-PEX is compact yet robust. Its thoughtful design and construction make it an essential component for any modern plumbing system, balancing performance, style, and dependability.
3/4 in. Brass Full Port F1807 Ball Valve
ANSI: ANSI Class 125, ANSI B1.20.1
C UPC Certified: No
Clean Bagged: No
Color Finish Name: Cast Bronze
Depth: 3 in
End Connection 1: Barbed
End Connection 2: Barbed
End Connections: Barbed
Handle Material: Stainless Steel
Height: 5 in
IAPMO Listed: No
Lead Law Compliance Level: Lead Law Compliant and Certified
Lead Law Compliant: Yes
Length: 3 in
Material: Cast Bronze
Maximum Temperature: 180
NSF Certified: Yes
Origin: Global
Pressure - High: 400
Pressure - Maximum: 400 psi
Proposition 65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Recommended Valve Application: Potable Water
UL Listed: No
Upc: 612052217789
Valve Body Material: Cast Bronze
Valve Body Style: Inline
Valve Operator: T-Handle
Valve Port Opening: Full Port
Valve Seat Material: TFE Virgin Teflon
Valve Size: 3/4 in
Valve Type: Ball Valve
Weight: 1 lb
Width: 4 in
