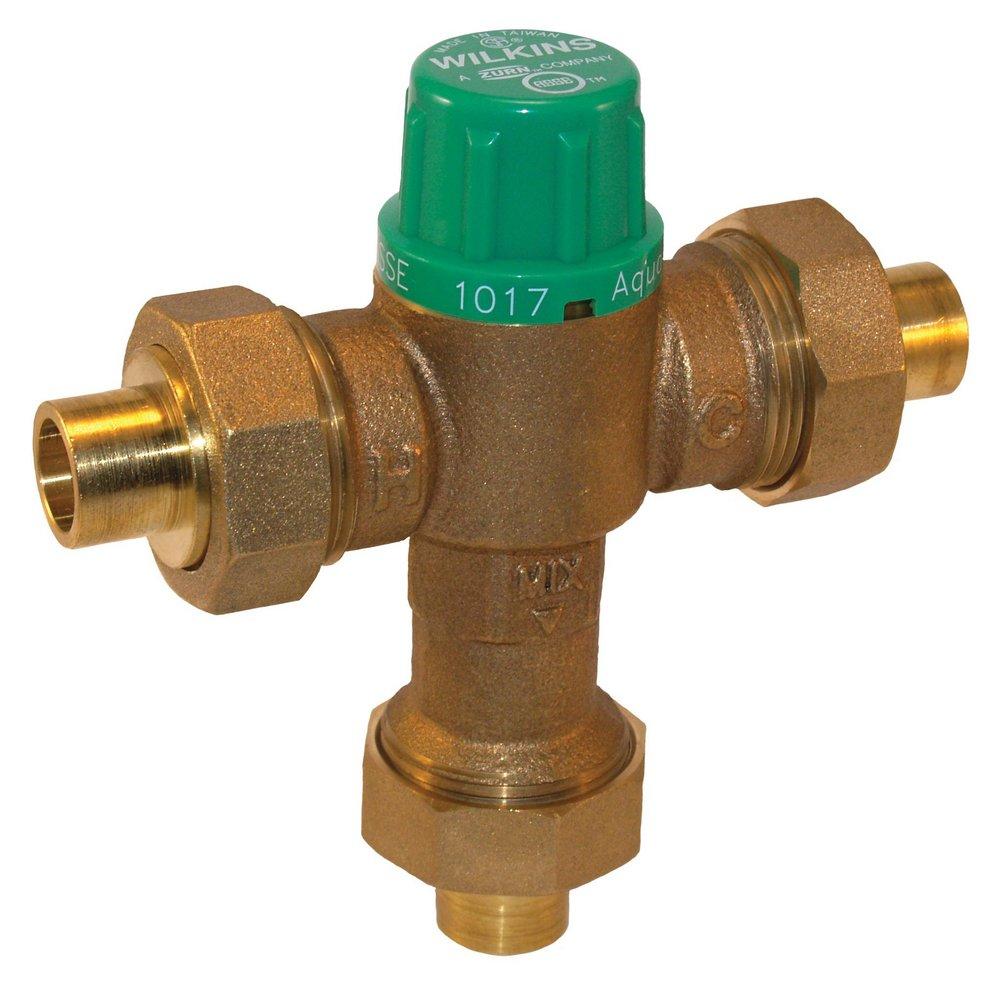

Zurn 34-ZW1017XL 3/4 in. FNPT Thermostat Mixing Valve efficiently ensures safe and comfortable water temperatures in your plumbing system. Designed for versatility, this valve can be installed either vertically or horizontally at the potable water heat source, making it adaptable to various configurations. With the capability to reduce hot water temperature to 122°F or less, this mixing valve offers high protection against scalding injuries, promoting safety for both residential and commercial environments. Its robust construction features a cast bronze body and a Noryl valve seat, ensuring durability and reliable performance over time. The Zurn 34-ZW1017XL operates efficiently with a flow rate of 18 gallons per minute and handles a maximum pressure of 145 psi. This thermostatic mixing valve is not only compliant with low-lead laws but also meets ASSE 1017, IAPMO, and CSA certification standards, providing peace of mind regarding regulatory compliance. Additionally, check valves and inlet strainers are included for added convenience during installation. Measuring 5 inches in length, 3-1/2 inches in width, and 2-2/5 inches in height, this valve is compact yet powerful. Its operational temperature range spans from a minimum of 95°F to a maximum of 180°F, ensuring versatility for various applications. Invest in the Zurn 34-ZW1017XL 3/4 in. FNPT Thermostat Mixing Valve to enhance safety and efficiency in your plumbing projects, ensuring reliable temperature control and compliance with industry standards.
3/4 in. FNPT Thermostat Mixing Valve
ASSE Standards: ASSE 1017
CSA Certified: CSA
Collection: ZW1017XL
End Connection 1: FNPT
End Connection 2: FNPT
End Connection 3: FNPT
End Connections: FNPT
Fitting Size 1: 3/4 in
Flow Rate: 18 gpm
Height: 2-2/5 in
Installation Type: Vertical Mount, Horizontal Mount
Lead Law Compliance Level: Lead Law Compliant and Certified
Lead Law Compliant: Yes
Length: 5 in
Material: Cast Bronze
Material Type: 300L
Maximum Temperature: 180
Minimum Temperature: 95
NSF Certified: Yes
Origin: Global
Pressure - Maximum: 145 psi
Proposition 65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Recommended Valve Application: Water
Upc: 612052075136
Valve Body Material: Cast Bronze
Valve Seat Material: Noryl
Valve Size: 3/4 in
Valve Type: Thermostatic Mixing Valve
Weight: 2 lb
Width: 3-1/2 in
