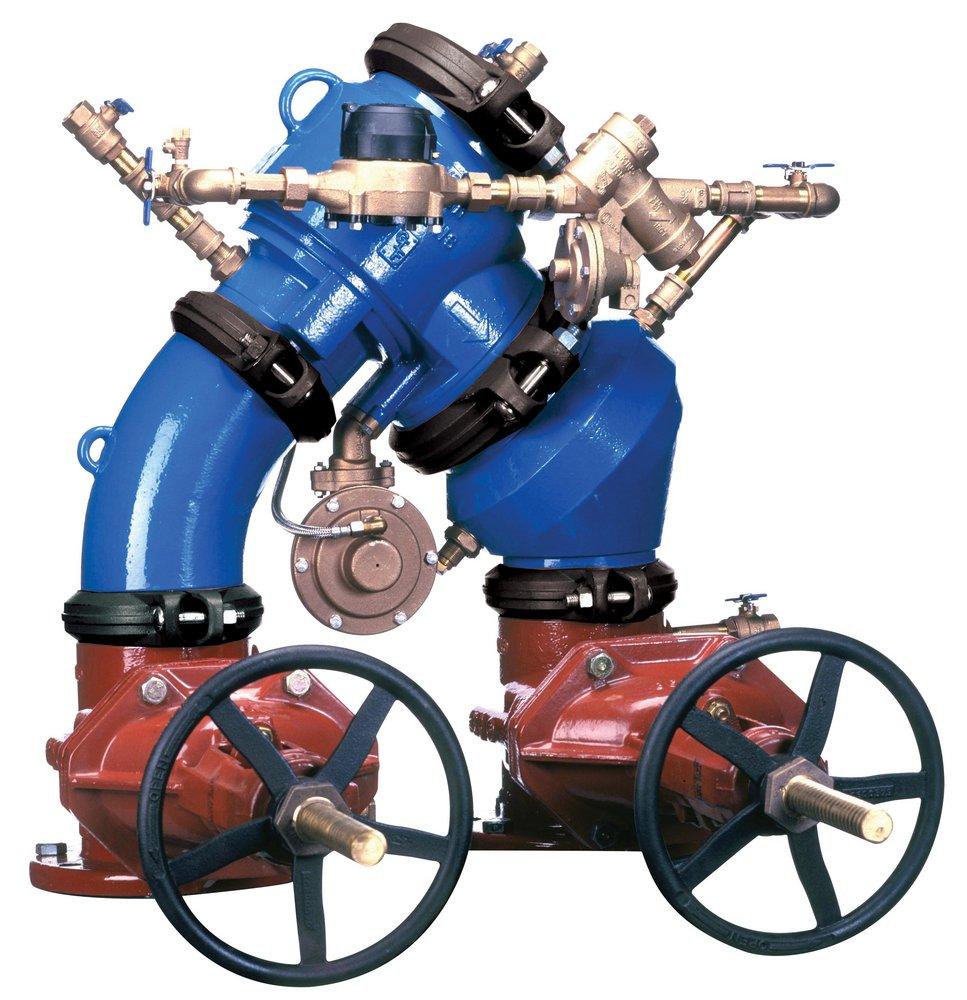

Zurn 6-475DA 6 in. Epoxy Coated Ductile Iron Flanged 175 psi Backflow Preventer is expertly designed for high health hazard applications, ensuring reliable performance and safety in fire protection systems. This reduced pressure detector assembly features flanged ends with OS&Y gate valves, delivering a robust solution that seamlessly integrates into existing setups, thanks to its small footprint ideal for retrofits. Constructed from durable ductile iron and coated with epoxy, the 6-475DA resists corrosion and wear, making it suitable for long-term use under demanding conditions. The assembly is classified under UL® and C-UL®, complying with ANSI B16.1, ASSE 1047, and AWWA C-511 standards, assuring you of its quality and reliability. Notably, the standard model is assembled in an "N" pattern, while the alternative 475DAV allows for vertical up flow in a "Z" pattern, offering versatility in installation. Measuring 41 inches in length, 33 inches in width, and 40-3/4 inches in height, the backflow preventer operates effectively at a maximum pressure of 175 psi. It is lead law compliant, certified by NSF, and features a two-handle wheel operator for easy manipulation. The valve seat is made from EPDM rubber, enhancing its longevity and functionality. Weighing 510 pounds, this oversized item will require LTL freight shipping, with applicable charges. With the Zurn 6-475DA, you can trust in a proven solution that combines innovative design with the durability needed for both residential and commercial environments, making it a dependable choice for your plumbing needs.
6 in. Epoxy Coated Ductile Iron Flanged 175 psi Backflow Preventer
ANSI: ANSI B16.1
ASSE Standards: ASSE 1047
AWWA: AWWA C-511
CSA Certified: CSA
Coating: Epoxy
Collection: Model 475DA
End Connection 1: Flanged
End Connection 2: Flanged
End Connections: Flanged
FM Approved: Yes
Height: 40-3/4 in
Installation Type: Horizontal
Lead Law Compliance Level: Lead Law Compliant and Certified
Lead Law Compliant: Yes
Length: 41 in
Material: Ductile Iron
Maximum Temperature: 33
Minimum Temperature: 33
NSF Certified: Yes
Number of Handles: Two Handle
Pressure - Maximum: 175 psi
Proposition 65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Recommended Valve Application: Fire Protection, Water
Restrictions: This item is classified by UPS as oversized and must ship via LTL freight - additional charges apply.
UL Listed: Yes
Upc: 612052047768
Valve Body Material: Ductile Iron
Valve Body Style: Inline
Valve Operator: Wheel Handle
Valve Seat Material: EPDM Rubber
Valve Size: 6 in
Valve Type: Reduced Pressure Detector Assembly
Weight: 510 lb
Width: 33 in
