Zurn 8-310-1INCH 8 in. Epoxy Coated Ductile Iron Flanged 350 psi Backflow Preventer combines innovative engineering with robust construction to deliver superior performance in potable water applications. Designed with a patented Compound Check, this backflow preventer ensures reliable operation while enhancing flow characteristics, making it an essential component for any plumbing system. The body of the unit is crafted from epoxy-coated ductile iron, providing exceptional corrosion resistance and durability, which is vital for long-term reliability in both residential and commercial settings. With a maximum pressure rating of 350 psi and compliance with ANSI 372 and ANSI B16.1 Class 125 standards, it meets rigorous industry requirements, ensuring peace of mind for builders and contractors. Installation versatility is a key feature of the Zurn 8-310-1INCH, offering flanged connections for easy integration into existing systems. The repair kit, available for rubber components, allows for convenient maintenance without the need for a complete valve replacement, minimizing downtime. Certified by IAPMO R&T to NSF/ANSI 372, this backflow preventer is lead law compliant, ensuring safe usage in drinking water applications. Additionally, it meets Factory Mutual standards and is CSA certified, further attesting to its quality and reliability. With dimensions of 29-3/8 in height, 35-1/4 in length, and 25-1/8 in width, this sturdy unit weighs 333 lb, making it a substantial yet manageable addition to your plumbing system. The Zurn 8-310-1INCH Backflow Preventer is engineered for performance, style, and ease of use, providing a long-lasting solution for your water system needs.

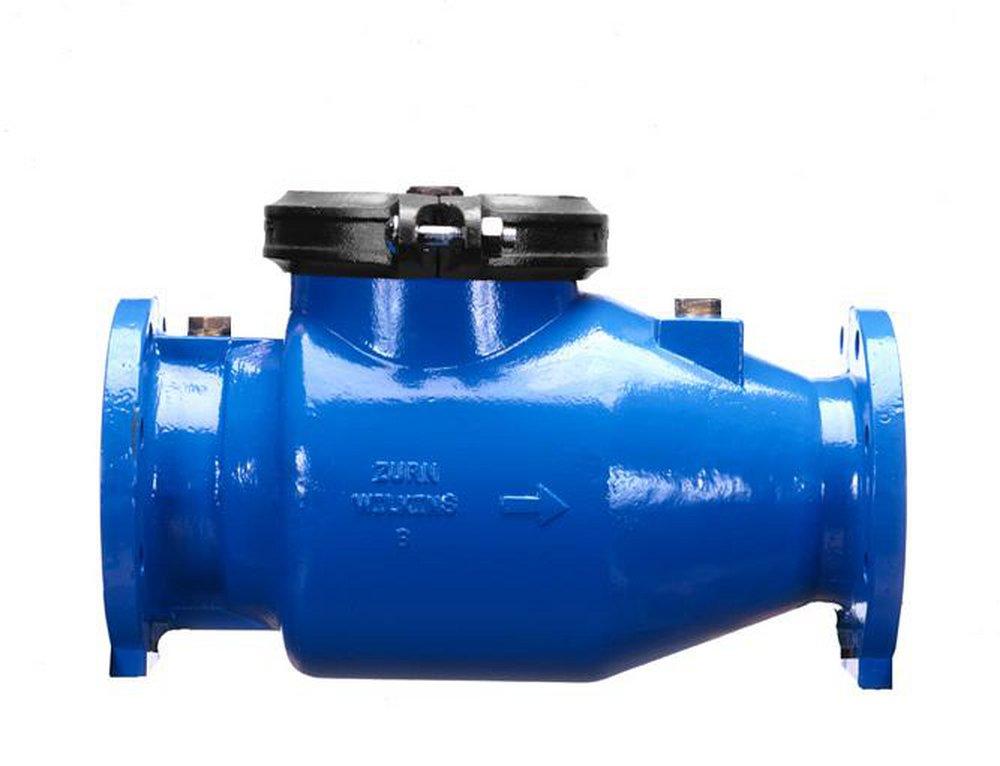

8 in. Epoxy Coated Ductile Iron Flanged 350 psi Backflow Preventer
ANSI: ANSI 372, ANSI B16.1 Class 125
CSA Certified: Yes
Coating: Fusion Epoxy
Collection: Model 310
End Connection 1: Flanged
End Connection 2: Flanged
End Connections: Flanged
FM Approved: Yes
Height: 29-3/8 in
IAPMO Listed: Yes
Lead Law Compliance Level: Lead Law Compliant and Certified
Lead Law Compliant: Yes
Length: 35-1/4 in
Material: Ductile Iron
Material Type: 300L
Maximum Temperature: 140
NSF Certified: Yes
Pressure - Maximum: 350 psi
Pressure Class: 125#
Proposition 65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Recommended Valve Application: Potable Water
Restrictions: This item is classified by UPS as oversized and must ship via LTL freight - additional charges apply.
UL Listed: Yes
Upc: 612052240978
Valve Body Material: Ductile Iron
Valve Seat Material: EPDM
Valve Size: 8 in
Valve Type: Single Check Detector Assembly
Weight: 333 lb
Width: 25-1/8 in
