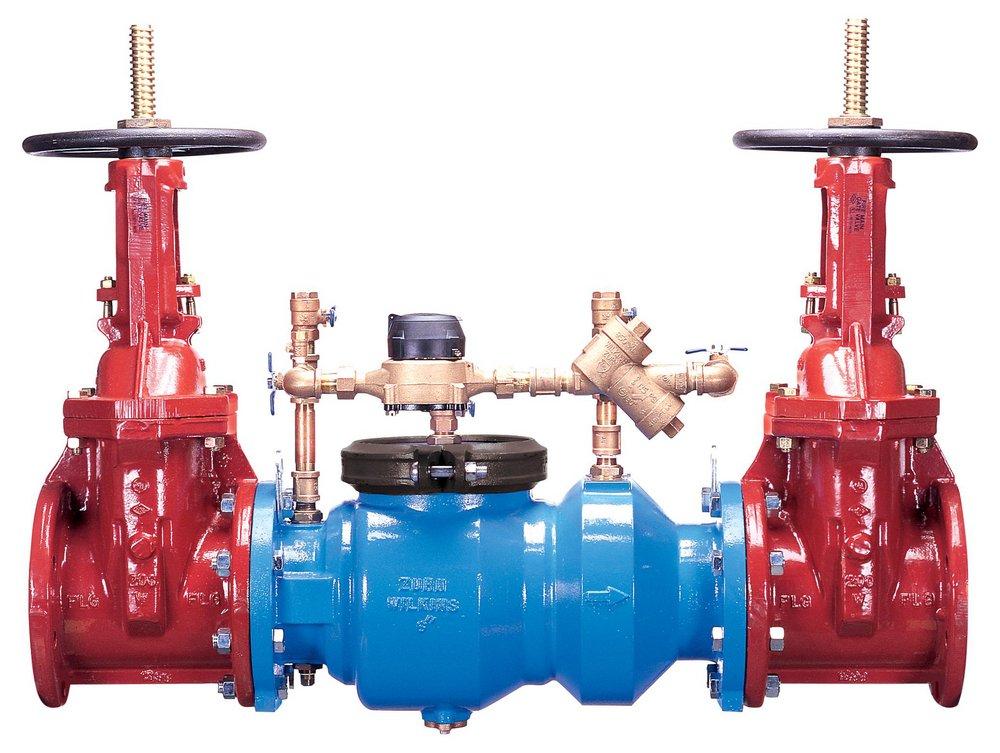

Zurn 8-350DA 8 in. Epoxy Coated Ductile Iron Flanged 175 psi Backflow Preventer is engineered for reliability and versatility in both horizontal and vertical installations. This robust backflow preventer is C-UL® Classified, FM® Approved, and designed to meet rigorous industry standards, including ASSE® 1048 and CSA® Certified B64.5, ensuring compliance and performance in critical applications. Constructed from durable ductile iron with an epoxy coating, this backflow preventer is built to withstand maximum pressures of 175 psi, while its patented Compound Check technology provides improved flow characteristics and dependable operation. With a maximum temperature tolerance of 140°F and a minimum of 33°F, it is ideal for various water applications, ensuring safety and efficiency in any environment. The Zurn 8-350DA features flanged end connections, facilitating easy installation and maintenance. Its leak detection capabilities help mitigate risks associated with unauthorized water use, ultimately reducing potential damage and unnecessary costs. Additionally, the double check valve assembly design enhances performance reliability, making it a smart choice for both commercial and residential properties. Measuring 67 inches in length, 29-4/5 inches in width, and 48-4/5 inches in height, this backflow preventer is substantial yet manageable, weighing in at 999 pounds. While UPS shipping is available, note that this product is classified as oversized and may require LTL freight for delivery, with additional charges applying. Choose Zurn's 8-350DA Backflow Preventer for peace of mind and quality assurance in your plumbing system, benefiting from the lowest lifecycle costs in the industry.
8 in. Epoxy Coated Ductile Iron Flanged 175 psi Backflow Preventer
ANSI: ANSI 372, ANSI 61
ASSE Standards: ASSE 1048
AWWA: AWWA C-510
CSA Certified: CSA
Coating: Epoxy
Collection: 350DA
End Connection 1: Flanged
End Connection 2: Flanged
End Connections: Flanged
FM Approved: Yes
Height: 48-4/5 in
Installation Type: Horizontal, Vertical
Lead Law Compliance Level: Lead Law Compliant and Certified
Lead Law Compliant: Yes
Length: 67 in
Material: Ductile Iron
Maximum Temperature: 140
Minimum Temperature: 33
NSF Certified: Yes
Pressure - Maximum: 175 psi
Pressure Class: 150#
Proposition 65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Recommended Valve Application: Water
Restrictions: This item is classified by UPS as oversized and must ship via LTL freight - additional charges apply.
UL Listed: Yes
UPC: 612052046525
Upc: 612052046525
Valve Body Material: Ductile Iron
Valve Body Style: Inline
Valve Seat Material: Stainless Steel
Valve Size: 8 in
Valve Stem: Outside
Valve Type: Double Check Valve Assembly
Weight: 999 lb
Width: 29-4/5 in
