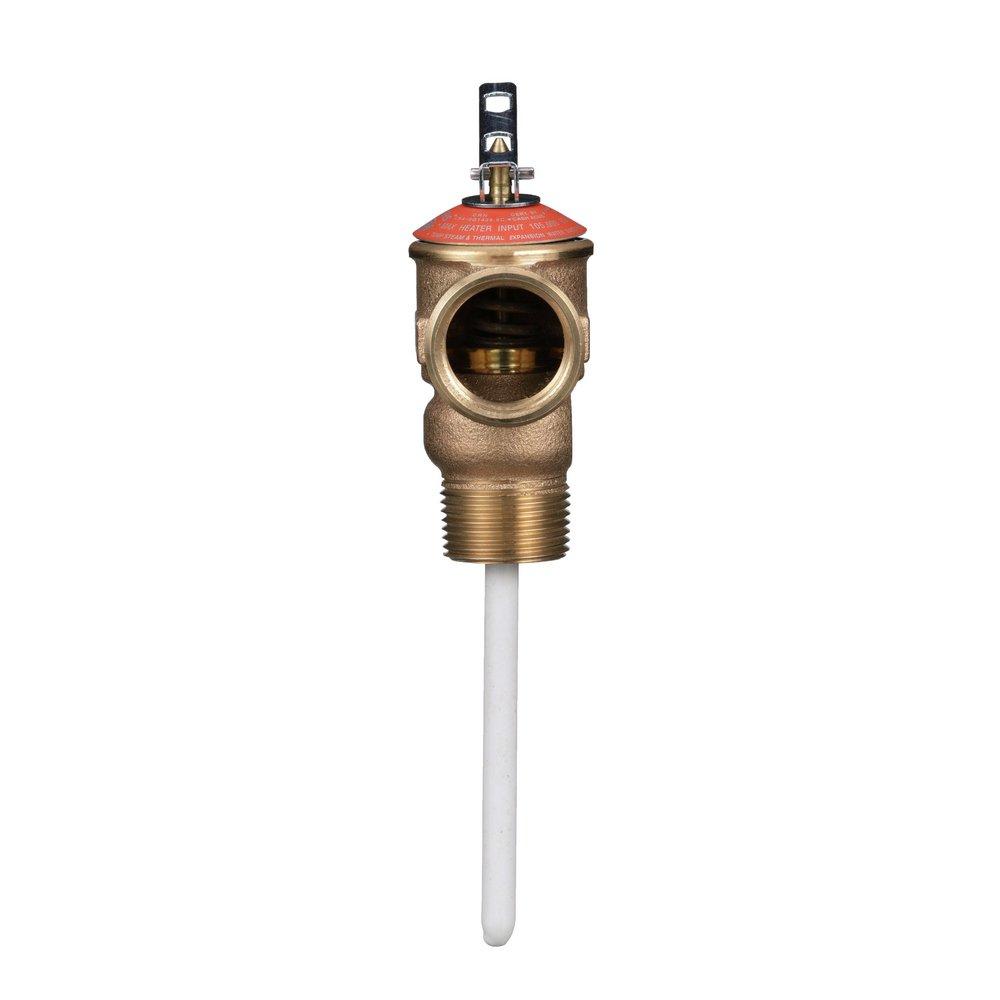

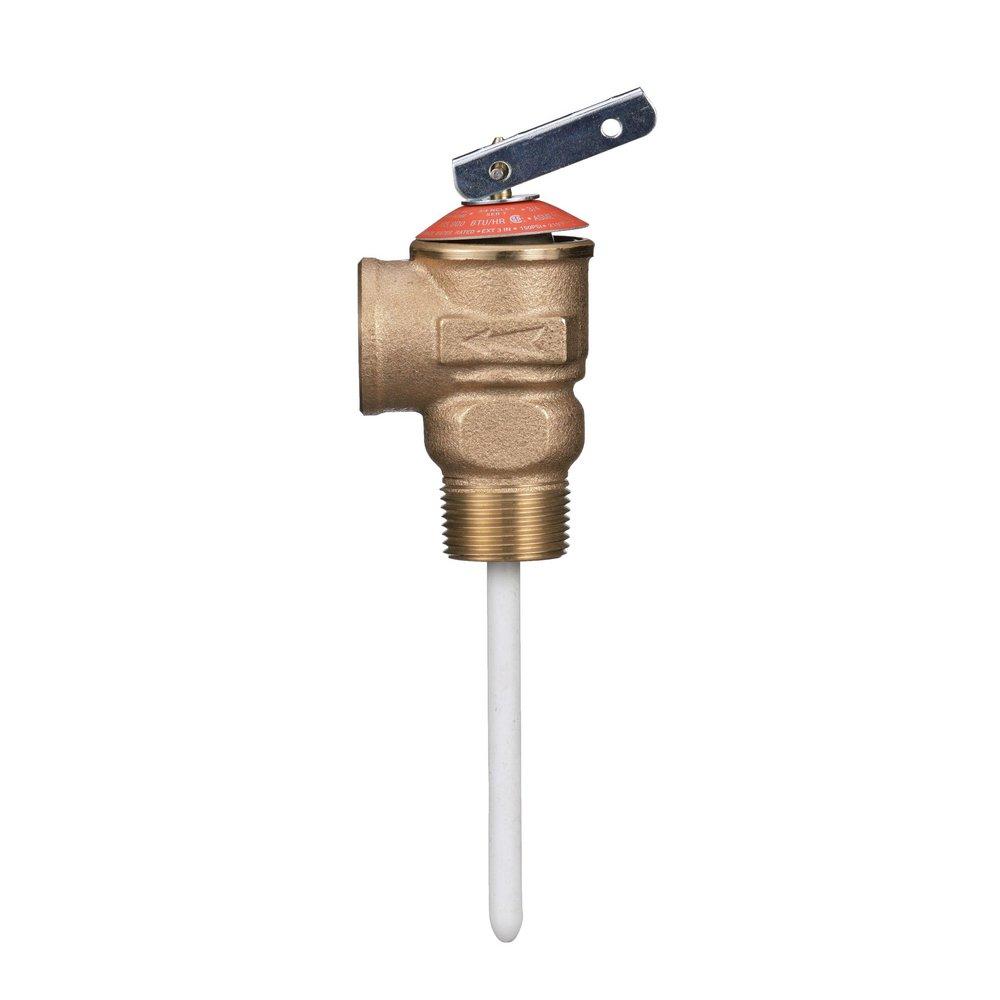

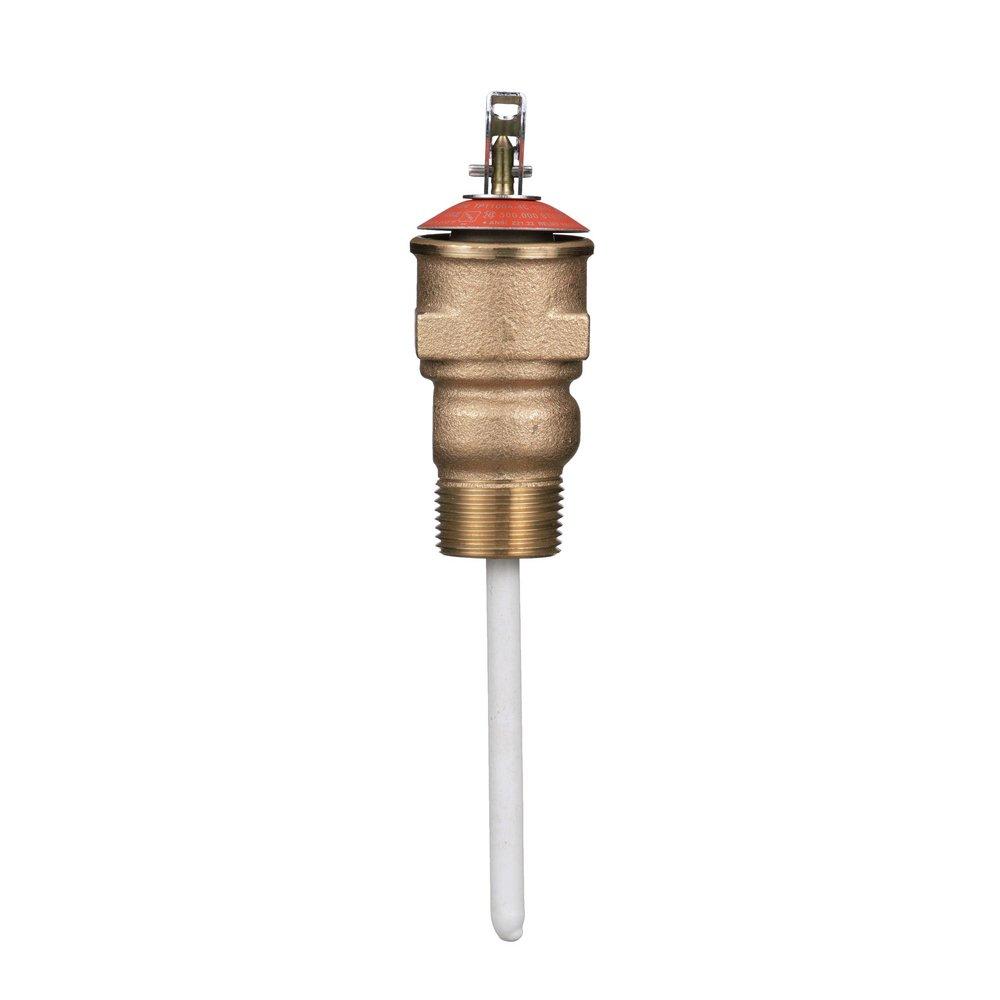

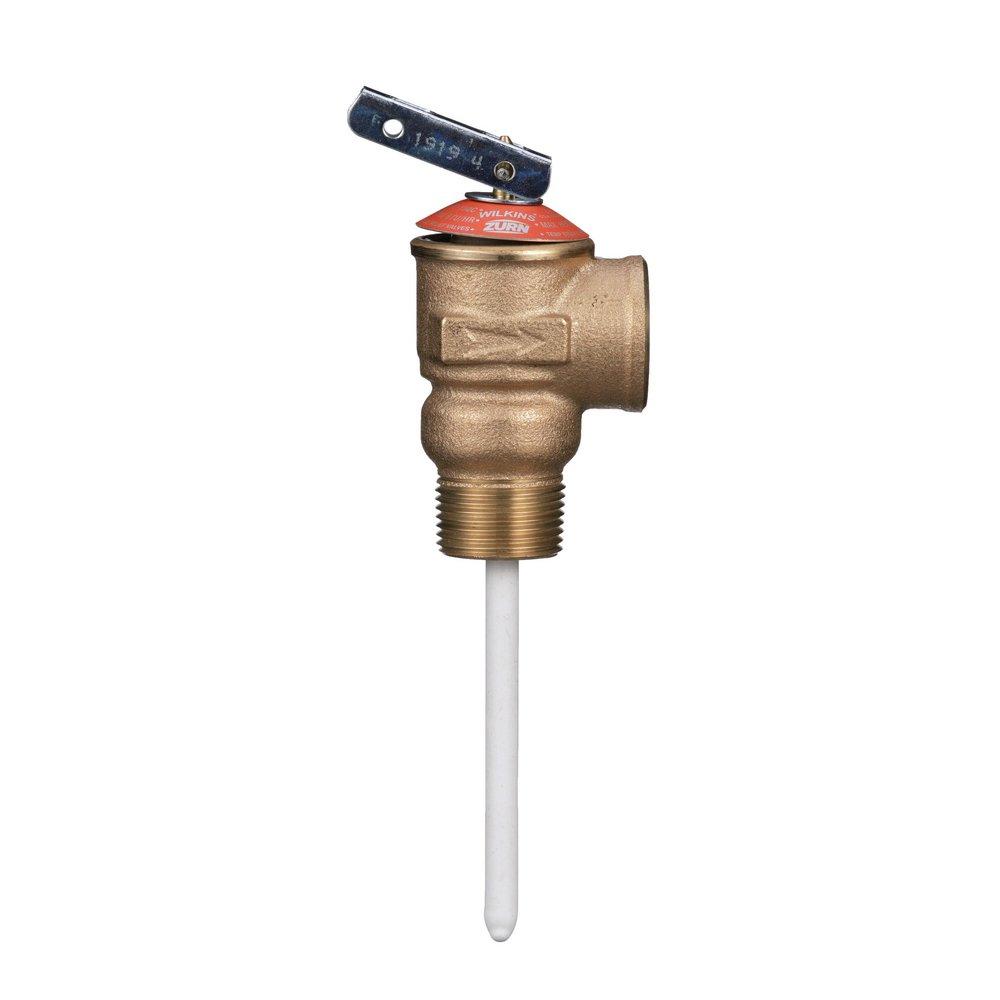

Zurn TP1100A-4C-150C 3/4 in. Cast Brass and Bronze and Stainless Steel and Silicone MNPT x FNPT 150 210 Relief Valve is designed to provide reliable protection for residential water heaters by effectively managing excessive pressure. This essential component reduces the risk of damage in various applications, ensuring safety and peace of mind for homeowners and contractors alike. Constructed from durable cast brass and bronze materials, the valve features a thermal element that is safeguarded with an epoxy coating. This protective layer not only enhances the longevity of the valve but also ensures optimal performance. The Zurn TP1100A is certified to ASME Section IV by the National Board, affirming its quality and compliance with industry standards. Additionally, it meets the requirements of CSA 4.4, further establishing its reliability in both residential and commercial settings. With a fitting size of 3/4 inches for both MNPT and FNPT connections, the valve is versatile and easy to install. Its compact design, measuring 6-1/2 inches in length and 1-1/4 inches in height, allows for seamless integration into existing systems without taking up too much space. The angle valve body style also promotes efficient water flow, making it an excellent choice for various plumbing configurations. In terms of specifications, the Zurn TP1100A operates at a pressure class of 150#, making it suitable for a wide range of water applications. Weighing just 1 lb, this valve is both lightweight and robust, ensuring that it can handle the demands of everyday use. Choose the Zurn TP1100A-4C-150C Relief Valve for a dependable solution that prioritizes safety, performance, and easy installation in your plumbing projects.
3/4 in. Cast Brass and Bronze and Stainless Steel and Silicone MNPT x FNPT 150 210 Relief Valve
ANSI: ANSI Z21.22
ASME: ASME Section IV
Application: Residential, Commercial
CSA Certified: CSA
Collection: TP1100A
Color Finish Name: Cast Bronze
End Connection 1: MNPT
End Connection 2: FNPT
End Connections: MNPT x FNPT
Fitting Size 1: 3/4 in
Fitting Size 2: 3/4 in
Height: 1-1/4 in
IAPMO Listed: No
Length: 6-1/2 in
Material: Cast Brass, Bronze
NSF Certified: No
Origin: Global
Pressure Class: 150#
Proposition 65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Recommended Valve Application: Water
UL Listed: No
Upc: 612052032603
Valve Body Material: Cast Bronze
Valve Body Style: Angle
Valve Seat Material: Brass
Valve Size: 4 in
Valve Type: Relief Valve
Weight: 1 lb
Width: 1-1/4 in
