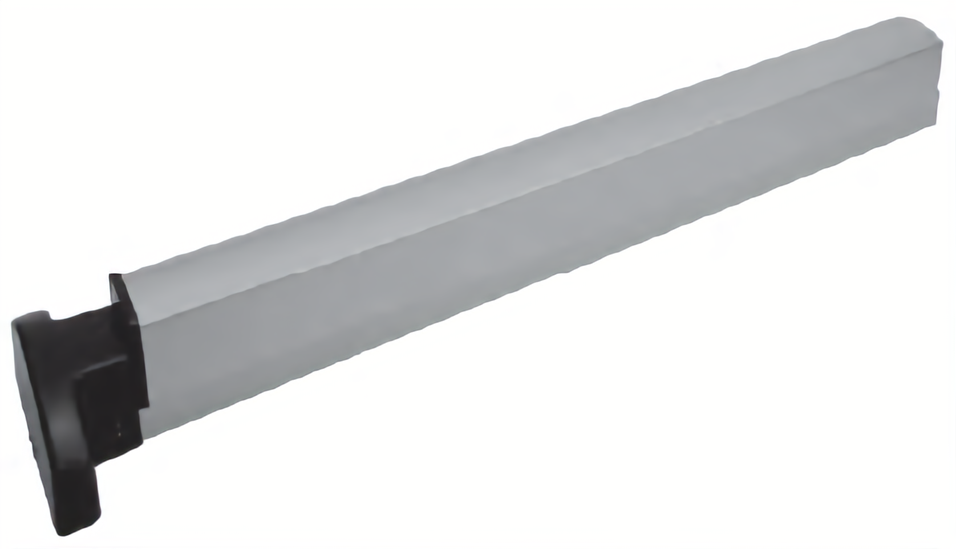

Command Access PD10-M-CVR-D-36 Motorized Latch Retraction is a premium Grade 1 storefront exit device designed for efficiency and durability. This electrified concealed vertical rod (CVR) exit device offers a 36-inch configuration with a right-hand reverse operation, making it a versatile solution for various door applications. Equipped with PTS "push to set" technology, the PD10-M simplifies post-installation adjustments in just five seconds, ensuring your installation process is smooth and hassle-free. With a voltage range of 24 to 30 VDC and built-in system protection that shuts down the unit when voltage exceeds 30VDC, this device guarantees reliable performance. The electronic travel adjustment allows for approximately 1/4" of fine-tuning, while the electronic dogging feature ensures the push bar remains retracted when engaged. Crafted from extruded aluminum with a durable anodized finish, the PD10-M is designed to fit standard 1-3/4" thick aluminum stile and rail doors with a minimum stile width of 2". This model supports various wire lengths for installation flexibility and is compatible with optional factory-installed accessories like Request to Exit (REX) and Latch Bolt Monitor (LBM) switches. Trust in the Command Access PD10-M-CVR-D-36 to meet high security standards while providing ease of use and installation.

Motorized Latch Retraction, (EU) Electrified Concealed Vertical Rod (CVR) Exit Device, 36in, Right Hand Reverse, 690/Duro Duranodic

The PD10-M series is a motorized latch pullback Grade 1 storefront exit device. All PD10-M models are equipped with our PTS "push to set" technology. We know that door conditions change and in retrofit scenarios you never know exactly what you're walking into. But with our PTS adjustment your post installation adjustment is greatly simplified in 5 quick seconds. Install this device with the confidence of knowing that the PD10-M meets or exceeds the high standards of other grade 1 products and carries our 3-year "no hassle" warranty.

Specifications:

• Voltage range – 24 to 30 VDC
• System protection – unit shutdown when voltage exceeds 30VDC
• Current Peak – 1A
• Current Hold -125mA
• Electronic travel adjustment – approx. 1/4"
• 700' with 18ga wire; 1000' with 16ga wire; 1250' with 14ga wire; 1500' with 12ga wire
• Hardware:
• Materials: push bar made of extruded aluminum, anodized in finish specified.
• Push bar Length: dimensioned for 36" and 48" doors. Consult factory if field cut is required for smaller size doors with latch pullback
• Door Height (for CVR): 7’ standard; designate 8’ or 9’ optional height when ordering
• Door thickness: suits standard 1-3/4" thick aluminum, stile and rail doors
• Stile Width: Minimum 2" stile required.  Fits medium and wide stile doors as well.
• Stile Wall: minimum 1/8" required for installation
• Dogging: Electronic Dogging is standard with motor technology - push bar stays retracted when dogged.
• Fasteners: all provided
• Cylinders: not provided.  Install RIM cylinder by others.
• Entry trim: not available from Command Access.  Consult factory for Options

Accessories:

• Request to Exit (REX) - Switch available factory installed
• Latch Bolt Monitor (LBM) - Switch available factory installed
• Request to Exit Kit (PD10REXKIT) - Switch available for installation in the field
• Latch Bolt Monitor Kit (PD10LBMKIT) - Switch available for installation in the field
• QC Connectors: Molex door cords with quick connectors for plug and play installation

Features

• System protection – unit shutdown when voltage exceeds 30VDC
• Materials: push bar made of extruded aluminum, anodized in finish specified.
• Hardware:
• Current Peak – 1A
• Door Height (for CVR): 7’ standard; designate 8’ or 9’ optional height when ordering
• Stile Wall: minimum 1/8" required for installation
• Stile Width: Minimum 2" stile required. Fits medium and wide stile doors as well.
• 700' with 18ga wire; 1000' with 16ga wire; 1250' with 14ga wire; 1500' with 12ga wire
• Voltage range – 24 to 30 VDC
• Push bar Length: dimensioned for 36" and 48" doors. Consult factory if field cut is required for smaller size doors with latch pullback
• Entry trim: not available from Command Access. Consult factory for Options
• Door thickness: suits standard 1-3/4" thick aluminum, stile and rail doors
• Dogging: Electronic Dogging is standard with motor technology - push bar stays retracted when dogged.
• Fasteners: all provided
• Cylinders: not provided. Install RIM cylinder by others.
• Current Hold -125mA
• Electronic travel adjustment – approx. 1/4"
