Net 30 terms available

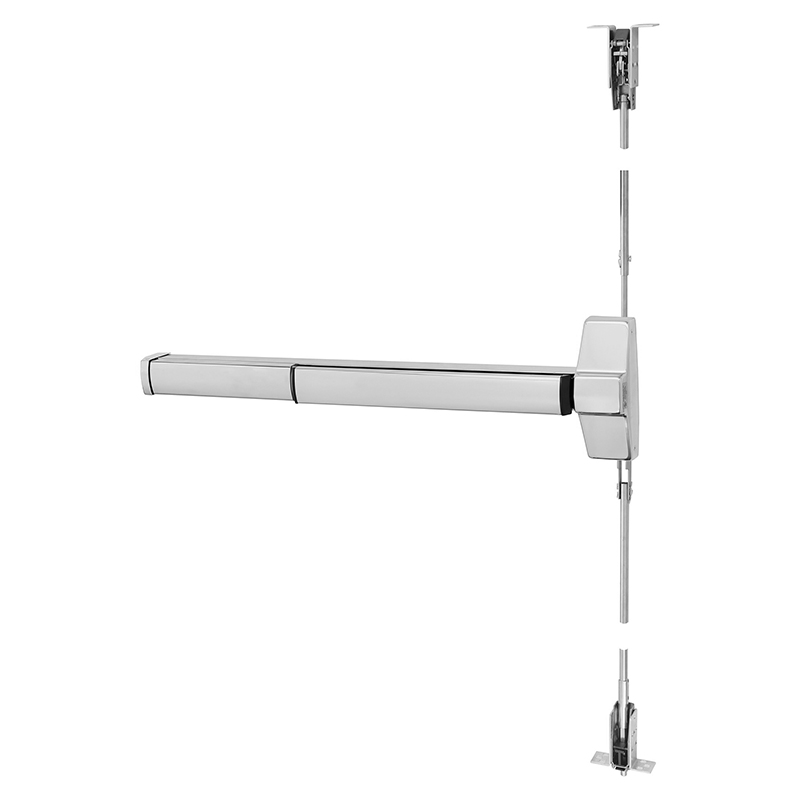

Corbin Russwin ED5800A 625 Concealed Vertical Rod Device combines robust functionality with a sleek aesthetic. Designed for commercial applications, this 36" concealed vertical rod exit device meets the highest standards of durability and security, exceeding ANSI/BHMA Grade 1 requirements for both cycle and strength. Its modular construction ensures a maintenance-free design, making it ideal for high-traffic environments. Available in a polished silver finish (625/US26), the ED5800A not only provides reliable security but also complements a range of architectural styles. It is suitable for metal or wood doors with a thickness of 1 3/4 inches and width between 30 and 36 inches. The device is fire-rated for up to 3 hours, offering peace of mind in emergencies. With a reversible handing feature and less dogging option, installation is straightforward, allowing it to adapt to various door configurations. The device also supports a complete offering of electro-mechanical solutions, including the option for Microshield® antimicrobial coating, which enhances hygiene in shared spaces. Corbin Russwin backs the ED5800A with a 5-year limited warranty, ensuring long-term reliability for building professionals and knowledgeable homeowners seeking a dependable exit device.
Concealed Vertical Rod Device
Concealed Vertical Rod Exit Device, 36", Bright Chrome
Over the past 100 years, Corbin Russwin has been well-known for weaving pleasing aesthetics and inventive designs into architectural door hardware, and today's wide stile exit device line is no exception. The ED5000 Series offers smooth lines in the exit device bar and a full range of trim designs with visual diversity, including the MusÂo and Vineyard Collections.
Among the strongest, most durable exit devices on the market, with additional security options available.
The ED5000 is available in rim, mortise, surface vertical and concealed vertical rod configurations. These exit devices exceed ANSI/BHMA Grade 1 requirements for cycle and strength.
Commercial Residential: Commercial
Device Length: 36"
Device Type: Concealed Vertical Rod
Dogging Options: Less Dogging
Door Height: 96 In.
Door Material: Metal or Wood
Door Thickness: 1 3/4 In.
Door Width: 30 In. - 36 In.
Finish: 625/US26
Finish Family: Polished Silver
Fire Rated: Yes
Fire Rating: 3 Hours {A}
Grade: Grade 1
Handing: Reversible
Includes Cylinders: No
Includes Trim: No
Installation: Commercial
Limited Warranty: 5 Years
Mechanical Function: Exit Only, Accepts Trim
Minimum Stile Size: 4-1/2 In.
Pack Height: 5.75"
Pack Length: 39.75"
Pack Qty: 1
Pack Volume: 2342.77 in³
Pack Width: 10.25"
Physical Appearance: Wide Stile Pushpad
Reversible: Yes
Series: ED5000 Series Pushpad Exit Devices
Ship Weight: 16.1 lbs.
Strike Bottom: 650F57-8
Subtype: Concealed Vertical Rod Exit Devices
Top Strike: 540F54-8
Type: Exit Devices
Unit of Measure: Each
