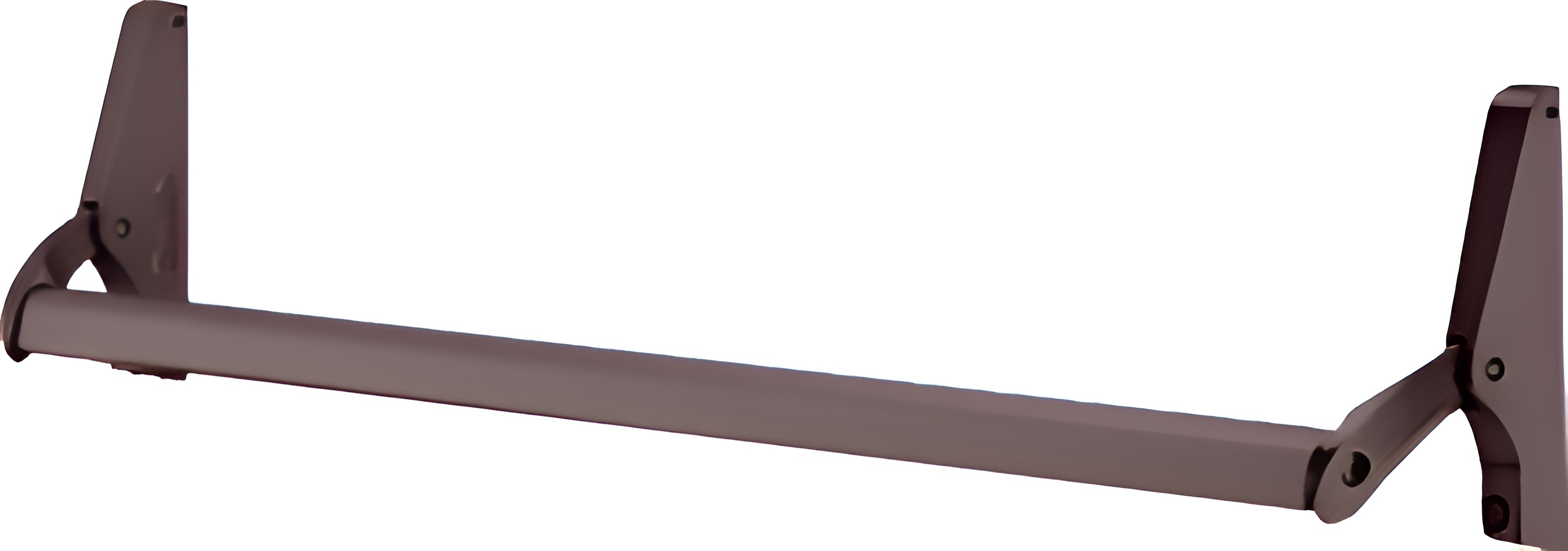

CRL 31108547313 Dark Bronze 48" Jackson 10 Series Concealed Vertical Rod Panic Exit Device

CRL 31108547313 Dark Bronze 48" Jackson 10 Series Concealed Vertical Rod Panic Exit Device

CRL 31108547313 Dark Bronze 48" Jackson 10 Series Non-Handed Concealed Vertical Rod Panic Exit Device is the ideal solution for ensuring safety and security in high-traffic areas. Designed for use with 1-3/4" (44.5 mm) narrow, medium, and wide stile aluminum, wood, or hollow metal doors, this device features a concealed fastening system that enhances security while maintaining a sleek appearance. The 48" long contoured crossbar can be easily field-sized to fit your specific door dimensions, accommodating doors up to 84" (2.13 m) tall. Extensions are available for taller doors, making this exit device versatile for various applications. With a standard configuration suitable for doors up to 48" wide, you can customize it to meet your exact needs. This exit device boasts a concealed, easy-to-use dogging system, with optional cylinder dogging available upon special request. Insulated wear points, reinforced by nylon sleeves and rollers, ensure longevity and reliable operation. The Jackson® Exit Device stands as the benchmark for aluminum storefront hardware, providing a maintenance-free means to satisfy life safety requirements. For more information or to address any specific queries, please contact CRL Technical Sales.

Dark Bronze 48" Jackson 10 Series Non-Handed Concealed Vertical Rod Panic Exit Device

• Designed for Use with 1-3/4" (44.5 mm) Narrow, Medium and Wide Stile Aluminum, Wood or Hollow Metal Doors
• Concealed Fastening for Added Security

Jackson® Exit Devices are universally recognized as the standard for aluminum storefront hardware. This crossbar designed with simplicity in mind, yet it will provide many years of smooth, reliable operation. Available in both a Rim and Concealed Vertical Rod version this device is suitable for use with 1-3/4" (44.5 mm) narrow, medium, and wide stile aluminum, wood, or hollow metal doors. The 48" (1.22 m) long contoured crossbar is field sizeable, and the device is shipped to fit up to 84" (2.13 m) tall door. Extensions for taller doors are available. The 10 Series Exit Device is the perfect solution when considering a reliable maintenance free means to satisfy life safety requirements.


This device is supplied standard with a 48" crossbar for use with doors up to 48" wide. The customer can cut the bar to exact length needed. For Locking Outside Entry: Use 8500LV02313 Locking Lever Trim or Cylinder Only: Use DL2170 OR DRA50 Type Mortise Cylinder with MS Cam - Will Require use of 3089610958313 Cylinder Mounting Pad. Panic Ships Standard for use with 7/0 (84") doors. Taller doors require use of Extension No. 301347 Top Rod Extender in 12" increments.

FEATURES:
• Standard 36" (914 mm) Wide Door - Field Sizeable up to 48" (1.22 m) Width Available on Special Order
• Standard Door Height 84" (2.13 m) – Extension Available
• Concealed Easy-to-Use Dogging System – Optional Cylinder Dogging Available on Special Order
• Wear Points Insulated by Nylon Sleeves and Rollers

For additional information, contact CRL Technical Sales.

Resources

• Jackson 1085-1085P Concealed Vertical Rod Panic Exit Device Installation Instructions
• Jackson Door Control Products Limited Warranty and Liability Information
• Parts Breakdown 11M0236-1085-part.pdf
• Specifications SECTION 08 7100 10 Series Cross Bar Exit Device Specifications.docx
• Template 1085 1085x86 PANIC DEV INST GUIDE 10-473V.pdf
