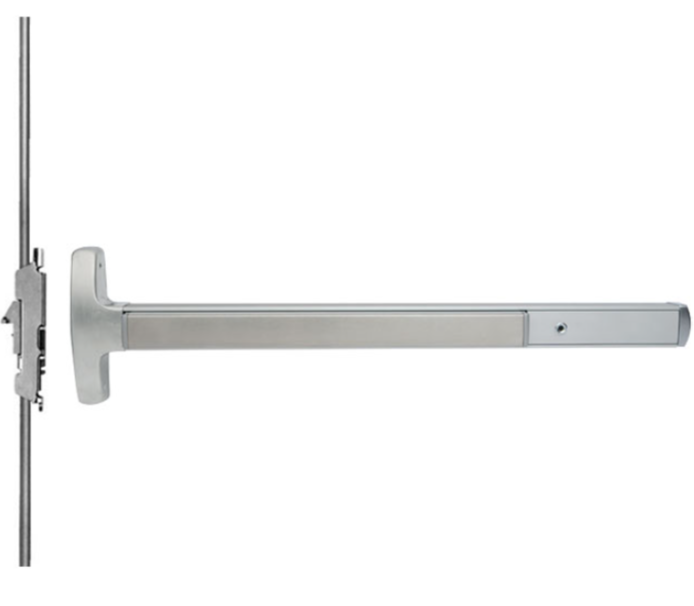

Falcon Lock 24C-EO-US26D-36X96 Narrow Stile CVR Concealed Vertical Rod Exit Device, 36in x 96in, Satin ChromeFalcon Lock 24C-EO-US26D-36X96 Narrow Stile CVR Concealed Vertical Rod Exit Device combines robust security with sleek design, making it an ideal choice for commercial applications. Measuring 36 inches wide by 96 inches tall, this exit device features hex dogging for easy operation and enhanced safety during emergencies. Constructed from extruded aluminum, it offers superior strength and impact resistance, ensuring long-lasting performance. The device supports both single and double door applications and includes vital panic and fire exit hardware. Its streamlined design boasts no exposed screws or rivets, providing a clean aesthetic that complements any setting. The patented center slide mechanism enables effortless rod adjustments in the field, while the stainless steel push pad cover resists scratches for durability. This Grade 1 exit device is certified to ANSI A156.3-2001 standards, offering peace of mind in high-traffic environments. The 4188 mortised top strike and the 2130 flush bottom strike enhance its versatility. Designed for 1-3/4" thick wood or metal doors, the Falcon 24C is perfect for narrow stile aluminum doors-making it suitable for storefront installations. With its contemporary satin chrome finish, this exit device not only enhances security but also elevates the overall look of your entryway.
Narrow Stile CVR Concealed Vertical Rod Exit Device, Exit Only, 36in x 96in, Hex Dogging, Includes 4188 and 2130 Strikes, Grade 1, 626/US26D Satin Chrome
Notice: The info below is not item specific.
Concealed vertical rods add strength to the door, while maintaining an attractive appearance. The Falcon 24-C Series concealed vertical rod device offers great value, clean styling, a versatile narrow stile design and the security benefits of two-point latching. Falcon’s patented center slide mechanism allows easy rod adjustment in the field.
Features:
- Extruded aluminum construction delivers greater strength and impact resistance.
- Includes panic exit and fire exit hardware for single and double door applications.
- No exposed screws or rivets on the back of the device for a streamlined design and clean lines for a more attractive installation.
- One trim input design provides maximum versatility and ability to use various trims.
- Stainless steel push pad cover provides a scratch-resistant pushing surface.
- Flush-end caps help prevent them from being destroyed or knocked off in abusive situations.
- Narrow stile center case is ideal for storefront applications with narrow stile aluminum doors.
Specifications:
- Hand: Field reversible or specify handing.
- Functions: EO, DT, NL, L or K, L(NL) or K(NL).
- Strikes: 4188 mortised top and 2130 flush strike bottom, optional bottom 2126A and 4155.
- Latchbolt: Top stainless steel, top latch 3⁄4" throw. Bottom bolt 1⁄2" throw.
- Deadlocking latchbolt: Standard with top latch.
- Latch retention hold: Standard with top latch.
- Dogging feature: Half turn hex dogging standard. No threaded parts to wear out.
- Cylinder dogging: Specify "CD" prefix. Uses 1-1⁄8" long mortise cylinder dogging with standard cam.
- Doors: 1-3⁄4" thick, wood or metal. Specify if other than 1-3⁄4" thick.
- Projections: 2-3⁄4" maximum, 2" dogged.
- Stile: 2-1⁄4" minimum when used in pairs. (6" minimum on wood doors).
- Electric functions: Can be interfaced with building security systems. Motorized electric latch retraction (fail secure only), security monitoring, delayed egress and exit alarm available.
- Fasteners: All mounting screws are concealed, sheet metal screws standard, machine screws available, specify AMS.
- Sex bolts: Recommended when device is used with hollow core wood, composite or light gauge hollow metal doors. For EO device, specify 2 - 425 (# 10-24) SNB and 2 - 325 (1⁄4-20) SNB. For devices with trim, specify 2 - 425 (# 10-24) SNB.
- ANSI: Certified ANSI A156.3-2001 grade 1 standards.
- 24-V-LBR: Less bottom rod concealed vertical device.
- Vertical rods: Furnished to length based on 40" horizontal CL to finished floor and a 7’ 0" door. Variations from these standards must be specified when ordering.
- Patented center slide: For ease of adjustment.
Stock Sizes:
| Device |
Door Size |
Door Strike |
Min. Stile (in) |
Min. Door Opening Width |
| 24-C |
3’ |
All |
2-1/4" (6" for wood doors) |
2’ 7-3/8" |
| 24-C |
4’ |
All |
2-1/4" (6" for wood doors) |
3’ 1-3/8" |
Finishes:
- US3/605 - Bright Brass
- US4/606 - Satin Brass
- US10/612 - Satin Bronze
- US11/643e - Aged Bronze
- US15/619 - Satin Nickel
- US19/622 - Matte Black
- US26/625-Bright Chrome
- US26D/626 - Satin Chrome
- US28/628 - Anodized Aluminum
- US32/629 - Bright Stainless Steel
- US32D/630 - Satin Stainless Steel
- 313AN/710 - Anodized Duranodic
Attributes
Ship via: No UPS - Common Carrier Only
Alternate Codes: 24C-EO-US26D-36X96, 24CEOUS26D36X96
Category: Commercial Electric Locks, CVR Panic Devices, Electric Locks, Glass Aluminum Hardware, Lock Sets, Narrow Style Electric Locks, Narrow Style Panic Devices, Panic Devices, Panic Devices & Exit Alarms, Standalone/Pushbutton Locks
Certifications: A156.3, ANSI, UL 305
Device Width: 36"
Dogging: HD - Hex Dogging
Door Application: Panic Devices & Exit Alarms
Exit Device Category: Concealed vertical rod
Finish Code: US26D
Finish Color: Brushed Chrome
Function: Exit Only
Grade: Grade 1
Manufacturer: Falcon Lock
Rod Extension: 12"
Series: 24
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Strike Type: Vertical Rod Bottom Strike, Vertical Rod Top Strike
