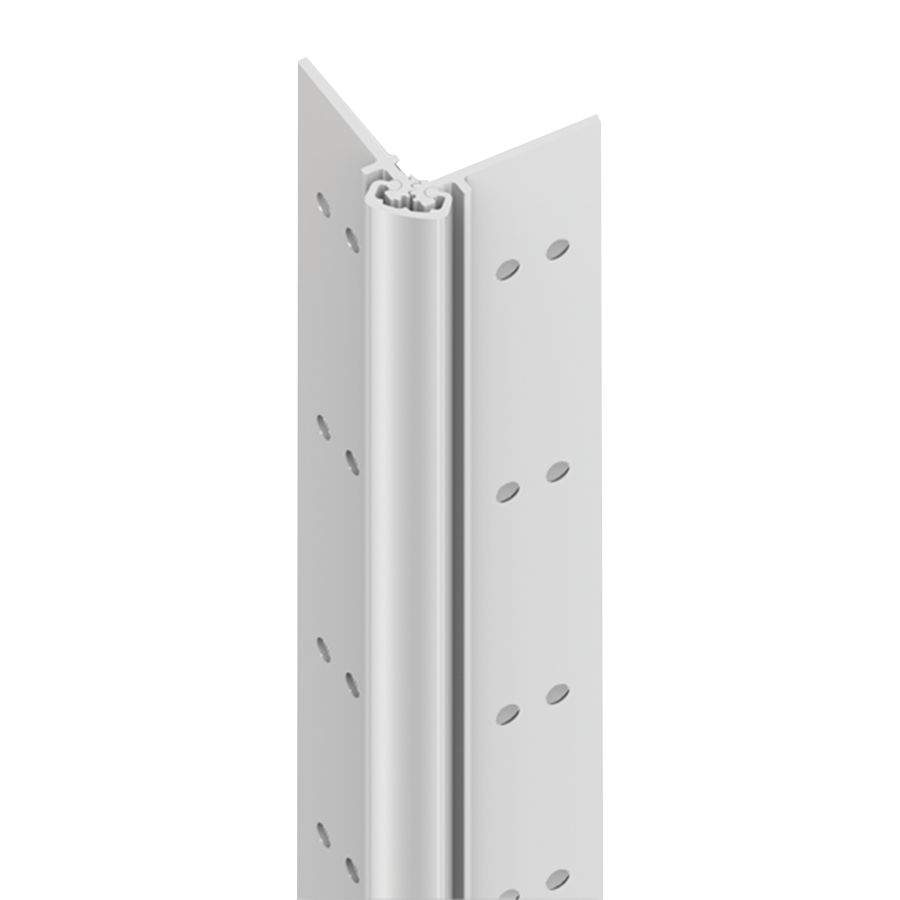

Ives 112XY 83IN 628 Heavy Duty Continuous Hinge - 83in, 1-3/4in Doors, 450lbs, Grade 1, Satin Aluminum

Ives 112XY 83IN 628 Full Mortise Heavy Duty Continuous Hinge is engineered to provide unparalleled durability and performance for 1-3/4 inch doors weighing up to 450 pounds. With a standard length of 83 inches, this hinge features a patented center-loaded, interlocking bearing design that distributes the weight of the door evenly along its frame. This innovative design minimizes stress traditionally found at the top of the door, effectively preventing sagging and ensuring long-lasting alignment. Ideal for high-use and high-traffic environments, the Ives 112XY hinge is non-handed, allowing for custom cut lengths to meet specific project needs. It is suitable for both beveled and square edge doors and can accommodate door widths up to 48 inches. The hinge meets Grade 1 standards, exceeding ANSI/BHMA 156.26 specifications for both 150 and 300-pound door weight categories. Additionally, the hinge is available in a satin aluminum finish (US28/628) and features an extended frame guidance lip for retrofit applications, covering existing heavy-weight architectural hinge preps. Optional mounting hardware, including various security screws, is also available to enhance installation security. Choose the Ives 112XY for a reliable, robust solution to your door-hinge requirements.

Full Mortise Heavy Duty Continuous Hinge - 83in, 1-3/4in Doors, up to 450lbs, Grade 1, UL 90 Minute, 628/US28 Satin Aluminum

Geared continuous hinges are designed to last the life of a building by distributing the weight of a door along the entire length of its frame. The unique design reduces the high amount of stress normally associated at the top of the door and frame on butt hinge applications. Not only does this reduce hinge failure, it also keeps a door in constant alignment, eliminating the chance of door sag. These characteristics make continuous hinges suitable for high-use and high-traffic doors.

Features:

• For 1 3⁄4" doors
• Patented center loaded, interlocking bearing design
• Non-handed for custom cut lengths
• Flush mounted, no inset
• 48" Maximum door width
• Beveled or square edge doors
• For doors weighing up to 450 pounds without reinforcing, 600 pounds with reinforcing
• Frame guidance lip is extended further for retrofit applications to cover existing heavy weight architectural hinge preps

Specifications:

• Standard length: 83", 85", 95", 119"
• Standard mounting hardware: 12-24 x 3⁄4" Steel self drilling/self tapping phillips head screw
• Certifications: Exceeds Grade 1 ANSI/BHMA 156.26 for 150lbs and 300lbs

Options:

• EPT: Electric power transfer
• HT: Hospital tip
• TWP CON: Electrical through-wire panel with Allegion Connect

Optional Mounting Hardware:

• SECHM: Security screws - hollow metal door and frame
• SECWDHM: Security screws - 1⁄2 wood, 1⁄2 hollow metal
• SECWDWD: Security screws - wood door and frame
• TEKWD: 1⁄2 Self drill, self tap 1⁄2 wood
• WD: Wood door and frame

Finishes:

• US28/628 - Clear Aluminum Anodized
• 313AN/710 - Dark Bronze Anodized
