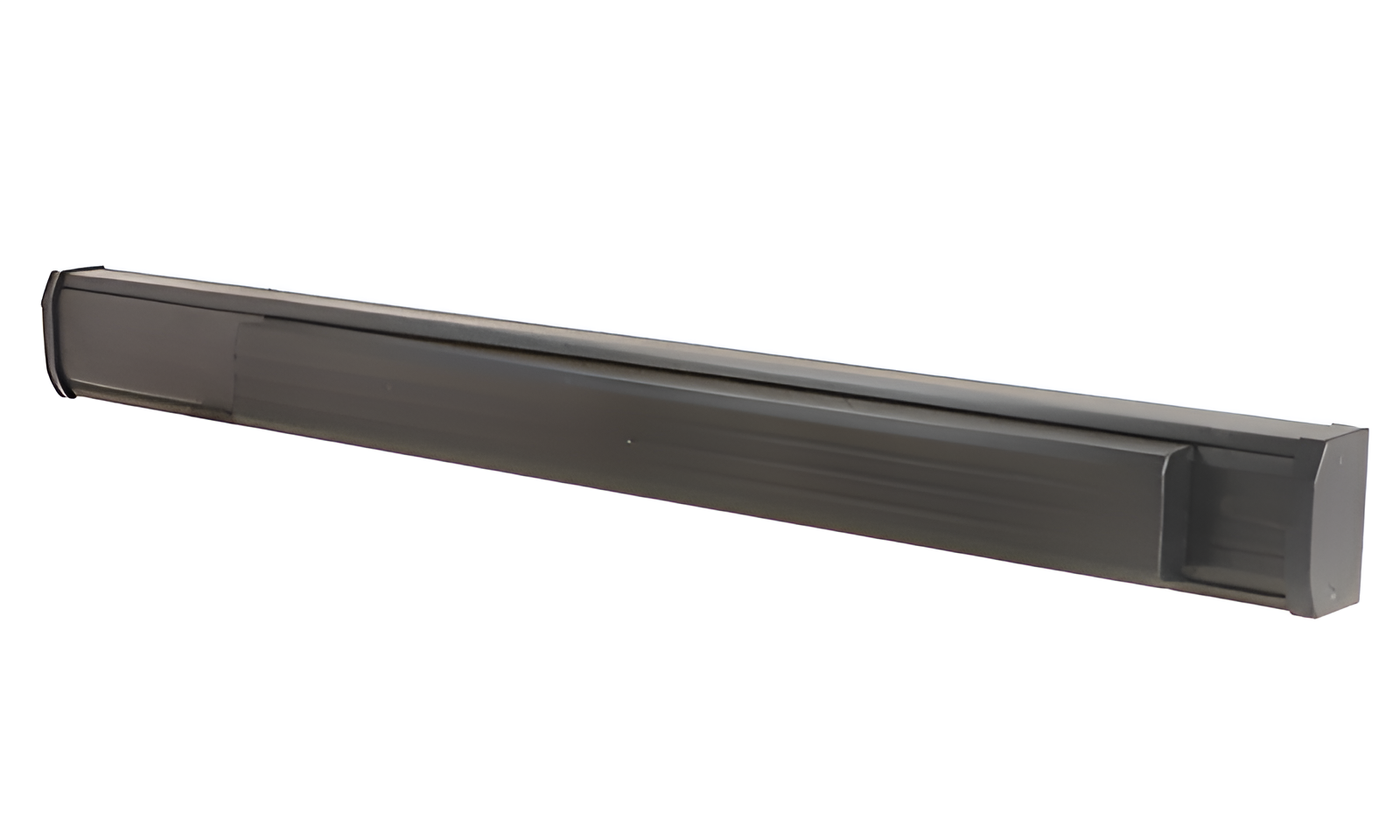

Jackson 311285L37313 LHR Narrow Stile CVR Concealed Vertical Rod Exit Device, 36in, SP313 Dark Bronze

Jackson 311285L37313 LHR Narrow Stile CVR Concealed Vertical Rod Exit Device is a robust solution designed for modern access control needs. This push-pad type device combines the reliability of traditional exit mechanisms with a sleek design that fits seamlessly into any commercial environment. It accommodates 1-3/4" (44.5 mm) narrow, medium, and wide stile aluminum, wood, or hollow metal doors, making it versatile for various applications. The exit device features a soft-touch push pad that requires minimal effort for instant release, providing an efficient exit option in emergencies. With a standard height of 84" (2.13 m) and a width of 36" (914 mm), it is ideal for standard-sized doors, while field-trimming capabilities allow for easy adjustments. The 1200 series touch pad ensures a smooth operation, and the standard hex key dogging adds to its functionality. Constructed with durable materials, including extruded aluminum for the base and push pad, as well as stainless and hardened plated steel for mechanical components, this exit device promises longevity and reliability. Certified to ANSI/BHMA 156.3 standards, the Jackson 311285L37313 is the perfect choice for those seeking a dependable and stylish exit solution for commercial spaces.

LHR Narrow Stile CVR Concealed Vertical Rod Exit Device, Push-Pad Type, 36in x 84in, SP313 Dark Bronze - CRL / CR Laurence

This Jackson exit device blends the reliability of the time-proven 10 series crossbar device with the sleek, contemporary style of today's modern push-pad exit device. Available in a rim, concealed, and surface vertical rod versions, this device is suitable for use with 1-3/4" (44.5 mm) narrow, medium, and wide stile aluminum, wood, or hollow metal doors. The base is easily trimmed for field sizing, and the vertical rods are shipped to fit up to 84" (2.13 m) tall doors. Extensions or longer rods for taller doors are available. This exit device features an easy-to-use dogging system, and is also available with keyed cylinder dogging. The 1200 series touch pad with "soft-touch" insert requires slight pressure anywhere on the bar insert for instant release of the locking mechanism. Overall projection is only 2-7/8" (73 mm) from the door surface, and mounting hardware is concealed. Active outside trim and other panic accessories are available.

Features:

• Designed for use with 1-3/4" (44 mm) narrow, medium, and wide stile aluminum, wood or hollow metal doors
• Soft-touch smooth action push-pad
• Can be cut to size
• Standard hex key dogging
• Stocked in both 36" and 48" (914 mm and 1.22 m) widths
• Standard height 84" (2.13 m) - extension available
• Requires series 30821J cylinder mounting pad when using mortise cylinder for keyed outside entry
• Base and Push-Pad: Extruded aluminum
• Mechanical Components: Stainless and hardened, plated steel
• Latch and Strikes: Sintered steel
• Metal end caps

Specifications:

• Certification: ANSI/BHMA 156.3
• Door Height: 84 in. (2133.6 mm)
• Door Thickness: 1-3/4 in. (44.5 mm)
• Door Width: 36 in. (914.4 mm)
• Handing: Right hand reverse bevel (LHR)
• Includes: Mounting hardware
• Material - End Cap: Aluminum
• Material - Housing: Aluminum
• Material - Latch & Strike: Sintered steel
• Material - Mechanical Components: Stainless and hardened plated steel
• Minimum Stile Width: 1-3/4 in. (44.5 mm)
• Model: 1285
• Panic Bar Base Height: 3-3/16 in. (81 mm)
• Panic Bar Projection: 2-7/8 in. (73 mm)
• Panic Bar Width Net: 34-1/2 in. (876.3 mm)
• Panic Dogging: Standard hex key dogging
• Panic Type: Concealed vertical rods
• Push Pad Width: 24 in. (609.6 mm)

Finishes:

• 628 - Satin aluminum
• 313 - Dark bronze
