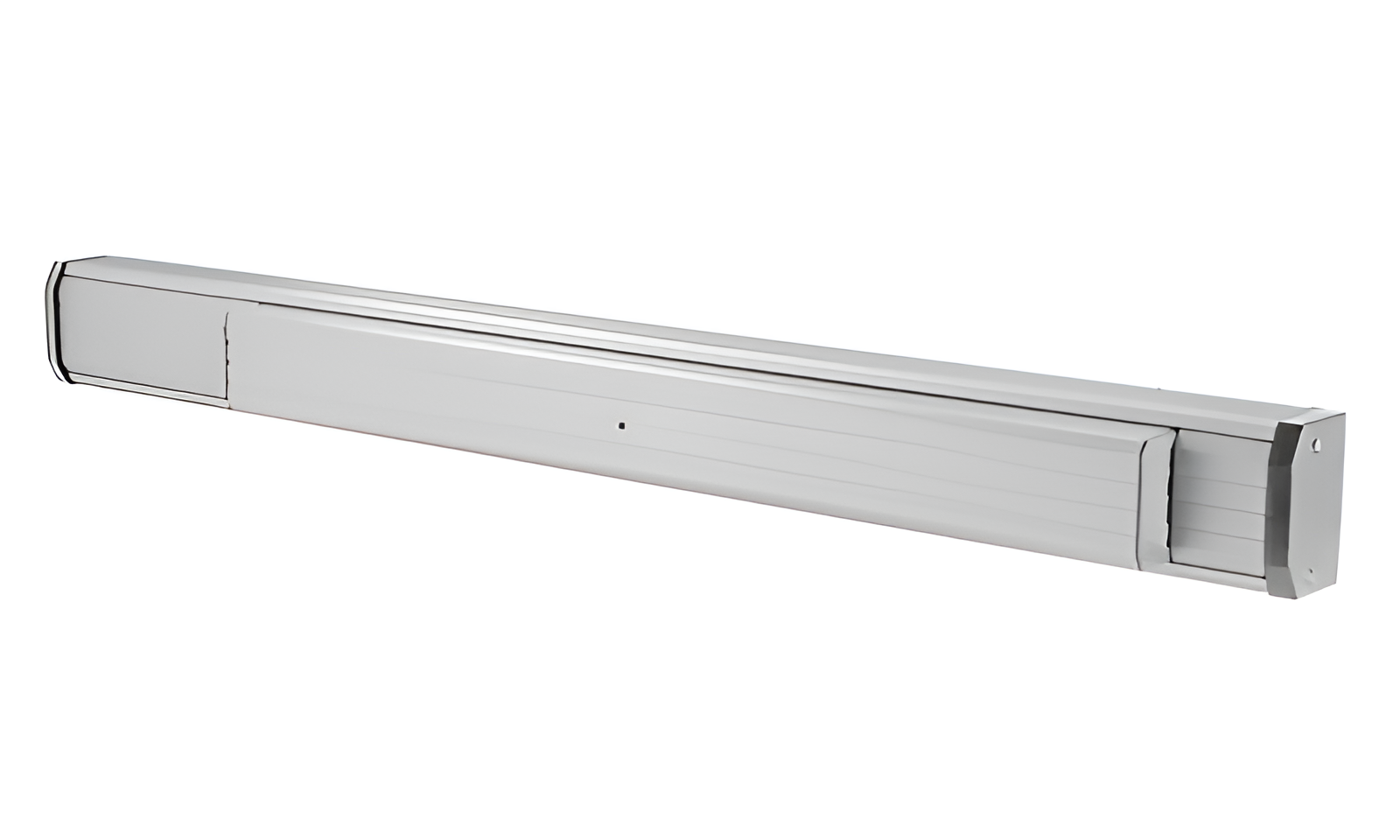

Jackson 311285L37628 LHR Narrow Stile CVR Concealed Vertical Rod Exit Device, 36in, Satin Aluminum

Jackson 311285L37628 LHR Narrow Stile CVR Concealed Vertical Rod Exit Device combines functionality with a modern aesthetic, making it an ideal choice for commercial spaces. Designed for doors measuring 1-3/4 inches thick, this push-pad exit device is compatible with narrow, medium, and wide stile aluminum, wood, or hollow metal doors. The device is shipped to fit doors up to 84 inches tall, with options for extensions or longer rods available to accommodate taller installations. Featuring a soft-touch push-pad that ensures smooth and instant release, this exit device enhances user experience. The 1200 series touch pad requires minimal pressure, allowing for quick egress in emergencies. The device also includes a standard hex key dogging system for added security. With a sleek projection of only 2-7/8 inches from the door surface, the mounting hardware remains concealed, contributing to a clean look. Constructed from high-quality materials, including extruded aluminum and sintered steel, the Jackson exit device is built to last. It meets ANSI/BHMA 156.3 certification standards, ensuring reliability. This model is available in a satin aluminum finish (628) and is equipped with all necessary mounting hardware for straightforward installation. Optimize your building's safety and accessibility with the Jackson 311285L37628 exit device.

LHR Narrow Stile CVR Concealed Vertical Rod Exit Device, Push-Pad Type, 36in x 84in, 628 Satin Aluminum - CRL / CR Laurence

This Jackson exit device blends the reliability of the time-proven 10 series crossbar device with the sleek, contemporary style of today's modern push-pad exit device. Available in a rim, concealed, and surface vertical rod versions, this device is suitable for use with 1-3/4" (44.5 mm) narrow, medium, and wide stile aluminum, wood, or hollow metal doors. The base is easily trimmed for field sizing, and the vertical rods are shipped to fit up to 84" (2.13 m) tall doors. Extensions or longer rods for taller doors are available. This exit device features an easy-to-use dogging system, and is also available with keyed cylinder dogging. The 1200 series touch pad with "soft-touch" insert requires slight pressure anywhere on the bar insert for instant release of the locking mechanism. Overall projection is only 2-7/8" (73 mm) from the door surface, and mounting hardware is concealed. Active outside trim and other panic accessories are available.

Features:

• Designed for use with 1-3/4" (44 mm) narrow, medium, and wide stile aluminum, wood or hollow metal doors
• Soft-touch smooth action push-pad
• Can be cut to size
• Standard hex key dogging
• Stocked in both 36" and 48" (914 mm and 1.22 m) widths
• Standard height 84" (2.13 m) - extension available
• Requires series 30821J cylinder mounting pad when using mortise cylinder for keyed outside entry
• Base and Push-Pad: Extruded aluminum
• Mechanical Components: Stainless and hardened, plated steel
• Latch and Strikes: Sintered steel
• Metal end caps

Specifications:

• Certification: ANSI/BHMA 156.3
• Door Height: 84 in. (2133.6 mm)
• Door Thickness: 1-3/4 in. (44.5 mm)
• Door Width: 36 in. (914.4 mm)
• Handing: Right hand reverse bevel (LHR)
• Includes: Mounting hardware
• Material - End Cap: Aluminum
• Material - Housing: Aluminum
• Material - Latch & Strike: Sintered steel
• Material - Mechanical Components: Stainless and hardened plated steel
• Minimum Stile Width: 1-3/4 in. (44.5 mm)
• Model: 1285
• Panic Bar Base Height: 3-3/16 in. (81 mm)
• Panic Bar Projection: 2-7/8 in. (73 mm)
• Panic Bar Width Net: 34-1/2 in. (876.3 mm)
• Panic Dogging: Standard hex key dogging
• Panic Type: Concealed vertical rods
• Push Pad Width: 24 in. (609.6 mm)

Finishes:

• 628 - Satin aluminum
• 313 - Dark bronze
