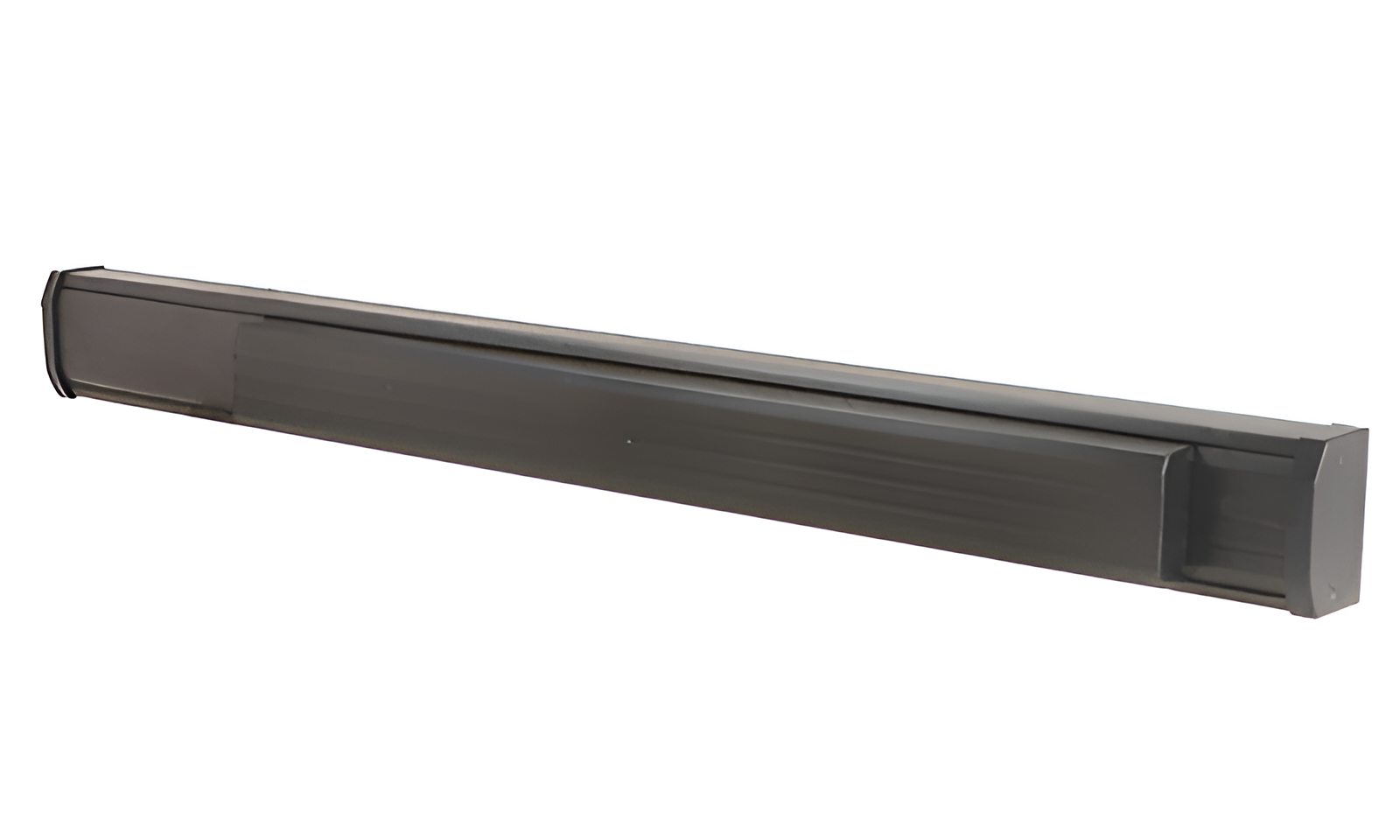

Jackson 311285R37313 RHR Narrow Stile CVR Concealed Vertical Rod Exit Device, 36in, Dark Bronze

Jackson 311285R37313 RHR Narrow Stile CVR Concealed Vertical Rod Exit Device offers a perfect blend of reliability and contemporary design, making it an ideal choice for commercial applications. This push-pad type exit device is compatible with 1-3/4" (44.5 mm) narrow, medium, and wide stile doors, whether made from aluminum, wood, or hollow metal. Its sleek design ensures that it fits seamlessly into modern architectural aesthetics. The device is shipped ready to accommodate doors up to 84" (2.13 m) tall, with options available for extension rods for taller installations. The soft-touch push-pad requires minimal pressure for immediate operation, while the standard hex key dogging allows for easy management. With an overall projection of just 2-7/8" (73 mm) from the door surface, it maintains a low profile. Constructed from durable materials, including extruded aluminum and sintered steel for the latch and strikes, this exit device is built to last. The concealed mounting hardware enhances its aesthetic appeal. Certified to ANSI/BHMA 156.3 standards, the Jackson exit device is stocked in both 36" and 48" widths, making it versatile for various door sizes. Available in a stylish SP313 dark bronze finish, this exit device not only prioritizes safety but also elevates the visual appeal of any entryway.

RHR Narrow Stile CVR Concealed Vertical Rod Exit Device, Push-Pad Type, 36in x 84in, SP313 Dark Bronze - CRL / CR Laurence

This Jackson exit device blends the reliability of the time-proven 10 series crossbar device with the sleek, contemporary style of today's modern push-pad exit device. Available in a rim, concealed, and surface vertical rod versions, this device is suitable for use with 1-3/4" (44.5 mm) narrow, medium, and wide stile aluminum, wood, or hollow metal doors. The base is easily trimmed for field sizing, and the vertical rods are shipped to fit up to 84" (2.13 m) tall doors. Extensions or longer rods for taller doors are available. This exit device features an easy-to-use dogging system, and is also available with keyed cylinder dogging. The 1200 series touch pad with "soft-touch" insert requires slight pressure anywhere on the bar insert for instant release of the locking mechanism. Overall projection is only 2-7/8" (73 mm) from the door surface, and mounting hardware is concealed. Active outside trim and other panic accessories are available.

Features:

• Designed for use with 1-3/4" (44 mm) narrow, medium, and wide stile aluminum, wood or hollow metal doors
• Soft-touch smooth action push-pad
• Can be cut to size
• Standard hex key dogging
• Stocked in both 36" and 48" (914 mm and 1.22 m) widths
• Standard height 84" (2.13 m) - extension available
• Requires series 30821J cylinder mounting pad when using mortise cylinder for keyed outside entry
• Base and Push-Pad: Extruded aluminum
• Mechanical Components: Stainless and hardened, plated steel
• Latch and Strikes: Sintered steel
• Metal end caps

Specifications:

• Certification: ANSI/BHMA 156.3
• Door Height: 84 in. (2133.6 mm)
• Door Thickness: 1-3/4 in. (44.5 mm)
• Door Width: 36 in. (914.4 mm)
• Handing: Right hand reverse bevel (LHR)
• Includes: Mounting hardware
• Material - End Cap: Aluminum
• Material - Housing: Aluminum
• Material - Latch & Strike: Sintered steel
• Material - Mechanical Components: Stainless and hardened plated steel
• Minimum Stile Width: 1-3/4 in. (44.5 mm)
• Model: 1285
• Panic Bar Base Height: 3-3/16 in. (81 mm)
• Panic Bar Projection: 2-7/8 in. (73 mm)
• Panic Bar Width Net: 34-1/2 in. (876.3 mm)
• Panic Dogging: Standard hex key dogging
• Panic Type: Concealed vertical rods
• Push Pad Width: 24 in. (609.6 mm)

Finishes:

• 628 - Satin aluminum
• 313 - Dark bronze
