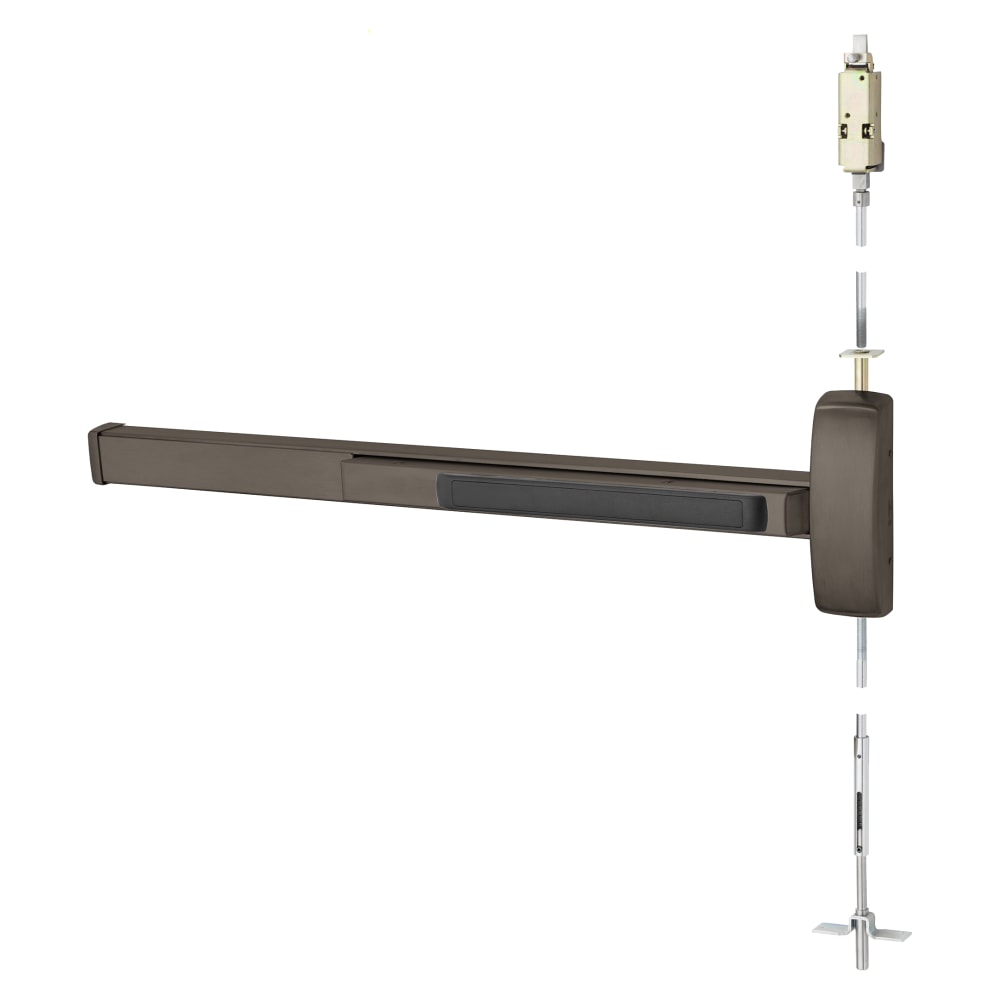

Sargent 5556-AD8674F RHR 10B CVR Fail Secure Exit Device

Sargent 5556-AD8674F RHR 10B CVR Exit Device, Fail Secure is a Grade 1 concealed vertical rod exit bar designed for robust security in commercial environments. Featuring a wide stile pushpad and a 36" device length, this exit device is suitable for doors with a height of up to 96". Its dark oxidized satin bronze oil-rubbed finish not only enhances durability but also complements various architectural styles. Engineered to exceed ANSI/BHMA Grade 1 standards, the Sargent 5556 delivers exceptional strength and reliability. The device is designed to accept electrified trim functions, including electric latch retraction and a request to exit switch, making it versatile for unique applications. Its modular construction means fewer moving parts, ensuring maintenance-free operation over the life of the building. This exit device is compliant with UL305 and is ideal for use on metal doors with a minimum thickness of 1-3/4" and a maximum height of 96". With less dogging options and a right-hand reverse handing configuration, it offers convenience and security in emergency egress situations. Choose the Sargent 5556-AD8674F for a dependable exit solution that combines strength, style, and functionality, perfect for any commercial space.

CVR Exit Device, Fail Secure

Grade 1 Concealed Vertical Rod Exit Bar, Wide Stile Pushpad, 36" Device, 96" Door Height, Device to Accept Electrified Trim Function, Electric Latch Retraction, Request to Exit Switch, Less Dogging, Dark Oxidized Satin Bronze Oil Rubbed Finish, Right Hand Reverse

The Sargent 80 Series exit devices are ideal for environments that require strong and durable security solutions that will last the life of the building. Available in rim, mortise, surface vertical and concealed vertical rod configurations, these exit devices easily exceed ANSI/BHMA Grade 1 requirements for cycle and strength. With modular construction and few moving parts, the 80 Series devices are maintenance-free and provide unsurpassed security for any facility. Plus, options are available for unique applications including delayed egress, alarmed exit and electric latch retraction making these exit devices the go-to product in your building.

The Sargent 8600 Series provides simplicity, strength, and durability.

The 8600 Series is designed for standard width stile applications on hollow metal doors and has both single and double door applications.

• Door Types Metal Doors, 1-3/4" (44mm) minimum thickness.
• For doors over 1-3/4" to 2-1/4" thick, specify thickness and order as 31- 4-1/2" (114mm) minimum stile width
• Rails are available in 4 sizes, use door width to determine size needed.
• Rails will be factory cut to size, if door width is supplied
• E Rail for 24" to 32" door widths, No cutting required for 32" door
• F Rail for 33" to 36" door widths, No cutting required for 36" door
• J Rail for 37" to 42" door widths, No cutting required for 42" door
• G Rail for 43" to 48" door widths, No cutting required for 48" door
• Strike 650 Top Strike & 606 Bottom Strike (Panic and Fire Rated)
• Dogging Feature Hex key dogging standard on non fired rated devices; specify 16- for cylinder dogging (#41 cylinder supplied)
• Electric Options AL- Alarm
• BT- Beacon™
• PL- SARGuide™ Photoluminescent Coated
• TL- SARGuide™ Illuminated Touchpad
• 53- LX Latchbolt Monitor
• 54- Outside Lever Monitoring
• 55- Request-to-Exit Signal - Rail Monitoring
• 56- Remote Latch Retraction
• 57- Delay Egress & Electromagnets
• 58- Electric Dogging
• 59- Electroguard – Self Contained Delayed Egress
• Mounting Fasteners Supplied standard with machine screws
• Top Bolt: Stainless steel
• Device Centerline from Finished Floor: 41" (1041mm) for Standard Applications, 38" (965mm) for elementary schools and to meet local accessibility standards when a 100 Series Auxiliary Control is used
• Door/Opening Height: Must be specified - 120" (3048mm) Max Door Opening
• 96" max door height for HC and WS options
• Center Case Dimensions: 8-3/8" (213mm) x 2-5/8" (67mm)
• Projection: Pushbar Neutral – 3" (76mm), Pushbar Depressed – 2-1/8" (54mm)
