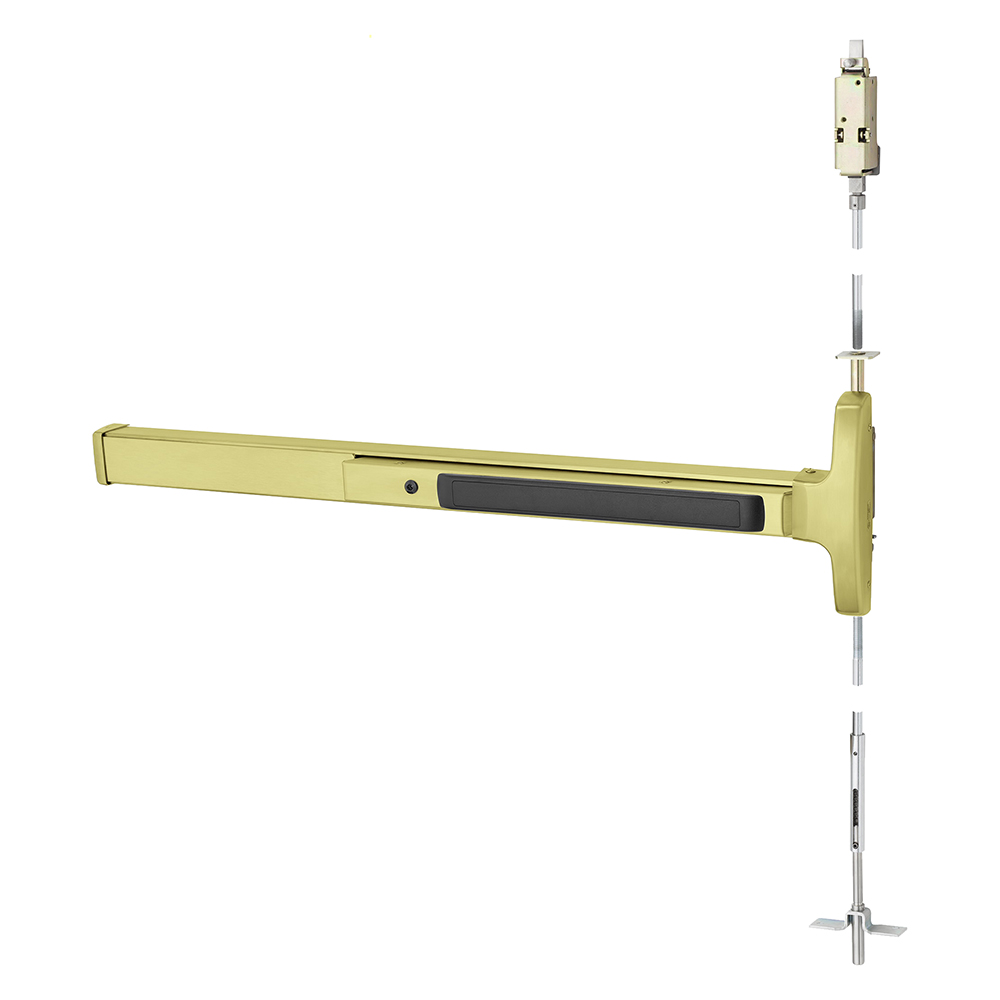

Sargent AD8406F RHR 4 CVR Storeroom Exit Device

Sargent AD8406F RHR 4 CVR Exit Device, Storeroom is a Grade 1 concealed vertical rod exit device designed for durability and security in commercial environments. This 36" device, featuring a narrow stile pushpad, is suitable for doors with a height of up to 96". With its storeroom function and hex key dogging, it ensures controlled access while maintaining safety in emergency situations. The Sargent 80 Series devices are engineered to exceed ANSI/BHMA Grade 1 standards for cycle and strength. The modular construction minimizes maintenance needs, ensuring reliability throughout the life of the building. This exit device is UL Fire and Panic listed, providing peace of mind in critical applications. Designed specifically for narrow stile applications, the AD8406F is compatible with hollow metal doors ranging from 1-3/4" to 2-1/4" in thickness. Its stainless steel top bolt adds an extra layer of security. The device centerline is standardized at 41" from the finished floor, and it can accommodate door widths from 33" to 36". Available in a sleek satin brass finish, the Sargent AD8406F combines functionality with aesthetic appeal, making it an ideal choice for any facility requiring robust exit solutions.

CVR Exit Device, Storeroom

Grade 1 Concealed Vertical Rod Exit Device, Narrow Stile Pushpad, 36" Device, 96" Door Height, Storeroom Function, Hex Key Dogging, Satin Brass Finish, Right Hand Reverse

The Sargent 80 Series exit devices are ideal for environments that require strong and durable security solutions that will last the life of the building. Available in rim, mortise, surface vertical and concealed vertical rod configurations, these exit devices easily exceed ANSI/BHMA Grade 1 requirements for cycle and strength. With modular construction and few moving parts, the 80 Series devices are maintenance-free and provide unsurpassed security for any facility. Plus, options are available for unique applications including delayed egress, alarmed exit and electric latch retraction making these exit devices the go-to product in your building.

The most reliable exit device on the market.

The 8400 Series is designed for narrow stile applications and is UL Fire and Panic lsited. This series is available in several finishes.

• Door Types Hollow metal, 1-3/4" (44 mm) minimum thickness. For doors over 1-3/4" to 2-1/4" thick, specify thickness and order as 31- 1-3/4" (44mm) minimum stile width required. Stile must be hollow with inside dimension of at least 1-3/8" (35mm) square
• Rail sizes as Rails are available in 4 sizes, use door width to determine size needed. determined by Rails will be factory cut to size, if door width is supplied door width • E Rail for 24" to 32" door widths • F Rail for 33" to 36" door widths • J Rail for 37" to 42" door widths • G Rail for 43" to 48" door widths
• Strike 650 Top Strike & 606 Bottom Strike (Panic and Fire Rated)
• Dogging Feature Hex key dogging standard on non fired rated devices; specify 16- for cylinder dogging (#41 cylinder supplied)
• Electric Options AL- Alarm BT- Beacon™ PL- SARGuide™ Photoluminescent Coated TL- SARGuide™ Illuminated Touchpad 53- LX Latchbolt Monitor 54- Outside Lever Monitoring 55- Request-to-Exit Signal - Rail Monitoring 56- Remote Latch Retraction 57- Delay Egress & Electromagnets 58- Electric Dogging 59- Electroguard – Self Contained Delayed Egress
• Mounting Fasteners Supplied standard with machine screws
• Top Bolt Stainless steel
• Device Centerline from 41" (1041mm) for Standard Applications Finished Floor 38" (965mm) for elementary schools and to meet local accessibility standards when a 100 Series Auxiliary Control is used
• Door/Opening Height Must be specified - 120" (3048mm) Max Door Opening
• Center Case Dimensions 8-3/8" (213mm) x 2-5/8" (67mm)
• Projection Pushbar Neutral – 3" (76 mm) Pushbar Depressed – 2-1/8" (54mm)
