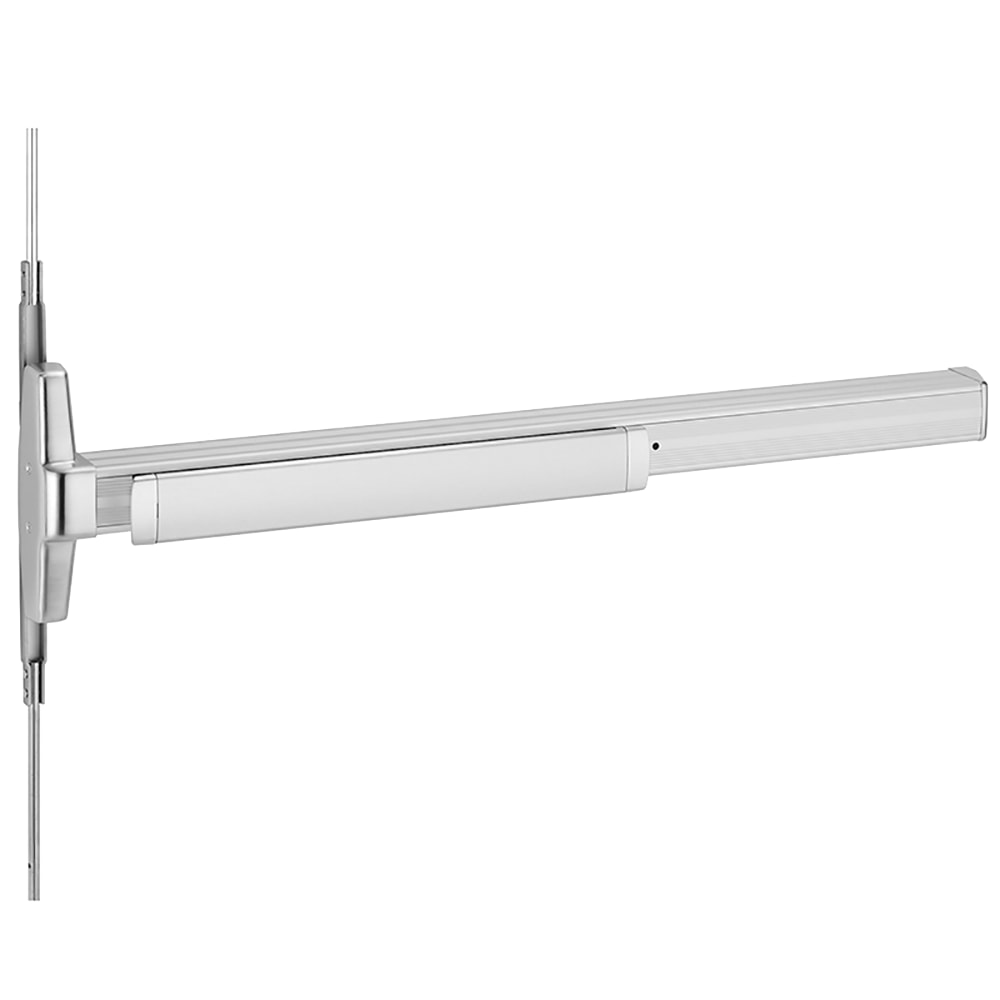

Von Duprin 3347AL-03 3 26D LHR Grade 1 Narrow CVR Exit Device 626Von Duprin 3347AL-03 3 26D LHR Grade 1 Narrow CVR Exit 626 is a robust solution for safety and accessibility in commercial environments. This Grade 1 concealed vertical rod exit device features a narrow stile pushpad and a classroom function lever with escutcheon, ensuring easy operation while maintaining an aesthetic appeal. Designed for durability, it boasts a satin chrome finish that complements any décor. The 3347A model is UL listed for panic exit hardware and adheres to ANSI A156.3 - 2001 Grade 1 standards, making it a reliable choice for both single and double doors. Its non-handed design accommodates various door configurations, fitting stiles as narrow as 1-3/4 inches and wood stiles as narrow as 4 inches. Equipped with hex key dogging for secure locking, the device features a deadlocking anti-friction latch bolt with a 5/8-inch throw for enhanced security. The device length is 36 inches, suitable for doors ranging from 28 to 36 inches wide, while the adjustable vertical rods allow for precise fitting from 6'8" to 8'4". With a three-year limited warranty, the Von Duprin 3347AL-03 is an ideal choice for building professionals seeking a reliable, stylish, and functional exit solution.
Grade 1 Narrow CVR Exit 626
Grade 1 Concealed Vertical Rod Exit Device, Narrow Stile Pushpad, Classroom Function, Lever with Escutcheon, 36", Hex Key Dogging, Satin Chrome Finish, Left-Hand Reverse
3347A and 3547A for all types of single and double doors, UL listed for Panic Exit Hardware. Devices are ANSI A156.3 - 2001 Grade 1. The 3547A has a smooth mechanism case and the 3347A has grooved case. The concealed vertical rod device is non-handed except when the SS (Signal Switch) option is used. 3347A/3547A fits door stiles as narrow as 1 3/4"(44 mm), wood door stiles as narrow as 4"(102mm). Newly designed device has a one piece center case cover. Device Lengths: 3' 2'4" to 3', 4' 2'10" to 4'. Hex key dogging standard. Vertical Rods: Round 2 piece adjustable rods; Top rod adjustable from 6'8" to 8'4".
3347A fits door stiles as narrow as 2-1/8" (44 mm), wood door stiles as narrow as 4" (102mm).
3347A is for all types of single and double doors, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2001 Grade 1 and the 3347A has a grooved case. The concealed vertical rod device is non-handed except when the SS (signal switch) option is used.
Device lengths: 2' 2' (610 mm) Door size 3' 2'4" to 3' (660mm to 914 mm) door size 4' 2'8" to 4' (813 mm to 1219 mm) door size
Device centerline from finished floor: 39 13/16" (1006mm)
Center case dimensions: 8 13/16" x 2 13/32" x 1 9/16" (208mm x 62mm x 40mm)
Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
Projection: Pushbar neutral – 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm)
Latch bolt: Deadlocking anti-friction top & bottom bolt 5 /8" (16mm) throw
Door undercut: 1 /4" (7mm)
Top & bottom latch: 3 3/4" x 1 1/2" x 1" (89mm x 38mm x 25mm)
Vertical rods: Round 2 piece adjustable rods Top rod adjustable from 6'8" (2027mm) to 8'4" (2533mm) Bottom rod adjustable from 35 5/8" (905mm) to 49 5/8" (1260mm) Extension rod kits available for doors over 8'4" (2533mm)
Fasteners & sex bolts (SNB): Includes 1 3/4" (44mm) – 2 1/4" (57mm) wood & metal doors #425 SNB furnished standard for end case #325 SNB furnished standard for EO (exit only device)
Attributes
Ansi: A156.3 2008
Base Material: Brass or Bronze
Commercial Residential: Commercial
Cylinder Type: 1-1/4" Mortise
Design A: 03 Lever
Device Length: 36"
Device Type: Concealed Vertical Rod
Dogging Options: Hex Key Dogging
Door Height: 100"
Door Material: Hollow Metal
Door Thickness: 1-3/4"
Door Width: 28" to 36"
Finish: 626/US26D
Finish Family: Matte Silver
Fire Rated: No
Grade: Grade 1
Handing: LHR
Includes Cylinders: No
Includes Trim: Yes
Installation: Commercial
Limited Warranty: 3 Years
Mechanical Function: Classroom
Minimum Stile Size: Narrow
Pack Qty: 1
Physical Appearance: Narrow Stile Pushpad
Reversible: Yes
Series: 3347A Series Concealed Vertical Rod Exit Device
Ship Weight: 19 lbs.
Strike Bottom: 385A
Subtype: Concealed Vertical Rod Exit Devices
Top Strike: 338
Trim Design: Lever with Escutcheon
Trim Part No: 03 Lever
Trim Type: Lever
Type: Exit Devices
Ul Listing: UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 3
