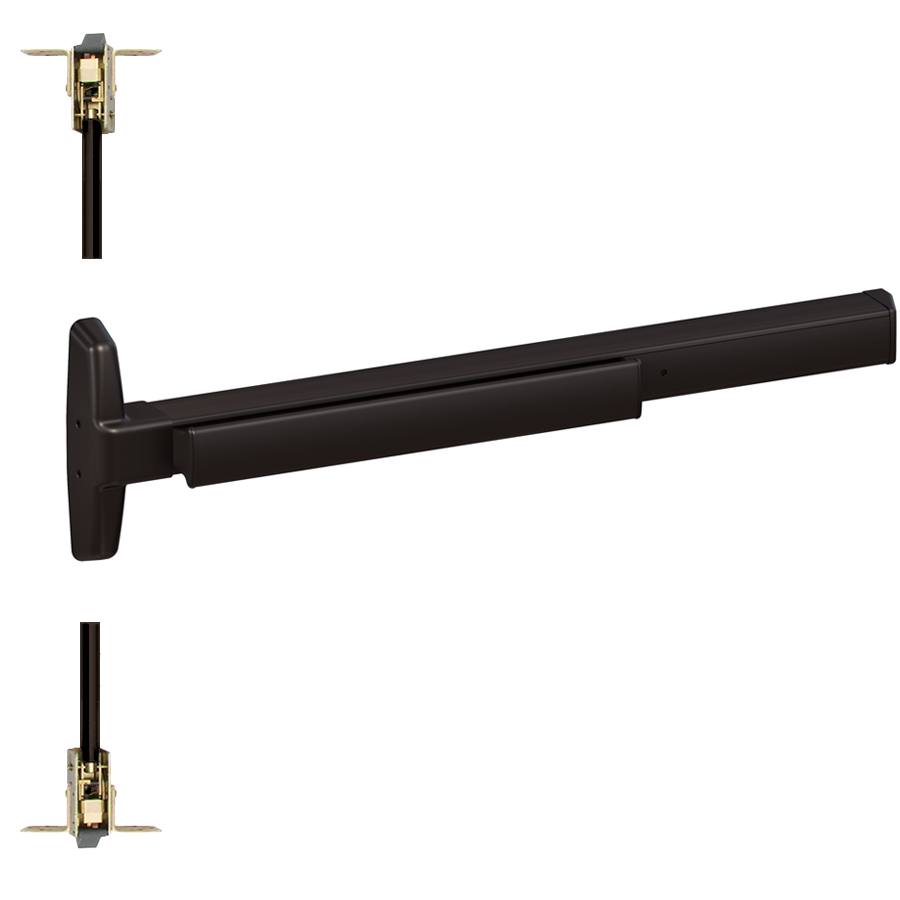

Von Duprin 7547EO-710-36 75 Series CVR Exit Device, No Trim, 36"x84", Grade 1, Dark Bronze

Von Duprin 7547EO-710-36 75 Series CVR Exit Device offers unparalleled security and reliability for both single and double metal doors. This concealed vertical rod exit device is UL listed for panic exit hardware and meets ANSI/BHMA A156.3 2014, Grade 1 certification, making it an ideal choice for commercial settings where safety is paramount. Designed for doors measuring 36 inches wide and 84 inches tall, the 7547EO features a deadlocking latch bolt with a 5/8-inch throw, ensuring robust security. The device functions are field-selectable, allowing you to choose between exit only, dummy trim, and night latch options based on your specific needs. With a center case size of 9" x 1-5/8" x 2-3/8", it fits seamlessly into narrow stile applications. Installation is straightforward, as the device includes a screw pack for both 1-3/4" and 2-1/4" thick doors. The 710/US11P dark bronze finish not only enhances durability but also complements modern architectural aesthetics. Optional electrified features, such as the latch bolt monitor switch and request to exit, add versatility for access control systems. Choose the Von Duprin 7547EO-710-36 for a reliable, high-quality exit solution that prioritizes safety without sacrificing style.

75 Series CVR (Concealed Vertical Rod) Exit Device, No Trim, 36in x 84in, Grade 1, 710/US11P Dark Bronze

7547 Concealed vertical rod device for use on single or double metal doors, UL listed for panic exit hardware. These are certified to ANSI/BHMA A156.3 2014, grade 1.

Specifications:

• Device Functions: Device ships EO/DT/NL; field selectable
• Center Case: 9" x 1-5/8" x 2-3/8" (229mm x 41mm x 60mm)
• Device lengths:
• 3': 2' 6" to 3' (762mm to 914mm) door size
• 4': 3' to 4' (914mm to 1219mm) door size
• Device centerline from finished floor:
• 39-13/16" (1011mm)
• 39-11/16" (1008mm) with mullion
• Mechanism Case: 2-5/16" x 2-1/8" (59mm x 54mm)
• Latch Bolt: Deadlocking, 5/8" (15.875mm) throw
• Projection:
• Pushbar neutral - 3-13/16" (97mm)
• Pushbar depressed - 3-1/16" (78mm)
• Pushbar Length: 3' 18" (457mm), 4' 24" (610mm)
• Fasteners and Sex Bolts (SNB): Includes screw pack for 1-3/4" (4mm) and 2-1/4" (57mm) thick metal or wood doors (Optional 425 SNB available)
• Electrified Options:
• LX: Latch bolt monitor switch
• RX: Request to exit
• E: Electric locking and unlocking trim; no cylinder override
• ALK: Quiet electric latch retraction
• CON: Allegion Connect
• QEL: Quiet electric latch retraction
• Mechanical Options:
• GBK: Glass bead kit
• LBR: Less bottom rod
• SNB: Sex bolts
• SEC: Security screws
• WH: Weep holes
• Dogging Options:
• Hex key dogging standard
• CD: Cylinder dogging
• LD: Less dogging
• QEL: QEL options available
• Strikes:
• 388: Top—Unfinished
• 385A: Bottom—unfinished

Trim Functions:

• DT: Dummy trim
• EO: Exit only
• L: Lever (classroom)
• L-BE: Lever - blank escutcheon
• L-DT: Lever, rigid - dummy trim
• L-NL: Lever, rigid - night latch
• NL: Night latch
• NL-OP: Night latch cylinder assembly, optional pull
• TL: Turn lever
• TL-BE: Turn lever - blank escutcheon

Finishes:

• 605 - Bright brass
• 606 - Satin brass
• 612 - Satin bronze
• 619 - Satin nickel
• 625 - Bright chrome
• 626 - Satin chrome
• 628 - Aluminum, anodized
• 630 - Satin stainless steel
• 643e - Aged bronze
• 710 - Dark brown, anodized
• 711 - Matte black
