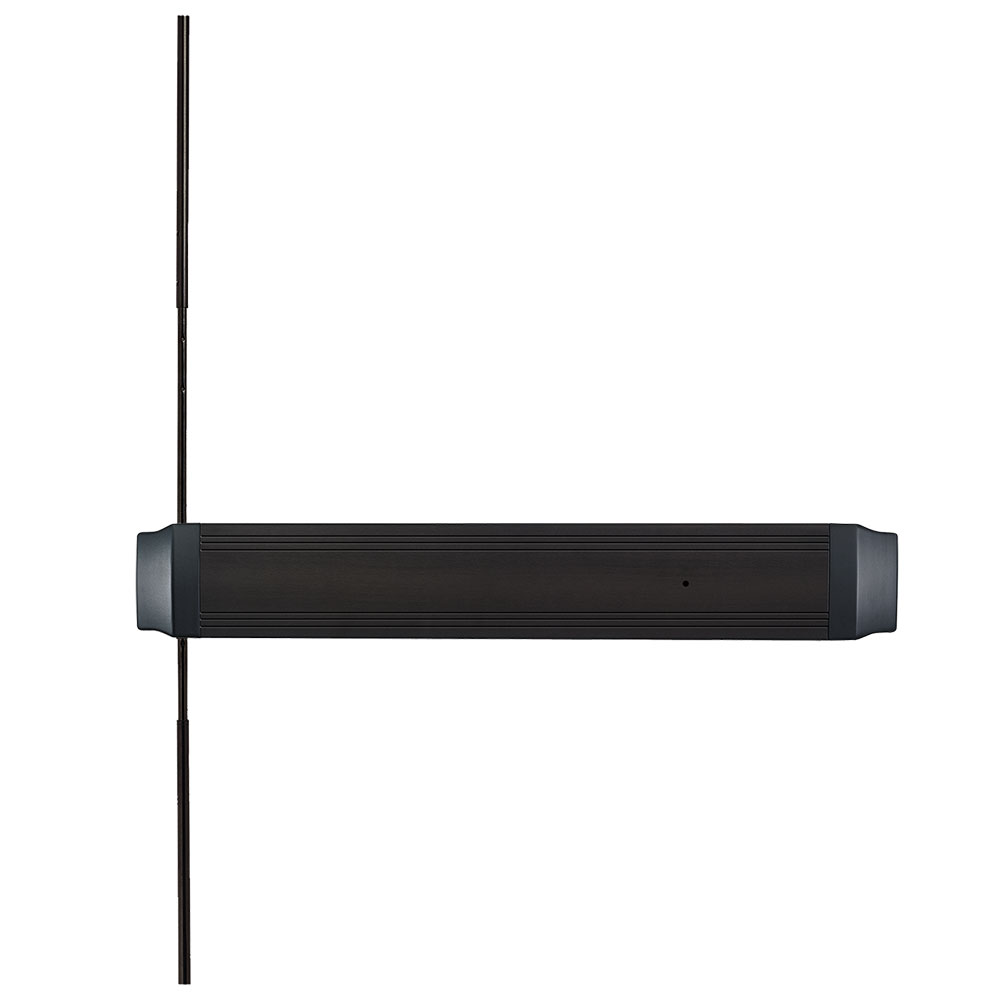

Von Duprin 9547EO 313 INPACT CVR Exit 710

Von Duprin 9547EO 313 INPACT CVR EXIT 710 is a robust exit device designed specifically for factory prepped steel doors, providing a reliable solution for emergency egress. This exit-only device, featuring a dark bronze anodized aluminum finish, is not suitable for wood doors. Engineered to meet rigorous safety standards, the Inpact device is UL listed for panic and fire, and holds an ANSI/BHMA 156.3 Grade 1 rating, ensuring top-tier security. With its concealed vertical rod design, this device is non-handed, offering flexibility in installation. The adjustable vertical rods accommodate door heights from 6'8" to 8'0", while the standard 5/8" throw deadlocking latchbolt enhances security. The device projects 1 5/8" when neutral and 1 1/4" when depressed, with a centerline positioning of 39 5/8" from the finished floor. Included fasteners facilitate surface mounting to recessed door prep, and the device ships with various functional options, including EO, DT, and TL. With a limited warranty of three years, the Von Duprin 9547EO ensures durability and peace of mind for building professionals and homeowners alike.

INPACT CVR EXIT 710

Inpacted Exit Device, Exit Only, No Trim, Dark Bronze Anodized Aluminum

94/95 Inpact concealed vertical rod device for use on factory prepped steel doors, not available for wood doors. The Inpact device is UL listed for panic and fire, ANSI/BHMA 156.3 Grade 1. The Inpact device is non-handed.

94/95 Inpact concealed vertical rod device for use on factory prepped steel doors, not available for wood doors.

The Inpact device is UL listed for panic and fire, ANSI/BHMA 156.3 Grade 1. The Inpact device is non-handed.

• Device functions Device ships EO, DT, TL, L Blank escutcheon (BE) available
• Device lengths 2'6" Up to 2'9" for 24 5/32" device 2'10" up to 4' for 30 5/32" device
• Device centerline from finished floor 39 5/8" (1006 mm)
• Projection 1 5 /8" (41 mm) neutral 1 1/4" (32 mm) depressed
• Latchbolt 5 /8" (16 mm) throw deadlocking latchbolt standard
• Door undercut 1 /4" (7 mm) maximum
• Top & bottom latch case assembly 4 1/2" X 2 1/8" x 1 1/2" (114 mm x 54 mm x 38 mm)
• Vertical rods Two-piece adjustable rods, door 6'8" (2032 mm) to 8'0" (2540 mm) can be adjusted by removing the latchside endcap
• Fasteners Included for surface mounting to recessed door prep and through bolting to trim
