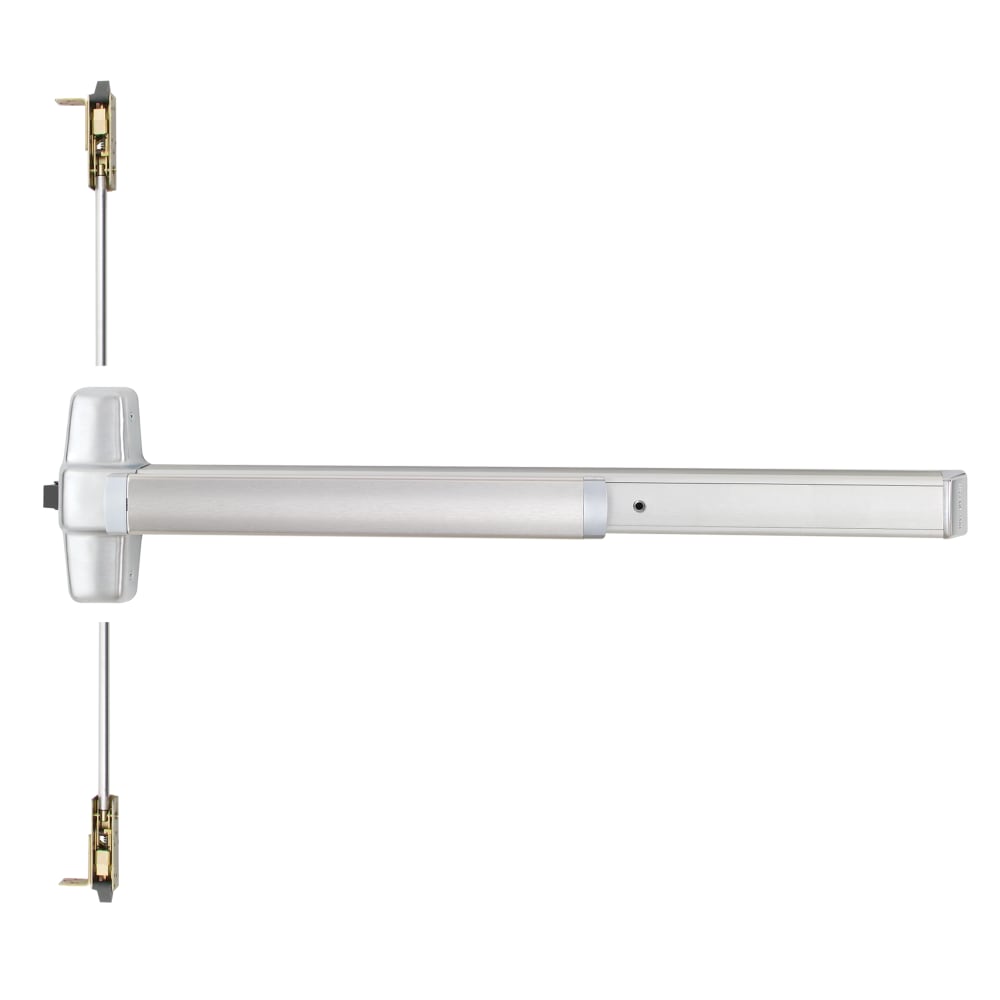

Von Duprin 9847EO 4 26D Grade 1 CVR Exit Device 626

Von Duprin 9847EO 4 26D Grade 1 CVR Exit Device 626 combines functionality and durability in a sophisticated design tailored for commercial applications. This Grade 1 concealed vertical rod exit device is engineered for single or double metal doors, ensuring reliable performance in emergency exit situations. With a wide stile pushpad and a length of 48 inches, it accommodates door heights ranging from 80 to 100 inches, making it a versatile choice for various installations. The 9847 model features hex key dogging, allowing for easy locking and unlocking, while its satin chrome finish provides an aesthetically pleasing yet robust surface. The device's smooth mechanism case contributes to its sleek appearance and reliable operation. Designed to meet ANSI A156.3 – 2008 Grade 1 standards and UL listed for panic exit hardware, this exit device guarantees safety and compliance. Field-reversible for convenient installation, the 9847 also includes adjustable vertical rods, accommodating door sizes from 34 inches to 48 inches in width. The deadlocking latch bolts deliver enhanced security, ensuring that the exit device remains secure while allowing for swift egress when needed. Trust Von Duprin for a dependable exit solution that emphasizes safety, style, and ease of use in commercial environments.

Grade 1 CVR Exit Device 626

Grade 1 Concealed Vertical Rod Exit Bar, Wide Stile Pushpad, 48" Device, 80" to 100" Door Height, Exit Only, Hex Key Dogging, Satin Chrome Finish, Field Reversible

9847/9947 Concealed vertical rod device for use on single or double metal doors, UL listed for panic exit hardware. The 9847 device has a smooth mechanism case and the 9947 device has a grooved case.

The 9847 device has a smooth mechanism case.

The 9847 Series is for use on single or double metal doors, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2008 Grade 1.

• Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
• Device lengths: 2' 2' (610 mm) Door size 3' 2'4' to 3' (711mm to 914 mm) Door size 4' 2'10" to 4' (864 mm to 1219 mm) Door size
• Device centerline from finished floor: 395 /8" (1006 mm) Standard Adjustable from 355 /8" (905mm) to 495 /8" (1260mm) Center case dimensions 8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
• Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
• Projection: Pushbar neutral – 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm)
• Latch bolt: Deadlocking top & bottom bolt, 5 /8" (16mm) throw
• Door undercut: 1 /4" (7mm) recommended
• Top & bottom Latch case: 4 1/2" x 2 1/8" x 1 1/2" (114mm x 54mm x 38mm)
• Vertical rods: Round 2-piece adjustable rods – Top rod adjustable from 6'8" (2027mm) to 8'4"(2533mm). Bottom rod adjustable 35 5/8" (905 mm) to 49 5/8" (1260 mm). Extension rod kits available for doors over 8'4" (2533mm).
• Fasteners & sex bolts (SNB): Includes screw pack for 1 3/4" (44mm) to 2 1/4" (57mm) thick metal doors. Optional 425 SNB available.
