Von Duprin 9847EO-F-626-36 Fire-Rated CVR Smooth Exit Device, 36in x Up to 96in, No Dogging, Grade 1

Von Duprin 9847EO-F-626-36 Fire-Rated CVR Smooth Exit Device offers a reliable solution for emergency exit needs in commercial settings. This exit-only device, featuring a concealed vertical rod mechanism, is designed for doors ranging from 36 inches to a height of 96 inches. It is UL listed for fire exit hardware and meets ANSI/BHMA A156.3 2014 Grade 1 standards, ensuring both durability and safety. A standout feature of the 9847EO is its smooth mechanism case, providing a sleek appearance while maintaining robust performance. The device is field-selectable for various functions and is non-handed, allowing for flexible installation. With a deadlocking top and bottom bolt, the latch provides a secure 5/8-inch throw. This exit device is suitable for metal doors with a thickness of 1-3/4 inches and can be adjusted for different door heights, accommodating both standard and taller installations. The standard finish in satin chrome (626/US26D) not only enhances its aesthetic appeal but also offers excellent corrosion resistance. With the added benefit of optional electrical features such as latch bolt monitoring and request-to-exit capabilities, the Von Duprin 9847EO-F-626-36 is an exceptional choice for enhancing safety and security in any commercial environment.

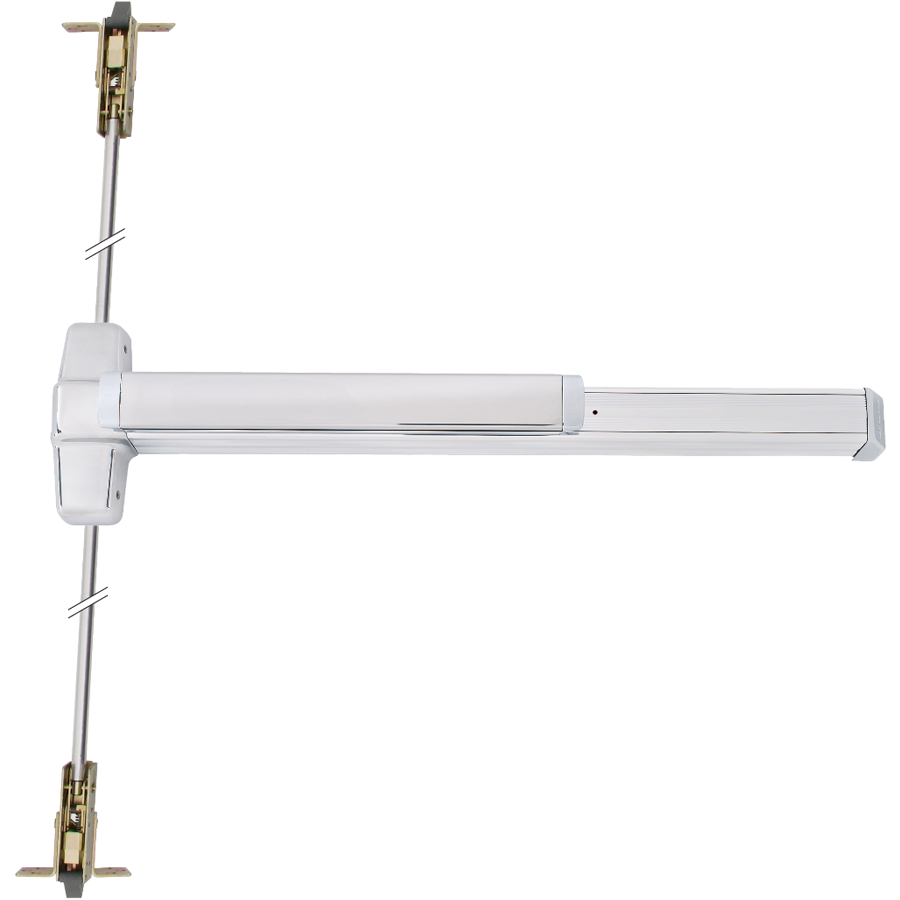

Fire-Rated, CVR (Concealed Vertical Rod) Smooth Exit Device, Exit Only No Trim, 36in x Up to 96in, No Dogging, Grade 1, 626/US26D Satin Chrome

9847-F/9947-F Fire exit concealed vertical rod device are certified to ANSI/BHMA A156.3 2014, grade 1 and UL listed for fire exit hardware. The 9847-F device has a smooth mechanism case and the 9947-F device has a grooved case. The concealed vertical rod device is non-handed except when the following device option is used: SS (signal switch) devices.

Specifications:

• Device Functions: Device ships EO/DT/NL; Field selectable; For TP, K or L remove NL drive screw from device.
• Device Lengths:
• 2: 2" (610 mm) Door size (shipped less UL label)
• 3: 2"4" to 3" (711mm to 914 mm) Door size
• 4: 2"10" to 4" (864 mm to 1219 mm) Door size
• Device Centerline from Finished Floor: 39 5/8" (1006 mm) Standard adjustable from 35 5/8" (905mm) to 49 5/8" (1260mm)
• Center Case: 8" x 2-3/4" x 2-3/8" (203mm x 70mm x 60mm)
• Mechanism Case: 2-1/4" x 2-1/4" (57mm x 57mm)
• Projection:
• Push bar neutral – 3-13/16" (97 mm)
• Push bar depressed – 3-1/16" (78 mm)
• Latch bolt: Deadlocking top & bottom bolt, 5/8" (16mm) throw
• Door undercut: 1/4" (7mm) recommended
• Top and Bottom Latch Case: 3-3⁄4" x 1-1⁄2" x 1" (95mm x 38mm x 25mm)
• Vertical Rods: Round 2-piece adjustable rods – Top rod adjustable from 6'8" (2027mm) to 8'4"(2533mm). Bottom rod adjustable 35 5/8" (905 mm) to 49 5/8" (1260 mm). Extension rod kits available for doors over 8'4" (2533mm).
• Fasteners & Sex Bolts (SNB): Includes screw pack for 1 3/4" (44mm) to 2 1/4" (57mm) thick metal doors. Optional 425 SNB available.
• Electrical Options:
• LX: Latch bolt monitor switch
• RX: Request to exit
• RX2: Double request to exit
• E: Electric locking and unlocking trim
• EL: Electric latch retraction
• ESL: Emergency secure lockdown
• QEL: Quiet electric latch retraction
• SS: Signal switch
• CX: Chexit delayed exit
• ALK: Alarm exit kit
• WP-RX: Waterproof request to exit
• CON: Allegion Connect
• Mechanical Options:
• -2: Double cylinder
• -2SI: Double cylinder with security indicator
• GBK: Glass bead kit
• LBR: Less bottom rod
• PN: Pneumatic latch retraction
• SNB: Sex bolts
• SEC: Security screws
• WH: Weep holes
• Dogging options: No mechanical dogging; QEL options available
• Strikes:
• Top – 338 – Unfinished
• Bottom – 385A – Unfinished

Standard Trim:

• EO: No outside trim. Exit only
• DT: Dummy trim. Pull when dogged (not recommended for fire device)
• NL: Night latch
• Key retracts latchbolt
• Rim and 1-1/4" mortise cylinder
• NLOP: Night latch. Key retracts latchbolt, pull required
• TP: Thumbpiece
• Key locks and unlocks
• Rim and 1-1/4" mortise cylinder
• TPBE: Thumbpiece, blank escutcheon. Blank escutcheon always operable (no cylinder, use with DT trim)
• K/L: Knob/Lever
• Key locks and unlocks
• Rim and 1-1/4" mortise cylinder
• Handed, reversible lever
• Electrified lever operation available
• KDT/LDT: Knob/lever dummy trim. Pull when dogged
• KNL/LNL: Knob/lever, night latch
• Key retracts latchbolt
• Rim and 1-1/4" mortise cylinder
• Handed, reversible lever
• KBE/LBE: Knob/lever, blank escutcheon. Always operable (no cylinder)
• TL: Turn lever
• Key locks and unlocks (use with DT trim)
• 1-1/4" mortise cylinder
• TLBE: Turn lever, blank escutcheon. Blank escutcheon always operable (no cylinder, use with DT trim)
• TLOP: Turn lever, optional pull
• HL: Hospital latch
• Key locks and unlocks
• 1-1/4" mortise cylinder

Finishes:

• 605 - Bright Brass
• 606 - Satin Brass
• 612 - Satin Bronze
• 613 - Satin Bronze-Oil Rubbed
• 625 - Bright Chrome
• 626 - Satin Chrome
• 626-AM - Satin chrome, Antimicrobial coating
• 643e - Aged Bronze
• 693 - Painted Black
• 721 - Bright Brass
• 728 - Satin Brass

Features

• Projection:
• Top and Bottom Latch Case: 3-3⁄4" x 1-1⁄2" x 1" (95mm x 38mm x 25mm)
• Top – 338 – Unfinished
• RX: Request to exit
• GBK: Glass bead kit
• ALK: Alarm exit kit
• -2SI: Double cylinder with security indicator
• Push bar neutral – 3-13/16" (97 mm)
• EL: Electric latch retraction
• SNB: Sex bolts
• CON: Allegion Connect
• -2: Double cylinder
• 4: 2"10" to 4" (864 mm to 1219 mm) Door size
• PN: Pneumatic latch retraction
• QEL: Quiet electric latch retraction
• Latch bolt: Deadlocking top & bottom bolt, 5/8" (16mm) throw
• Mechanical Options:
• Mechanism Case: 2-1/4" x 2-1/4" (57mm x 57mm)
• Center Case: 8" x 2-3/4" x 2-3/8" (203mm x 70mm x 60mm)
• WP-RX: Waterproof request to exit
• Device Lengths:
• 3: 2"4" to 3" (711mm to 914 mm) Door size
• E: Electric locking and unlocking trim
• SS: Signal switch
• Fasteners & Sex Bolts (SNB): Includes screw pack for 1 3/4" (44mm) to 2 1/4" (57mm) thick metal doors. Optional 425 SNB available.
• ESL: Emergency secure lockdown
• CX: Chexit delayed exit
• Device Functions: Device ships EO/DT/NL; Field selectable; For TP, K or L remove NL drive screw from device.
• Dogging options: No mechanical dogging; QEL options available
• Push bar depressed – 3-1/16" (78 mm)
• LX: Latch bolt monitor switch
• Device Centerline from Finished Floor: 39 5/8" (1006 mm) Standard adjustable from 35 5/8" (905mm) to 49 5/8" (1260mm)
• Electrical Options:
• Strikes:
• Bottom – 385A – Unfinished
• 2: 2" (610 mm) Door size (shipped less UL label)
• SEC: Security screws
• Vertical Rods: Round 2-piece adjustable rods – Top rod adjustable from 6'8" (2027mm) to 8'4"(2533mm). Bottom rod adjustable 35 5/8" (905 mm) to 49 5/8" (1260 mm). Extension rod kits available for doors over 8'4" (2533mm).
• LBR: Less bottom rod
• Door undercut: 1/4" (7mm) recommended
• RX2: Double request to exit
• WH: Weep holes
