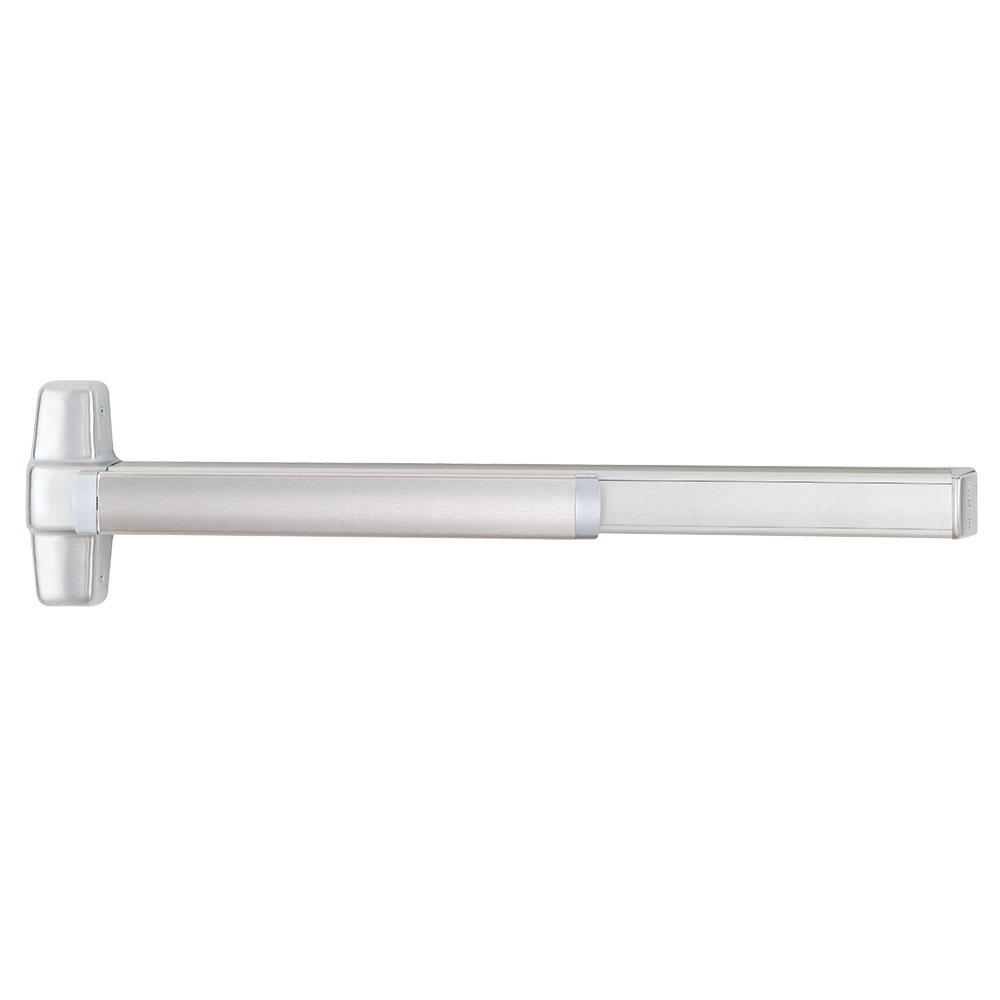

Von Duprin 9848L-06-F 3 32D RHR Grade 1 CVR Exit Device 630

Von Duprin 9848L-06-F 3 32D RHR Grade 1 CVR Exit Device 630 is a robust solution for ensuring safe and efficient exit routes in commercial settings. This Grade 1 concealed vertical rod exit device is designed for doors ranging from 80" to 100" in height and features a fire-rated design, making it suitable for various applications. The device is equipped with a 36" exit bar and comes with a sleek satin stainless steel finish that not only enhances its aesthetic appeal but also provides durability. The 9848 Series is UL listed for panic exit hardware, ensuring compliance with safety standards. Its field-reversible handing allows for flexible installation on both single and double metal doors. The device utilizes a deadlocking top bolt with a 3/4" throw and a bottom bolt with a 1 1/2" throw, providing secure locking capabilities. Installation is straightforward with included fasteners for 1 3/4" to 2 1/4" thick metal doors. The round, adjustable vertical rods can accommodate various door heights and configurations, while the lever with escutcheon trim design offers an intuitive user experience. With a limited one-year warranty, Von Duprin backs its commitment to quality and reliability in exit solutions.

Grade 1 CVR Exit Device 630

Grade 1 Concealed Vertical Rod Exit Bar, 36" Fire-Rated Device, 80" to 100" Door Height, Classroom Function, 06 Lever with Escutcheon, Less Dogging, Satin Stainless Steel Finish, Field Reversible

9848/9948 Concealed vertical rod device for use on single or double metal doors, UL listed for panic exit hardware. Covers stock hollow metal doors with 86 or 161 cutouts.

The 9848 Series has a smooth mechanism case that is non-handed with some exceptions.

The 9848 Concealed verticle rod device is for use on single or double metal doors and is UL listed for panic exit hardware.

• Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
• Device lengths: 2' 2" (610 mm) Door size (shipped less UL label) 3' 2'4' to 3' (711mm to 914 mm) Door size 4' 2'10" to 4' (864 mm to 1219 mm) Door size
• Device centerline from finished floor: 395 /8" (1006 mm) Standard Adjustable from 355 /8" (905mm) to 495 /8" (1260mm)
• Center case dimensions: 8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
• Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
• Projection: Pushbar neutral – 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm)
• Latch bolt: Deadlocking top bolt, 3/4" (19mm) throw Deadlocking bottom bolt, 1 1/2" (38mm) throw
• Door undercut: 3 /4" (19mm) maximum, more than 1 /4" minimum
• Top & bottom Latch case: 4 1/4" x 1 1/2" x 1 1/8" (107mm x 38mm x 28mm)
• Vertical rods: Round 2-piece adjustable rods – Top rod adjustable from 6'8" (2027mm) to 8'4"(2533mm). Bottom rod adjustable 35 5/8" (905 mm) to 49 5/8" (1260 mm). Extension rod kits available for doors over 8'4" (2533mm).
• Fasteners & sex bolts (SNB): Includes screw pack for 1 3/4" (44mm) to 2 1/4" (57mm) thick metal doors. Optional 425 SNB available.
