Von Duprin 9947DT 3 US28 Grade 1 CVR Exit Device 628

Von Duprin 9947DT 3 US28 Grade 1 CVR Exit Device 628 offers a reliable solution for egress requirements, featuring a Grade 1 concealed vertical rod design. This device is ideal for single or double metal doors, accommodating heights between 80" and 100". Its wide stile pushpad allows for easy operation, making it suitable for various commercial environments. The 9947DT model boasts a satin aluminum clear anodized finish, ensuring durability and a professional appearance. It includes a dummy function, escutcheon pull, and hex key dogging for enhanced security and functionality. The device measures 36" in length and is field reversible, making installation straightforward across different door styles, with a recommended door thickness of 1-3/4" to 2-1/4". Designed to meet ANSI A156.3 - 2008 Grade 1 standards, the 9947 Series is UL listed for panic exit hardware, ensuring compliance with safety regulations. The device features deadlocking top and bottom bolts with a 5/8" throw, providing added security. Vertical rods are adjustable, with extension kits available for taller doors. With a limited 3-year warranty, the Von Duprin 9947DT is a trusted choice for ensuring safe and efficient building access.

Grade 1 CVR Exit Device 628

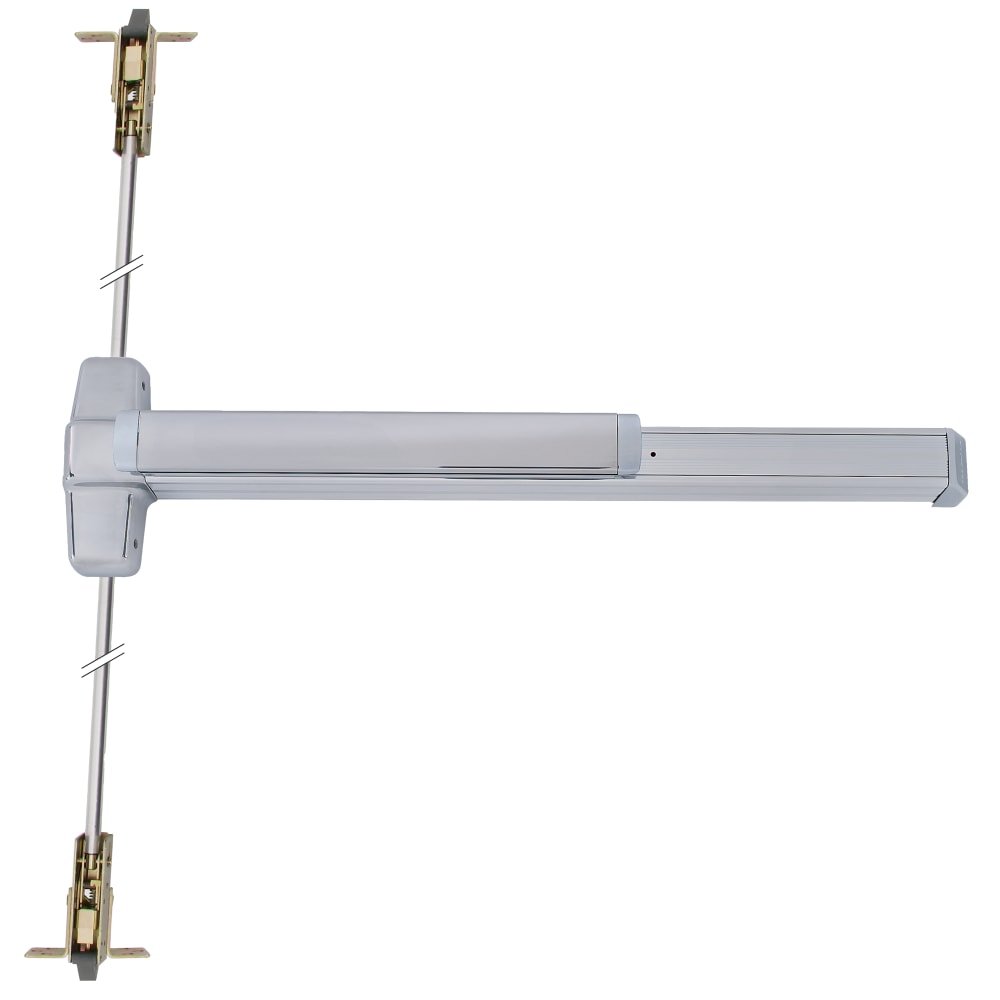

Grade 1 Concealed Vertical Rod Exit Bar, Wide Stile Pushpad, 36" Device, 80" to 100" Door Height, Dummy Function, Escutcheon Pull, Hex Key Dogging, Satin Aluminum Clear Anodized Finish, Field Reversible

9847/9947 Concealed vertical rod device for use on single or double metal doors, UL listed for panic exit hardware. The 9847 device has a smooth mechanism case and the 9947 device has a grooved case.

Grade 1 exit devices available in an array of finishes.

The 9947 Series by Von Duprin is UL listed for panic exit hardware. Devices are ANSI A156.3 - 2008 Grade 1 with a grooved case.

• Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
• Device lengths:
  • 2' — 2' (610 mm) Door size
  • 3' — 2' 4' to 3' (711 mm to 914 mm) door size
  • 4' — 2' 10" to 4' (864 mm to 1219 mm) door size
• Device centerline from finished floor:
  • 39-5/8" (1006 mm) Standard
  • Adjustable from 35-5/8" (905 mm) to 49-5/8" (1260 mm)
• Center case dimensions: 8" x 2-3/4" x 2-3/8" (203 mm x 70 mm x 60 mm)
• Mechanism case dimensions: 2-1/4" x 2-1/4" (57 mm x 57 mm)
• Projection:
  • Pushbar neutral — 3-13/16" (97 mm)
  • Pushbar depressed — 3-1/16" (78 mm)
• Latch bolt: Deadlocking top & bottom bolt, 5/8" (16 mm) throw
• Door undercut: 1/4" (7 mm) recommended
• Top & bottom Latch case: 4-1/2" x 2-1/8" x 1-1/2" (114 mm x 54 mm x 38 mm)
• Vertical rods:
  • Round 2-piece adjustable rods
  • Top rod adjustable from 6' 8" (2027 mm) to 8'4" (2533 mm).
  • Bottom rod adjustable 35-5/8" (905 mm) to 49-5/8" (1260 mm).
  • Extension rod kits available for doors over 8' 4" (2533 mm).
• Fasteners & sex bolts (SNB): Includes screw pack for 1-3/4" (44 mm) to 2-1/4" (57 mm) thick metal doors. Optional 425 SNB available.
