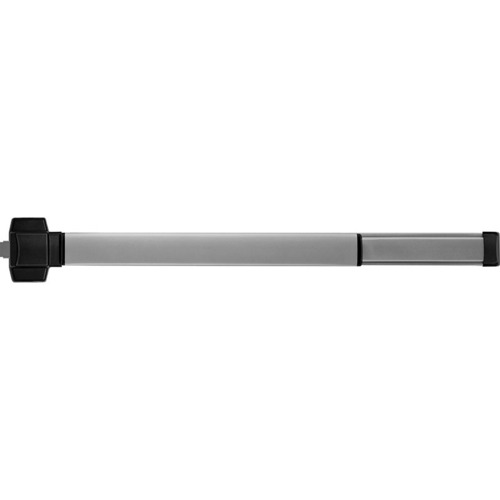

Von Duprin CD-9849L-DT-626-48-LHR-06 KIT is a sophisticated concealed vertical cable exit device designed for both single and metal doors. This Grade 1 device, certified under ANSI A156.3 standards, ensures reliable performance and security. The smooth mechanism case is coupled with cylinder dogging, which requires a 1-1/4 inch mortise cylinder for operation. With a generous size accommodating doors between 48 inches wide and up to 96 inches high, the CD-9849L features a deadlocking top and bottom bolt with a 1/2 inch throw, ensuring robust security. The vertical cable uses durable 7/32 inch stainless steel, while the device projects just 3-13/16 inches when neutral, minimizing obstruction. Installation is straightforward, as it includes a screw pack for metal doors of 1-3/4 and 2-1/4 inches thick. The left-handed reverse handing allows for flexibility in different door configurations, while the satin chrome finish (626/US26D) adds a professional touch. The device also offers a variety of electrical and mechanical options to suit specific needs, including request to exit and electric locking features. The Von Duprin CD-9849L-DT-626-48-LHR-06 KIT provides a reliable, stylish solution for panic exit hardware, making it ideal for commercial settings where safety is paramount.

KIT - CVC (Concealed Vertical Cable) Smooth Exit Device, CD (Cylinder Dogging, Requires 1-1/4in Mortise Cylinder), 996L-DT-06 Dummy Lever Trim, LHR Left Hand Reverse/Reversible Handing (Snap Ring Tool Required), 48in x Up to 96in, Grade 1, 626/US26D Satin Chrome

9849/9949 Concealed vertical cable device for use on single or metal doors, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2001 grade 1. The 9849 device has a smooth mechanism case and the 9949 device has a grooved case. The concealed vertical cable device is non-handed except when the following device options are used: SD (special dogging), or SS (signal switch).

Specifications:

• Device Functions: Device ships EO/DT/NL; field selectable; for TP, K or L remove NL drive screw from device
• Device Lengths:
• 2' 2' (610mm) Door size
• 3' 2'4' to 3' (711mm to 914 mm) Door size
• 4' 2'10" to 4' (864 mm to 1219 mm) Door size
• Device Centerline from Finished Floor: 39 5/8" (1006 mm) standard
• Center Case: 8" x 2-3/4" x 2-3/8" (203mm x 70mm x 60mm)
• Mechanism Case: 2-1⁄4" x 2-1⁄4" (57mm x 57mm)
• Projection:
• Push bar neutral – 3-13/16" (97 mm)
• Push bar depressed – 3-1/16" (78 mm)
• Latch Bolt: Deadlocking top & bottom bolt, 1/2" (13mm) throw
• Door Undercut: 3/4" (19mm) maximum. (24231516 spacer block kit needed for 3⁄4" undercut)
• Top & Bottom Latch Case: 5-13/16" x 1-1/4" x 1-7/16" (147mm x 32mm x 37mm)
• Vertical Cable: 7/32" (6mm) Diameter stainless steel cables
• Fasteners & Sex Bolts (SNB): Includes screw pack for 1-3/4" (44mm) and 2-1/4" (57mm) thick metal doors. Optional 425 SNB available
• Electrical Options:
• LX: Latch bolt monitor switch. For 98/9949 devices, LX switch monitors trim input or electric dogging of EL/QEL devices. LX switch does not monitor latch bolt condition.
• RX: Request to exit
• RX2: Double request to exit
• E: Electric locking and unlocking trim
• EL: Electric latch retraction
• ESL: Emergency secure lockdown
• QEL: Quiet electric latch retraction
• SS: Signal switch
• CX: Chexit delayed exit
• ALK: Alarm exit kit
• WP-RX: Waterproof request to exit
• CON: Allegion Connect
• Mechanical Options:
• -2: Double cylinder
• -2SI: Double cylinder with security indicator
• AX: Accessible device
• GBK: Glass bead kit
• LBL: Less bottom latch
• PN: Pneumatic latch retraction
• SG: Safety glow
• SNB: Sex bolts
• SEC: Security screws
• WH: Weep holes
• Dogging Features: No mechanical dogging; QEL options available
• Dogging Options:
• CD: Cylinder dogging
• CD-CX: Chexit cylinder dogging
• CDSI: Cylinder dogging with security indicator
• HDSI: Hex dogging with security indicator
• SD: Special center case dogging
• LD: Less dogging
• DI: Dogging indicator
• CI: Cylinder dogging indicator
• Strikes:
• Top – 249 – Unfinished
• Bottom – 349 – Unfinished

Standard Trim:

• EO: No outside trim. Exit only
• DT: Dummy trim. Pull when dogged (not recommended for fire device)
• NL: Night latch
• Key retracts latchbolt
• Rim and 1-1/4" mortise cylinder
• NLOP: Night latch. Key retracts latchbolt, pull required
• TP: Thumbpiece
• Key locks and unlocks
• Rim and 1-1/4" mortise cylinder
• TPBE: Thumbpiece, blank escutcheon. Blank escutcheon always operable (no cylinder, use with DT trim)
• K/L: Knob/Lever
• Key locks and unlocks
• Rim and 1-1/4" mortise cylinder
• Handed, reversible lever
• Electrified lever operation available
• KDT/LDT: Knob/lever dummy trim. Pull when dogged
• KNL/LNL: Knob/lever, night latch
• Key retracts latchbolt
• Rim and 1-1/4" mortise cylinder
• Handed, reversible lever
• KBE/LBE: Knob/lever, blank escutcheon. Always operable (no cylinder)
• TL: Turn lever
• Key locks and unlocks (use with DT trim)
• 1-1/4" mortise cylinder
• TLBE: Turn lever, blank escutcheon. Blank escutcheon always operable (no cylinder, use with DT trim)
• TLOP: Turn lever, optional pull
• HL: Hospital latch
• Key locks and unlocks
• 1-1/4" mortise cylinder

Finishes:

• 605 - Bright brass
• 606 - Satin brass
• 612 - Satin bronze
• 625 - Bright chrome
• 626/626AM - Satin chrome
• 628 - Aluminum, anodized
• 710 - Duranodic dark bronze
• 711 - Matte black/anodized
• 643e - Aged bronze
