Von Duprin CD9847NL-OP 4 32D Grade 1 CVR Exit Device 630

Von Duprin CD9847NL-OP 4 32D Grade 1 CVR Exit Device 630 is a robust solution for commercial exit needs, boasting a Grade 1 rating for superior durability. Designed for use on single or double metal doors, this concealed vertical rod exit device features a wide stile pushpad and a length of 48 inches, making it suitable for doors ranging from 80 to 100 inches in height. This model incorporates a nightlatch function and cylinder dogging, allowing secure locking while providing a smooth exit mechanism. The satin stainless steel finish not only enhances its aesthetic appeal but also ensures long-lasting resistance to wear and tear. Field reversible, the device can accommodate various installation needs, and its adjustable vertical rods cater to different door sizes. With a deadlocking top and bottom bolt featuring a 5/8-inch throw, security is paramount. The device also complies with ANSI A156.3 standards, and is UL listed for panic exit hardware, ensuring reliability in emergency situations. Installation is straightforward, supported by a comprehensive screw pack for doors 1-3/4" to 2-1/4" thick. Trust the Von Duprin CD9847NL-OP for effective and secure access control in your commercial spaces.

Grade 1 CVR Exit Device 630

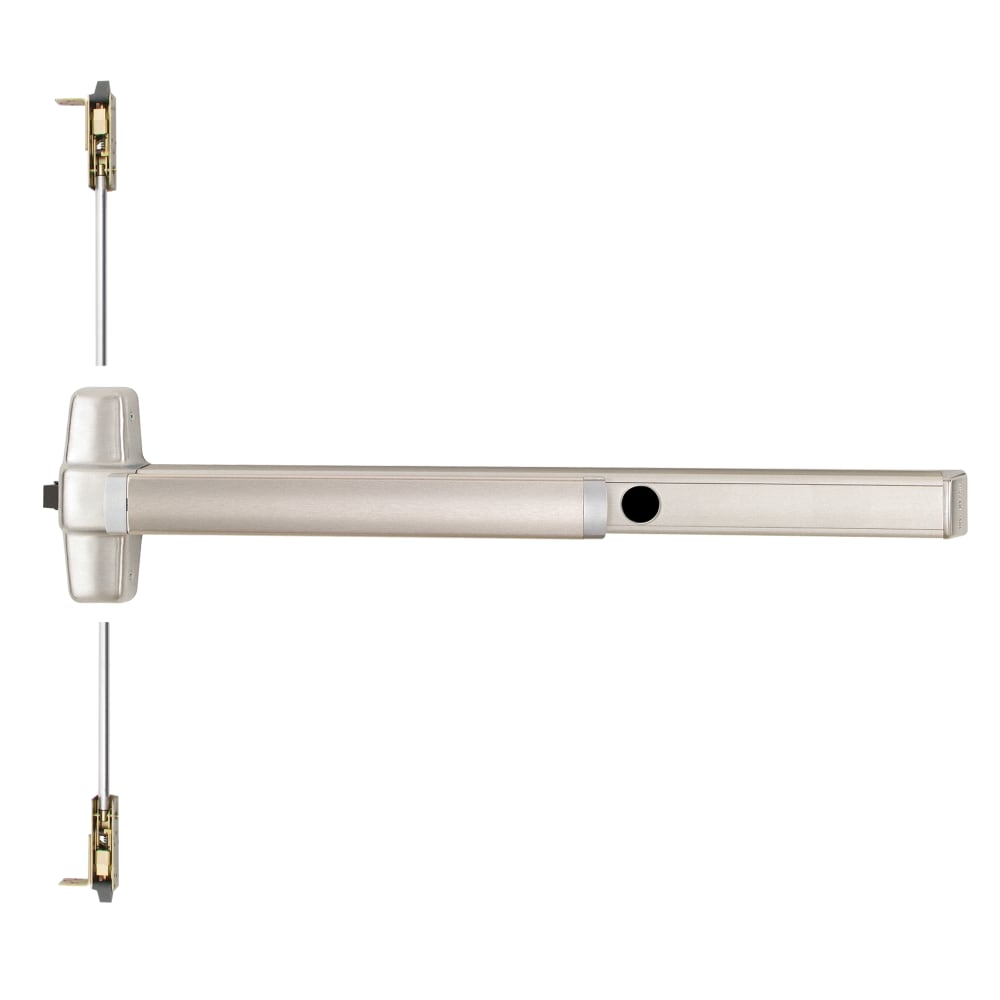

Grade 1 Concealed Vertical Rod Exit Bar, Wide Stile Pushpad, 48" Device, 80" to 100" Door Height, Nightlatch Function, Cylinder Dogging, Less Cylinder, Satin Stainless Steel Finish, Field Reversible

9847/9947 Concealed vertical rod device for use on single or double metal doors, UL listed for panic exit hardware. The 9847 device has a smooth mechanism case and the 9947 device has a grooved case.

The 9847 device has a smooth mechanism case.

The 9847 Series is for use on single or double metal doors, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2008 Grade 1.

• Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
• Device lengths: 2' 2' (610 mm) Door size 3' 2'4' to 3' (711mm to 914 mm) Door size 4' 2'10" to 4' (864 mm to 1219 mm) Door size
• Device centerline from finished floor: 395 /8" (1006 mm) Standard Adjustable from 355 /8" (905mm) to 495 /8" (1260mm) Center case dimensions 8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
• Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
• Projection: Pushbar neutral – 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm)
• Latch bolt: Deadlocking top & bottom bolt, 5 /8" (16mm) throw
• Door undercut: 1 /4" (7mm) recommended
• Top & bottom Latch case: 4 1/2" x 2 1/8" x 1 1/2" (114mm x 54mm x 38mm)
• Vertical rods: Round 2-piece adjustable rods – Top rod adjustable from 6'8" (2027mm) to 8'4"(2533mm). Bottom rod adjustable 35 5/8" (905 mm) to 49 5/8" (1260 mm). Extension rod kits available for doors over 8'4" (2533mm).
• Fasteners & sex bolts (SNB): Includes screw pack for 1 3/4" (44mm) to 2 1/4" (57mm) thick metal doors. Optional 425 SNB available.
