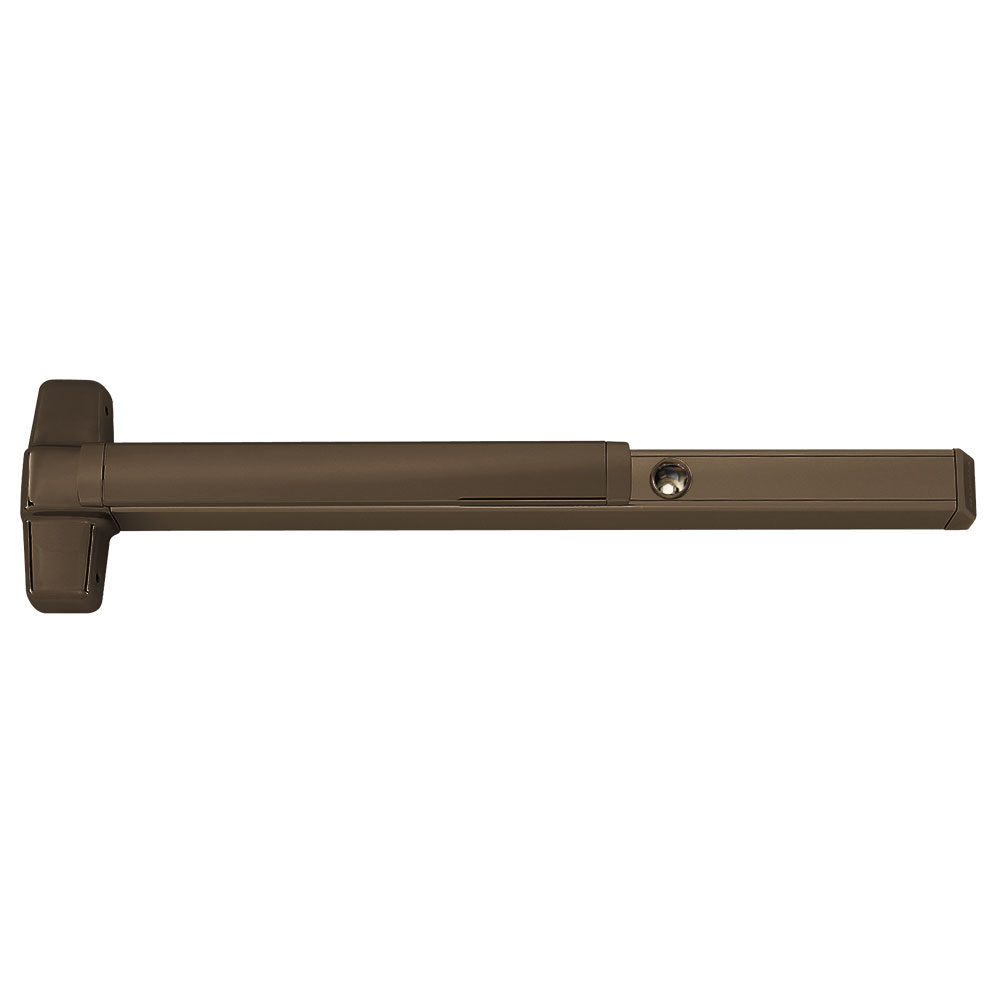

Von Duprin CD9847WDCEO 3 US10B Grade 1 Wood Door CVR Exit 613 is a Grade 1 concealed vertical rod exit bar specifically designed for wood doors. With a length of 36 inches, this exit device is built for exit-only applications and features cylinder dogging capabilities, though it is supplied without the cylinder itself. The dark oxidized satin bronze oil-rubbed finish not only enhances its aesthetic appeal but also ensures durability in various commercial environments. This exit device is UL listed for panic exit hardware and adheres to ANSI/BHMA A156.3 2014, Grade 1 standards, ensuring it meets rigorous performance criteria. Its design accommodates single or double wood doors, with a door height range of 80 to 100 inches and a thickness of 1-3/4 to 2-1/4 inches. Non-handed and field-reversible, the CD9847WDCEO provides flexibility during installation. With its wide stile pushpad and the ability to accept various trim options, this device enhances both functionality and ease of use. The CD9847WDC series is a trusted choice for commercial applications, reflecting Von Duprin's commitment to quality and reliability. For security and convenience, this exit device is an excellent addition to any wood door installation.
Grade 1 Wood Door CVR Exit 613
Grade 1 Concealed Vertical Rod Exit Bar for Wood Doors, 36" Device, Exit Only, Cylinder Dogging, Less Cylinder, Dark Oxidized Satin Bronze Oil Rubbed Finish, Field Reversible
9847WDC/9947WDC Concealed vertical rod device for use on single or double wood doors, UL listed for panic exit hardware. Devices are certified to ANSI/BHMA A156.3 2014, Grade 1.
Accessible: No
Ada Compliance: No
Ansi: A156.3
Baa Qualified: Yes
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: USA
Device Length: 36"
Device Type: Concealed Vertical Rod
Dogging Options: Cylinder Dogging, Less Cylinder
Door Height: 80" to 100"
Door Material: Wood
Door Thickness: 1-3/4" to 2-1/4"
Door Width: 28" to 36"
Finish: 613/US10B
Finish Family: Dark Bronze
Fire Rated: No
Fire Rating: No
Grade: Grade 1
Handing: Non-Handed
Includes Cylinders: No
Includes Trim: No
Installation: Commercial
Limited Warranty: 3 Years
Mechanical Function: Exit Only, Accepts Various Trim
Minimum Stile Size: 3-1/2"
Origin: USA
Pack Height: 10.5"
Pack Height 2: 11.75"
Pack Length: 37"
Pack Length 2: 41"
Pack Qty: 1
Pack Volume: 1942.5 in³
Pack Volume 2: 7708 in³
Pack Width: 5"
Pack Width 2: 16"
Physical Appearance: Wide Stile Pushpad
Product Height: 8"
Product Length: 33"
Product Width: 3.75"
Restrictions: None
Reversible: Yes
Series: 9847WDC Series Concealed Vertical Rod Exit Devices
Ship Weight: 17 lbs.
Strike Bottom: 385A
Subtype: Concealed Vertical Rod Exit Devices
Top Strike: 338
Trim Type: Less trim
Type: Exit Devices
Ul Listing: UL 305
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 3
