Von Duprin EL9947NL-OP 4 US28 Grade 1 CVR Exit Device 628

Von Duprin EL9947NL-OP 4 US28 Grade 1 CVR Exit Device 628 is engineered for durability and safety, making it an ideal choice for both commercial and residential applications. This Grade 1 concealed vertical rod exit device features a wide stile pushpad and is suitable for door heights ranging from 80" to 100". Its electric latch retraction mechanism ensures smooth operation, while the nightlatch function adds an extra layer of security. Designed to fit single or double metal doors, the device is UL listed for panic exit hardware, meeting ANSI A156.3 - 2008 standards. The EL9947NL-OP comes in a satin aluminum clear anodized finish, providing a sleek and professional appearance. It is field reversible and allows for flexible installation, accommodating door sizes from 34" to 48" wide and 1-3/4" to 2-1/4" thick. With adjustable vertical rods and a robust deadlocking top and bottom bolt with a 5/8" throw, this exit device promises reliable performance. The included screw pack ensures ease of installation on metal doors. The Von Duprin EL9947NL-OP is a dependable choice for enhancing security in high-traffic areas, combining functionality with a refined aesthetic.

Grade 1 CVR Exit Device 628

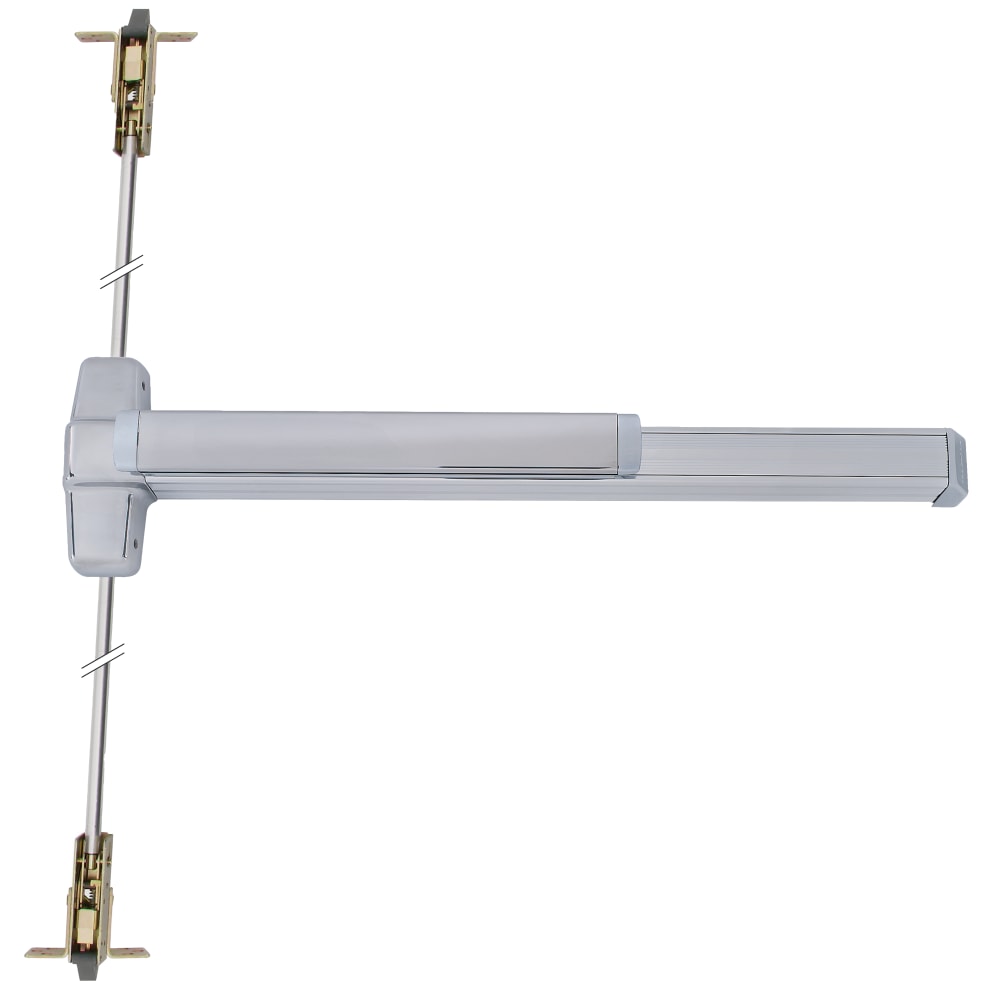

Grade 1 Concealed Vertical Rod Exit Bar, Wide Stile Pushpad, 48" Device, 80" to 100" Door Height, Nightlatch Function, Electric Latch Retraction, Less Dogging, Satin Aluminum Clear Anodized Finish, Field Reversible

9847/9947 Concealed vertical rod device for use on single or double metal doors, UL listed for panic exit hardware. The 9847 device has a smooth mechanism case and the 9947 device has a grooved case.

Grade 1 exit devices available in an array of finishes.

The 9947 Series by Von Duprin is UL listed for panic exit hardware. Devices are ANSI A156.3 - 2008 Grade 1 with a grooved case.

• Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
• Device lengths:
  • 2' — 2' (610 mm) Door size
  • 3' — 2' 4' to 3' (711 mm to 914 mm) door size
  • 4' — 2' 10" to 4' (864 mm to 1219 mm) door size
• Device centerline from finished floor:
  • 39-5/8" (1006 mm) Standard
  • Adjustable from 35-5/8" (905 mm) to 49-5/8" (1260 mm)
• Center case dimensions: 8" x 2-3/4" x 2-3/8" (203 mm x 70 mm x 60 mm)
• Mechanism case dimensions: 2-1/4" x 2-1/4" (57 mm x 57 mm)
• Projection:
  • Pushbar neutral — 3-13/16" (97 mm)
  • Pushbar depressed — 3-1/16" (78 mm)
• Latch bolt: Deadlocking top & bottom bolt, 5/8" (16 mm) throw
• Door undercut: 1/4" (7 mm) recommended
• Top & bottom Latch case: 4-1/2" x 2-1/8" x 1-1/2" (114 mm x 54 mm x 38 mm)
• Vertical rods:
  • Round 2-piece adjustable rods
  • Top rod adjustable from 6' 8" (2027 mm) to 8'4" (2533 mm).
  • Bottom rod adjustable 35-5/8" (905 mm) to 49-5/8" (1260 mm).
  • Extension rod kits available for doors over 8' 4" (2533 mm).
• Fasteners & sex bolts (SNB): Includes screw pack for 1-3/4" (44 mm) to 2-1/4" (57 mm) thick metal doors. Optional 425 SNB available.
