Von Duprin LD9847EO 4 32D Grade 1 CVR Exit Device 630

Von Duprin LD9847EO 4 32D Grade 1 CVR Exit Device 630 offers a robust solution for emergency exits with its Grade 1 concealed vertical rod design. This exit device features a wide stile pushpad and a 48-inch length suitable for doors ranging from 80 to 100 inches in height. Designed for single or double metal doors, it is UL listed for panic exit hardware, ensuring safety and reliability in commercial environments. The LD9847EO is engineered with a smooth mechanism case, offering seamless operation. Its field-reversible design allows for easy adaptation to various door configurations, while the deadlocking top and bottom bolts with a 5/8-inch throw provide enhanced security. The adjustable vertical rods can accommodate door heights up to 8 feet 4 inches, with optional extension rod kits available for taller doors. With a satin stainless steel finish (630/US32D), this exit device not only performs well but also complements modern architectural aesthetics. The device is ANSI A156.3 compliant, ensuring it meets rigorous industry standards. Installation is straightforward, making it an excellent choice for building professionals seeking dependable exit solutions. The LD9847EO's durable construction is backed by a three-year limited warranty, ensuring peace of mind for users.

Grade 1 CVR Exit Device 630

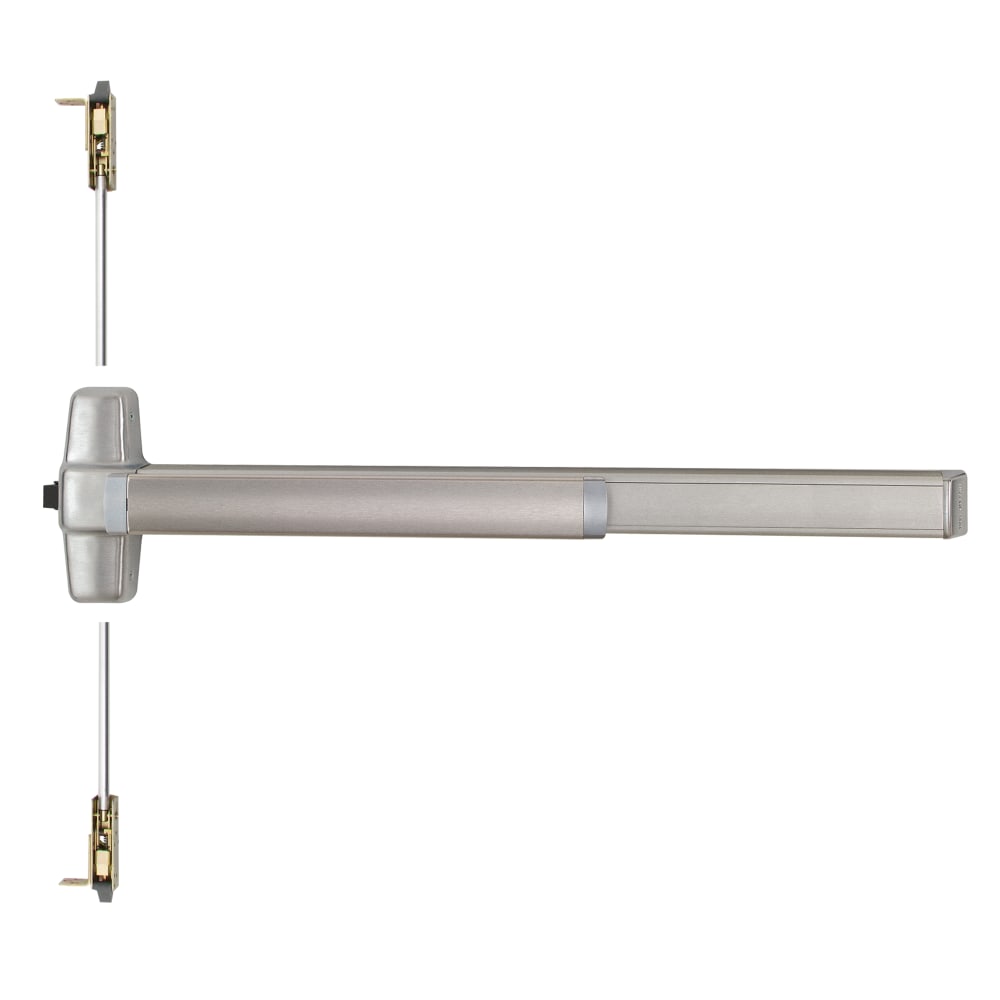

Grade 1 Concealed Vertical Rod Exit Bar, Wide Stile Pushpad, 48" Device, 80" to 100" Door Height, Exit Only, Less Dogging, Satin Stainless Steel Finish, Field Reversible

9847/9947 Concealed vertical rod device for use on single or double metal doors, UL listed for panic exit hardware. The 9847 device has a smooth mechanism case and the 9947 device has a grooved case.

The 9847 device has a smooth mechanism case.

The 9847 Series is for use on single or double metal doors, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2008 Grade 1.

• Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
• Device lengths: 2' 2' (610 mm) Door size 3' 2'4' to 3' (711mm to 914 mm) Door size 4' 2'10" to 4' (864 mm to 1219 mm) Door size
• Device centerline from finished floor: 395 /8" (1006 mm) Standard Adjustable from 355 /8" (905mm) to 495 /8" (1260mm) Center case dimensions 8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
• Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
• Projection: Pushbar neutral – 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm)
• Latch bolt: Deadlocking top & bottom bolt, 5 /8" (16mm) throw
• Door undercut: 1 /4" (7mm) recommended
• Top & bottom Latch case: 4 1/2" x 2 1/8" x 1 1/2" (114mm x 54mm x 38mm)
• Vertical rods: Round 2-piece adjustable rods – Top rod adjustable from 6'8" (2027mm) to 8'4"(2533mm). Bottom rod adjustable 35 5/8" (905 mm) to 49 5/8" (1260 mm). Extension rod kits available for doors over 8'4" (2533mm).
• Fasteners & sex bolts (SNB): Includes screw pack for 1 3/4" (44mm) to 2 1/4" (57mm) thick metal doors. Optional 425 SNB available.

Resources

• 98/9947 Service Manual
• 98/9947F and 98/9948F Template
• 9847 Series Concealed Vertical Rod Exit Device Cut Sheet
• CX98/9947 and CX98/9948 Template
• CX98/9947WDC Installations Instructions
• Chexit (CX) Data Sheet
• EL, SS, CX9847WDC/9947WDC Series Device Hinge Stile Preparation Wood Door Template
• QEL 98/99 Baseplate Conversion Series Installation Instructions
• QEL Conversion Kit for 98/99 Series Installation Instructions
• QEL Data Sheet
• QEL Sell Sheet
• Quiet Electric Latch FAQ
• Von Duprin 33/35 and 98/99 ALK Alarm Kit Installation Instructions
• Von Duprin 33/35 and 98/99 End Cap Retrofit Kit Installation Instructions
• Von Duprin Exit Alarm Kit Sell Sheet
• Von Duprin Finishes Chart
• Von Duprin LD Cover Plate for 33/35 & 98/99 Exit Devices Installation Instruction
• Von Duprin Pneumatic Exit Device Installation Instructions
