Von Duprin RX-7547L-DT-626-36-RHR-06 75 Series Narrow Stile CVR Exit Device with RX Switch Dummy Lever Trim

Von Duprin RX-7547L-DT-626-36-RHR-06 KIT is a premier solution for securing single or double metal doors with its concealed vertical rod design. This UL-listed exit device is certified to ANSI/BHMA A156.3, grade 1, ensuring reliability and performance in emergency situations. The device features a robust deadlocking latch bolt with a 5/8" throw, providing enhanced security while allowing for easy egress. Designed for door sizes ranging from 2' 6" to 4', the RX-7547L accommodates varying applications with a centerline height of 39-13/16" from the finished floor. Its satin chrome finish (626/US26D) not only adds a sleek aesthetic but also offers durability against wear. The device is equipped with hex key dogging as standard, with optional electric locking and unlocking features for added convenience. In addition to its functional design, the RX-7547L comes with multiple trim options, including exit only, dummy trim, and night latch configurations. This flexibility makes it suitable for a wide range of building requirements. Whether you're outfitting a commercial space or enhancing an existing structure, the Von Duprin RX-7547L-DT-626-36-RHR-06 KIT stands out as an excellent choice for safety and accessibility.

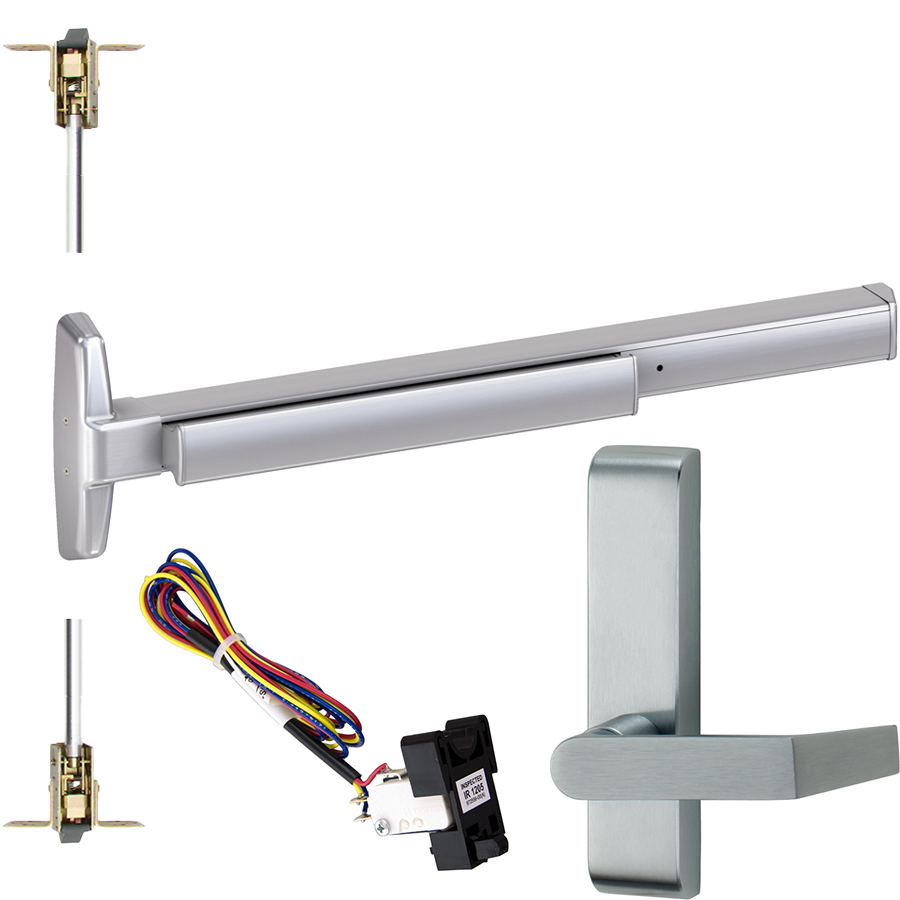

KIT - 75 Series Narrow Stile CVR (Concealed Vertical Rod) Exit Device, RX (Request to Exit Switch), 360L-DT-06 Dummy Lever Trim, RHR Right Hand Reverse, 36in x Up to 96in, Hex Dogging, Grade 1, 626/US26D Satin Chrome

The 7547 concealed vertical rod device for use on single or double metal doors, UL listed for panic exit hardware. These are certified to ANSI/BHMA A156.3 2014, grade 1.

Specifications:

• Device Functions: Device ships EO/DT/NL; field selectable
• Center Case: 9" x 1-5/8" x 2-3/8" (229mm x 41mm x 60mm)
• Device lengths:
• 3': 2' 6" to 3' (762mm to 914mm) door size
• 4': 3' to 4' (914mm to 1219mm) door size
• Device centerline from finished floor:
• 39-13/16" (1011mm)
• 39-11/16" (1008mm) with mullion
• Mechanism Case: 2-5/16" x 2-1/8" (59mm x 54mm)
• Latch Bolt: Deadlocking, 5/8" (15.875mm) throw
• Projection:
• Pushbar neutral - 3-13/16" (97mm)
• Pushbar depressed - 3-1/16" (78mm)
• Pushbar Length: 3' 18" (457mm), 4' 24" (610mm)
• Fasteners and Sex Bolts (SNB): Includes screw pack for 1-3/4" (4mm) and 2-1/4" (57mm) thick metal or wood doors (Optional 425 SNB available)
• Electrified Options:
• LX: Latch bolt monitor switch
• RX: Request to exit
• E: Electric locking and unlocking trim; no cylinder override
• ALK: Quiet electric latch retraction
• CON: Allegion Connect
• QEL: Quiet electric latch retraction
• Mechanical Options:
• GBK: Glass bead kit
• LBR: Less bottom rod
• SNB: Sex bolts
• SEC: Security screws
• WH: Weep holes
• Dogging Options:
• Hex key dogging standard
• CD: Cylinder dogging
• LD: Less dogging
• QEL: QEL options available
• Strikes:
• 388: Top—Unfinished
• 385A: Bottom—unfinished

Trim Functions:

• EO: Exit only.
• No outside Trim
• DT: Dummy trim
• Pull when dogged (not recommended for fire device)
• NL: Night latch
• Key retracts latch bolt
• Rim cylinder
• NLOP: Night latch
• Key retracts latch bolt, optional pull required
• Rim cylinder
• L: Lever
• Key locks and unlocks
• 1-1/4" mortise cylinder
• Handed, reversible lever
• Electrified lever operation available
• LDT: Lever, rigid - dummy trim
• Pull when dogged (not recommended for fire device)
• LBE: Lever - blank escutcheon
• Always operable (no cylinder)
• TL: Turn lever
• Key locks and unlocks; or key unlocks, then relocks when key is removed (use with DT trim)
• 1-1/4" mortise cylinder
• TLBE: Turn lever - blank escutcheon
• Blank escutcheon always operable (no cylinder, use with DT trim)

Finishes:

• 605 - Bright brass
• 606 - Satin brass
• 612 - Satin bronze
• 619 - Satin nickel
• 625 - Bright chrome
• 626 - Satin chrome
• 628 - Aluminum, anodized
• 630 - Satin stainless steel
• 643e - Aged bronze
• 710 - Dark brown, anodized
• 711 - Matte black
