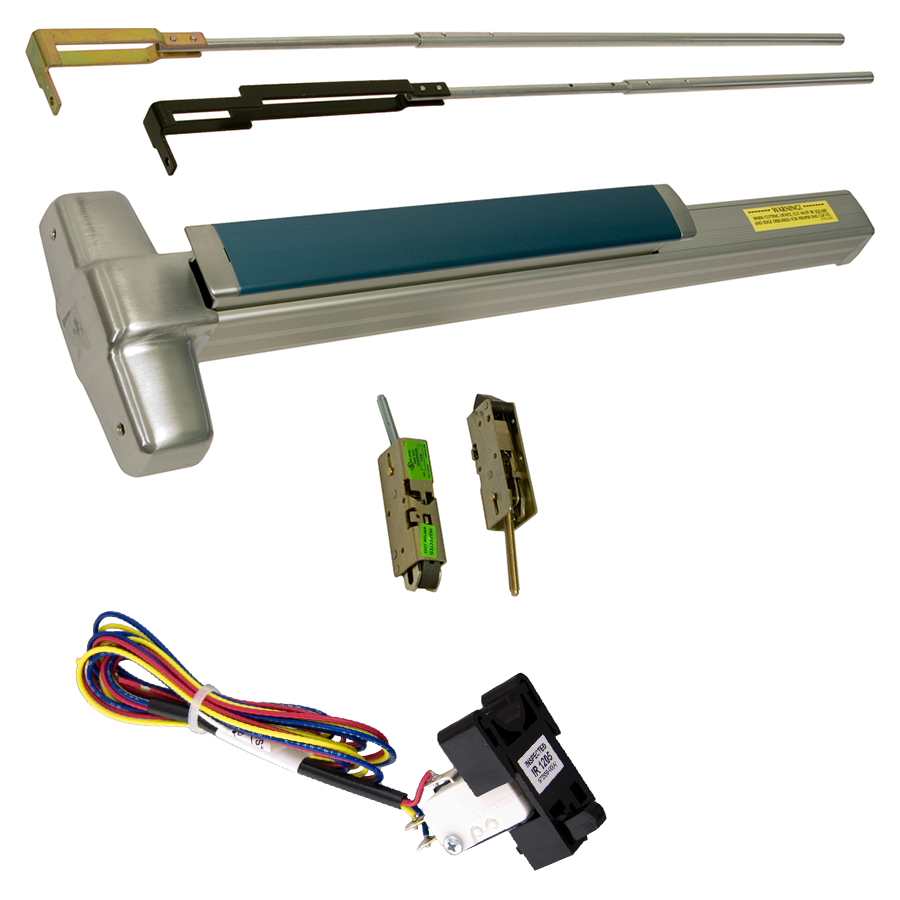

Von Duprin RX-9847EO-626-48 KIT is a top-tier concealed vertical rod exit device designed for both single and double metal doors. This exit-only device is UL listed for panic exit hardware, ensuring reliability and safety in high-traffic areas. Crafted to meet ANSI A156.3 – 2008 Grade 1 standards, it offers durability and performance, making it an ideal choice for commercial applications. With a device length of 48 inches and capable of accommodating door heights from 2 feet to 8 feet 4 inches, this versatile exit device can be installed on various door sizes. The mechanism features a deadlocking top and bottom bolt with a 5/8" throw for enhanced security. Its hex key dogging standard allows for easy operation, while the field-selectable device functions enhance adaptability. The RX-9847EO comes in a sleek satin chrome finish (626/US26D), offering a modern aesthetic that complements any architectural style. Additionally, the adjustable centerline from the finished floor provides flexibility during installation, accommodating different site requirements. Engineered with functionality in mind, the RX-9847EO also includes multiple electrical and mechanical options, ensuring it meets diverse security needs. Elevate your building's safety with this reliable, high-performance exit device from Von Duprin.

KIT - CVR (Concealed Vertical Rod) Smooth Exit Device, RX (Request to Exit Switch), Exit Only No Trim, 48in x Up to 96in, Hex Dogging, Grade 1, 626/US26D Satin Chrome

9847/9947 Concealed vertical rod device for use on single or double metal doors, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2008 grade 1. The 9847 device has a smooth mechanism case and the 9947 device has a grooved case. The concealed vertical rod device is non-handed except when the following device options are used: SD (special dogging), or SS (signal switch).

Specifications:

• Device Functions: Device ships EO/DT/NL; Field selectable; For TP, K or L remove NL drive screw from device.
• Device Lengths:
• 2" - 2" (610 mm) Door size (shipped less UL label)
• 3" - 2"4" to 3" (711mm to 914 mm) Door size
• 4" - 2"10" to 4" (864 mm to 1219 mm) Door size
• Device Centerline from Finished Floor: 39 5/8" (1006 mm) Standard adjustable from 35 5/8" (905mm) to 49 5/8" (1260mm)
• Center Case: 8" x 2-3/4" x 2-3/8" (203mm x 70mm x 60mm)
• Mechanism Case: 2-1/4" x 2-1/4" (57mm x 57mm)
• Projection:
• Push bar neutral – 3-13/16" (97 mm)
• Push bar depressed – 3-1/16" (78 mm)
• Latch bolt: Deadlocking top & bottom bolt, 5/8" (16mm) throw
• Door undercut: 1/4" (7mm) recommended
• Top and Bottom Latch Case: 4 1/2" x 2 1/8" x 1 1/2" (114mm x 54mm x 38mm)
• Vertical Rods: Round 2-piece adjustable rods – Top rod adjustable from 6'8" (2027mm) to 8'4"(2533mm). Bottom rod adjustable 35 5/8" (905 mm) to 49 5/8" (1260 mm). Extension rod kits available for doors over 8'4" (2533mm).
• Fasteners & Sex Bolts (SNB): Includes screw pack for 1 3/4" (44mm) to 2 1/4" (57mm) thick metal doors. Optional 425 SNB available.
• Electrical Options:
• LX: Latch bolt monitor switch
• RX: Request to exit
• RX2: Double request to exit
• E: Electric locking and unlocking trim
• EL: Electric latch retraction
• ESL: Emergency secure lockdown
• QEL: Quiet electric latch retraction
• SS: Signal switch
• CX: Chexit delayed exit
• ALK: Alarm exit kit
• WP-RX: Waterproof request to exit
• CON: Allegion Connect
• Mechanical Options:
• -2: Double cylinder
• -2SI: Double cylinder with security indicator
• GBK: Glass bead kit
• LBR: Less bottom rod
• PL: Pullman latch
• PN: Pneumatic latch retraction
• SNB: Sex bolts
• SEC: Security screws
• WH: Weep holes
• Dogging feature: Hex key dogging standard
• Dogging options:
• CD: Cylinder dogging
• CD-CX: Chexit cylinder dogging
• CDSI: Cylinder dogging with security indicator
• HDSI: Hex dogging with security indicator
• SD: Special center case dogging
• LD: Less dogging
• DI: Dogging indicator
• CI: Cylinder dogging indicator
• Strikes:
• Top – 338 – Unfinished
• Bottom – 385A – Unfinished

Standard Trim:

• EO: No outside trim. Exit only
• DT: Dummy trim. Pull when dogged (not recommended for fire device)
• NL: Night latch
• Key retracts latchbolt
• Rim and 1-1/4" mortise cylinder
• NLOP: Night latch. Key retracts latchbolt, pull required
• TP: Thumbpiece
• Key locks and unlocks
• Rim and 1-1/4" mortise cylinder
• TPBE: Thumbpiece, blank escutcheon. Blank escutcheon always operable (no cylinder, use with DT trim)
• K/L: Knob/Lever
• Key locks and unlocks
• Rim and 1-1/4" mortise cylinder
• Handed, reversible lever
• Electrified lever operation available
• KDT/LDT: Knob/lever dummy trim. Pull when dogged
• KNL/LNL: Knob/lever, night latch
• Key retracts latchbolt
• Rim and 1-1/4" mortise cylinder
• Handed, reversible lever
• KBE/LBE: Knob/lever, blank escutcheon. Always operable (no cylinder)
• TL: Turn lever
• Key locks and unlocks (use with DT trim)
• 1-1/4" mortise cylinder
• TLBE: Turn lever, blank escutcheon. Blank escutcheon always operable (no cylinder, use with DT trim)
• TLOP: Turn lever, optional pull
• HL: Hospital latch
• Key locks and unlocks
• 1-1/4" mortise cylinder

Finishes:

• 605 - Bright Brass
• 606 - Satin Brass
• 612 - Satin Bronze
• 613 - Satin Bronze-Oil Rubbed
• 625 - Bright Chrome
• 626 - Satin Chrome
• 626-AM - Satin chrome, Antimicrobial coating
• 643e - Aged Bronze
• 693 - Painted Black
• 721 - Bright Brass
• 728 - Satin Brass

Features

• Top – 338 – Unfinished
• GBK: Glass bead kit
• -2SI: Double cylinder with security indicator
• DI: Dogging indicator
• -2: Double cylinder
• PN: Pneumatic latch retraction
• Latch bolt: Deadlocking top & bottom bolt, 5/8" (16mm) throw
• CD-CX: Chexit cylinder dogging
• Center Case: 8" x 2-3/4" x 2-3/8" (203mm x 70mm x 60mm)
• WP-RX: Waterproof request to exit
• E: Electric locking and unlocking trim
• SS: Signal switch
• CI: Cylinder dogging indicator
• Fasteners & Sex Bolts (SNB): Includes screw pack for 1 3/4" (44mm) to 2 1/4" (57mm) thick metal doors. Optional 425 SNB available.
• ESL: Emergency secure lockdown
• Device Functions: Device ships EO/DT/NL; Field selectable; For TP, K or L remove NL drive screw from device.
• Push bar depressed – 3-1/16" (78 mm)
• LX: Latch bolt monitor switch
• 2" - 2" (610 mm) Door size (shipped less UL label)
• Electrical Options:
• Strikes:
• Bottom – 385A – Unfinished
• SEC: Security screws
• 3" - 2"4" to 3" (711mm to 914 mm) Door size
• Door undercut: 1/4" (7mm) recommended
• Projection:
• RX: Request to exit
• LD: Less dogging
• 4" - 2"10" to 4" (864 mm to 1219 mm) Door size
• ALK: Alarm exit kit
• Push bar neutral – 3-13/16" (97 mm)
• EL: Electric latch retraction
• SNB: Sex bolts
• CON: Allegion Connect
• QEL: Quiet electric latch retraction
• Mechanical Options:
• Mechanism Case: 2-1/4" x 2-1/4" (57mm x 57mm)
• PL: Pullman latch
• Device Lengths:
• CDSI: Cylinder dogging with security indicator
• CX: Chexit delayed exit
• Device Centerline from Finished Floor: 39 5/8" (1006 mm) Standard adjustable from 35 5/8" (905mm) to 49 5/8" (1260mm)
• Top and Bottom Latch Case: 4 1/2" x 2 1/8" x 1 1/2" (114mm x 54mm x 38mm)
• HDSI: Hex dogging with security indicator
• SD: Special center case dogging
• Vertical Rods: Round 2-piece adjustable rods – Top rod adjustable from 6'8" (2027mm) to 8'4"(2533mm). Bottom rod adjustable 35 5/8" (905 mm) to 49 5/8" (1260 mm). Extension rod kits available for doors over 8'4" (2533mm).
• Dogging feature: Hex key dogging standard
• Dogging options:
• LBR: Less bottom rod
• CD: Cylinder dogging
• RX2: Double request to exit
• WH: Weep holes
