Von Duprin RX9847EO-F 4 32D LBR Grade 1 CVR Exit Device 630

Von Duprin RX9847EO-F 4 32D LBR Grade 1 CVR Exit Device 630 is a top-tier concealed vertical rod exit device designed for both single and double metal doors. This Grade 1 device features a wide stile pushpad and is UL listed for panic exit hardware, ensuring safety and reliability in emergency situations. It accommodates fire-rated applications with a device length of 48 inches, suitable for door heights ranging from 80 to 100 inches. The RX9847EO-F model is equipped with a smooth mechanism case, making it user-friendly while providing a sleek appearance. It includes a request to exit switch and allows for field-reversible installation, offering flexibility for various door configurations. With ANSI A156.3 Grade 1 certification, this exit device guarantees durability and performance. Installation is straightforward, as it comes with a complete screw pack for metal doors ranging from 1-3/4 to 2-1/4 inches in thickness. The adjustable vertical rods provide versatility, with the top rod extending from 6'8" to 8'4" and the bottom rod from 35 5/8" to 49 5/8". The satin stainless steel finish complements modern architectural designs while ensuring corrosion resistance. Enhanced security and compliance are core attributes of the RX9847EO-F, making it an essential choice for commercial applications.

Grade 1 CVR Exit Device 630

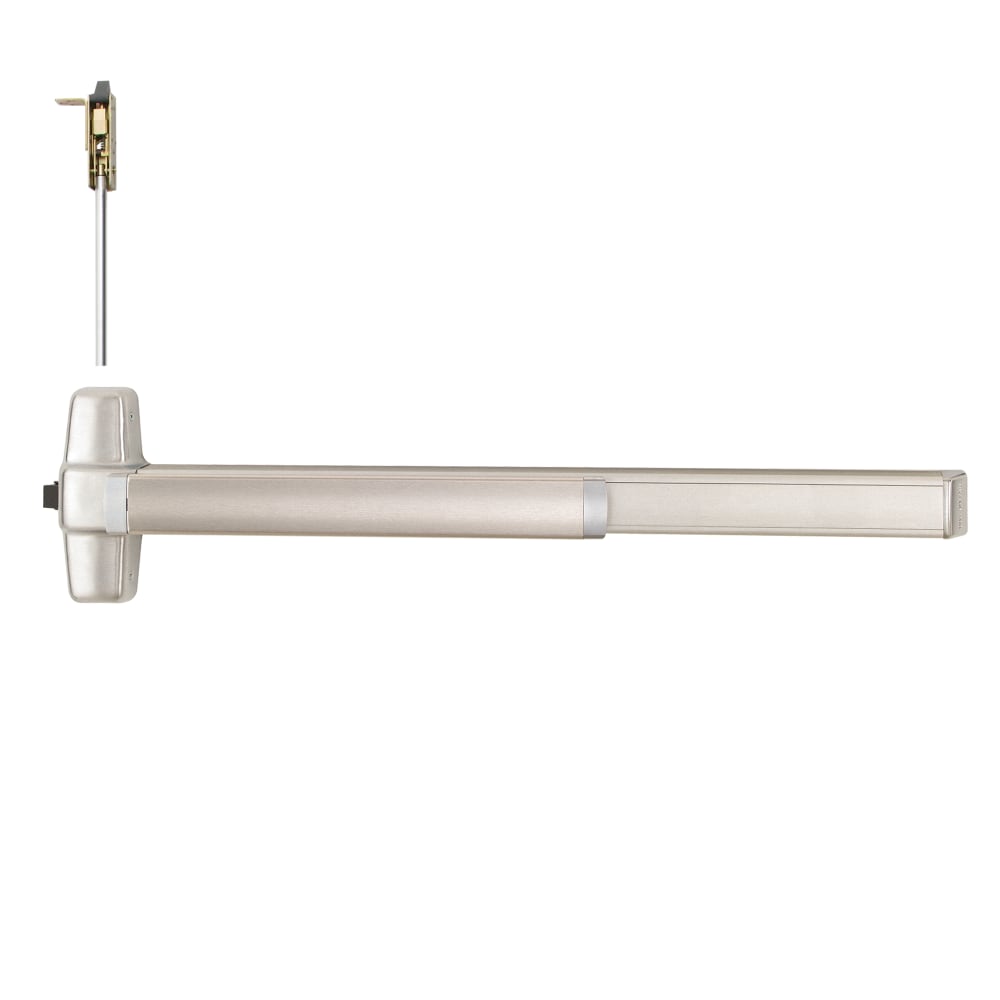

Grade 1 Concealed Vertical Rod Exit Bar, Wide Stile Pushpad, 48" Fire-rated Device, 80" to 100" Door Height, Exit Only, Less Bottom Rod, Request to Exit Switch, Less Dogging, Satin Stainless Steel Finish, Field Reversible

9847/9947 Concealed vertical rod device for use on single or double metal doors, UL listed for panic exit hardware. The 9847 device has a smooth mechanism case and the 9947 device has a grooved case.

The 9847 device has a smooth mechanism case.

The 9847 Series is for use on single or double metal doors, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2008 Grade 1.

• Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
• Device lengths: 2' 2' (610 mm) Door size 3' 2'4' to 3' (711mm to 914 mm) Door size 4' 2'10" to 4' (864 mm to 1219 mm) Door size
• Device centerline from finished floor: 395 /8" (1006 mm) Standard Adjustable from 355 /8" (905mm) to 495 /8" (1260mm) Center case dimensions 8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
• Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
• Projection: Pushbar neutral – 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm)
• Latch bolt: Deadlocking top & bottom bolt, 5 /8" (16mm) throw
• Door undercut: 1 /4" (7mm) recommended
• Top & bottom Latch case: 4 1/2" x 2 1/8" x 1 1/2" (114mm x 54mm x 38mm)
• Vertical rods: Round 2-piece adjustable rods – Top rod adjustable from 6'8" (2027mm) to 8'4"(2533mm). Bottom rod adjustable 35 5/8" (905 mm) to 49 5/8" (1260 mm). Extension rod kits available for doors over 8'4" (2533mm).
• Fasteners & sex bolts (SNB): Includes screw pack for 1 3/4" (44mm) to 2 1/4" (57mm) thick metal doors. Optional 425 SNB available.

Resources

• 98/9947 Service Manual
• 98/9947F and 98/9948F Template
• 9847 Series Concealed Vertical Rod Exit Device Cut Sheet
• CX98/9947 and CX98/9948 Template
• CX98/9947WDC Installations Instructions
• Chexit (CX) Data Sheet
• EL, SS, CX9847WDC/9947WDC Series Device Hinge Stile Preparation Wood Door Template
• QEL 98/99 Baseplate Conversion Series Installation Instructions
• QEL Conversion Kit for 98/99 Series Installation Instructions
• QEL Data Sheet
• QEL Sell Sheet
• Quiet Electric Latch FAQ
• Von Duprin 33/35 and 98/99 ALK Alarm Kit Installation Instructions
• Von Duprin 33/35 and 98/99 End Cap Retrofit Kit Installation Instructions
• Von Duprin Exit Alarm Kit Sell Sheet
• Von Duprin Finishes Chart
• Von Duprin LD Cover Plate for 33/35 & 98/99 Exit Devices Installation Instruction
• Von Duprin Pneumatic Exit Device Installation Instructions
