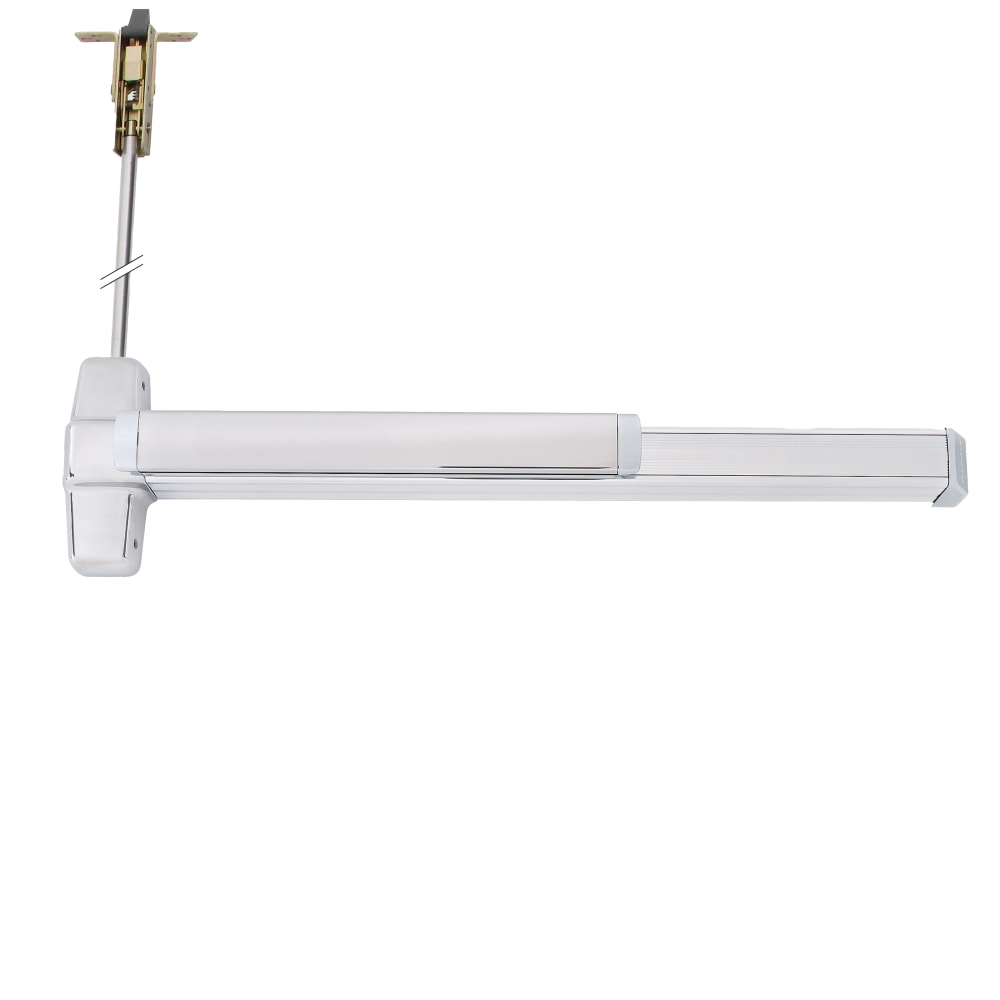

Von Duprin RXLCQEL9947EO 3 26D LBR Grade 1 CVR Exit Device 626

Von Duprin RXLCQEL9947EO 3 26D LBR Grade 1 CVR Exit Device 626 offers a robust solution for emergency exit needs with its Grade 1 concealed vertical rod design. This exit device features a wide stile pushpad and is tailored for door heights ranging from 80" to 100". With a 36" device length, it is perfect for both single and double metal doors, ensuring reliability in high-traffic commercial environments. Engineered with motorized latch retraction and a request to exit switch, the RXLCQEL9947EO enhances safety and convenience without the need for constant manual operation. The device is UL listed for panic exit hardware, meeting ANSI A156.3 - 2008 Grade 1 standards, which guarantees its durability and effectiveness. Designed for easy installation, this exit device is field reversible and accommodates door thicknesses between 1-3/4" and 2-1/4". The satin chrome finish not only adds a touch of elegance but also ensures long-lasting performance. Additionally, the device features adjustable top and bottom rods, making it adaptable to various door sizes. Whether securing a commercial facility or ensuring quick exits during emergencies, the Von Duprin RXLCQEL9947EO is a reliable choice for building professionals and informed homeowners alike.

Grade 1 CVR Exit Device 626

Grade 1 Concealed Vertical Rod Exit Bar, Wide Stile Pushpad, 36" Device, 80" to 100" Door Height, Exit Only, Less Bottom Rod, Motorized Latch Retraction, Request to Exit Switch, Less Dogging, Satin Chrome Finish, Field Reversible

9847/9947 Concealed vertical rod device for use on single or double metal doors, UL listed for panic exit hardware. The 9847 device has a smooth mechanism case and the 9947 device has a grooved case.

Grade 1 exit devices available in an array of finishes.

The 9947 Series by Von Duprin is UL listed for panic exit hardware. Devices are ANSI A156.3 - 2008 Grade 1 with a grooved case.

• Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
• Device lengths:
  • 2' — 2' (610 mm) Door size
  • 3' — 2' 4' to 3' (711 mm to 914 mm) door size
  • 4' — 2' 10" to 4' (864 mm to 1219 mm) door size
• Device centerline from finished floor:
  • 39-5/8" (1006 mm) Standard
  • Adjustable from 35-5/8" (905 mm) to 49-5/8" (1260 mm)
• Center case dimensions: 8" x 2-3/4" x 2-3/8" (203 mm x 70 mm x 60 mm)
• Mechanism case dimensions: 2-1/4" x 2-1/4" (57 mm x 57 mm)
• Projection:
  • Pushbar neutral — 3-13/16" (97 mm)
  • Pushbar depressed — 3-1/16" (78 mm)
• Latch bolt: Deadlocking top & bottom bolt, 5/8" (16 mm) throw
• Door undercut: 1/4" (7 mm) recommended
• Top & bottom Latch case: 4-1/2" x 2-1/8" x 1-1/2" (114 mm x 54 mm x 38 mm)
• Vertical rods:
  • Round 2-piece adjustable rods
  • Top rod adjustable from 6' 8" (2027 mm) to 8'4" (2533 mm).
  • Bottom rod adjustable 35-5/8" (905 mm) to 49-5/8" (1260 mm).
  • Extension rod kits available for doors over 8' 4" (2533 mm).
• Fasteners & sex bolts (SNB): Includes screw pack for 1-3/4" (44 mm) to 2-1/4" (57 mm) thick metal doors. Optional 425 SNB available.
