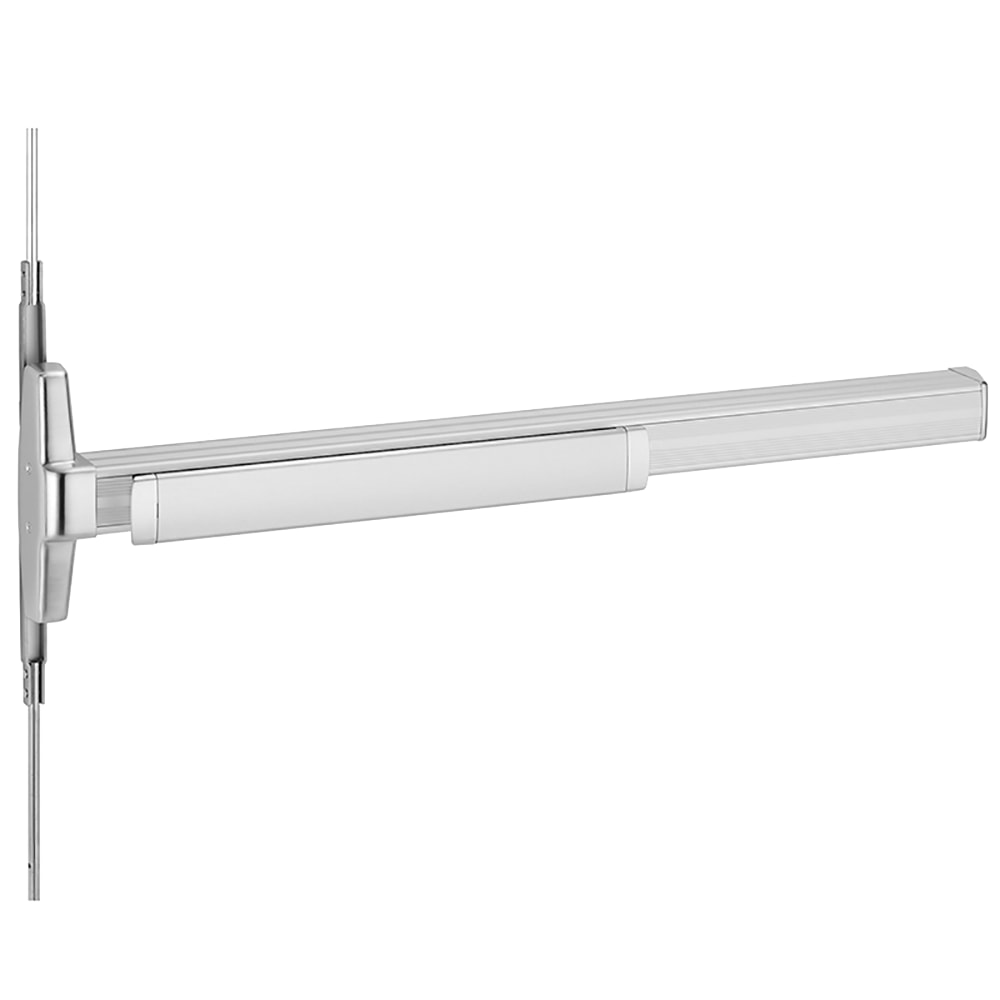

Von Duprin RXQEL3347AEO-F 3 26D Grade 1 Narrow CVR Exit Device 626

Von Duprin RXQEL3347AEO-F 3 26D Grade 1 Narrow CVR Exit 626 is a Grade 1 concealed vertical rod exit device designed for reliable safety and ease of access. This exit-only device features a narrow stile pushpad, making it an ideal choice for both single and double doors with stiles as narrow as 2-1/8 inches. The satin chrome finish not only enhances its aesthetic appeal but also ensures durability and resistance to wear. Equipped with quiet electric latch retraction and a request-to-exit function, this device allows for smooth operation in high-traffic areas. The 3347A model is UL listed for panic exit hardware, meeting ANSI A156.3 - 2001 standards, assuring you of its high-quality performance. The device is non-handed, offering versatility in installation, and is compatible with doors ranging from 28 to 36 inches in width and up to 100 inches in height. With top and bottom latch mechanisms providing a secure deadlocking feature and adjustable vertical rods for optimal fit, the RXQEL3347AEO-F ensures peace of mind without compromising on functionality. Additionally, it's designed for commercial use, making it a perfect solution for business environments requiring dependable exit hardware.

Grade 1 Narrow CVR Exit 626

Grade 1 Concealed Vertical Rod Exit Device, Narrow Stile Pushpad, Exit Only, Less Trim, 36", Less Dogging, Quiet Electric Latch Retraction, Request to Exit, Satin Chrome Finish, Non-Handed

3347A and 3547A for all types of single and double doors, UL listed for panic exit hardware. Devices are ANSI A156.3 - 2001 Grade 1. The 3547A has a smooth mechanism case and the 3347A has grooved case. The concealed vertical rod device is non-handed except when the SS (signal switch) option is used. See opposite page for available outside trim and device functions.

3347A fits door stiles as narrow as 2-1/8" (44 mm), wood door stiles as narrow as 4" (102mm).

3347A is for all types of single and double doors, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2001 Grade 1 and the 3347A has a grooved case. The concealed vertical rod device is non-handed except when the SS (signal switch) option is used.

Device lengths: 2' 2' (610 mm) Door size 3' 2'4" to 3' (660mm to 914 mm) door size 4' 2'8" to 4' (813 mm to 1219 mm) door size

Device centerline from finished floor: 39 13/16" (1006mm)

Center case dimensions: 8 13/16" x 2 13/32" x 1 9/16" (208mm x 62mm x 40mm)

Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)

Projection: Pushbar neutral – 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm)

Latch bolt: Deadlocking anti-friction top & bottom bolt 5 /8" (16mm) throw

Door undercut: 1 /4" (7mm)

Top & bottom latch: 3 3/4" x 1 1/2" x 1" (89mm x 38mm x 25mm)

Vertical rods: Round 2 piece adjustable rods Top rod adjustable from 6'8" (2027mm) to 8'4" (2533mm) Bottom rod adjustable from 35 5/8" (905mm) to 49 5/8" (1260mm) Extension rod kits available for doors over 8'4" (2533mm)

Fasteners & sex bolts (SNB): Includes 1 3/4" (44mm) – 2 1/4" (57mm) wood & metal doors #425 SNB furnished standard for end case #325 SNB furnished standard for EO (exit only device)
